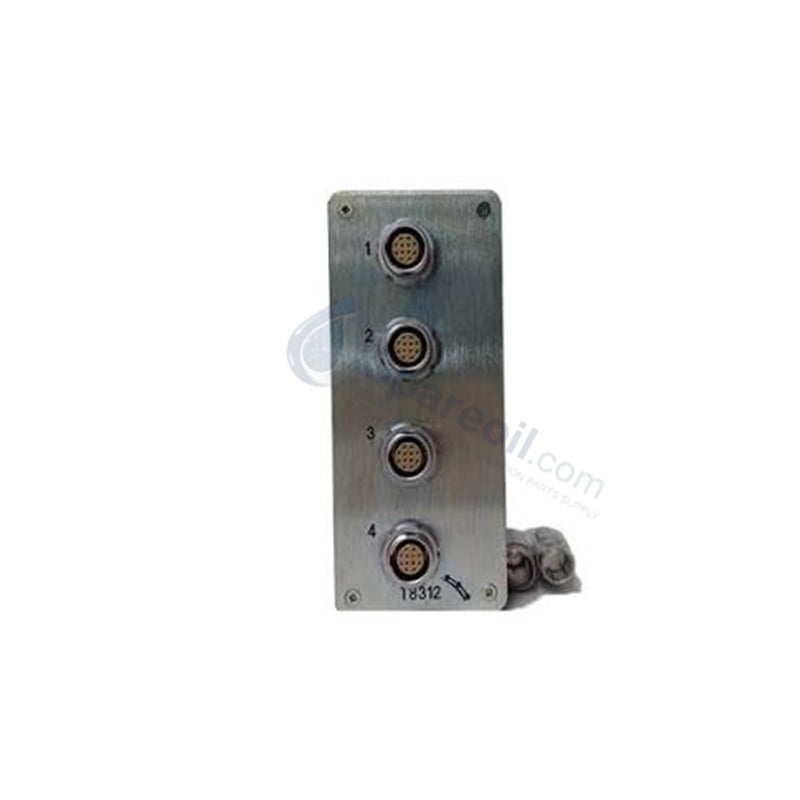

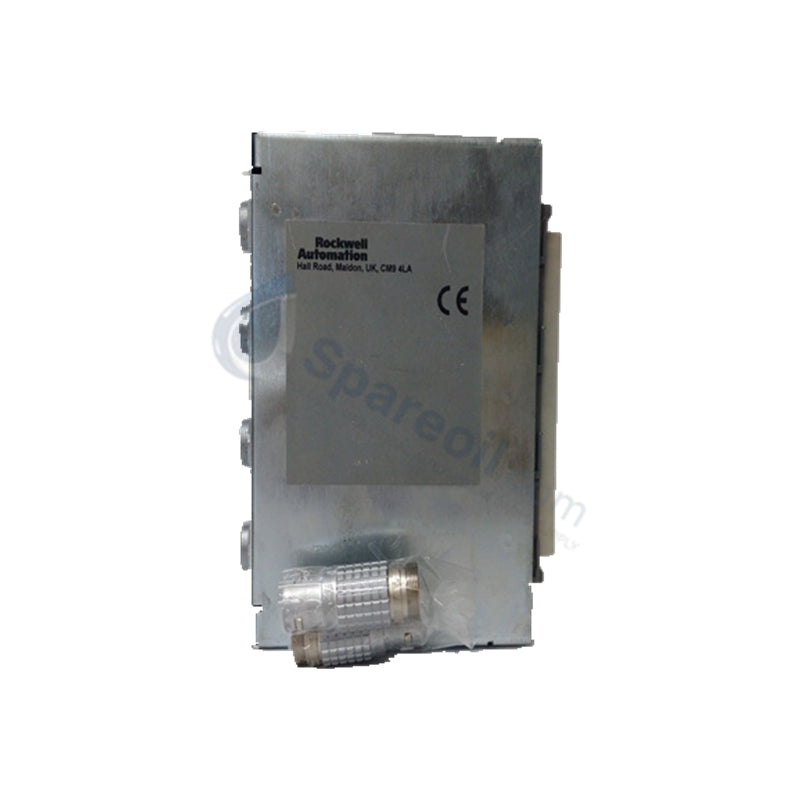

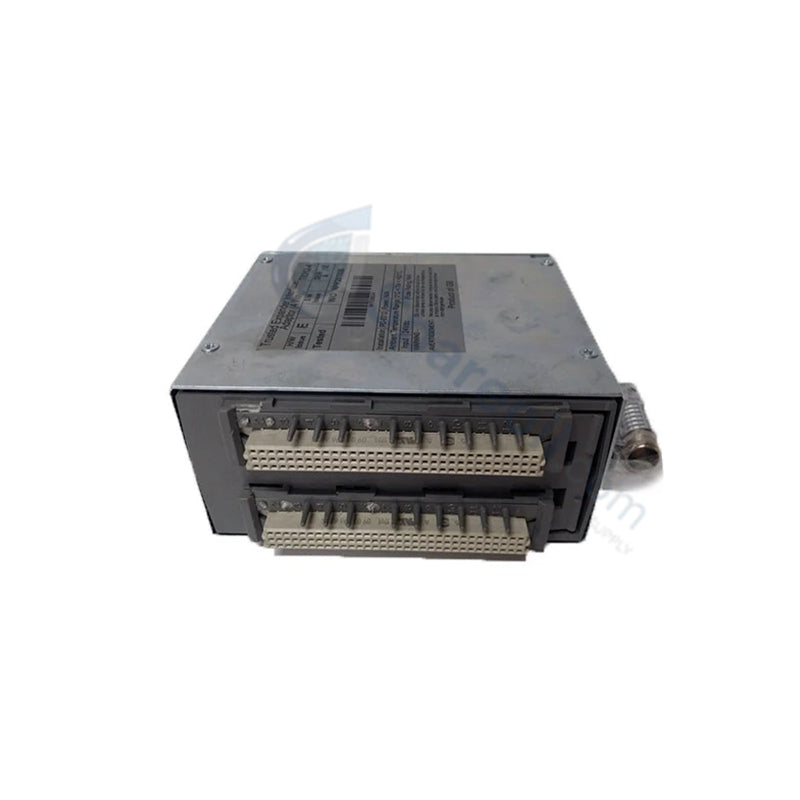

ICS TRIPLEX T8312-4 Trusted TMR Expander Interface Adapter Units

ICS TRIPLEX T8312-4 Trusted TMR Expander Interface Adapter Units

Availability: 20 left in stock

ICS TRIPLEX T8312-4 Trusted TMR Expander Interface Adapter Unit The ICS TRIPLEX T8312-4, also cataloged as the T8312-4 Trusted TMR...

SKU: T8312-4

Manufacturer: ICS Triplex
Product No.: T8312-4
Product Type: Trusted TMR Expander Interface Adapter Units
Product Origin: USA
Payment:T/T, Western Union
Weight: 880g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS TRIPLEX T8312-4 Trusted TMR Expander Interface Adapter Unit

The ICS TRIPLEX T8312-4, also cataloged as the T8312-4 Trusted TMR Expander Interface Adapter Unit, operates as a dedicated hardware component for I/O capacity scaling within Trusted TMR safety systems. The module mounts directly to the backplane, establishing critical physical and electrical routing interfaces between the primary controller chassis and peripheral expander chassis slots.

Layout Choice Selection: Layout 1

Hardware Specifications

Parameter	Specification
Model	T8312-4 (also referenced as T8312-4C)
Brand	ICS TRIPLEX (Rockwell Automation)
Origin	USA / China
Weight	0.88 kg to 1.0 kg
Dimensions	30 cm x 20 cm x 25 cm
Operating Temp	-5 deg C to 60 deg C
Power Consumption	Not specified by manufacturer
Product Type	Trusted TMR Expander Interface Adapter Units
Number of Expansion Slots	4 slots
Supported Modules	T3310 I/O Transceiver, T3481 Guarded Output Module
Communication Interface	Backplane connector to the TMR chassis (7-way layout option)
Storage Temp	-25 deg C to 70 deg C
Relative Humidity	5% to 95% RH, non-condensing

Triple Modular Redundancy Safety Control

The ICS TRIPLEX T8312-4 is engineered to maintain safety instrumented system (SIS) integrity up to SIL 3 certification baselines. The device utilizes a fault-tolerant bus architecture to distribute communication signals across four distinct expansion channels without compromising the central processing loop. Internal circuit traces provide dedicated galvanic isolation between adjacent connection paths, preventing voltage surges from propagating across the backplane network. The hardware interface operates in conjunction with the primary controller to monitor link health, executing immediate fail-safe state execution on the respective slot if data link synchronization or termination integrity degrades.

Frequently Asked Questions

Q: What specific expansion modules plug directly into the T8312-4 adapter interfaces?

A: The adapter unit backplane connectivity is designed to accept and support the ICS Triplex T3310 I/O Transceiver module and the T3481 Guarded Output Module, alongside other compatible Trusted modules.

Q: How does the adapter handle localized mechanical or electrical faults at the expansion interface?

A: The independent routing layout isolates faults on an individual expansion path, ensuring that a physical connector short or broken line does not drop the communication availability of the remaining parallel channels.

Q: Is the T8312-4 adapter unit fully hot-swappable during active control processing?

A: No. Unlike standard powered I/O modules, expander interface adapters provide fundamental backplane bus extensions. Power down procedures must be verified on the target chassis segment prior to physical card installation or removal to prevent data corruption.

Field Installation Guidelines

Chassis Backplane Engagement: Slide the adapter unit firmly along the enclosure guide channels until the rear pin assemblies mate flush with the TMR chassis backplane socket. Secure all structural retaining screws to prevent loose contacts.
Shield Grounding Groundwork: Terminate all external expansion cables and shield drains to a single low-impedance master instrument earth bar inside the cabinet housing. Avoid loops that induce noise on high-speed data buses.
Wiring Separation Limits: Keep the inter-chassis expansion data lines separated from high-voltage AC motor lines and switching power feeds within the panel wire ducts to optimize signal integrity.
Environmental Temperature Check: Verify that the internal cabinet ambient temperature remains bounded within the formal limits of -5 deg C to 60 deg C, keeping nearby ventilation avenues free from restriction.
