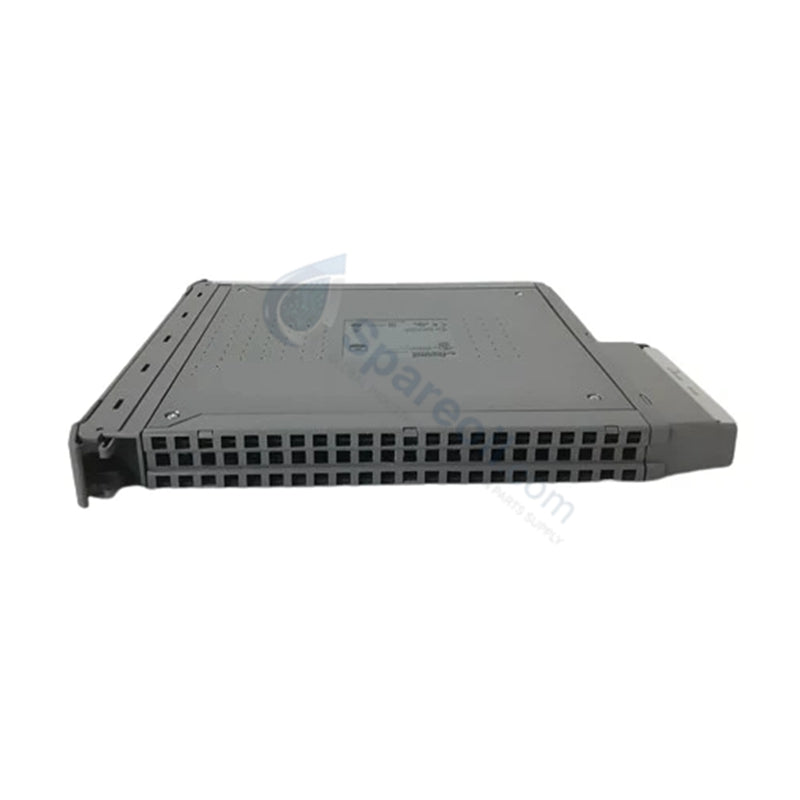

The ICS Triplex T8153 serves as the primary T8312 Expander Interface Adapter Unit utilized to execute rack-to-rack communication across Trusted TMR Safety Instrumented System platforms. The unit forms redundant bus paths between the main controller chassis and up to seven expander chassis locations.
| Parameter | Specification |
|---|---|
| Model | T8312-7 |
| Brand | ICS Triplex |
| Origin | USA |
| Weight | 1.5 kg |
| Dimensions | 270 mm x 200 mm x 50 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | 10 W typical |
| Input Voltage | 24 VDC nominal (18-30 VDC range) |
| Bus Communication Speed | 250 Mbps |
| Signal Isolation | 1500 VDC between controller and expander paths |
| Chassis Expansion Capacity | Up to 7 expander chassis |
| Protection Rating | IP65 |
| Safety Rating | IEC 61508 SIL3 compliant |
The T8312-7 architecture enforces physical separation and signal integrity across distributed expansion racks via full galvanic isolation rated at 1500 VDC between the controller and individual expander paths. Engineered for high-integrity safety loops, the unit embeds within a triple modular redundancy (TMR) 2oo3 architecture framework. By executing hardware-level majority voting mechanisms directly across the 250 Mbps high-speed expander bus, the adapter rejects corrupted data frames or localized electrical faults. If an expander path fails, the system bypasses the degraded channel to guarantee uninterrupted, predictable fail-safe state execution without dropping active processes.
Q: How are the chassis identification numbers configured when installing the T8312-7?
A: The main controller chassis requires an ID setting of #1. The connected expander chassis nodes must have their hardware IDs sequentialized from 2 through 8 using the rear backplane address selectors to align with the system software configuration.
Q: Does the T8312-7 support online module hot-swapping during operation?
A: No, the T8312-7 serves as the physical backbone interface for the rack expansion bus. Disconnecting this hardware unit while active disrupts the entire inter-chassis communication loop and can trigger shutdown actions on the expansion I/O banks.
Q: What are the voltage constraints for the external power links to the T8312-7?
A: The module accepts a nominal 24 VDC input and is rated to tolerate fluctuations across an 18 to 30 VDC range. Voltage drops below 18 VDC will compromise bus line communication and report a system fault.
Mount the T8312-7 adapter assembly firmly using the dedicated chassis locking connectors to ensure structural stability and reliable pin alignment. Confirm the quick-release clips snap fully into position onto the rear of the chassis frame before routing any network cables.
Run the high-speed expander bus lines in separate wire ways, keeping them clear of high-voltage motor control lines and heavy inductive switching circuits to mitigate electromagnetic interference. Ground all cable shielding elements at a single, low-impedance copper earth point within the primary enclosure. Verify the ambient air temperature within the protective cabinet remains between -20 and +60 deg C, and prevent conditions that lead to condensation on the electronics by ensuring the IP65 enclosure seals are fully intact.
