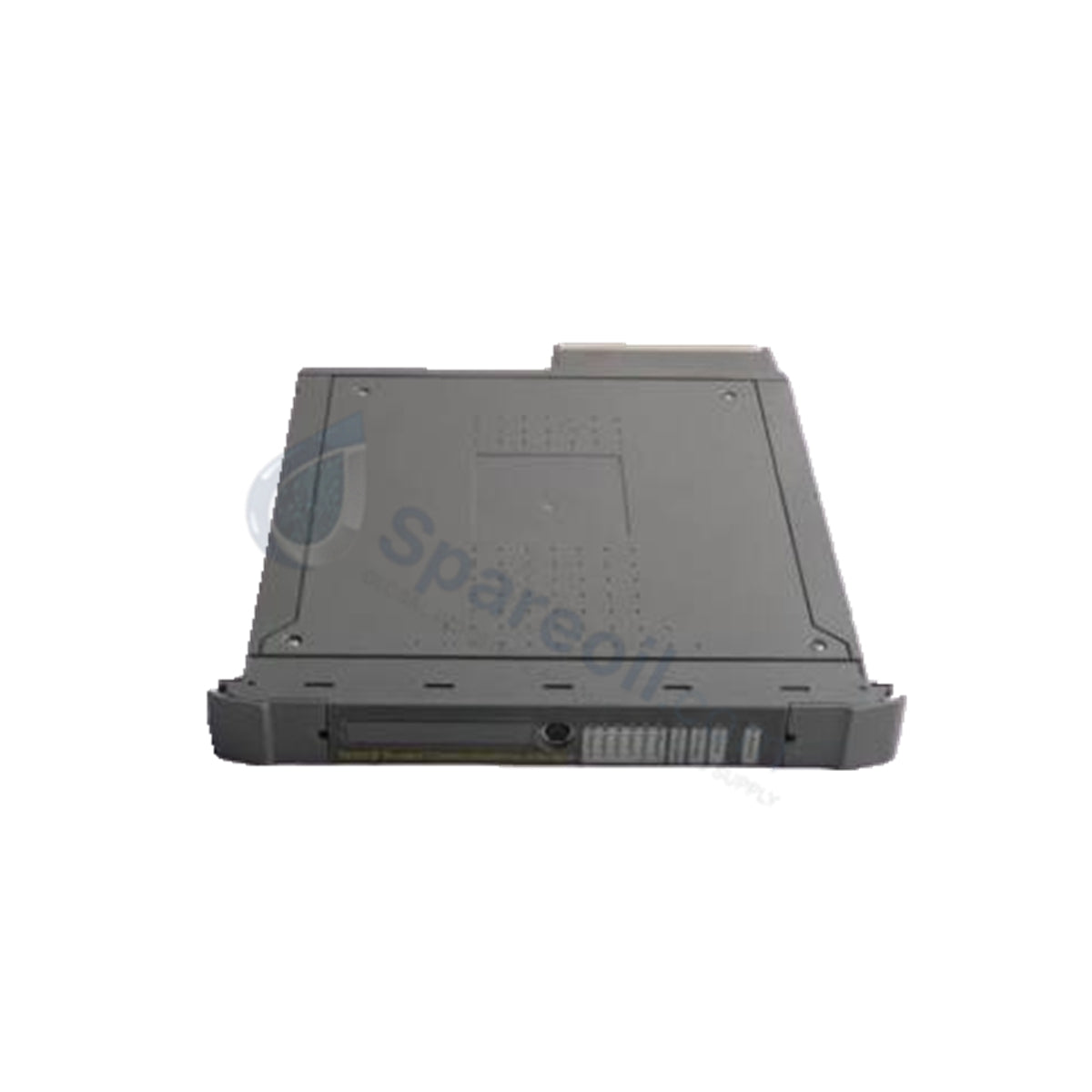

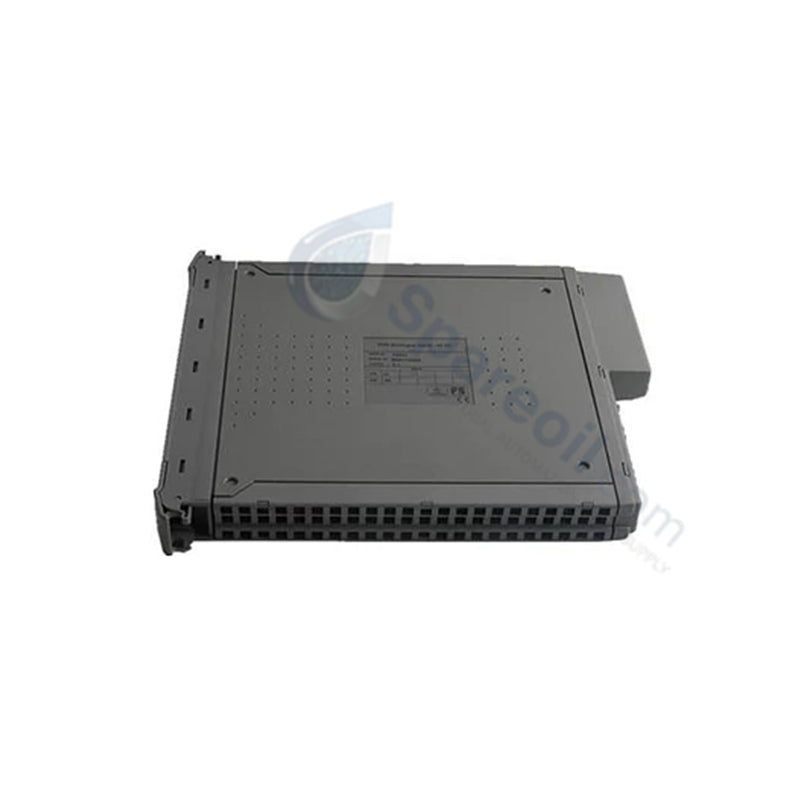

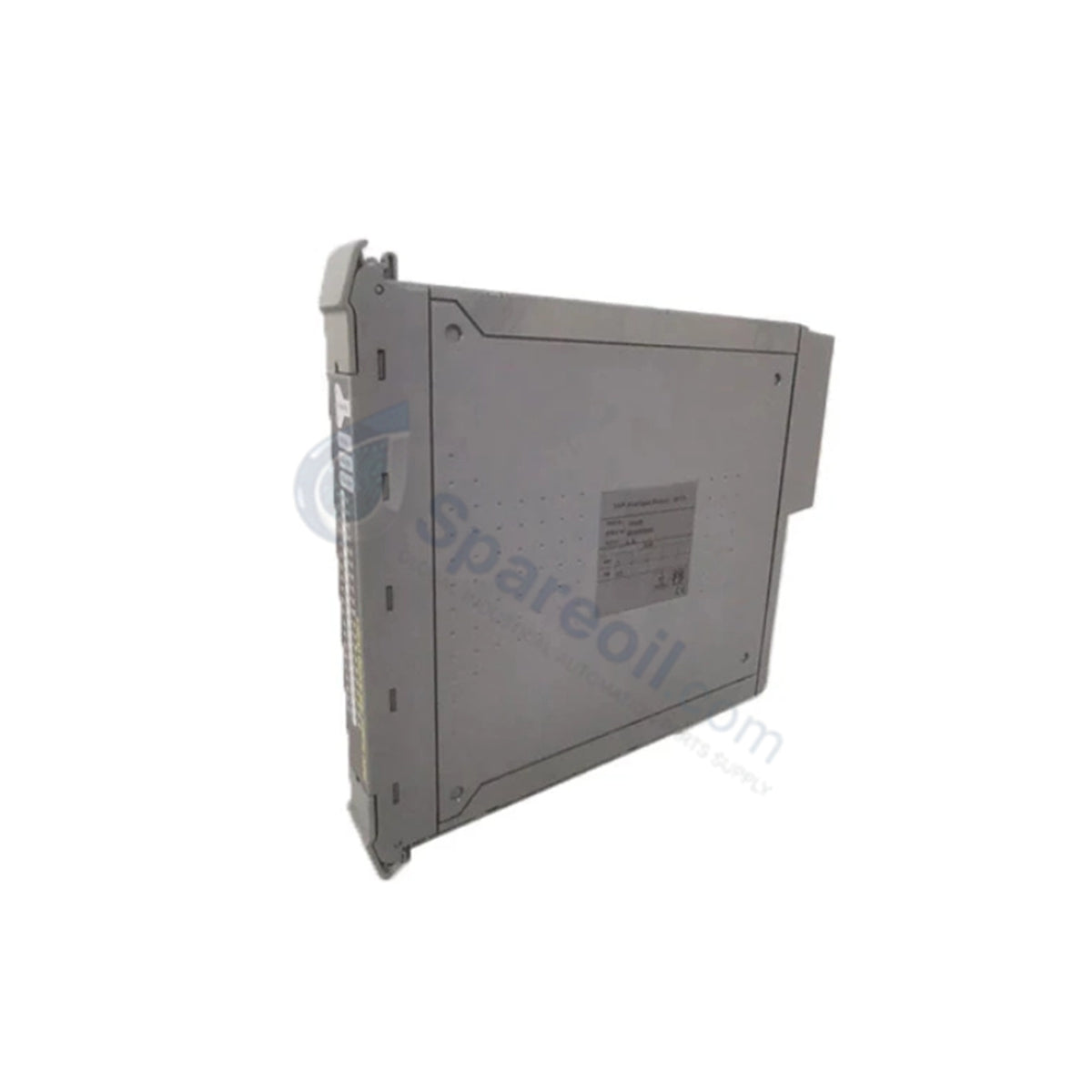

ICS TRIPLEX T8442 Trusted TMR Speed Monitor Module

The ICS Triplex T8442, also cataloged as the T8442 Trusted TMR Speed Monitor Module, operates as a dedicated hardware component for physical monitoring of shaft speed and acceleration profiles within Trusted Safety Instrumented System platforms. The module provides autonomous overspeed and over-acceleration trip control completely independent of the main processor loop.

Hardware Specifications

Parameter	Specification
Model	T8442
Brand	ICS Triplex
Origin	USA
Weight	2 kg
Dimensions	Standard Trusted module chassis footprint
Operating Temp	0 to 60 deg C
Power Consumption	10 W typical
Monitoring Capacity	3 independent machine groups
Speed Inputs	3 TMR speed input channels per group (9 total)
Probe Compatibility	Active (powered) or passive magnetic pick-up probes
Shutdown Outputs	2 quad-redundant, fault-tolerant, volt-free contact structures per group
Isolation Protection	2500 V impulse withstand opto/galvanic isolation
Field Termination	T8846 Speed Input FTA, T8891 Speed Output FTA
Sequence of Events	1 ms resolution
Safety Certification	TÜV Certified IEC 61508 SIL3

Safety Instrumented System Architecture Integration

The T8442 architecture relies on true 2-out-of-3 (2oo3) voting logic across all speed inputs to eliminate nuisance trips while maintaining strict fault tolerance. Engineered for safety-critical turbomachinery protection, the module embeds full galvanic isolation rated at 2500 V impulse withstand per channel bank. This hardware barrier isolates the internal processor bus from the external fields, protecting the system from high-voltage transient spikes. By operating as an autonomous sub-system, the unit processes speed algorithms locally to execute immediate fail-safe state execution through quad-redundant relay loops, ensuring high-speed turbine shutdown even during a total loss of main controller communications.

Frequently Asked Questions

Q: How does the T8442 handle signal differences between active and passive speed probes?

A: The input channels configure automatically via the system software to match the electrical profiles of active or passive magnetic pick-up sensors. External signal conditioning and power distribution are managed via the companion T8846 Field Termination Assembly.

Q: What is the response latency for overspeed trip execution on the T8442 module?

A: The module executes speed and acceleration algorithms locally within an isolated micro-controller layer. This independent architecture minimizes processing latency, allowing the quad-redundant shutdown outputs to trip within milliseconds of a verified overspeed condition.

Q: Can the T8442 be pulled or replaced while the main chassis remains powered?

A: Yes, standard Trusted module design supports live extraction and insertion into the active backplane. However, because this module controls critical machinery trip loops, engineers must ensure the specific machine group is bypassed or mechanically locked out before removal to prevent unintended trips.

Field Installation Guidelines

Mount the T8442 securely into the designated slot of the primary Trusted controller chassis, verifying that the module alignment pins seat completely into the backplane connectors. Secure all structural retaining screws to maintain strict mechanical and electrical grounding connections.

Route the speed sensor input cables from the T8846 Input FTA using twisted-pair shielded cabling to prevent electromagnetic noise from distorting the pulse signals. Maintain physical separation between these low-voltage signal paths and any high-voltage AC or inductive actuator power lines. Terminate all cable shields cleanly at the designated earth ground bar within the termination enclosure. Ensure cabinet cooling fans provide adequate airflow across the module faceplate to keep ambient temperatures within the 0 to 60 deg C limits.
