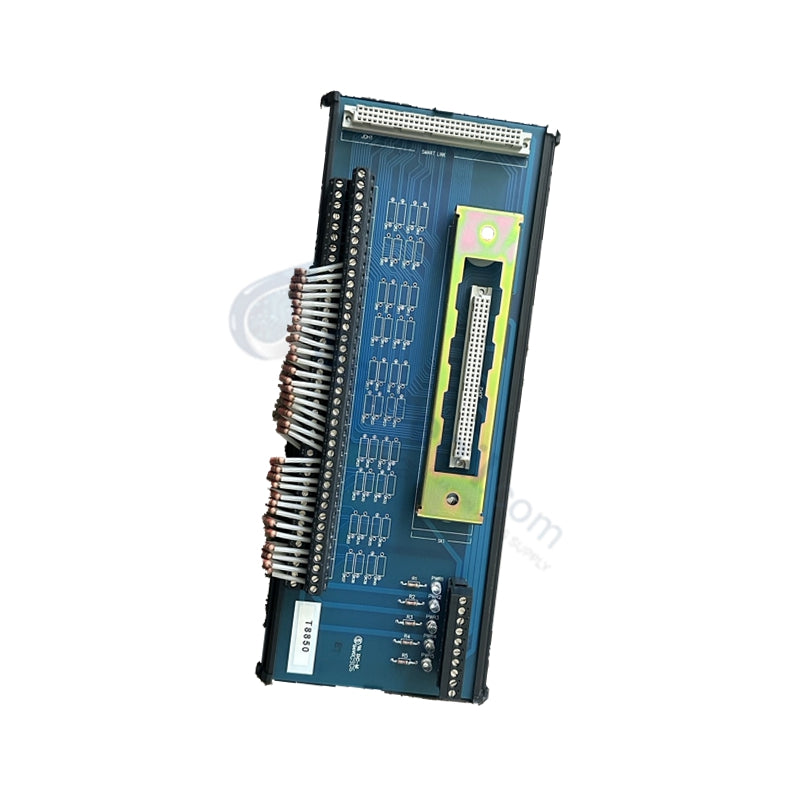

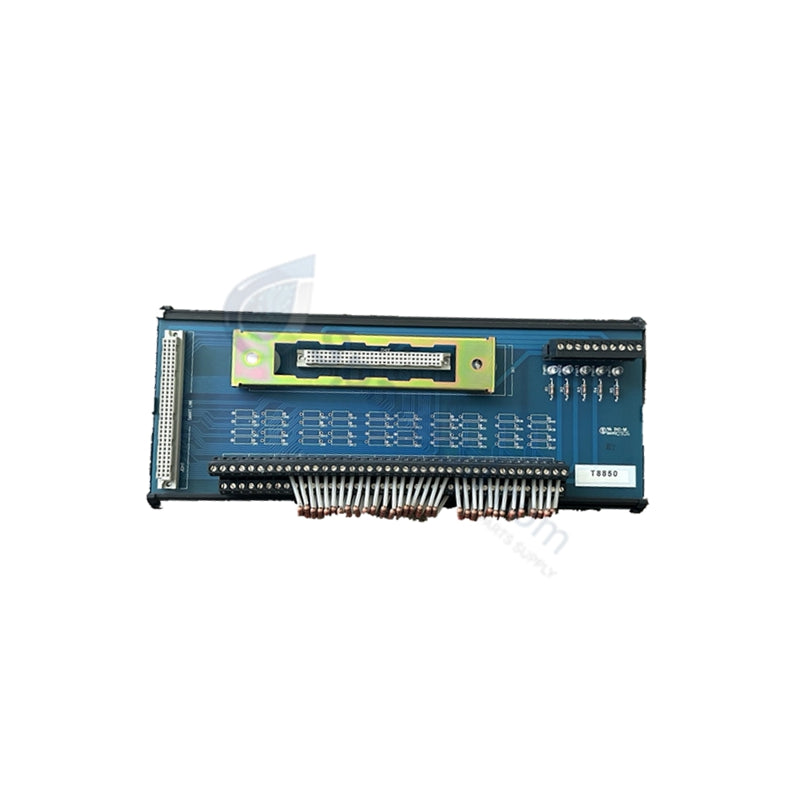

ICS Triplex T8850 Trusted TMR Power Supply Module

Availability: 20 left in stock

ICS TRIPLEX T8850 Trusted TMR Power Supply Module The ICS Triplex T8850 serves as the primary T8850 Power Supply Module...

SKU: T8850

Manufacturer: ICS Triplex
Product No.: T8850
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS TRIPLEX T8850 Trusted TMR Power Supply Module

The ICS Triplex T8850 serves as the primary T8850 Power Supply Module utilized to execute AC-to-DC and DC-to-DC voltage regulation and power distribution tasks across Trusted TMR Safety Instrumented System platforms.

Hardware Specifications

Parameter	Specification
Model	T8850
Brand	ICS Triplex
Origin	United States
Weight	1.2 kg
Dimensions	266 mm x 31 mm x 303 mm
Operating Temp	0 to 60 deg C
Power Consumption	Passive overhead with automatic load sharing configuration
Input Voltage	110-240 VAC (50/60 Hz) or 24 VDC variant dependent
Output Voltage	+24 VDC regulated
Output Current	Up to 20 A per module
Redundancy	Triple Modular Redundant (TMR) parallel configuration
Isolation Protection	1500 V isolation between input and output paths
Maintenance Design	Hot-swappable configuration

Safety Instrumented System Architecture Integration

The T8850 platform is engineered to comply with formal SIL3 certification requirements inside high-integrity operational environments. The module deploys a triple modular redundancy (TMR) 2oo3 architecture configuration, enabling three internal supply tracks to operate continuously in parallel with automated active load sharing. High-capacity galvanic isolation rated at 1500 V between the input supply lines and output backplane interfaces isolates localized electrical faults. If an internal track fails, the diagnostics isolate the degraded line to ensure clean fail-safe state execution without dropping the system voltage.

Frequently Asked Questions

Q: Does the T8850 support Removal and Insertion Under Power (RIUP) operations?

A: Yes, the T8850 features a hot-swappable design that allows module replacement during active system operations without interrupting power distribution to the backplane.

Q: How does the module handle fault isolation if one parallel supply line fails?

A: The internal architecture utilizes active voting and diode auctioning mechanisms to isolate a failed internal power pathway completely, preventing faults from propagating back into the main system backplane.

Field Installation Guidelines

Install the T8850 module securely into the designated power slot within the main chassis assembly. Slide the module along the guide rails until the rear power connectors engage firmly with the backplane distribution pins, then lock the retention mechanisms completely to verify low-resistance contact. Route all incoming AC mains or DC supply cables through isolated wire paths separated from low-voltage signal lines. Terminate all protective earth and shield connections directly at the main copper ground rail of the cabinet frame. Ensure that the cabinet ventilation remains unobstructed to maintain an internal operating temperature below the 60 deg C limit.
