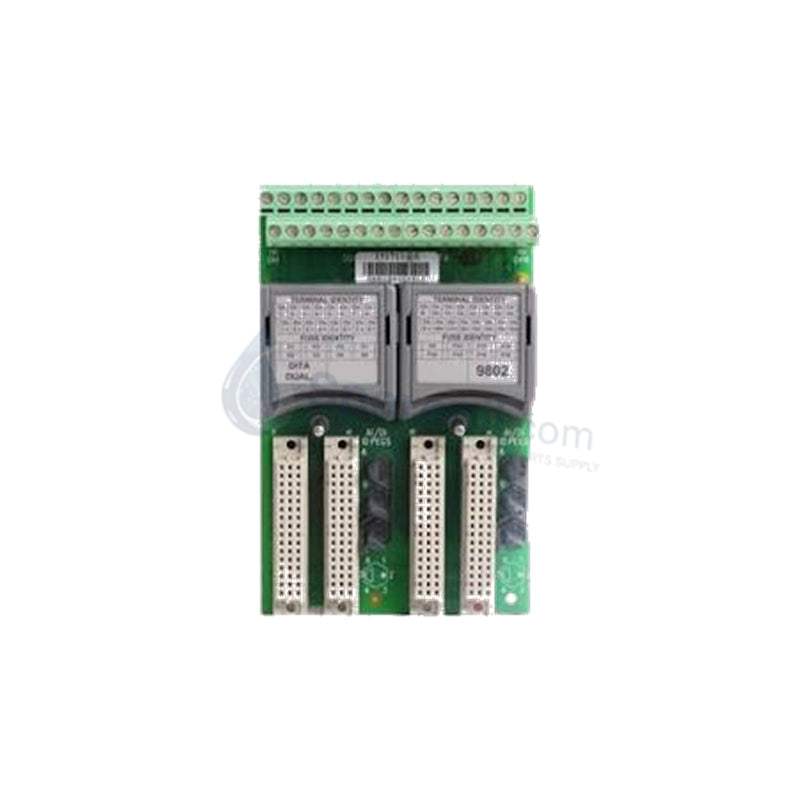

ICS TRIPLEX T9300 T9802 Trusted Diagnostics Modules

ICS TRIPLEX T9300 T9802 Trusted Diagnostics Modules

Availability: 20 left in stock

ICS TRIPLEX T9300 T9802 Trusted Diagnostics/Test Module Configured for continuous system monitoring in Trusted safety systems, the ICS TRIPLEX T9300...

SKU: T9802

Manufacturer: ICS Triplex
Product No.: T9802
Product Type: Trusted Diagnostics Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS TRIPLEX T9300 T9802 Trusted Diagnostics/Test Module

Configured for continuous system monitoring in Trusted safety systems, the ICS TRIPLEX T9300 T9802 (T9802 Trusted Diagnostics/Test Module) provides direct physical/electrical execution. The module runs background integrity routines across the redundant backplane to verify the operational state, fault-tolerant health indicators, and structural voting architecture of adjacent system nodes without disrupting active processing loops.

Layout Choice Selection: Layout 1

Hardware Specifications

Parameter	Specification
Model	T9802 (part of T9300 assembly)
Brand	ICS TRIPLEX (Rockwell Automation)
Origin	USA
Weight	0.14 kg (net module weight) / 0.9 to 1.0 kg (shipping configuration)
Dimensions	13.1 cm x 8.4 cm x 3.5 cm (physical card dimensions)
Operating Temp	-20 deg C to +60 deg C
Power Consumption	Not specified by manufacturer
Product Type	Trusted Diagnostics/Test Modules
Core Functions	Backplane bus tracking, module health check, redundancy verification
Isolation Voltage	1500 V to 2500 V between logic circuit and external field loops
Hot-Swappable	Yes
System Platform	Trusted TMR Safety Architecture
Storage Temp	-40 cm to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Safety Compliance	Certified to IEC 61508 SIL 3

Safety Instrumented System Execution

The ICS TRIPLEX T9300 T9802 provides the core processing monitoring required to maintain an active safety instrumented system (SIS) under formal SIL 3 certification protocols. Operating within a triple modular redundancy (TMR) 2oo3 architecture framework, the hardware scans internal backplane communication lines to isolate early trace degradation or transmission faults before they impact process safety loops. Galvanic isolation barriers ranging from 1500 V to 2500 V isolate the control logic from field-level wiring anomalies, preventing signal attenuation and cross-talk propagation. If a fatal circuit deviation occurs within the network, the device reports the unique diagnostic code to the primary controller, forcing an orderly, predictable fail-safe state execution across the relevant subsystem.

Frequently Asked Questions

Q: Can the T9802 diagnostic card be pulled from a live chassis without stopping the process?

A: Yes. The module is fully hot-swappable and includes transient-suppressed pin staging, permitting live extraction or insertion into an active Trusted chassis slot without corrupting data transmission or creating backplane power dips.

Q: What primary parameters are verified during the automated redundancy checks?

A: The hardware evaluates parallel bus timing synchronization, voter logic execution health, and inter-processor data comparison loops to ensure the secondary redundant paths are fully operational and ready for a hot-switchover scenario.

Q: How is the physical isolation boundary verified between internal safety logic and external field lines?

A: The internal transformer and optocoupler arrays provide permanent galvanic segregation, engineered and tested to sustain voltage surges between 1500 V and 2500 V without breaching the digital logic components.

Field Installation Guidelines

Chassis Grounding Interface: Verify the metal grounding tabs on the module edge seat properly into the chassis frame slot to secure a low-impedance route to the main structural ground.
Vertical Guide Realignment: Insert the card vertically into the assigned slot, applying uniform pressure until the backplane connectors link fully, then fasten all top and bottom locking screws.
Module Slot Allocation: Ensure the diagnostic module is positioned exclusively in the dedicated test/monitoring slots specified by the active TMR system logic configuration layout.
Ambient Air Maintenance: Confirm the chassis cooling array or natural convection path provides uniform, unobstructed airflow to hold local ambient conditions below the +60 deg C operational threshold.
