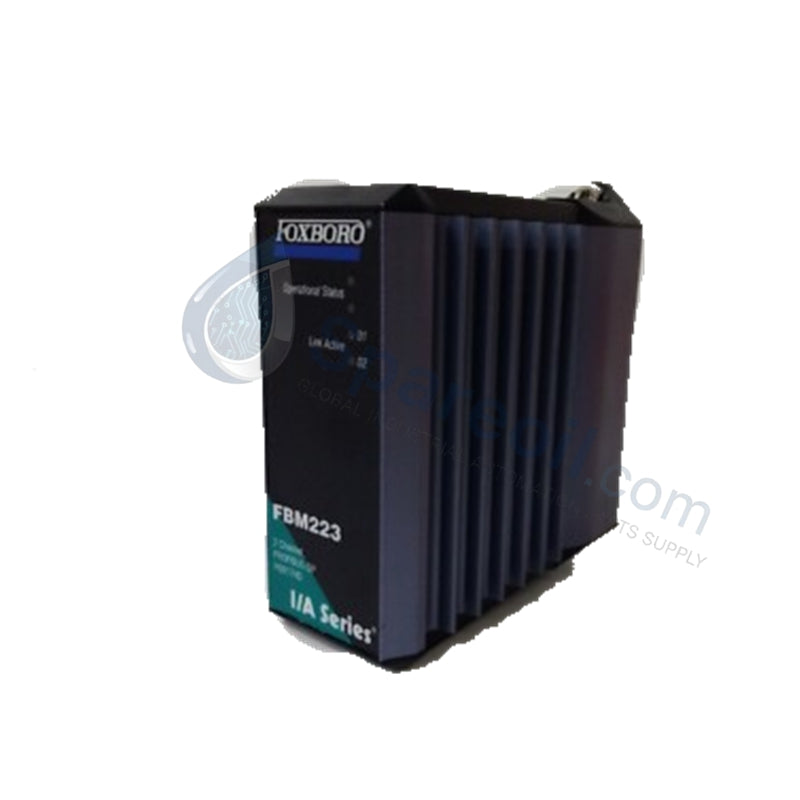

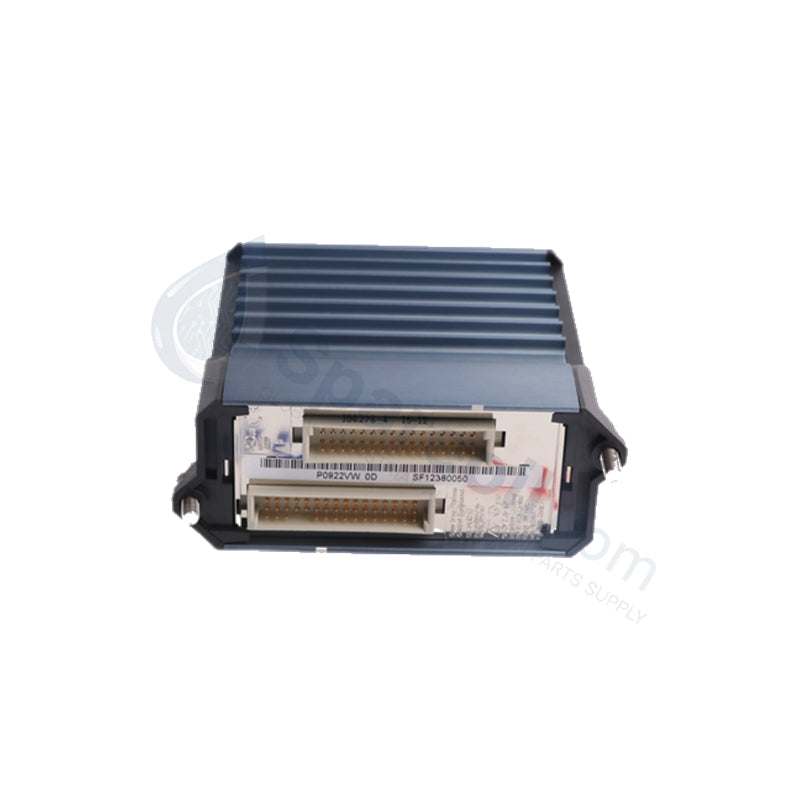

Invensys Foxboro P0917HD FBM223 | PROFIBUS-DP Master

Invensys Foxboro P0917HD FBM223 | PROFIBUS-DP Master

Availability: 10 left in stock

Product Overview The Foxboro FBM223 (Part Number: P0917HD) acts as a high-performance gateway between the Foxboro I/A Series system and PROFIBUS-DP slave...

SKU: FBM223 P0917HD

Manufacturer: Foxboro
Product No.: FBM223 P0917HD
Product Type: Communication Interface Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM223 (Part Number: P0917HD) acts as a high-performance gateway between the Foxboro I/A Series system and PROFIBUS-DP slave devices. This module enables the DCS to command and monitor a vast array of vendor-independent hardware, including motor drives, remote I/O blocks, and smart field instruments. By adhering to the EN 50170 standard, the FBM223 ensures seamless interoperability in complex manufacturing and process automation environments. We provide this module as 100% Brand New original equipment, designed to bridge open fieldbus standards with proprietary DCS reliability.

Technical Specifications

Item	Specification
Model / Part Number	FBM223 / P0917HD
Type	PROFIBUS-DP Communication Interface
Protocol	PROFIBUS-DP (EN 50170)
Device Compatibility	Motor Drives, I/O Modules, Field Sensors
Communication Speed	Redundant 2 Mbps Module Fieldbus (Internal)
Isolation	Galvanic; withstands 600 V AC for 1 minute
Power Supply	24 V DC (+5%, –10%)
Power Consumption	Max 7 W
Operating Temperature	–20 °C to +60 °C (Module)
Dimensions	4.4 cm x 10.2 cm x 10.8 cm
Weight	0.2 kg
Origin	USA
Certifications	UL, CSA, CE, ATEX, Class 1 Div 2 / Zone 2

Engineering Advantages

Vendor Independence: The FBM223 utilizes the open PROFIBUS-DP standard, allowing engineers to integrate the best-in-class third-party motor drives or specialized sensors directly into the Foxboro environment. This flexibility removes "vendor lock-in" and optimizes procurement costs.
Streamlined Control Architecture: By acting as a master interface, the FBM223 consolidates data from multiple slave devices into a single fieldbus stream. This reduces the physical wiring required compared to traditional point-to-point analog signaling.
High-Speed Data Exchange: The module integrates with the redundant 2 Mbps Foxboro fieldbus. This ensures that high-speed diagnostic data and control commands from PROFIBUS slaves reach the Field Control Processor (FCP) without latency, supporting real-time decision-making.
Galvanic Noise Shielding: Sophisticated galvanic isolation protects the internal DCS logic from field-side electrical interference. This barrier withstands up to 600 V AC, ensuring that a fault on a remote PROFIBUS segment does not migrate to the primary control backplane.
Hot-Swappable Reliability: The module supports live replacement (hot-swap) on the modular baseplate. Technicians can replace a module without powering down the I/O rack or losing communication with adjacent modules, significantly increasing plant availability.

FAQs

Can the FBM223 control multiple PROFIBUS slave devices? Yes. The FBM223 functions as a master on the PROFIBUS-DP segment, allowing it to communicate with and control multiple slave devices (like VFDs and remote I/O) according to the PROFIBUS network configuration limits.
Is this module compatible with standard Foxboro I/A Series baseplates? The FBM223 seats into standard 200 series modular baseplates. It requires the appropriate Termination Assembly (TA) to provide the physical RS-485 connection to the PROFIBUS-DP network.
How does the FBM223 handle communication failures? The module utilizes the redundant 2 Mbps module fieldbus for internal DCS communication. If the primary path fails, it maintains data integrity through the secondary path. It also monitors the status of the PROFIBUS-DP slave devices and reports failures to the DCS system.
What is the condition of this unit? We guarantee this FBM223 P0917HD is 100% Brand New and original. It arrives in its original factory packaging with all standard manufacturer documentation.
