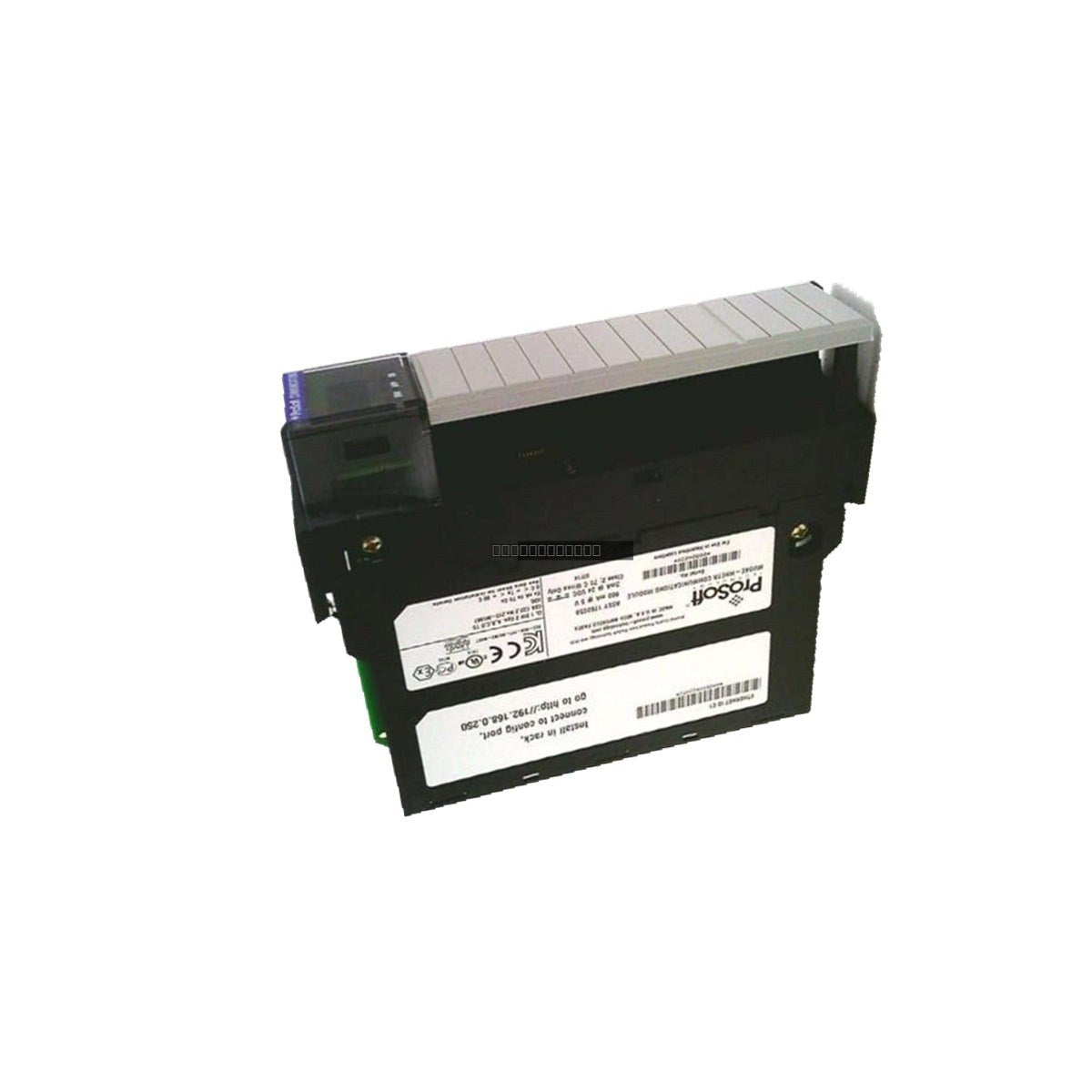

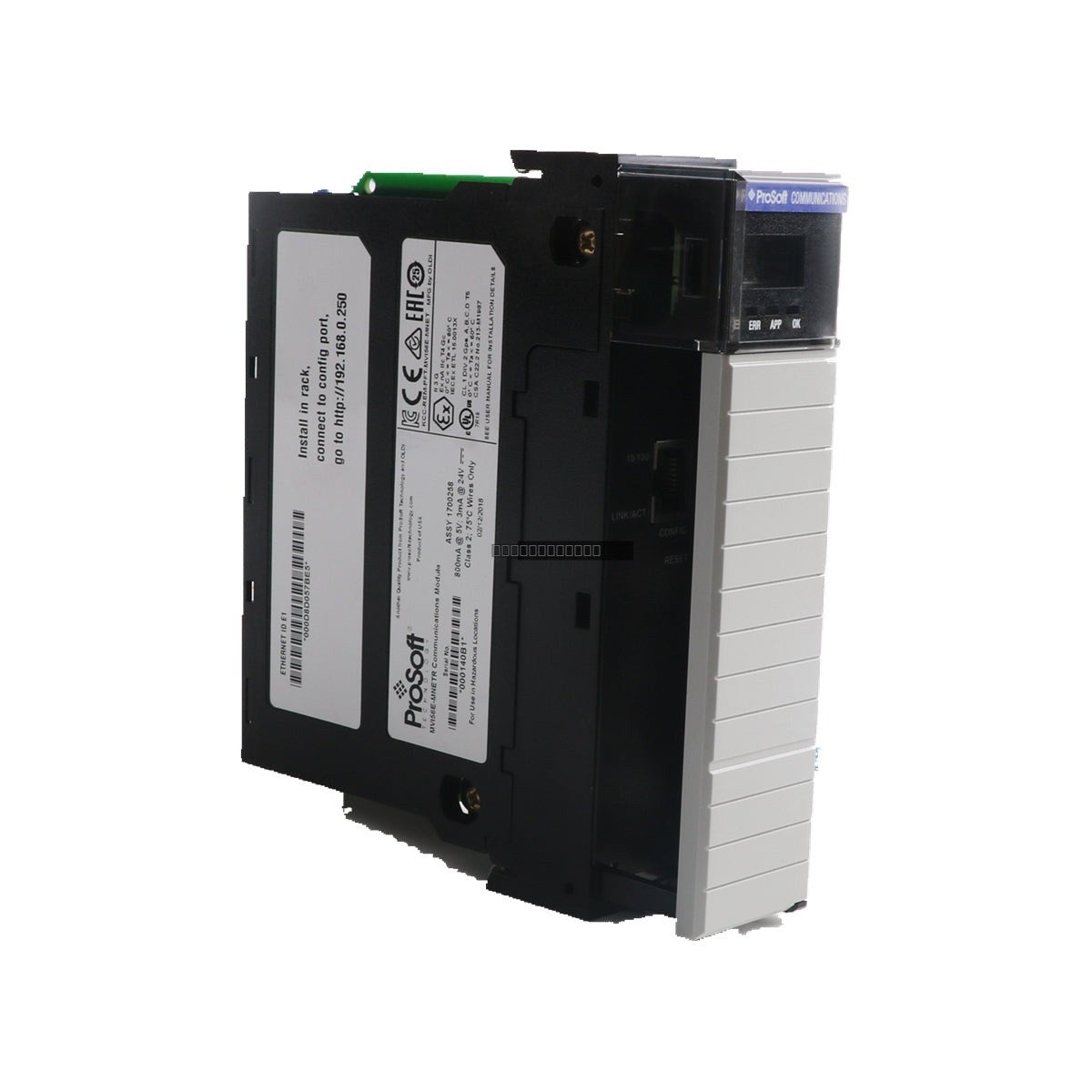

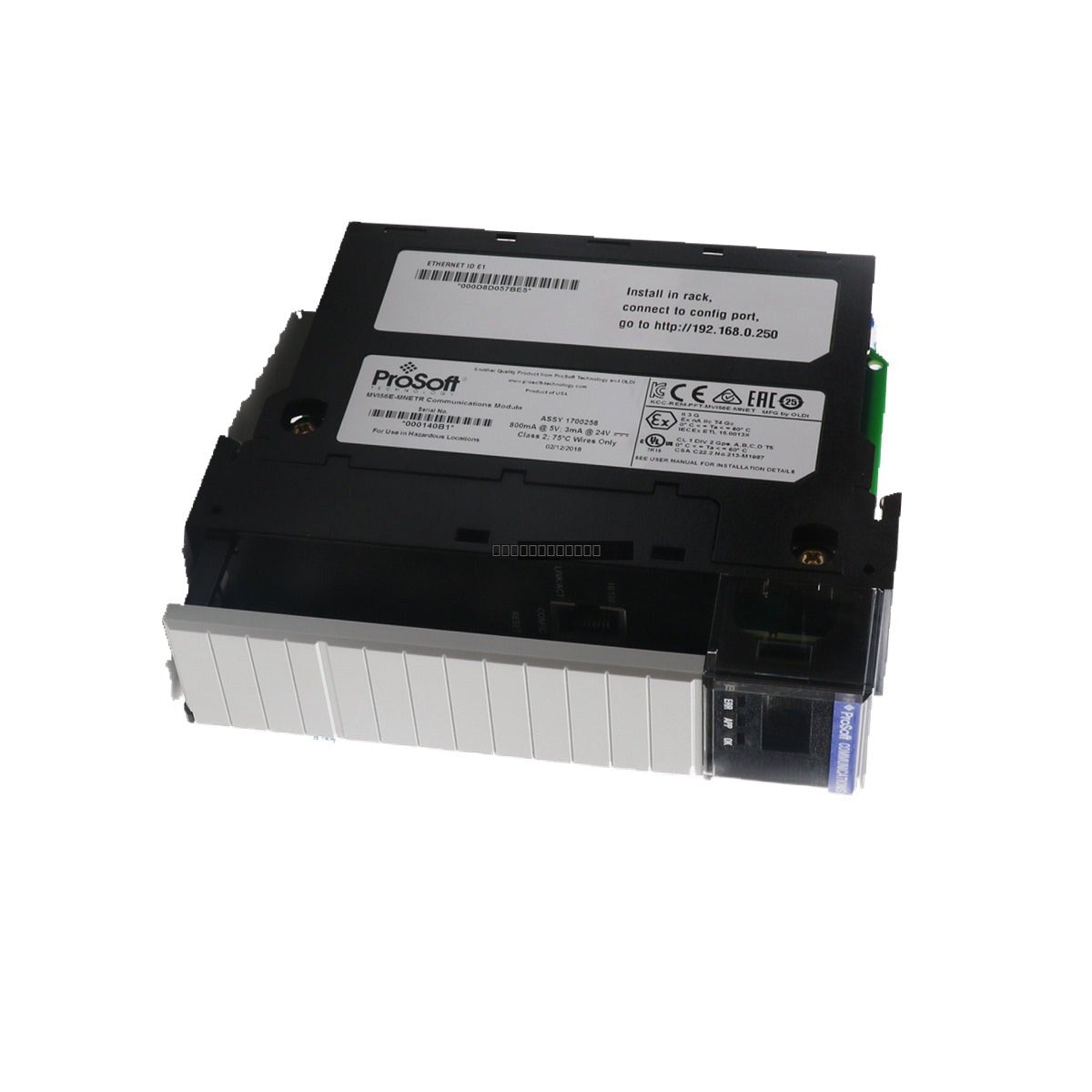

ProSoft MVI56E-MNETR Enhanced Modbus TCP/IP Module

ProSoft MVI56E-MNETR Enhanced Network Interface Module

Availability: 4 left in stock

The ProSoft MVI56E-MNETR is an enhanced Modbus TCP/IP communication module specifically engineered for Rockwell Automation ControlLogix programmable automation controllers. This...

SKU: MVI56E-MNETR

Manufacturer: ProSoft
Product No.: MVI56E-MNETR
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 260g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The ProSoft MVI56E-MNETR is an enhanced Modbus TCP/IP communication module specifically engineered for Rockwell Automation ControlLogix programmable automation controllers. This in-chassis solution provides a high-performance gateway for integrating Modbus TCP/IP-compatible devices—such as Modicon PACs, flowmeters, and power monitoring equipment—directly into a ControlLogix environment. The module is optimized for remote rack applications, utilizing a reduced I/O data image size to maintain communication efficiency across ControlNet or EtherNet/IP networks.

Features

In-chassis Modbus TCP/IP gateway for ControlLogix platforms.
Simultaneous support for Client (Master) and Server (Slave) modes.
Optimized for remote rack and redundant processor architectures through reduced I/O data block sizing.
Configuration via ProSoft Configuration Builder (PCB) and Add-On Instructions (AOI) for Studio 5000.
Integrated web server for local diagnostics, firmware updates, and documentation access.
4-character alphanumeric LED display for real-time status and diagnostics.
CompactFlash (CF) card slot for secure storage of configuration files and rapid field replacement.

Applications

Remote I/O & Distributed Control: Efficiently bridges Modbus TCP/IP networks in remote racks without exceeding bandwidth limits on network adapters.
SCADA & DCS Integration: Acts as a data concentrator to link Allen-Bradley systems to legacy SCADA or DCS platforms.
Substation & Power Monitoring: Enables data collection from IEDs, relays, and meters that lack native Rockwell connectivity.
Oil, Gas, & Water Infrastructure: Integrates flow computers, RTUs, and dosing systems into a centralized ControlLogix control scheme.

Technical Specifications

Model	MVI56E-MNETR
Backplane Current (5V DC)	800 mA
Backplane Current (24V DC)	3 mA
Ethernet Interface	1 x RJ45, 10/100 Base-T
Data Memory Mapping	Up to 5,000 16-bit registers
Server Sessions	Up to 20
Operating Temperature	0 degC to 60 degC
Storage Temperature	-40 degC to 85 degC
Humidity	5% to 95% (non-condensing)

Installation Guidelines

Ensure the ControlLogix backplane is powered down before inserting or removing the module.
Mount the module in any available single slot within the ControlLogix chassis.
Use a standard CAT5 Ethernet patch cable for network connections; the port supports Auto MDI-X for both standard and crossover cables.
For initial configuration, connect a PC to the front-facing configuration port using the provided cable.
Ensure the module is not placed behind a Layer 3 switch or router if using the ProSoft Discovery Service, as UDP broadcast messages may be blocked.

FAQ

What is the primary advantage of the MVI56E-MNETR in remote racks?

The MVI56E-MNETR uses a reduced I/O data block size, which significantly lowers the bandwidth consumption on ControlNet or EtherNet/IP backplane connections, preventing network bottlenecks in remote I/O configurations.

How does the CompactFlash card assist in field maintenance?

The CF card acts as a personality module that stores all network and module-specific configurations. In the event of a hardware failure, you can simply move the card to a spare module to restore the system without re-downloading configurations from a PC.

Can this module support redundant processors?

Yes, the module is designed to function within redundant ControlLogix architectures, provided the system is configured to manage the backplane data transfer efficiently.
