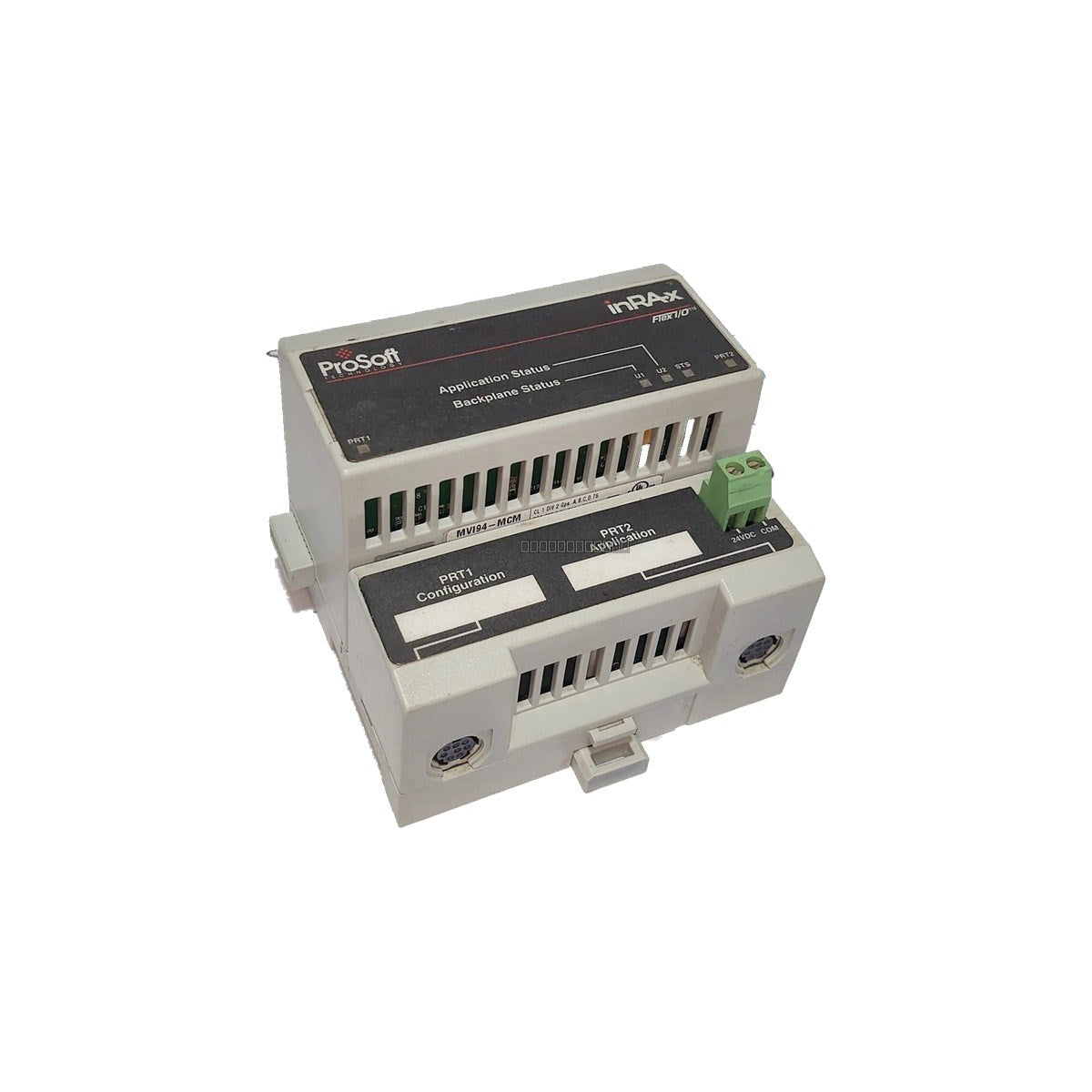

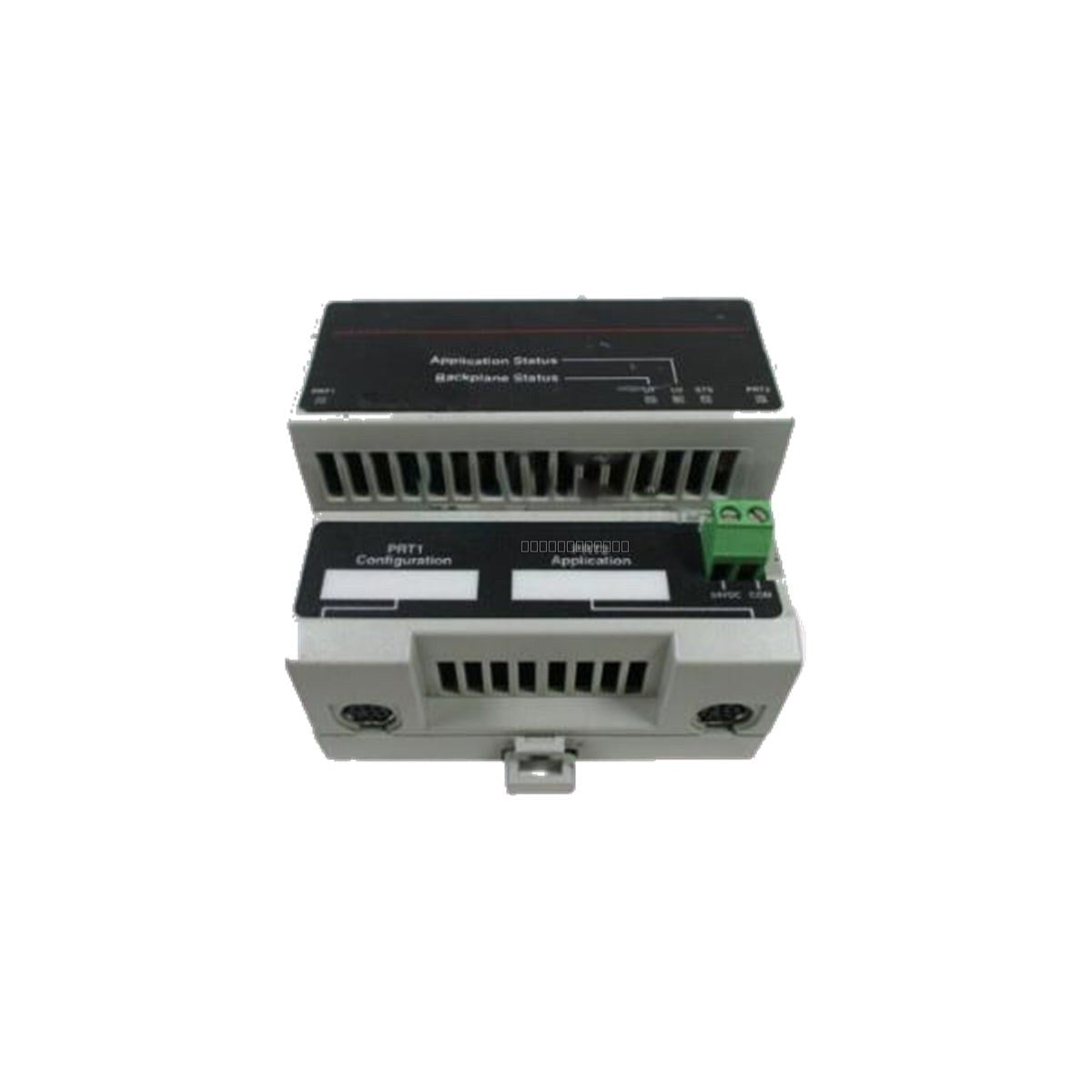

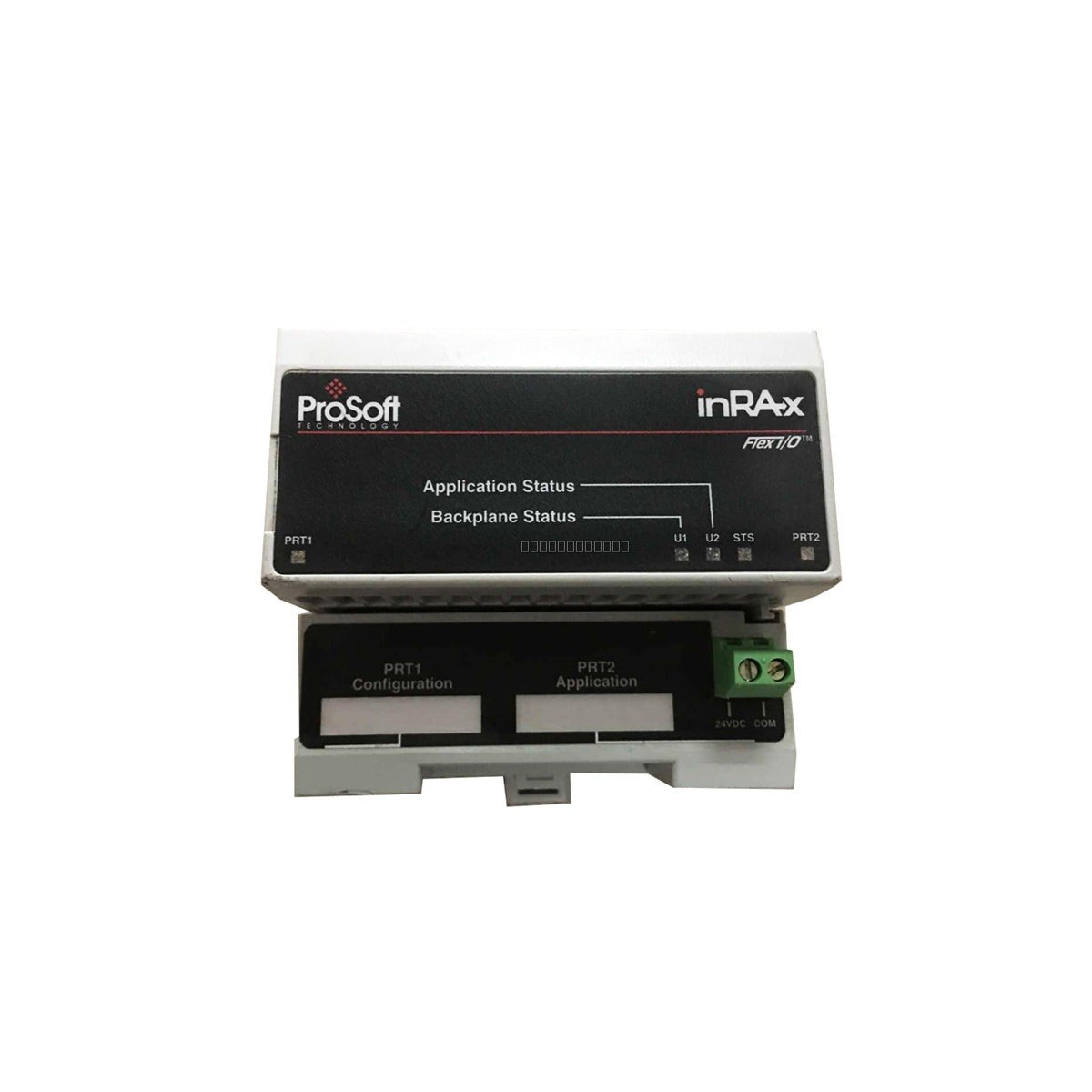

ProSoft MVI94-MCM Modbus Interface for FLEX I/O

ProSoft MVI94-MCM Modbus Communication Module for FLEX I/O

Availability: 2 left in stock

DescriptionThe MVI94-MCM is a high-performance Modbus communication interface module specifically engineered for the Rockwell Automation FLEX I/O platform. This module...

SKU: MVI94-MCM

Manufacturer: Prosoft
Product No.: MVI94-MCM
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The MVI94-MCM is a high-performance Modbus communication interface module specifically engineered for the Rockwell Automation FLEX I/O platform. This module acts as a bridge between FLEX I/O processors and Modbus-compliant field devices, supporting both Master and Slave emulation modes. It is designed to handle complex data acquisition and control tasks in demanding industrial environments, including oil and gas, power distribution, and mining. By supporting up to 5000 registers, the MVI94-MCM enables seamless integration of field instrumentation into the control architecture, improving system response times and providing robust diagnostic capabilities.

Features

Supports Modbus RTU and ASCII protocols (Master or Slave).
Native support for Enron Modbus, facilitating efficient floating-point data transactions for flow metering.
Configurable application port supporting RS-232, RS-422, or RS-485 physical layers.
User-definable memory mapping for flexible allocation of 5000 internal registers.
High-speed data exchange via the FLEX I/O backplane without requiring complex ladder logic messaging instructions.

Applications

The MVI94-MCM is ideal for industrial automation applications requiring the integration of Modbus-based devices into a Rockwell Automation FLEX I/O system, such as:

Flow metering and custody transfer systems.
Integration of variable frequency drives (VFDs) and smart sensors.
Remote terminal unit (RTU) data concentration.
Process control in oil, gas, and utility infrastructure.

Technical Specifications

Model	MVI94-MCM
Brand	ProSoft Technology
Module Type	Modbus Master/Slave Network Interface
Backplane Compatibility	Rockwell Automation FLEX I/O
Power Supply	12 VDC or 24 VDC
Current Consumption	340 mA at 12 VDC / 170 mA at 24 VDC
Register Capacity	5000 Words
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 to 95 percent (Non-condensing)

Installation Guidelines

Ensure the FLEX I/O backplane is powered down before installing or removing the module.
Mount the module securely onto the FLEX I/O base unit, ensuring proper seating of the backplane connector.
Use shielded twisted-pair cabling for RS-422/RS-485 connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the communication cable shield at one end to prevent ground loops.
Verify that the application port configuration (RS-232/422/485) matches the physical wiring before applying power.
Maintain adequate clearance around the module to ensure proper ventilation and cooling within the control cabinet.

FAQ

Is the MVI94-MCM compatible with all FLEX I/O bases?

The MVI94-MCM is designed to mount on standard FLEX I/O terminal bases. Please verify your specific terminal base part number against the ProSoft installation manual to ensure mechanical and electrical compatibility.

Does this module require complex programming?

No, the module uses simple data movement within the processor's I/O image, which simplifies integration and eliminates the need for complex messaging instructions in the PLC code.
