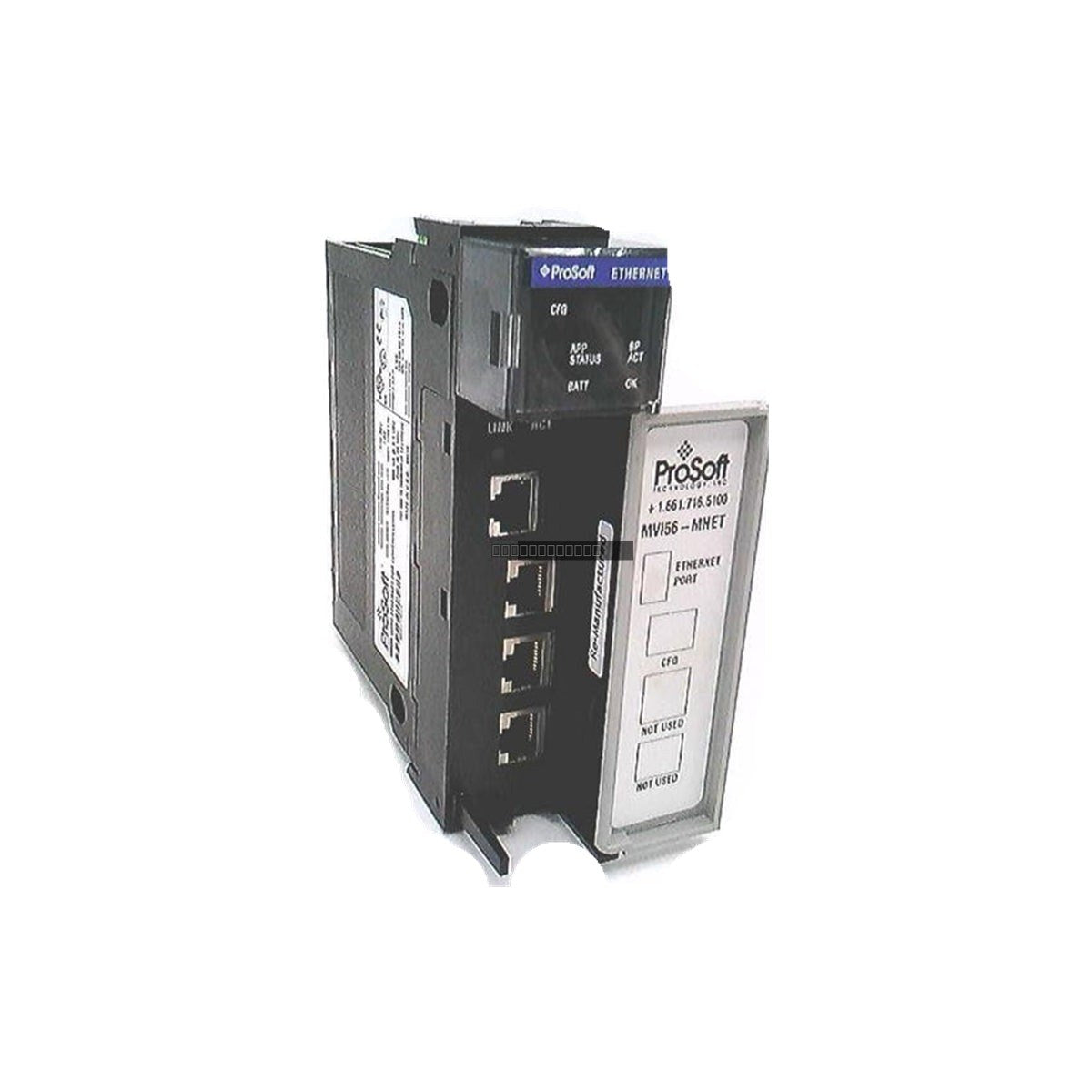

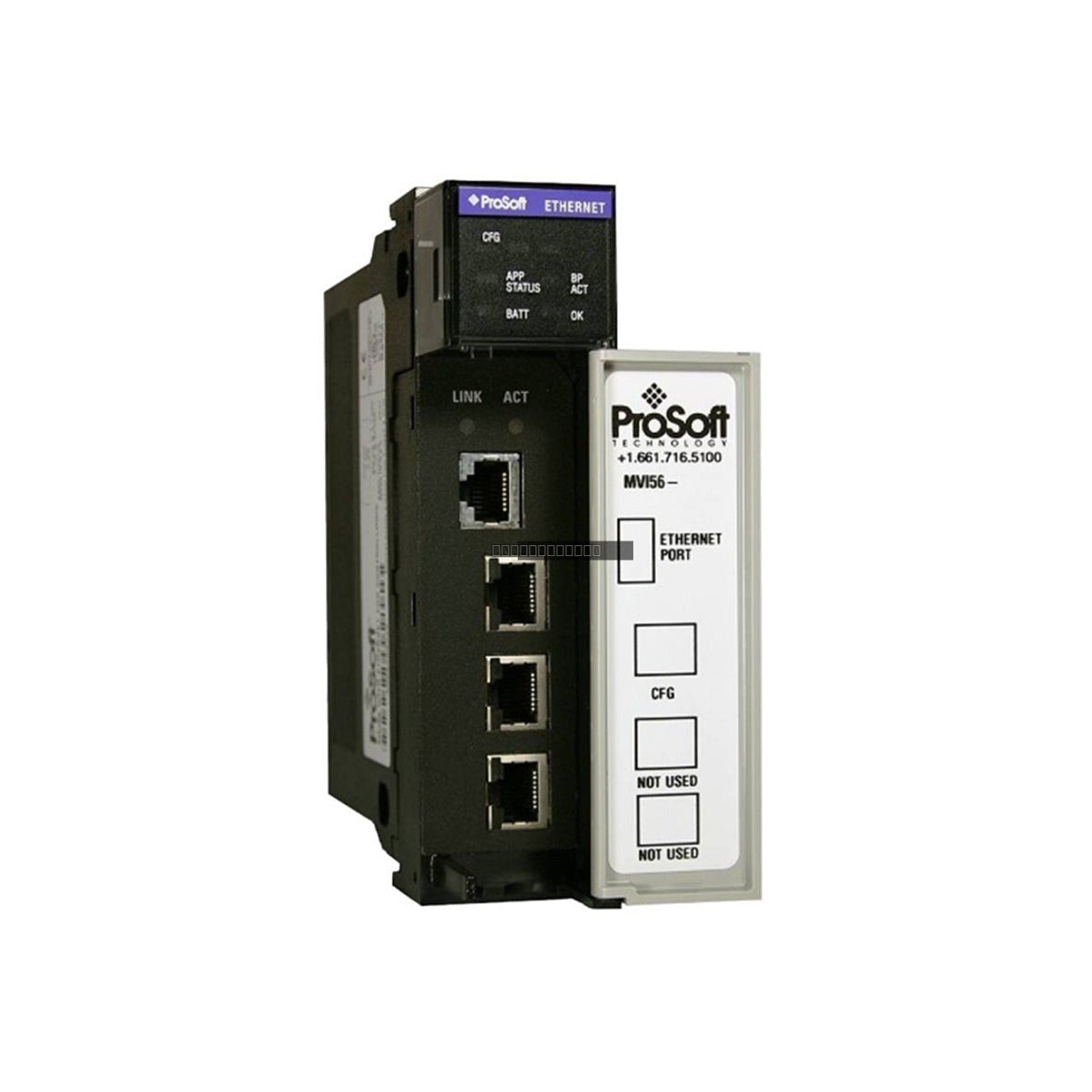

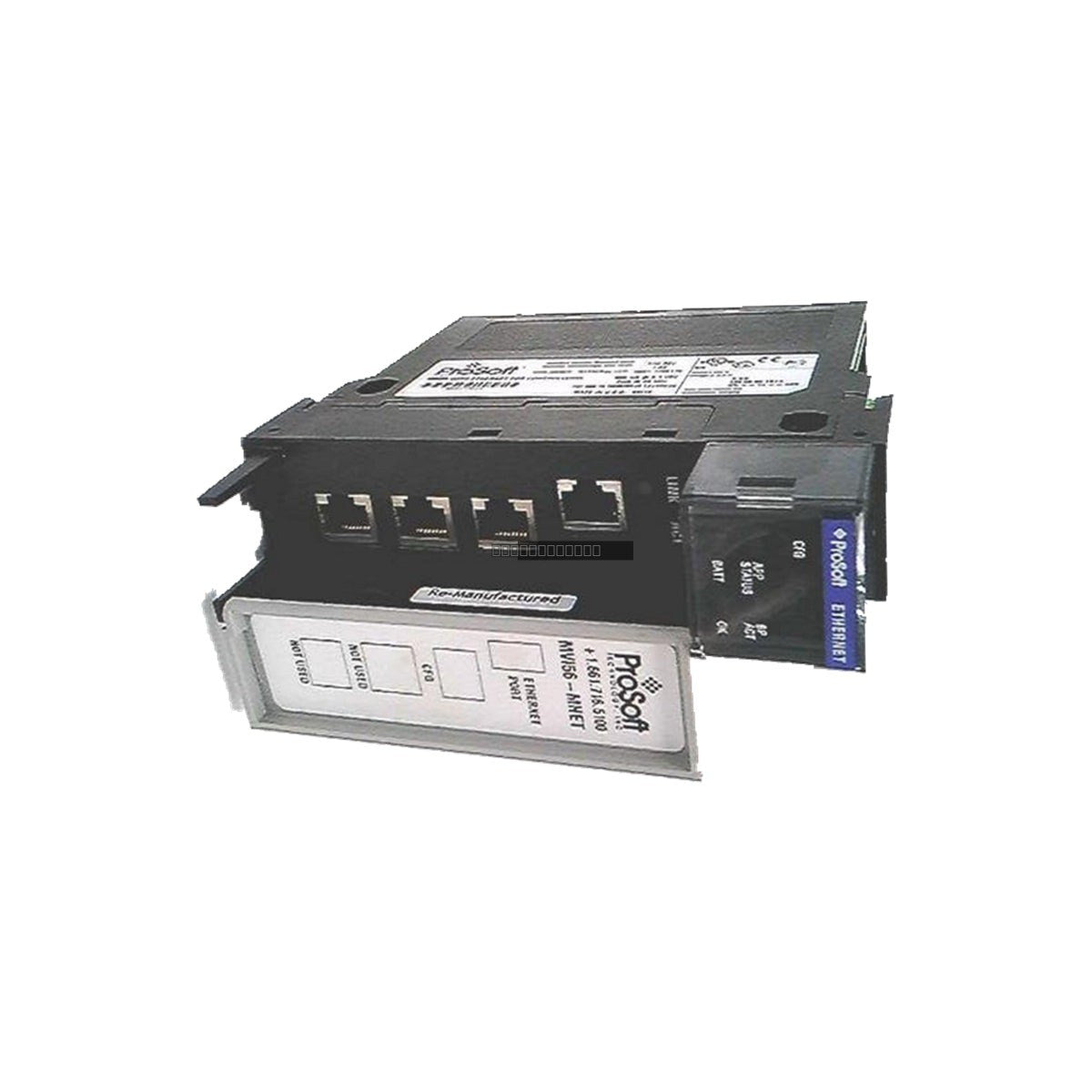

ProSoft MVI56-MNET Modbus TCP/IP Communication Module

ProSoft MVI56-MNET Modbus TCP/IP Communication Module for ControlLogix

Availability: 0 left in stock

DescriptionThe ProSoft MVI56-MNET is a high-performance network interface module designed specifically for integration with Rockwell Automation ControlLogix programmable automation controllers....

SKU: MVI56-MNET

Manufacturer: ProSoft
Product No.: MVI56-MNET
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The ProSoft MVI56-MNET is a high-performance network interface module designed specifically for integration with Rockwell Automation ControlLogix programmable automation controllers. This module enables seamless communication between ControlLogix processors and external devices supporting the Modbus TCP/IP protocol, acting as both a client and a server to ensure versatile network connectivity.

Features

Direct integration with ControlLogix backplane for high-speed data exchange.
Supports Modbus TCP/IP client and server functionality for flexible network architectures.
Dedicated RJ45 Ethernet port for Modbus network communication.
Integrated RJ45 serial configuration port for straightforward setup and diagnostics.
Optimized for industrial automation environments requiring reliable protocol conversion.

Applications

This module is widely utilized in industrial control systems where Allen-Bradley ControlLogix platforms must interface with third-party instrumentation, variable frequency drives, power monitors, or other Modbus-compatible hardware. It is commonly deployed in manufacturing, water/wastewater treatment, and energy management systems.

Technical Specifications

Model	MVI56-MNET
Manufacturer	ProSoft
Communication Protocol	Modbus TCP/IP
Interface Ports	1 x RJ45 Ethernet, 1 x RJ45 Configuration
Compatibility	ControlLogix Processors
Weight	0.15 kg

Installation Guidelines

Ensure the ControlLogix rack is powered down before inserting or removing the MVI56-MNET module to prevent electrical damage.
Slide the module into any available slot in the ControlLogix chassis and secure it using the integrated latching mechanism.
Use a standard shielded Ethernet cable for the Modbus TCP/IP connection to minimize electromagnetic interference.
Connect a PC to the CFG port using a serial cable for initial configuration and IP address assignment via ProSoft Configuration Builder (PCB) software.
Verify that the module status LEDs indicate normal operation after power-up.

FAQ

Is the MVI56-MNET a standalone device? No, this module is designed to reside within a standard ControlLogix chassis and draws power from the backplane.

Can this module operate as a master and slave simultaneously? Yes, the MVI56-MNET supports both client (master) and server (slave) modes, allowing it to initiate requests and respond to incoming requests from other devices on the network.
