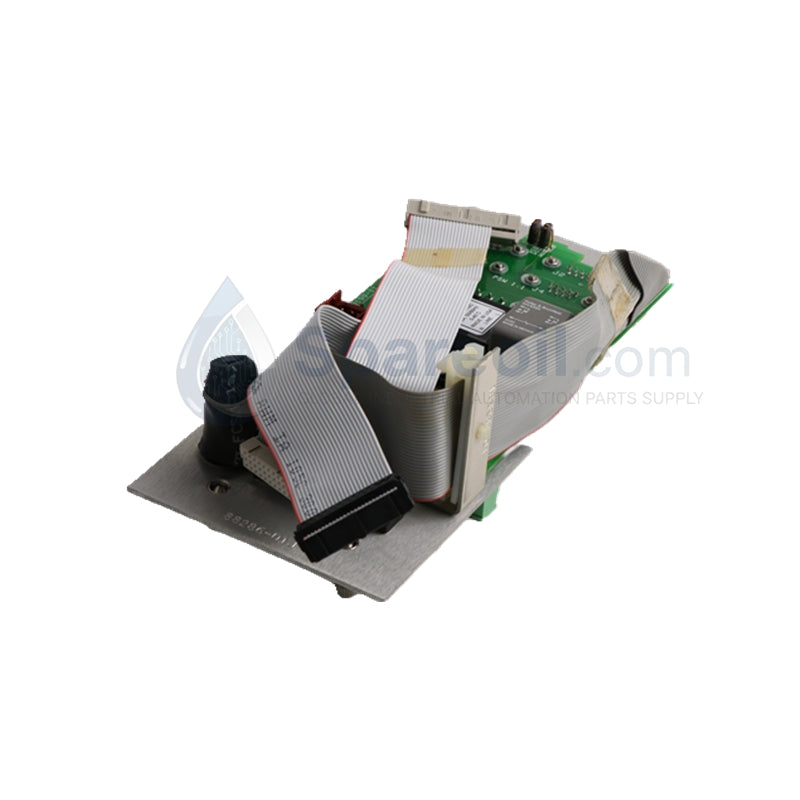

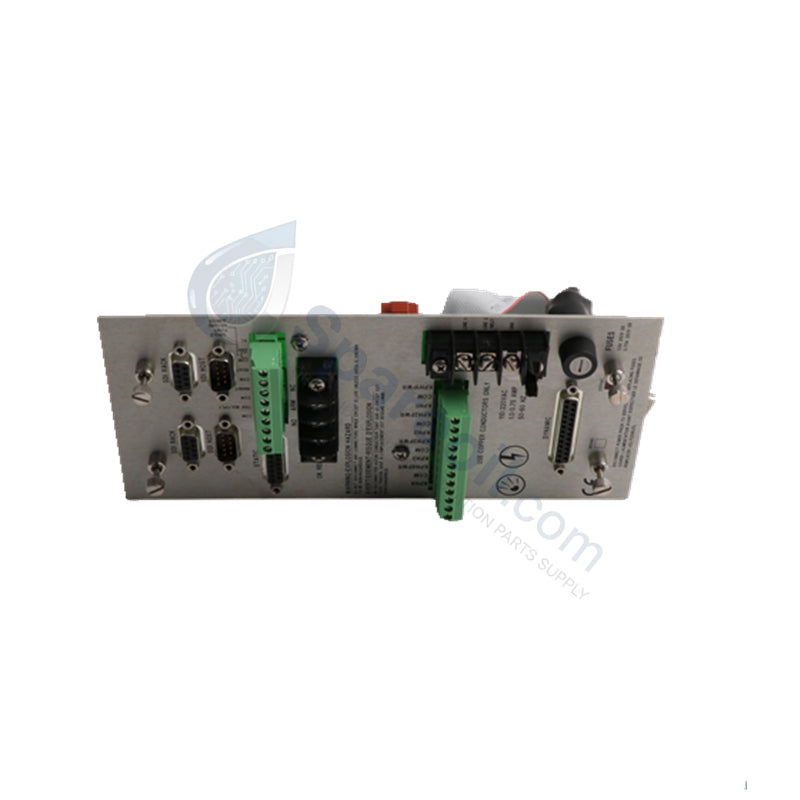

PWA88199-01 Bently Nevada | 3300 Series WL129 Assembly

PWA88199-01 Bently Nevada | 3300 Series WL129 Assembly

Availability: 10 left in stock

Product Overview The Bently Nevada PWA88199-01 (WL129) functions as a specialized Terminal Board and Temperature Module for the 3300 Series Monitoring System. This high-integrity assembly...

SKU: PWA88199-01

Manufacturer: Bently Nevada
Product No.: PWA88199-01
Product Type: RS-485 Industrial Control
Product Origin: USA
Payment:T/T, Western Union
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada PWA88199-01 (WL129) functions as a specialized Terminal Board and Temperature Module for the 3300 Series Monitoring System. This high-integrity assembly provides the physical and electrical interface required for continuous, online monitoring of machinery health. It processes diverse inputs, including temperature, pressure, vibration, and shaft position, converting field signals into conditioned data for the rack's primary monitoring logic. We supply this unit as 100% Brand New and Original, ensuring your legacy 3300 system maintains peak reliability in safety-critical petrochemical and power generation environments.

Technical Specifications

Attribute	Specification Value
Model Number	PWA88199-01 / WL129
System Compatibility	Bently Nevada 3300 Series
Input Channels	Multi-parameter (Temp, Vibration, Pressure)
Communication	RS-485, CANopen
Power Supply	110–240 VAC, 50/60 Hz
Ingress Protection	IP67 Rated (Dust-tight/Waterproof)
Operating Temp	-20°C to +60°C (-4°F to +140°F)
Dimensions	24.0 cm x 12.5 cm x 5.0 cm
Weight	2.5 kg
Linear Range	2 mm to 4 mm (Probe dependent)

Engineering Advantages

Multi-Parameter Integration: The PWA88199-01 consolidates temperature, pressure, and vibration signal conditioning onto a single terminal interface. This multi-functional design reduces the required number of discrete components in your 3300 rack and simplifies cable management.
Ruggedized IP67 Construction: Unlike standard rack components, this assembly features an IP67 rating. It completely resists dust ingress and withstands temporary immersion in water, making it the ideal choice for exposed field housings or wash-down environments in manufacturing facilities.
Digital Communication Capability: The module incorporates RS-485 and CANopen protocols. This allows the 3300 system to transmit digitized machinery health data directly to a DCS or PLC, bypassing the limitations of purely analog legacy loops.
Eddy Current Signal Stability: When processing displacement data, the board maintains the standard –200 mV/mil scale factor. It preserves signal integrity from the proximity probe across long cable runs, ensuring the vibration monitoring remains immune to ambient electrical noise.
Wide Voltage Compliance: The universal 110–240 VAC power supply accommodates varying plant standards without requiring additional transformers. This flexibility facilitates rapid deployment during emergency maintenance or system expansions.

FAQs

Does this PWA88199-01 replace older 3300 series terminal boards?

Yes. This PWA serves as a direct replacement for 3300 series terminal assemblies. It maintains mechanical compatibility with original 3300 racks while offering the enhanced durability of an IP67-rated enclosure.
How do I connect this to my DCS?

You can utilize the onboard RS-485 or CANopen communication ports. These protocols allow the module to stream real-time temperature and vibration parameters to your plant's digital control network for remote logging and analysis.
Is this module suitable for outdoor installation?

Due to its rugged construction and wide operating temperature range (-20°C to +60°C), the PWA88199-01 performs reliably in outdoor junction boxes, provided you follow standard Bently Nevada installation guidelines for environmental protection.
What is the condition of this unit?

We guarantee this is a 100% Brand New and Original Bently Nevada part. It arrives in factory-sealed packaging with a full 12-month warranty, ensuring it meets all OEM specifications for accuracy and protection logic.
