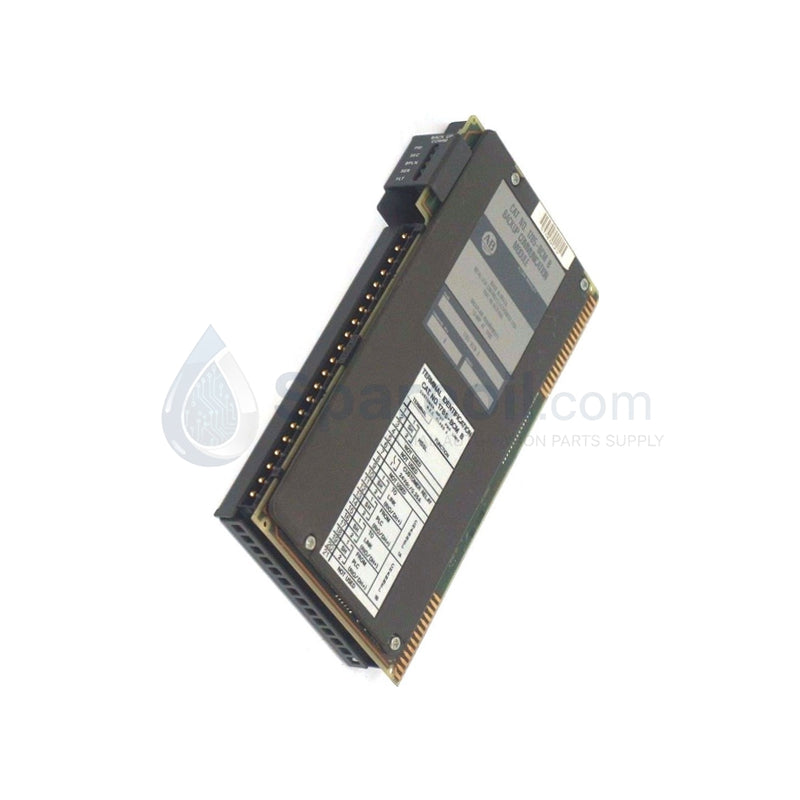

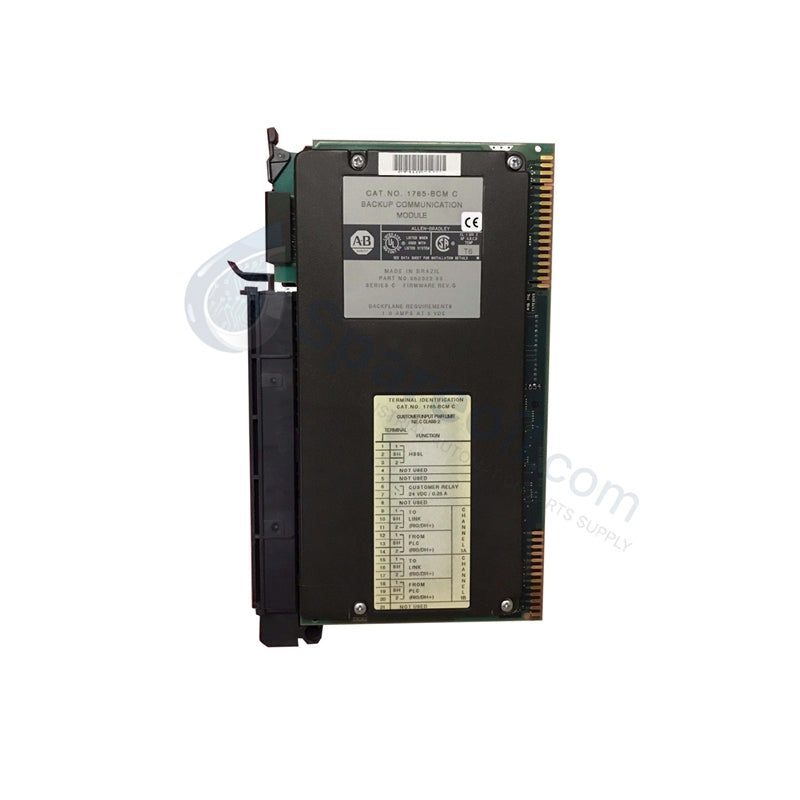

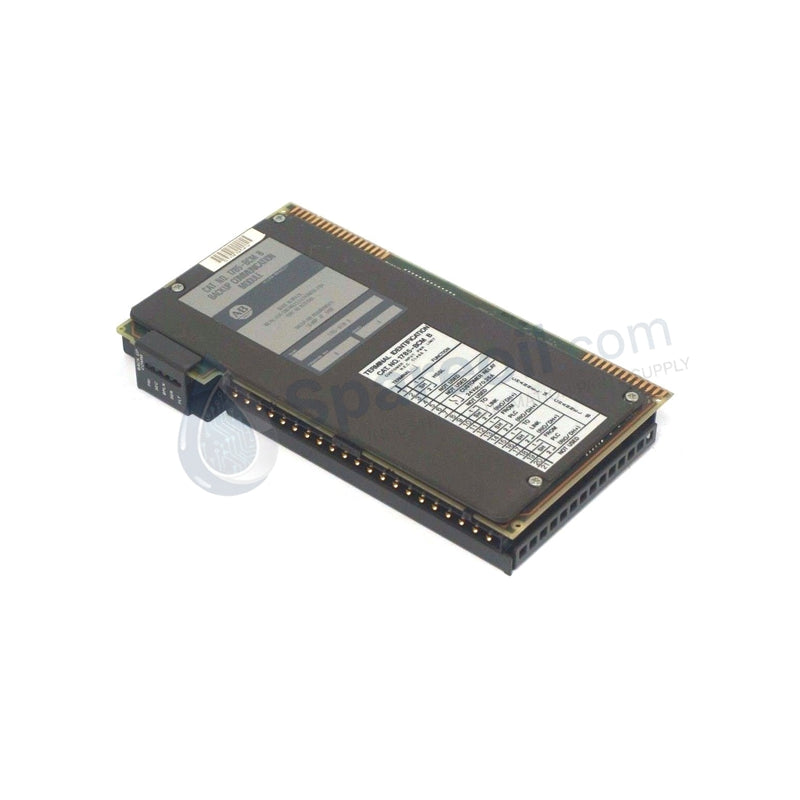

Redundant Processor Sync Module | Allen-Bradley 1785-BCM

Availability: 20 left in stock

Product Overview The Allen-Bradley 1785-BCM functions as a high-reliability hardware interface designed to establish processor redundancy within the classic PLC-5...

SKU: 1785-BCM

Manufacturer: Allen Bradley
Product No.: 1785-BCM
Product Type: Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 580g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 1785-BCM functions as a high-reliability hardware interface designed to establish processor redundancy within the classic PLC-5 automation platform. This Backup Communication Module creates a dedicated, high-speed deterministic link between a primary and a secondary PLC-5 chassis. The module transfers exact mirror-images of user memory structures, data registers, and active I/O tables across the synchronization link in real time. If the primary processor encounters a fault or power loss, the 1785-BCM executes an automated hot-backup switchover to the standby controller. This 100% brand new, factory-original module protects continuous-process industries—such as petrochemical refining, water treatment, and power generation—from catastrophic system downtime.

Technical Specifications

Parameter	Specification Value
Manufacturer	Allen-Bradley / Rockwell Automation
Product Line	PLC-5 Automation Series
Model Number	1785-BCM
Product Type	Backup Communication Module
Redundancy Configuration	Hot-Standby with fully automatic switchover
Communication Ports	1 x High-Speed Proprietary Serial Sync Link, 2 x DH+ (Data Highway Plus) / Remote I/O
Supported Processors	PLC-5/40, PLC-5/60, PLC-5/80 Redundant-Capable Models
Chassis Mounting	Standard PLC-5 I/O Slot Allocation
Synchronization Scope	User logic programs, data files, timers, counter registers, and I/O bit-maps
Data Transfer Rate	High-speed, deterministic backplane-synchronized mirroring
Diagnostics System	Front-panel LED array for channel status, link integrity, and module health
Power Source	Draws directly from the PLC-5 chassis backplane power rail
Operating Temperature	0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage Temperature	-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Physical Weight	1.28 lbs (0.58 kg)
Agency Certifications	UL, CE, CSA

Engineering Advantages

Enforce Zero-Downtime Hot-Backup Switching: The internal logic tracking engine monitors primary processor health continually. In a failure event, the module initiates a bumper-to-bumper bump-free transfer of control to the secondary chassis in milliseconds, avoiding process interruptions or recipe sequence wipes.
Guarantee Deterministic Memory Mirroring: The proprietary high-speed serial bus synchronizes data tables on every single program scan. This continuous memory replication ensures that the standby controller holds identical calculations, counter accumulations, and valve positions as the primary unit.
Consolidate Network Redundancy Paths: Dual multi-purpose ports handle Data Highway Plus (DH+) and Universal Remote I/O (RIO) networking layouts. This architecture routes redundant communication links down to distant remote I/O chassis, ensuring unbroken line communication if an entire trunk cable gets severed.
Accelerate Emergency Fault Resolution: A comprehensive row of diagnostic LEDs mounted on the front faceplate isolates communication failures instantly. Maintenance personnel can easily distinguish between an untracked data sync error, a broken physical serial line, or an internal board fault.
Withstand Extreme Electromagnetic Spikes: Heavy industrial metal shielding wraps the entire circuit board footprint. This casing actively blocks electromagnetic noise generated by nearby high-voltage switchgear, protecting the serial sync pulses from data fragmentation or signal loss.

FAQs

Does a single 1785-BCM module provide complete system redundancy?

No. Setting up a functional hot-backup control loop requires a paired system architecture. You must install one 1785-BCM module in the primary controller chassis and a second, identical 1785-BCM module in the secondary backup chassis, linking them together via the dedicated front-facing serial connection.
Which specific processors support the 1785-BCM hot-backup features?

The 1785-BCM interfaces exclusively with redundant-capable processors within the modular PLC-5 family, such as the PLC-5/40, PLC-5/60, and PLC-5/80. Standard entry-level PLC-5 processors lack the internal operating system microcode required to manage the external data-mirroring protocols.
What is the packaging status and structural quality of this module?

We offer this hard-to-find component as a 100% brand new, original factory-sealed unit. The module comes preserved within its original Allen-Bradley heavy-duty industrial box and anti-static packaging shell. It includes pristine gold backplane connector contacts, ensuring out-of-the-box reliability for your legacy backup control panels.
