Schneider Electric BMENOC0301 Modicon M580 Ethernet Module

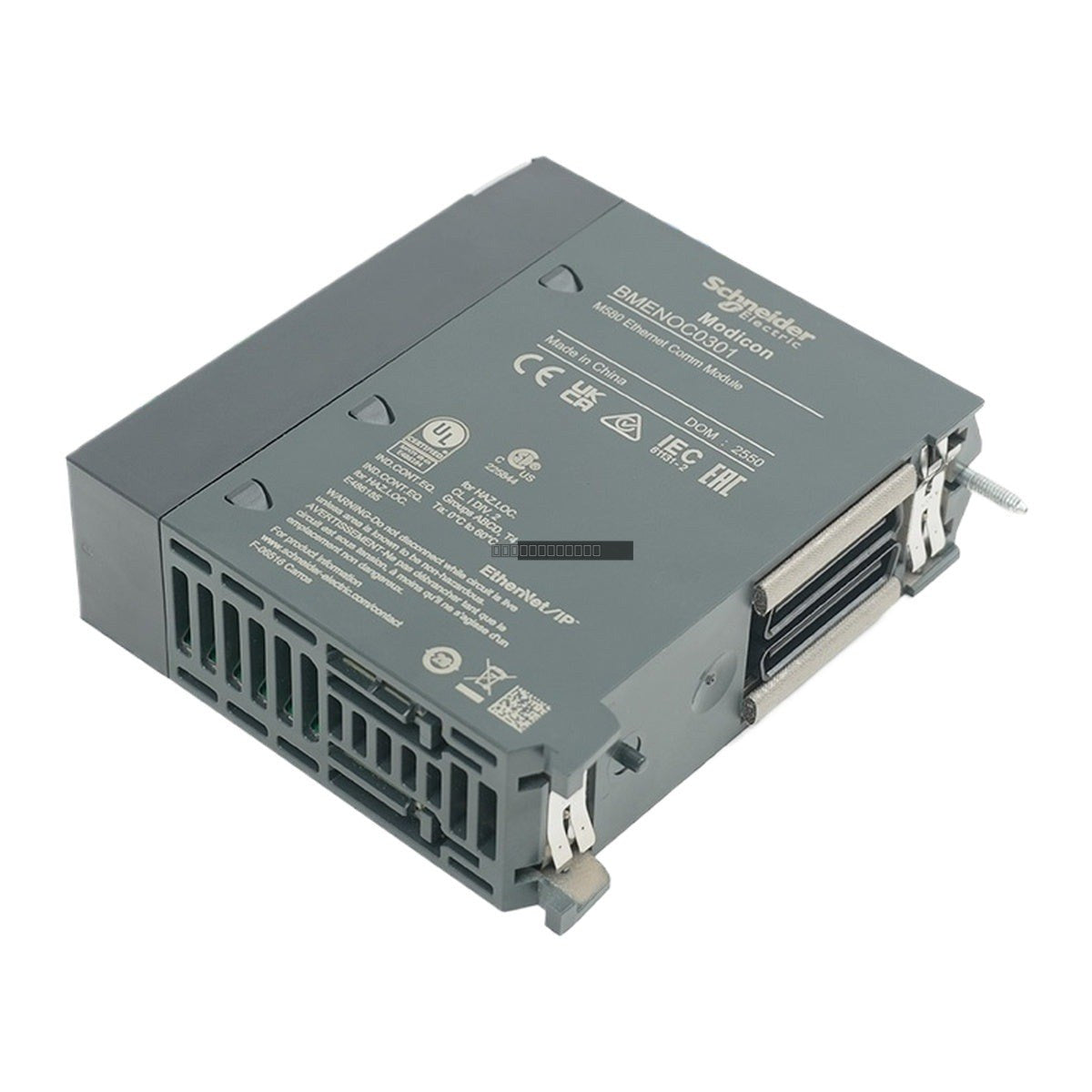

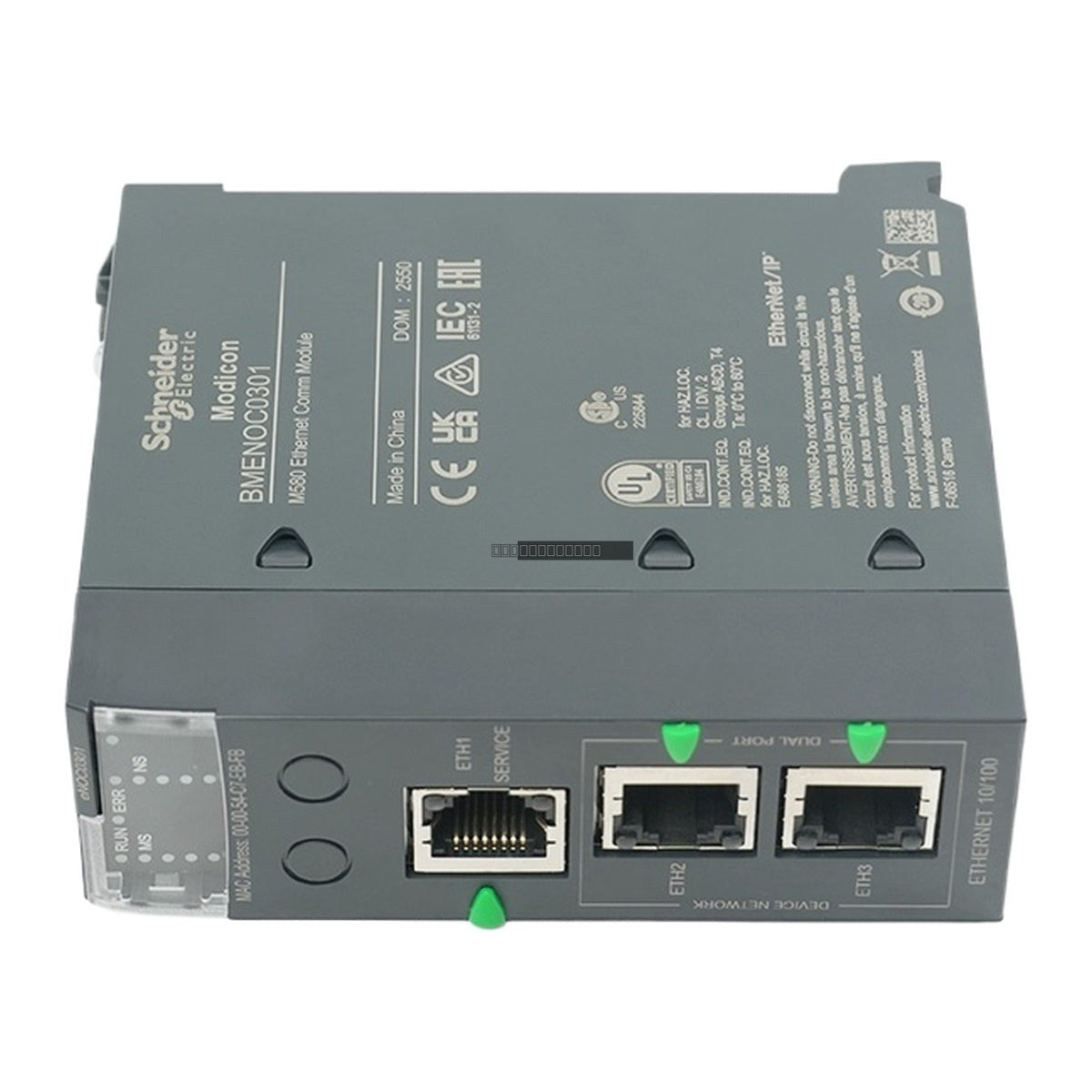

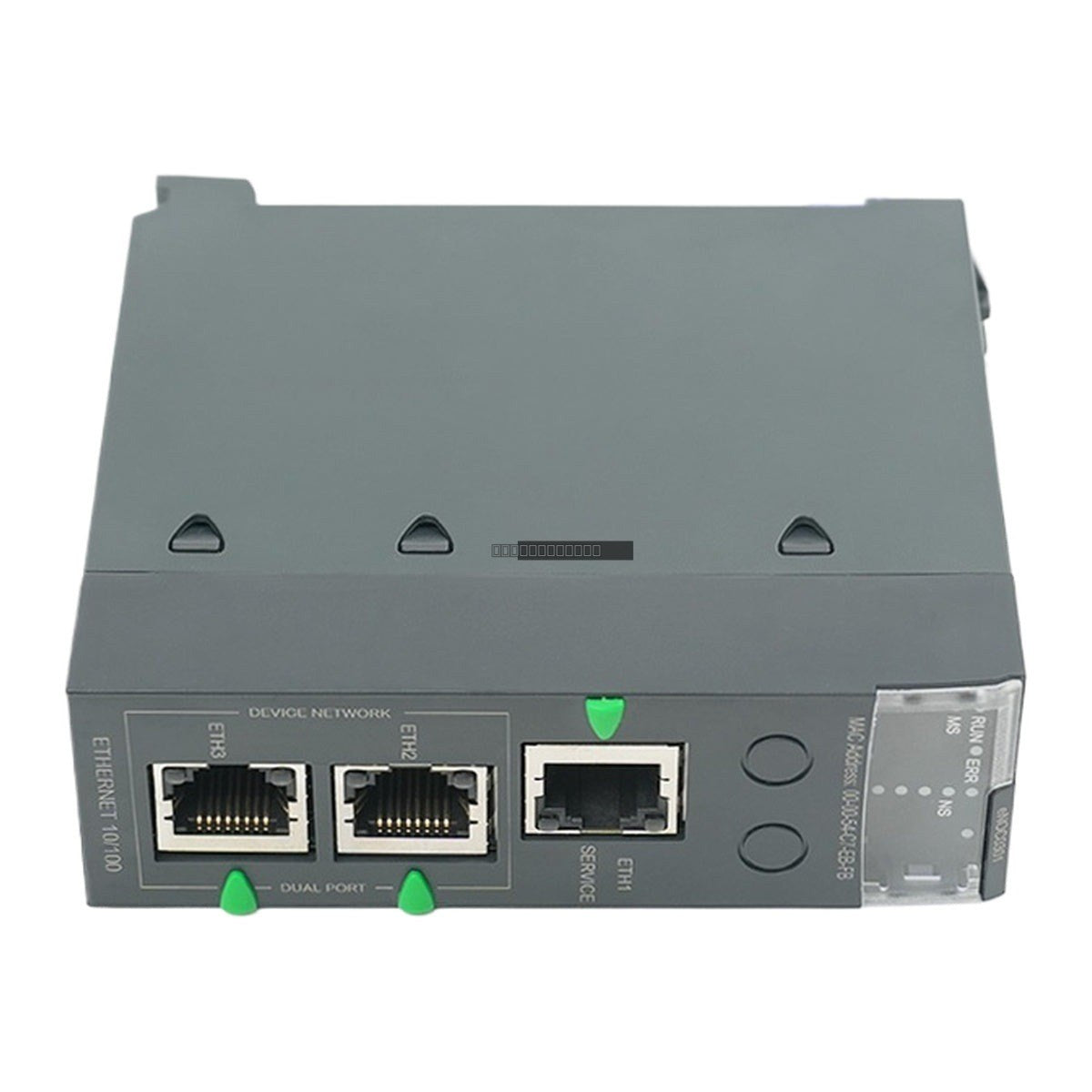

Schneider Electric BMENOC0301 Modicon M580 Ethernet Communication Module

Availability: 9 left in stock

DescriptionThe Schneider Electric BMENOC0301 is a high-performance 3-port Ethernet communication module designed for the Modicon M580 programmable automation controller (PAC)...

SKU: BMENOC0301

Manufacturer: Schneider Electric
Product No.: BMENOC0301
Product Type: Ethernet Communication Module
Product Origin: France
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Schneider Electric BMENOC0301 is a high-performance 3-port Ethernet communication module designed for the Modicon M580 programmable automation controller (PAC) platform. It serves as a critical interface between the M580 system and various Ethernet-based network devices, supporting both EtherNet/IP and Modbus TCP communication protocols. This module is engineered to enhance connectivity in medium to large-scale industrial process applications.

Features

Multi-Port Connectivity: Features three RJ45 Ethernet ports for flexible network integration.
Protocol Support: Native support for Modbus TCP and EtherNet/IP I/O scanning and messaging.
Network Resilience: Integrated multi-port switch with support for Rapid Spanning Tree Protocol (RSTP) to prevent network loops.
Advanced Management: Includes SNMP network administration, bandwidth management, and an FDR (Faulty Device Replacement) server.
Diagnostics: Built-in web server for configuration and diagnostics, complemented by front-panel LED indicators (RUN, ERR, ETH MS, ETH NS).
Hot-Swappable: Supports replacement during system operation without requiring a full power cycle.

Applications

Factory Automation: High-speed communication for complex manufacturing systems.
Machine Control: Manages machinery requiring robust Ethernet connectivity.
Process Control: Scalable solution for medium to large-scale industrial processes.
Energy Management: Seamless integration into power and energy distribution systems.
IIoT Readiness: Transparent Ready technology links field devices to higher-level enterprise networks.

Technical Specifications

Product Model	BMENOC0301
Product Range	Modicon M580
Communication Ports	3 x RJ45
Power Consumption	555 mA @ 3.3 V DC (Internal rack supply)
Mounting	Main rack (Ethernet + X-bus slot)
IP Rating	IP20
Standards	EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
Certifications	CE, UL

Installation Guidelines

Backplane Requirement: Must be installed on a BME (Ethernet-enabled) backplane. It will not function on a standard BMX (X-Bus only) backplane.
ESD Precautions: Always handle the module using proper electrostatic discharge (ESD) protection measures.
Power Handling: While the module is hot-swappable, ensure the slot is clear of debris before insertion.
Cabling: Use double-shielded twisted pair cabling for optimal performance. Avoid routing Ethernet cables near high-EMI sources such as power lines or motor drives.
Network Configuration: When the Ethernet backplane port is enabled, avoid connecting the module directly to the CPU via an external Ethernet cable to prevent network conflicts.

FAQ

What is the BMENOC0301?

The BMENOC0301 is an Ethernet/IP and Modbus/TCP communication module specifically designed for the Modicon M580 PAC system to facilitate high-speed data exchange.

Is the BMENOC0301 hot-swappable?

Yes, the module supports hot-swapping. It can be replaced while the system is powered, though the new module will initialize with its unique MAC address.

What are the cabling restrictions?

When the Ethernet backplane port is enabled, do not connect the module directly to the CPU via an external Ethernet cable, as this may create a network loop or conflict.
