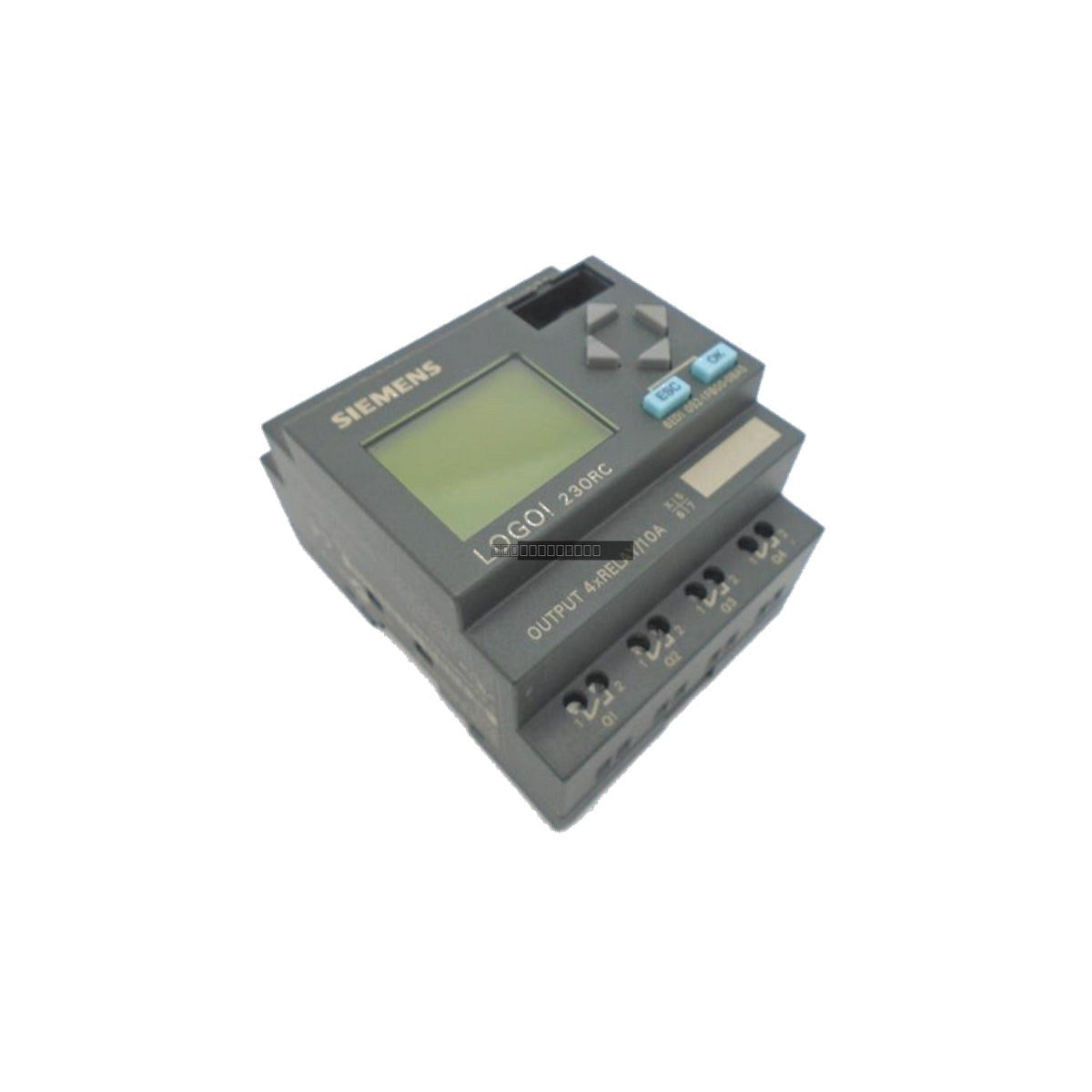

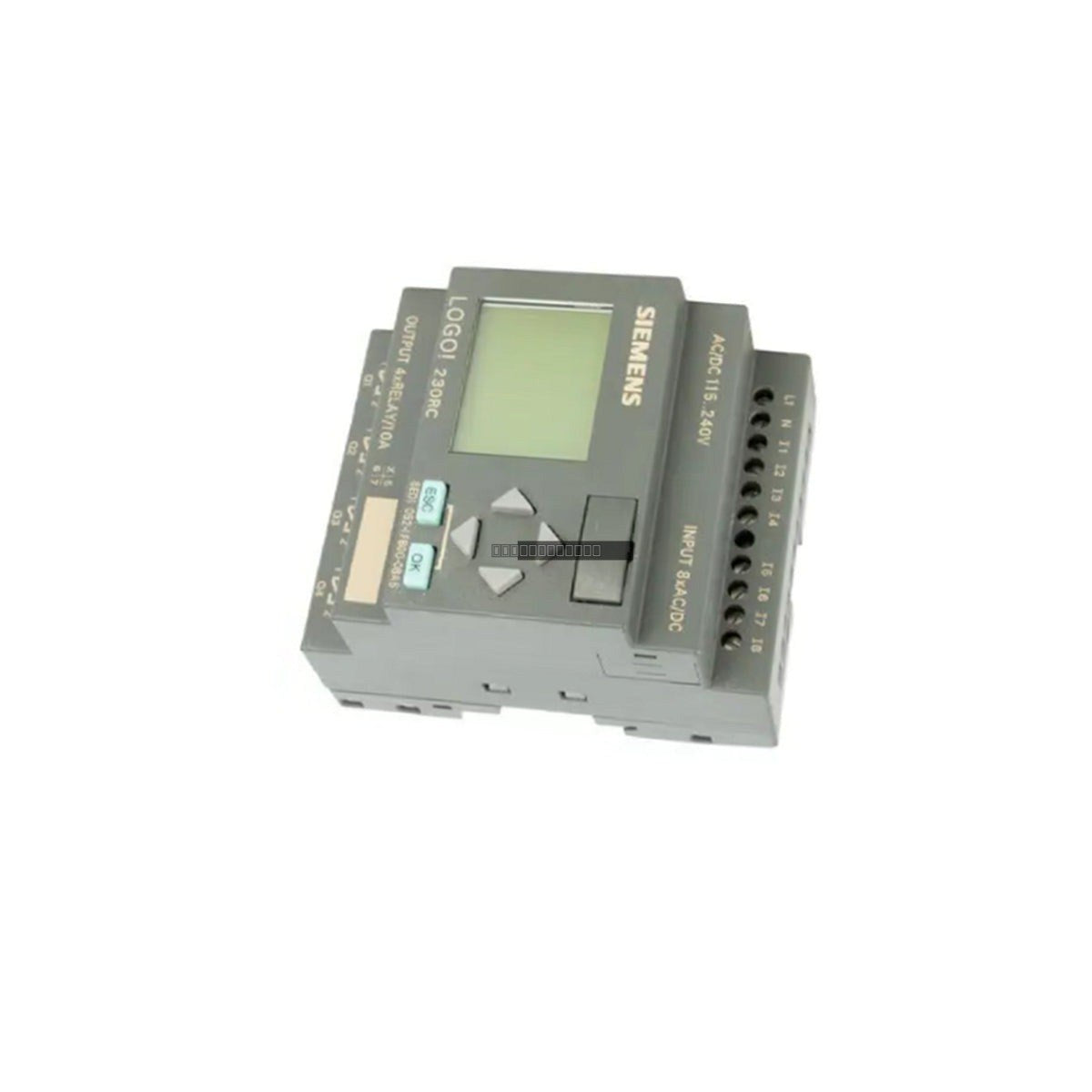

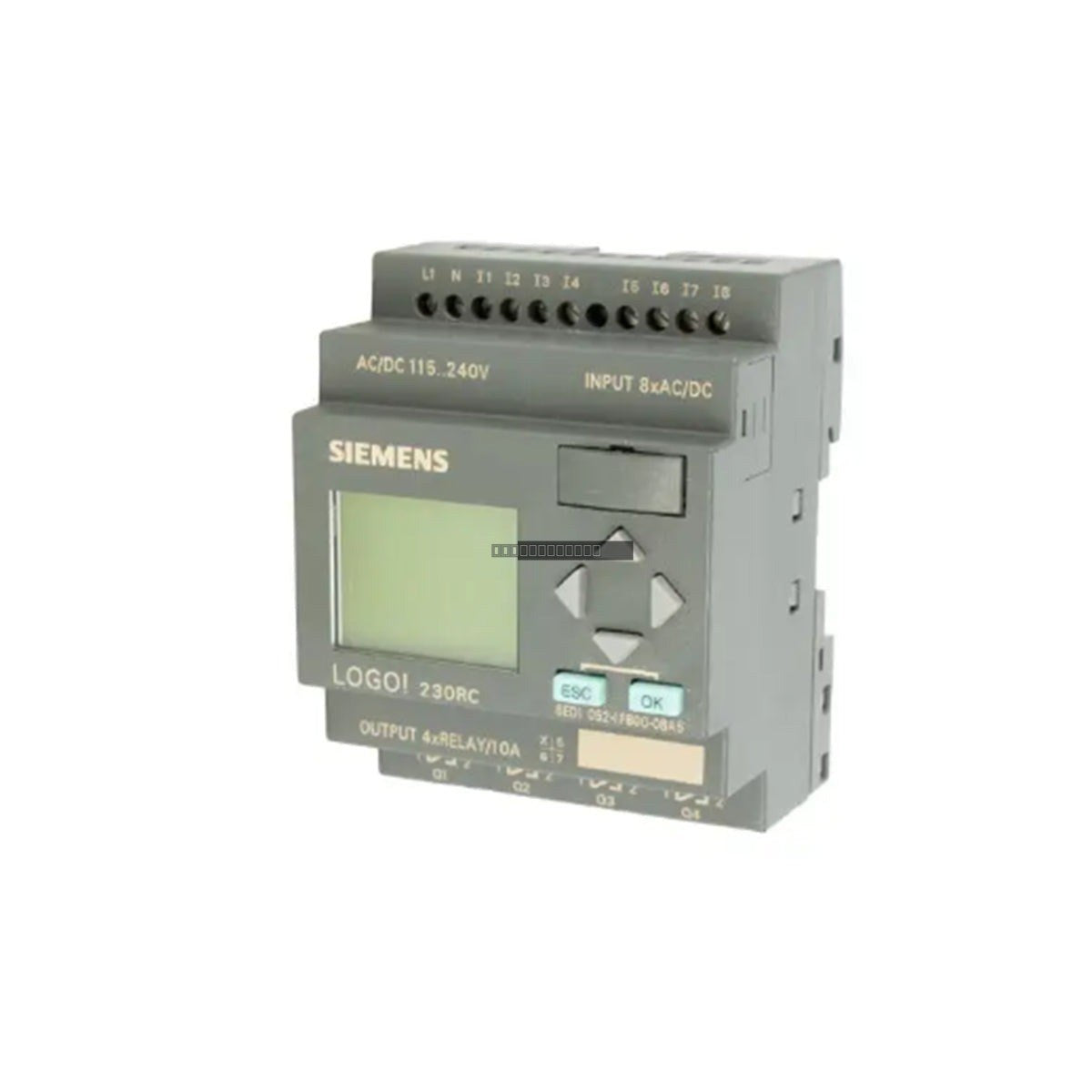

Siemens 6ED1052-1FB00-0BA5 LOGO! 230RC Logic Module

Availability: 9 left in stock

DescriptionThe Siemens 6ED1052-1FB00-0BA5 is a compact 230RC logic module from the LOGO! series, engineered for small-scale automation and control tasks....

SKU: 6ED1052-1FB00-0BA5

Manufacturer: Siemens
Product No.: 6ED1052-1FB00-0BA5
Product Type: Logic Module
Product Origin: China
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6ED1052-1FB00-0BA5 is a compact 230RC logic module from the LOGO! series, engineered for small-scale automation and control tasks. This versatile controller integrates 8 digital inputs and 4 relay outputs, operating on a supply voltage range of 115-230 VAC/VDC. It serves as an efficient replacement for traditional relay-based logic, offering programmable functionality that simplifies circuit modifications and system troubleshooting in industrial and building automation environments.

Features

Integrated display and keypad for local programming and parameter adjustments.
Supports up to 200 function blocks, including timers, counters, and pulse-width modulation.
Four high-capacity relay outputs capable of handling up to 10A resistive or 3A inductive loads.
Compact, DIN-rail mountable design suitable for standard distribution boards.
Robust polycarbonate housing with IP20 protection rating.

Applications

The LOGO! 230RC is widely deployed in diverse applications including building automation systems, HVAC control, small-scale industrial machinery, conveyor belt control, and local pumping station management.

Technical Specifications

Model	6ED1052-1FB00-0BA5
Brand	Siemens
Series	LOGO! Logic Module
Supply Voltage	115-230 VAC/VDC
Digital Inputs	8
Relay Outputs	4
Output Current (Resistive)	10 A
Output Current (Inductive)	3 A
Operating Temperature	0 to 55 deg C
Storage Temperature	-40 to 70 deg C
Mounting	35 mm DIN Rail
Protection Rating	IP20

Installation Guidelines

Ensure the power supply is disconnected before performing any wiring or module installation.
Mount the module on a standard 35 mm DIN rail in a clean, dry environment.
Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.
Use appropriate wire gauges for terminal connections and ensure all screws are tightened to prevent loose contacts.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or terminals.
Ensure the supply voltage matches the specified 115-230 VAC/VDC range to prevent damage to the internal circuitry.

FAQ

Can this module be programmed without a PC?

Yes, the 6ED1052-1FB00-0BA5 features an integrated display and keypad, allowing users to perform programming and parameter adjustments directly on the device.

What type of outputs does this module provide?

This module is equipped with 4 relay outputs, which are suitable for switching both resistive and inductive loads within the specified current ratings.
