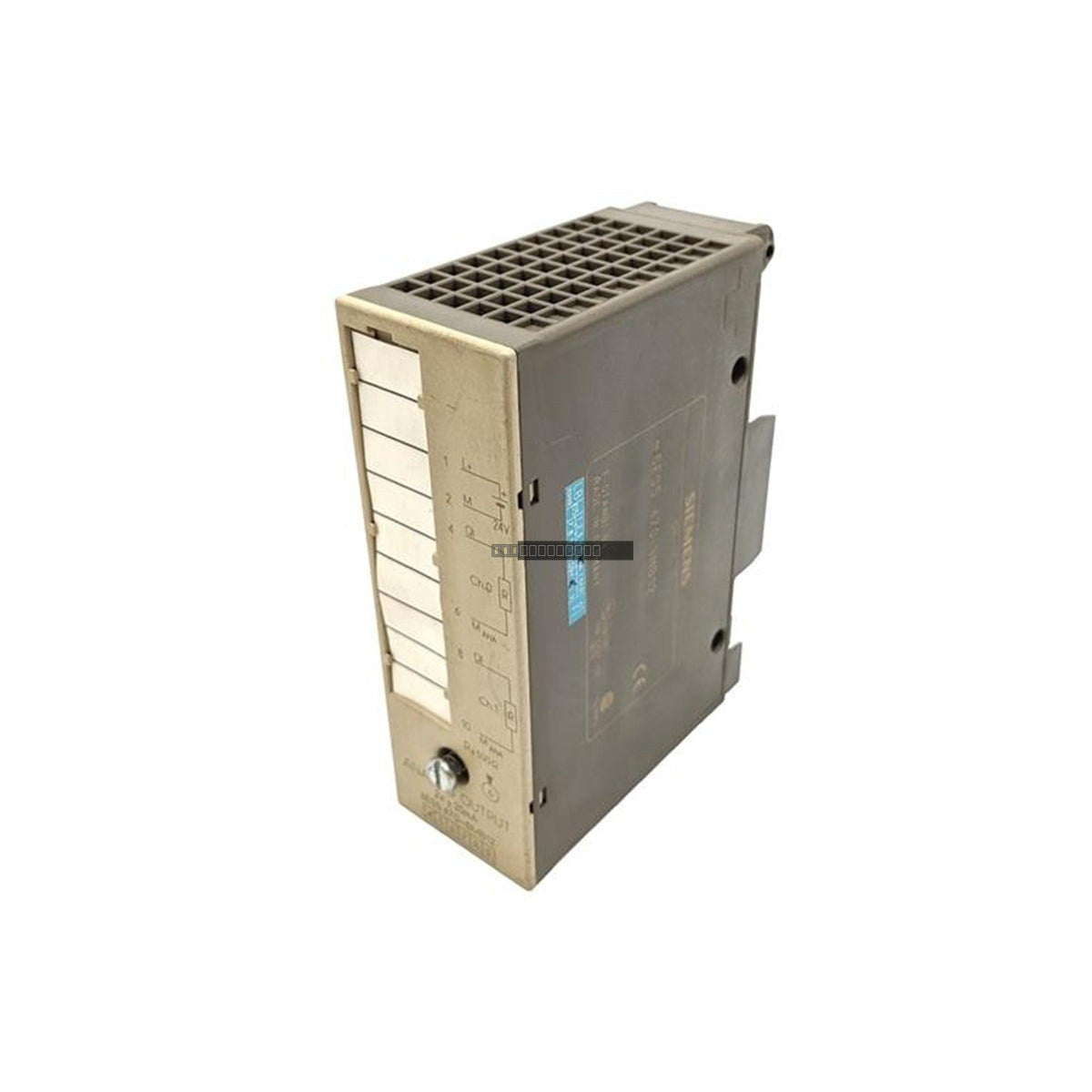

The Siemens 6ES5470-8MB12 is a specialized analog output module engineered for the SIMATIC S5 automation ecosystem. It serves as a reliable interface component for S5-90U, S5-95U, and S5-100U PLC systems, as well as ET 100U and ET 200U distributed I/O stations. By converting digital control data into precise analog current signals, this module is essential for regulating actuators, control valves, and speed controllers in legacy industrial environments such as water treatment facilities and metal processing plants.
Features
- Dual-channel design providing two independent analog outputs.
- Bipolar signal output range of +/- 20 mA for versatile control applications.
- Integrated galvanic isolation to protect internal logic from electrical noise and field-side ground loops.
- Compact, rail-mountable form factor designed for integration into standard SIMATIC S5 rack configurations.
- Robust construction to ensure operational stability in demanding industrial conditions.
Applications
This module is primarily utilized in maintenance and lifecycle extension projects for legacy Siemens SIMATIC S5 infrastructure. Common applications include the precise positioning of hydraulic or pneumatic actuators, the regulation of variable frequency drive references, and the management of proportional flow control valves in continuous process loops.
Technical Specifications
| Model | 6ES5 470-8MB12 |
| Brand | Siemens |
| Series | SIMATIC S5 / ET 100U |
| Module Type | Analog Output Module |
| Channels | 2 |
| Signal Range | +/- 20 mA |
| Galvanic Isolation | Yes |
| Power Consumption | 1.5 W |
| Operating Temperature | 0 to 60 deg C |
Installation Guidelines
Proper installation is critical for the longevity of legacy S5 modules. Ensure the following practices are followed:
- Always disconnect power from the PLC rack before inserting or removing the module to prevent damage to the backplane connectors.
- Ensure the module is securely seated on the mounting rail to maintain reliable bus communication.
- Use shielded cabling for all analog signal lines to minimize electromagnetic interference (EMI).
- Verify that the module is installed in an environment with adequate ventilation to prevent overheating, keeping the ambient temperature within the specified 0 to 60 deg C range.
- Maintain proper grounding of the control cabinet to facilitate the effectiveness of the module's galvanic isolation.
FAQ
What is the primary function of the 6ES5470-8MB12?
This module functions as a digital-to-analog converter, outputting a +/- 20 mA current signal to control field devices in Siemens SIMATIC S5 systems.
Is this module compatible with modern S7 systems?
No, this is a legacy SIMATIC S5 component and is not natively compatible with S7-300 or S7-1500 series hardware without specialized interface adapters.
Does this module require external power?
The module draws its operating power from the S5 backplane; however, ensure your power supply unit is sized correctly to account for the 1.5 W consumption per module.
