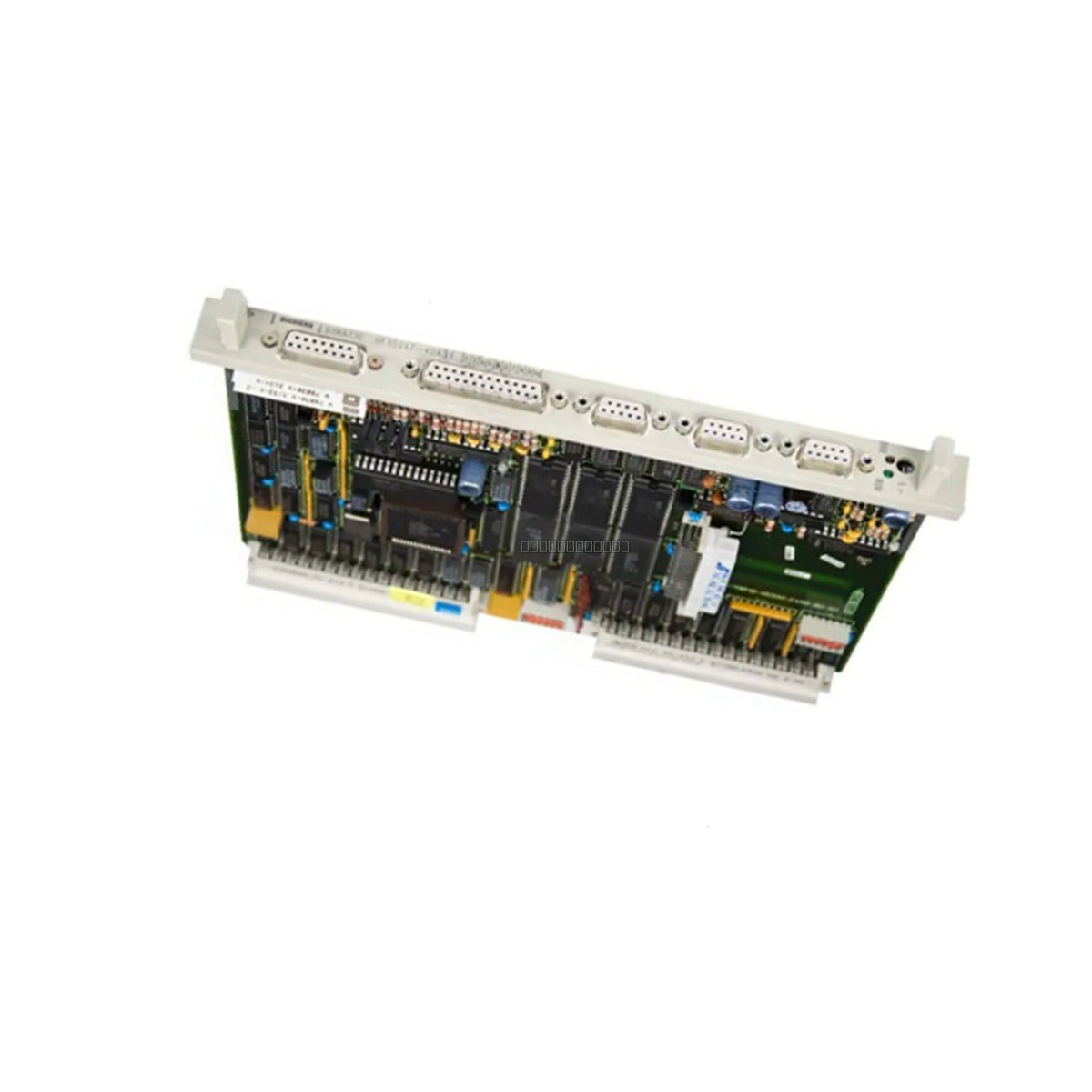

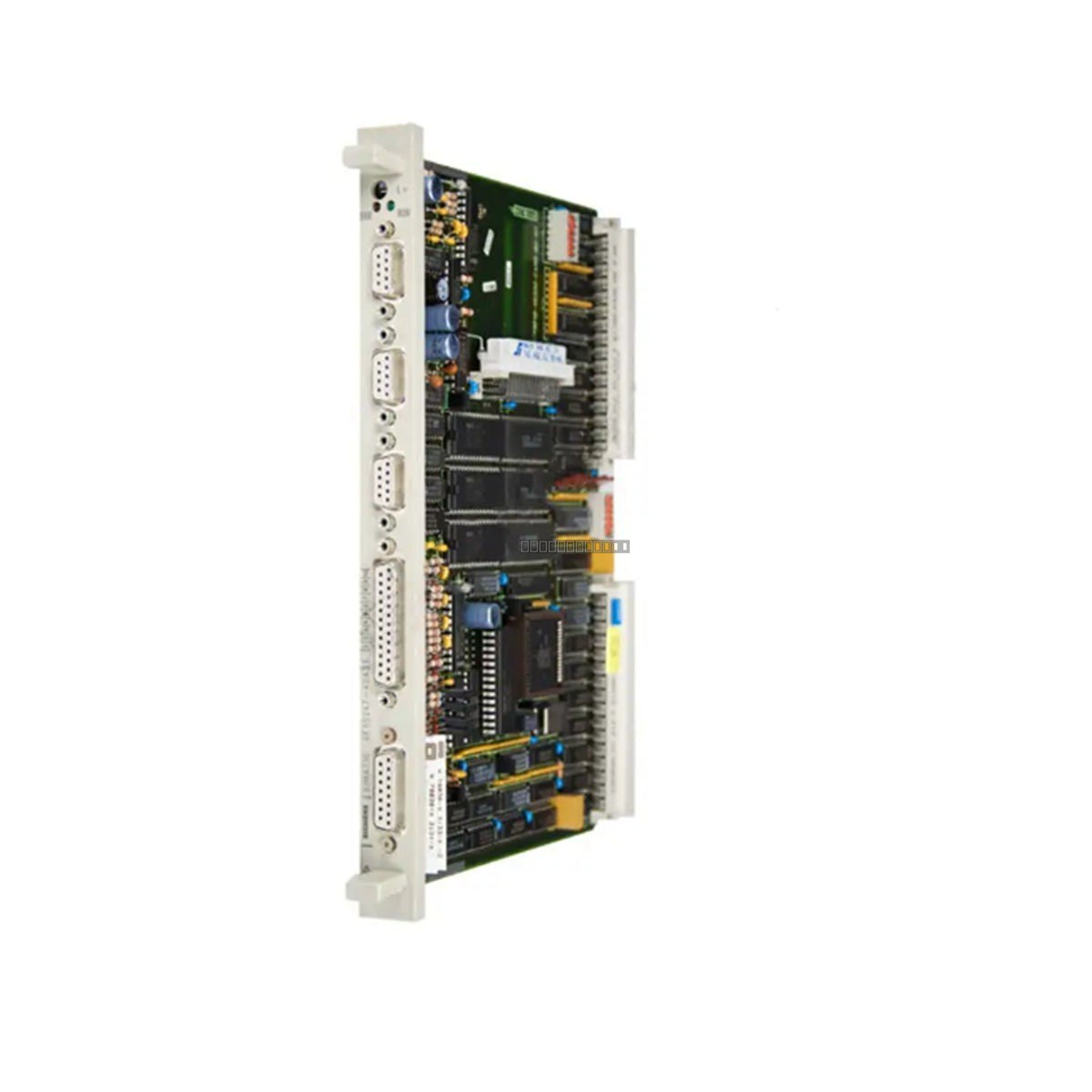

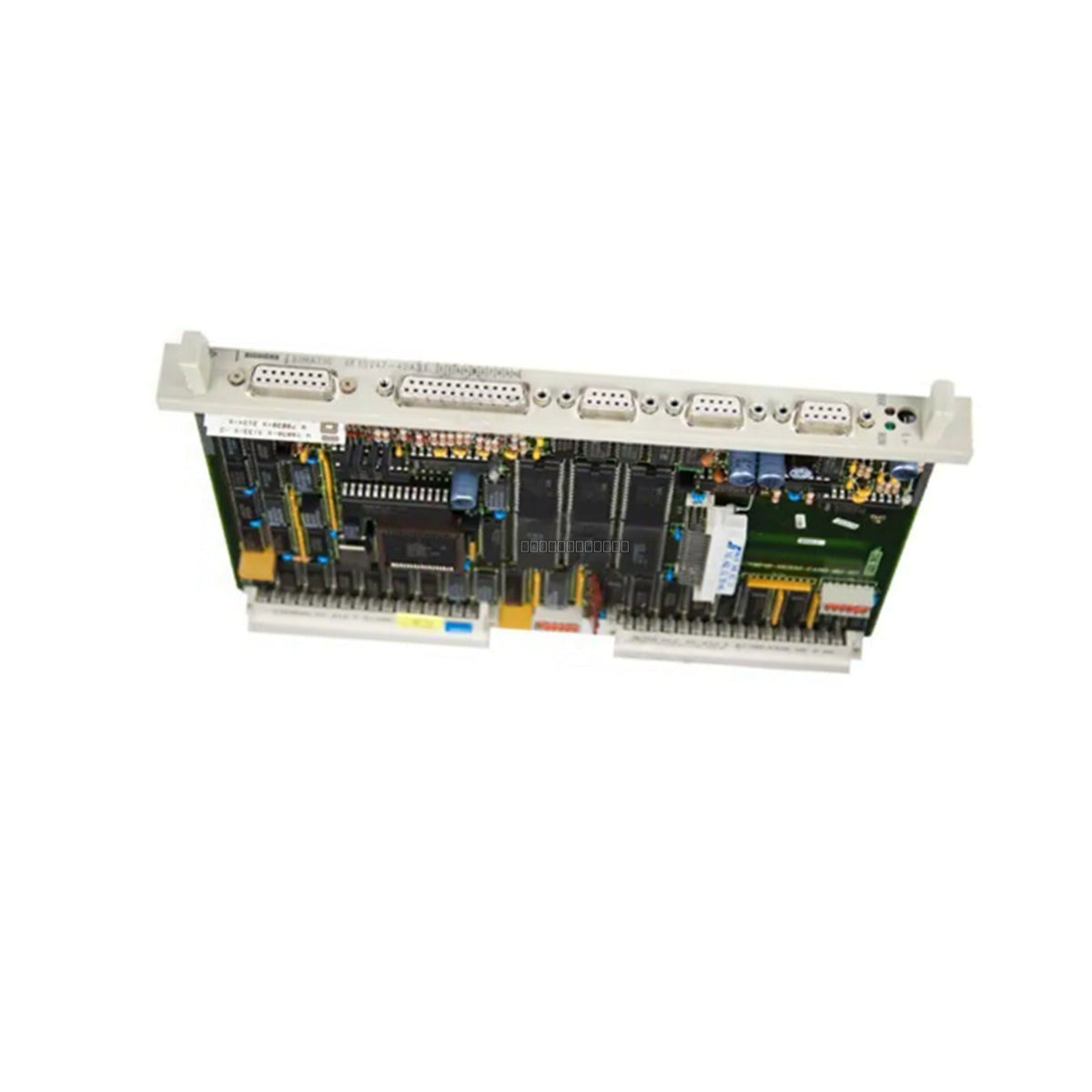

Siemens 6ES5247-4UA31 Simatic S5 Stepper Positioning Module IP 247

Siemens 6ES5247-4UA31 Simatic S5 Stepper Positioning Module

Availability: 7 left in stock

DescriptionThe Siemens 6ES5247-4UA31 (IP 247) is an intelligent, single-axis positioning module engineered for stepper motor control within the Simatic S5-135U...

SKU: 6ES5247-4UA31

Manufacturer: Siemens
Product No.: 6ES5247-4UA31
Product Type: Stepper Positioning Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6ES5247-4UA31 (IP 247) is an intelligent, single-axis positioning module engineered for stepper motor control within the Simatic S5-135U and S5-155U PLC systems. This module offloads time-critical pulse-generation tasks from the central processor, executing independent open-loop position profiles. By managing acceleration and deceleration ramps locally, it prevents CPU cycle bottlenecks and ensures precise motion control in demanding industrial environments such as automotive manufacturing and automated warehousing.

Features

Single-axis control for stepper motor applications.
Dedicated microprocessor for real-time profile calculation and pulse train generation.
High-speed dual-port RAM interface for efficient communication with the S5 backplane.
Supports differential signal outputs for high noise immunity against electromagnetic interference.
Integrated monitoring for limit switches, reference points, and drive ready signals.
Configurable signal levels for 5 VDC differential or 24 VDC single-ended operation.

Applications

This module is designed for precision point-to-point positioning tasks in industrial automation, including:

Automated material handling and warehousing systems.
Textile machinery requiring synchronized axis movement.
Automotive assembly line motion control.
General-purpose open-loop stepper motor positioning.

Technical Specifications

Model	6ES5247-4UA31
Series	Simatic S5 (135U / 155U)
Control Channels	1 independent axis
Pulse Output Frequency	Up to 100 kHz
Signal Levels	5 VDC differential / 24 VDC single-ended
Power Consumption	5.5 W (from backplane)
Operating Temperature	0 to 55 deg C
Storage Temperature	-40 to 70 deg C

Installation Guidelines

Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the S5 backplane slot and secured with the locking mechanism.
Use shielded cabling for all external pulse and signal connections to minimize EMI exposure.
Ensure proper grounding of the drive system to the common reference point to maintain signal integrity.
Maintain adequate clearance around the module to ensure proper ventilation and cooling within the cabinet.
Handle with standard ESD precautions to protect internal sensitive components.

FAQ

Is this module compatible with S5-115U systems?

No, the IP 247 (6ES5247-4UA31) is specifically designed for the S5-135U and S5-155U PLC chassis infrastructure.

Does this module require external power for the pulse outputs?

The module draws its internal logic power from the backplane (5.5 W), but signal level requirements (5 VDC vs 24 VDC) must be configured according to the specific stepper drive requirements.
