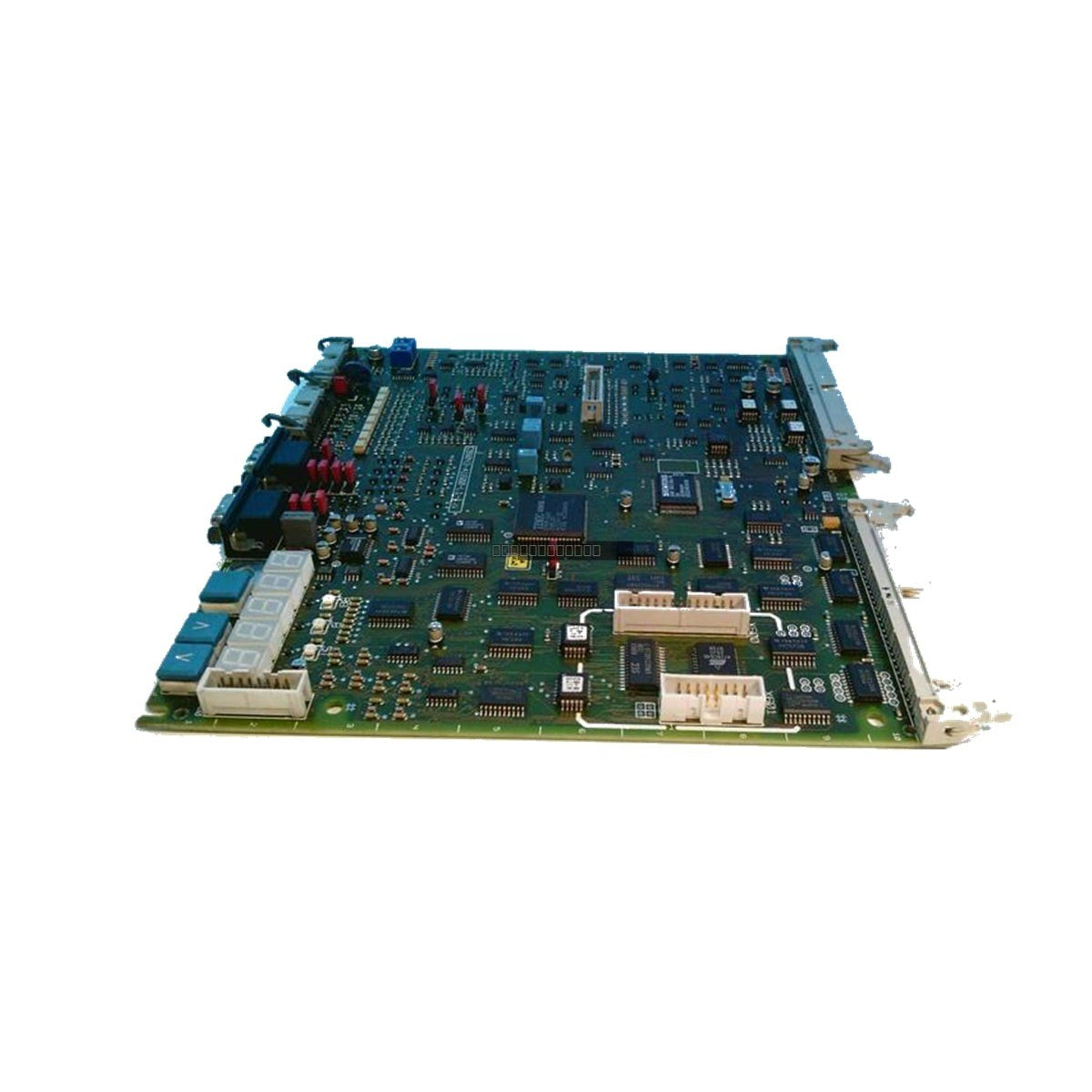

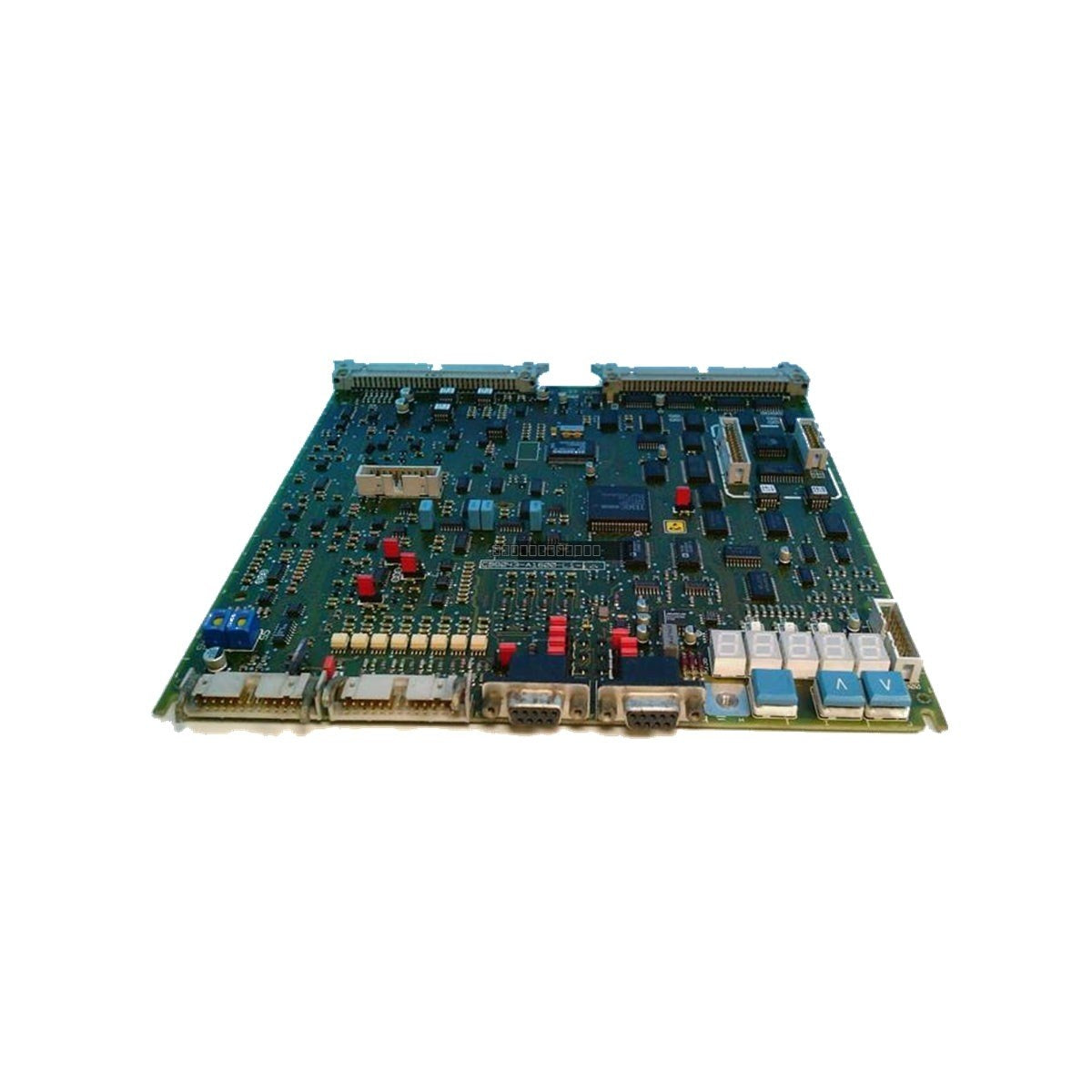

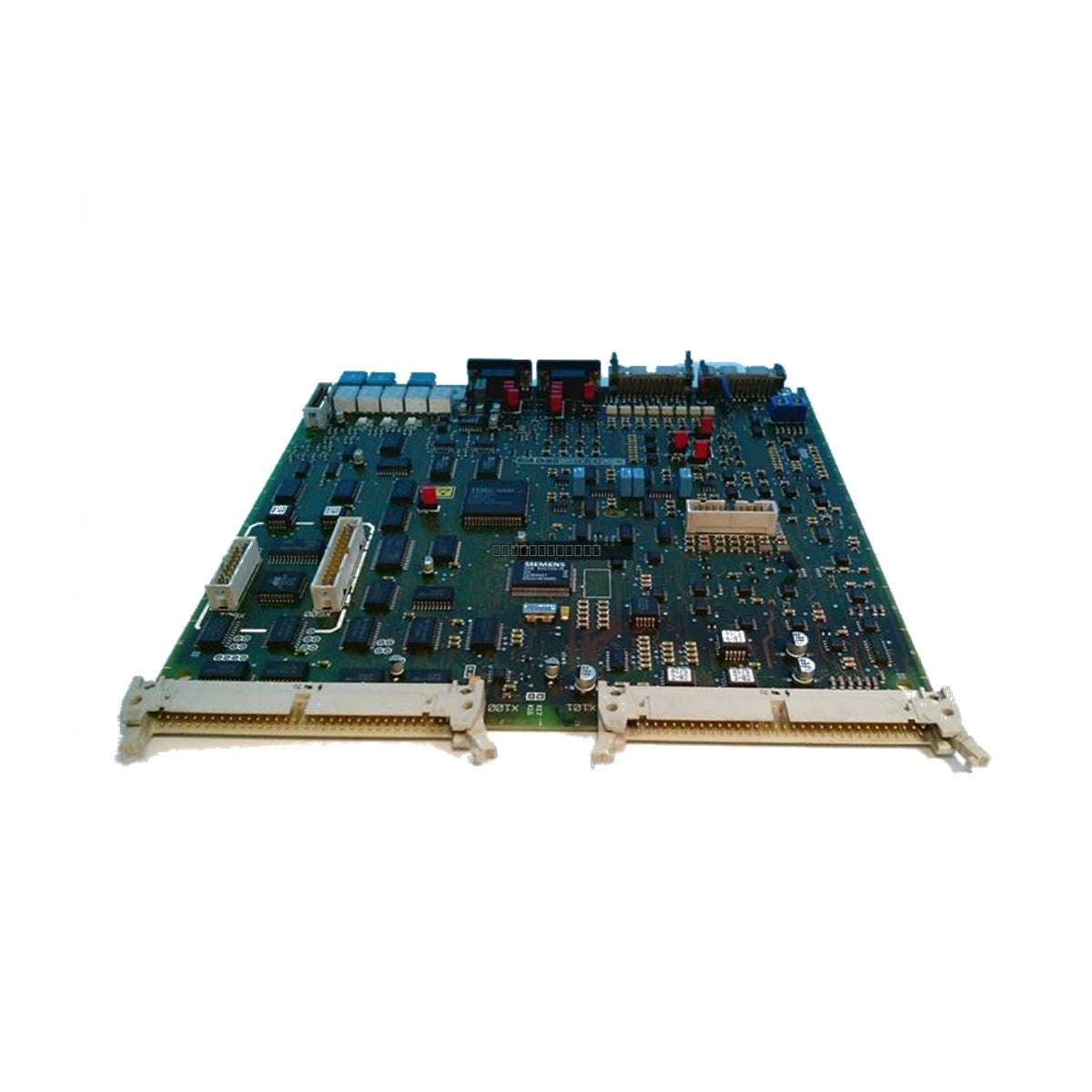

Siemens C98043-A1600-L1-17 SIMOREG K Control Board

Availability: 9 left in stock

The Siemens C98043-A1600-L1-17 is a specialized control and power interface board designed for integration within the SIMOREG K series of...

SKU: C98043-A1600-L1

Manufacturer: Siemens
Product No.: C98043-A1600-L1
Product Type: Control Board
Product Origin: Germany
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Siemens C98043-A1600-L1-17 is a specialized control and power interface board designed for integration within the SIMOREG K series of DC converters. This critical component manages complex switching logic and power distribution, ensuring reliable operation for high-capacity industrial drive systems. Engineered for demanding environments, this board provides the precision required for applications such as mining hoists, heavy-duty cranes, and steel mill production lines, where maintaining stable DC link integrity is essential for operational continuity.

Features

Designed specifically for the Siemens SIMOREG K converter series.
32-bit microcontroller architecture for high-speed signal processing and control logic execution.
Optimized for high-current regulation environments up to 1,600 A.
Robust multi-layer PCB construction for enhanced signal isolation and heat dissipation.
Integrated gate-drive circuitry to manage power section performance and voltage stability.
Resilient design capable of withstanding industrial vibration levels from 5 to 150 Hz.

Applications

This control board is a key spare part for legacy motor control architectures, particularly in sectors requiring high-torque management. Typical deployments include:

Large-scale steel rolling mill drives.
Industrial mining and lifting equipment.
Harbor crane motor control systems.
High-current DC power conversion applications.

Technical Specifications

Model	C98043-A1600-L1-17
Brand	Siemens
Series	SIMOREG K
Rated Current	1,600 A
Input Voltage Range	380 V to 500 VAC (50/60 Hz)
DC Link Voltage	400 V to 560 VDC
Operating Temperature	0 to 55 deg C
Storage Temperature	-25 to 70 deg C
Humidity	Max 95% (non-condensing)

Installation Guidelines

Ensure all power is disconnected from the SIMOREG K converter before attempting to remove or install the control board.
Adhere to standard ESD (Electrostatic Discharge) protection protocols when handling the PCB to prevent damage to sensitive logic components.
Verify that the board is securely seated in its designated slot to maintain proper electrical contact with the backplane.
Ensure the installation environment is free from excessive dust, moisture, and corrosive gases.
Maintain adequate ventilation around the converter housing to prevent overheating during high-current operations.

FAQ

What is the primary function of the C98043-A1600-L1-17 board?
This board acts as the control and inverter power interface for SIMOREG K DC converters, managing high-current switching and signal processing for motor drive stability.

Is this board compatible with other Siemens series?
No, this model is specifically engineered for the SIMOREG K series. Please verify your drive's model number before installation.

What should I do if the board displays a fault?
Check the DC link voltage and ensure that the input power matches the 380-500 VAC specification. If the fault persists, inspect the board for signs of physical damage or connection issues within the converter rack.
