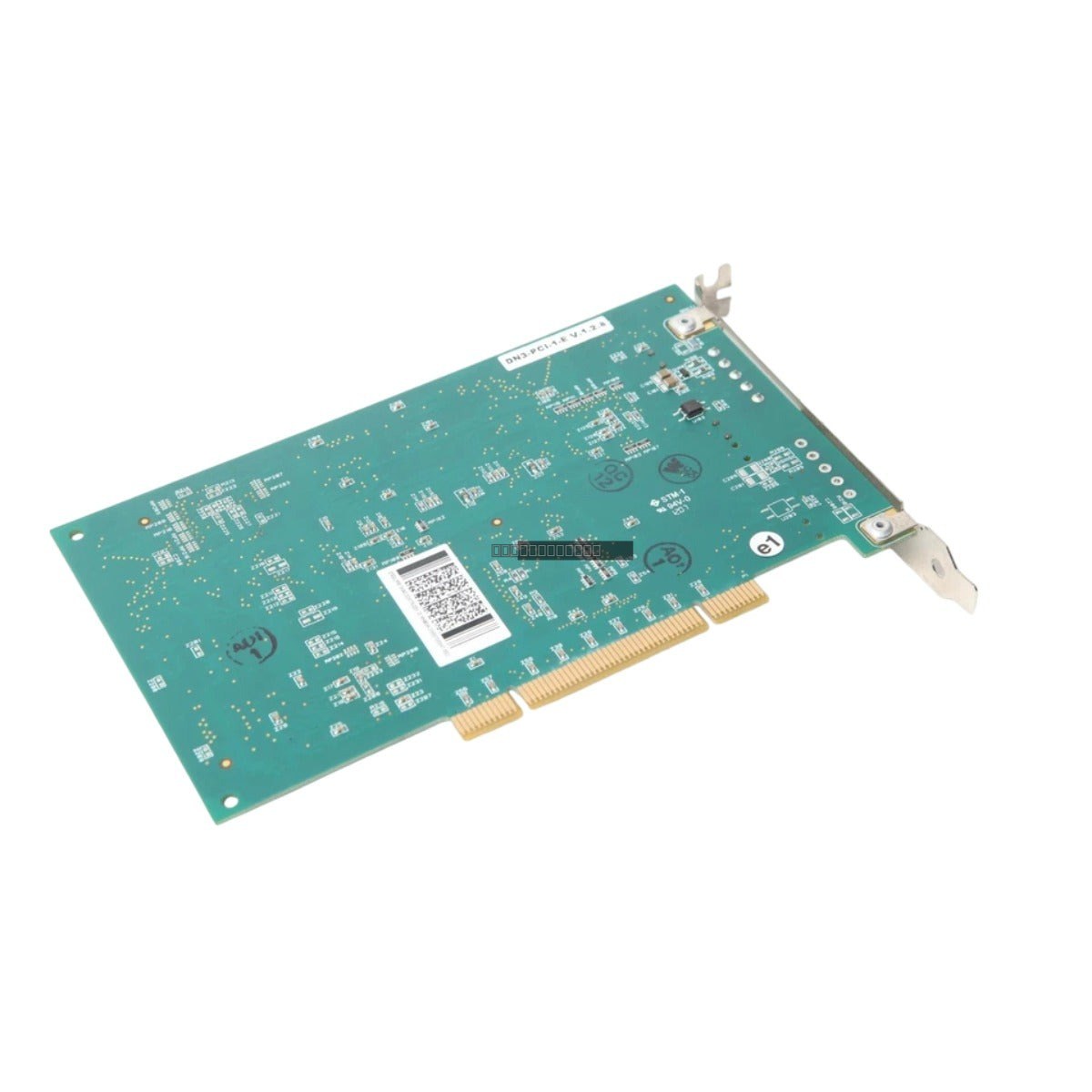

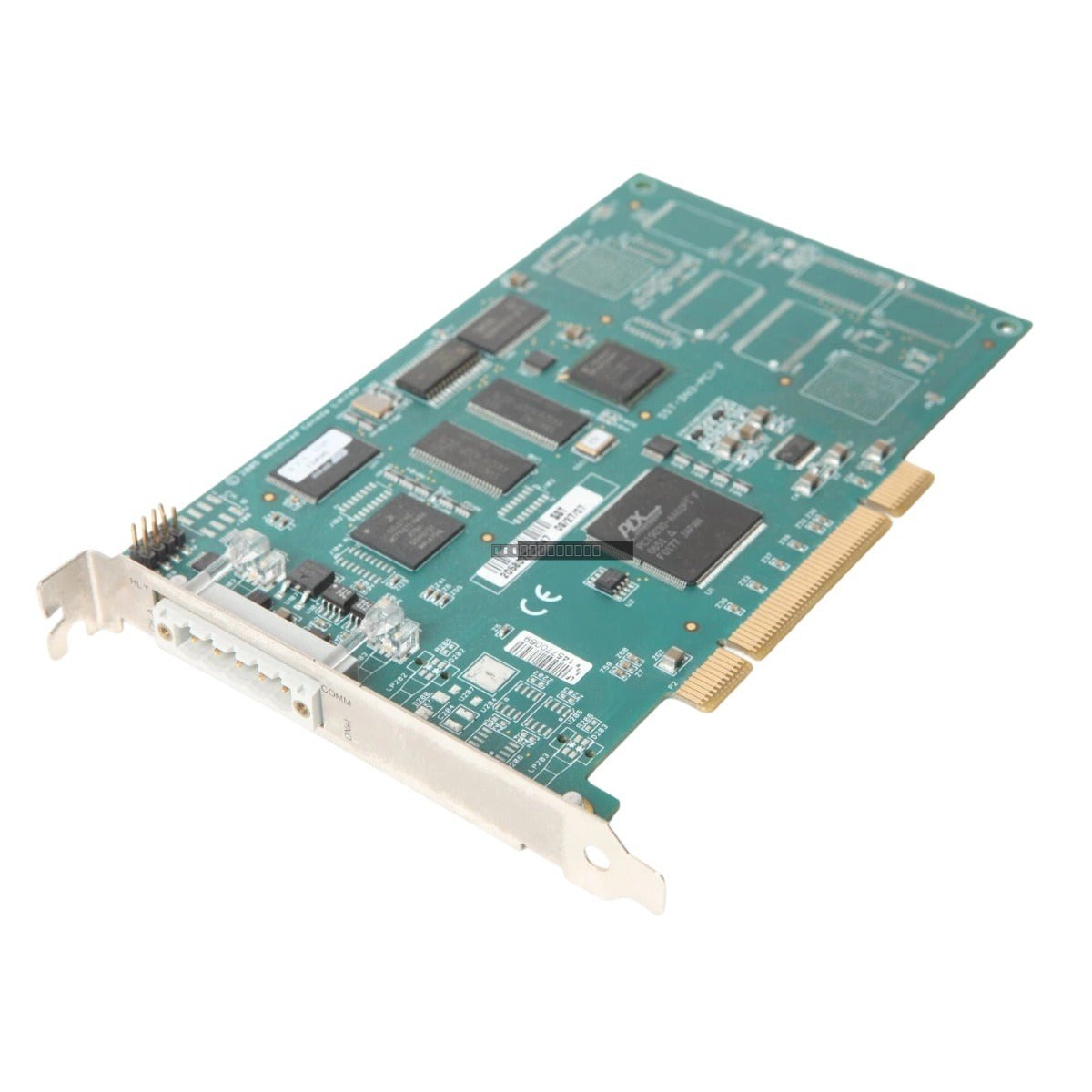

Woodward SST-DN3-PCI-1-E DeviceNet Interface Card

Availability: 6 left in stock

DescriptionThe Woodward SST-DN3-PCI-1-E is a high-performance, single-channel DeviceNet interface card engineered for industrial PC-based control systems. By acting as an...

SKU: SST-DN3-PCI-1-E

Manufacturer: Woodward
Product No.: SST-DN3-PCI-1-E
Product Type: DeviceNet Interface Card
Product Origin: Canada
Payment:T/T, Western Union
Weight: 90g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Woodward SST-DN3-PCI-1-E is a high-performance, single-channel DeviceNet interface card engineered for industrial PC-based control systems. By acting as an intelligent communication processor, this card offloads network management tasks from the host CPU, significantly reducing system latency and enhancing overall network reliability. It is designed to provide a robust bridge between industrial workstations and DeviceNet field devices, ensuring stable data exchange in demanding manufacturing and automotive environments.

Features

Single-channel DeviceNet connectivity.
Universal PCI architecture supporting both 3.3 V and 5 V signaling for broad motherboard compatibility.
Offloads network protocol processing from the host CPU to improve system performance.
Supports standard DeviceNet data rates of 125, 250, and 500 kbps.
Compatible with standard software interfaces including OPC, DLL, and LIB.
Utilizes a CAN-based physical layer for high signal integrity.

Applications

This interface card is typically utilized in industrial automation applications requiring reliable DeviceNet communication, including automotive assembly lines, robotic control systems, and high-speed manufacturing process monitoring.

Technical Specifications

Model	SST-DN3-PCI-1-E
Brand	Woodward (SST)
Channels	1
Bus Interface	Universal PCI (3.3 V / 5 V)
Data Rates	125, 250, 500 kbps
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the host system is powered down before inserting or removing the PCI card.
Handle the card by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
Ensure the card is firmly seated in the PCI slot and secured with the mounting screw to prevent mechanical vibration issues.
Verify that the PCI bus voltage (3.3 V or 5 V) matches the motherboard configuration.
Route DeviceNet network cabling away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

What software interfaces are supported by the SST-DN3-PCI-1-E?

The card supports standard industrial software interfaces, including OPC, DLL, and LIB, allowing for flexible integration into custom control applications.

Does this card require specific PCI voltage?

The card features a universal PCI design that supports both 3.3 V and 5 V signaling, making it compatible with most standard industrial workstation motherboards.
