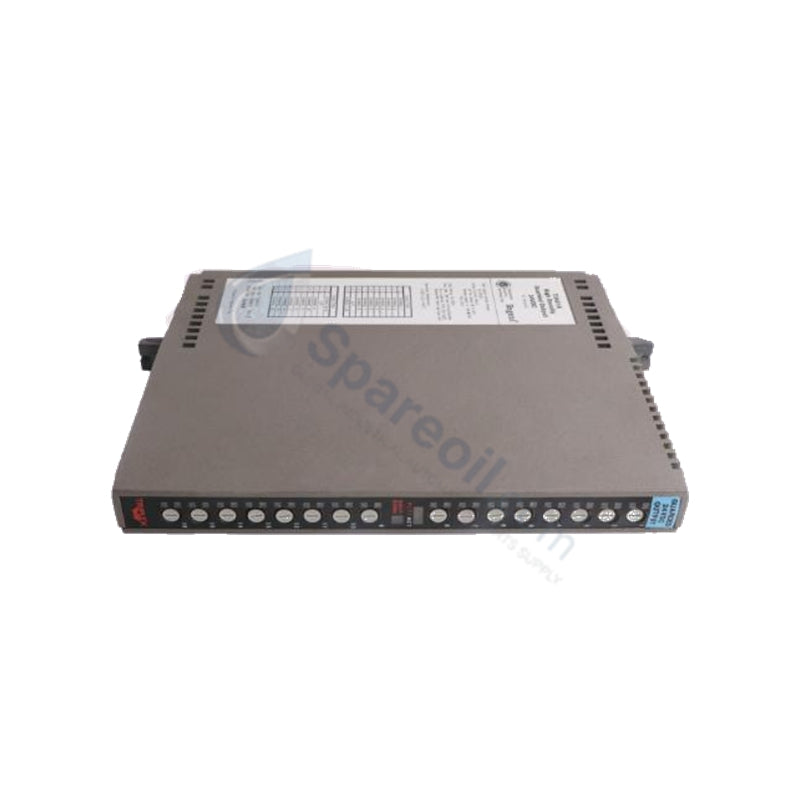

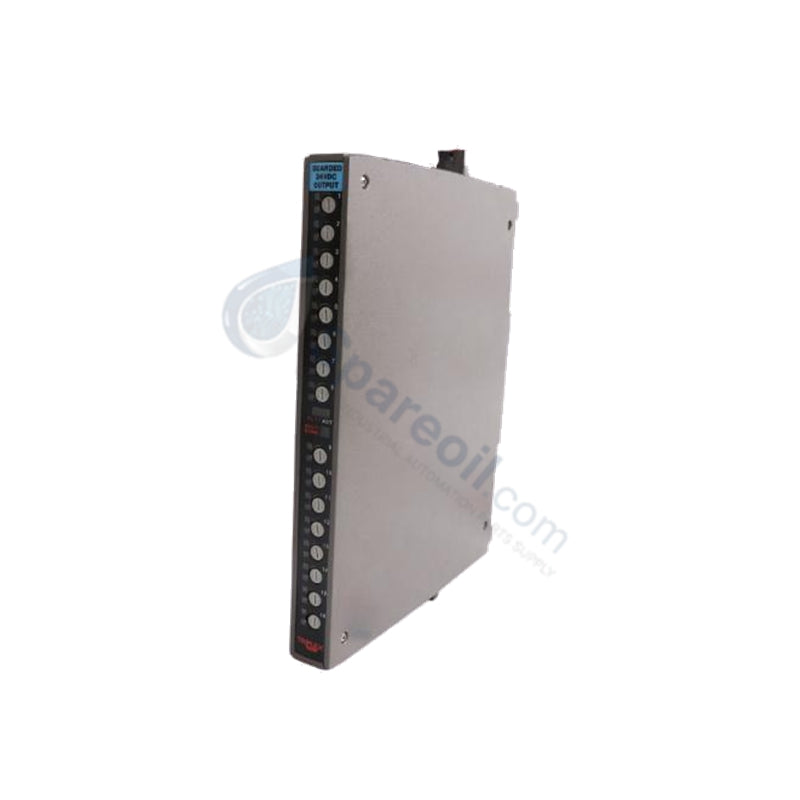

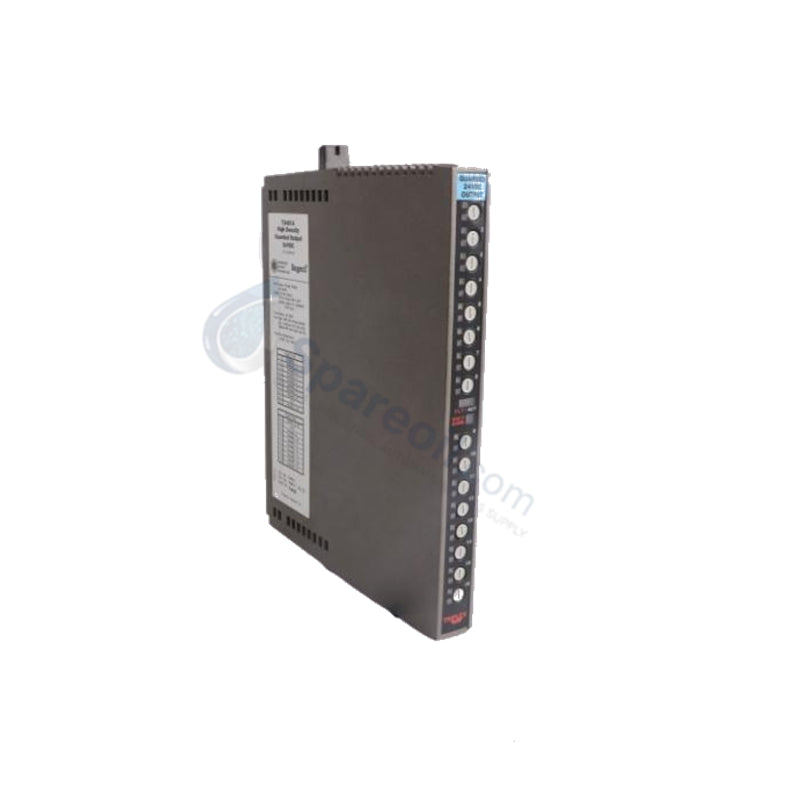

T3481 ICS Triplex Trusted TMR Digital Output Module

Availability: 20 left in stock

ICS Triplex T3481 TMR Digital Output Module Configured for high-integrity digital signal execution in Trusted safety systems, the ICS Triplex...

SKU: T3481

Manufacturer: ICS Triplex
Product No.: T3481
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1820g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS Triplex T3481 TMR Digital Output Module

Configured for high-integrity digital signal execution in Trusted safety systems, the ICS Triplex T3481 (T3481 TMR Digital Output Module) provides direct physical signal processing via a 16-channel guarded output interface.

Hardware Specifications

Parameter	Specification
Model	T3481
Brand	ICS Triplex
Origin	United States
Weight	1.82 kg
Dimensions	3.2 cm x 26.5 cm x 35.8 cm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	4 W
Output Channels	16 isolated digital outputs
Output Voltage	24 VDC
Isolation	3000 VAC channel-to-channel

High-Reliability Safety Execution

The T3481 integrates triple modular redundancy (TMR) to maintain fail-safe state execution across all 16 output channels. Each high-side transistor output provides independent galvanic isolation, ensuring that electrical transients or downstream faults remain contained within the individual circuit loop. The module performs continuous diagnostic monitoring to detect open circuits, short circuits, and stuck-on/stuck-off states, reporting status anomalies directly to the controller. Adhering to IEC 61508 SIL 3 standards, the T3481 facilitates high-integrity actuation for emergency shutdown and process safety interlocks while maintaining physical isolation between the field-side load and the internal backplane logic.

Frequently Asked Questions (FAQ)

Q: Can the T3481 be removed or replaced while the Trusted chassis is powered on?

A: Yes, the module supports hot-swappable installation. The internal design permits safe removal and insertion into the backplane without causing a system-level reset or affecting the execution of redundant channels.

Q: How does the T3481 identify an output fault during standard operations?

A: The module executes active voltage and current loop monitoring. If an output channel deviates from its commanded state, or if a load-side short circuit is detected, the module signals a fault condition via its integrated status LEDs and communicates the failure to the main processor.

Field Installation Guidelines

Mounting: Insert the module into the designated Trusted backplane slot, ensuring the physical guides are aligned to prevent damage to the backplane pins. Secure the retaining screws to ensure proper chassis grounding.
Wiring: Use shielded cable for all field output loops. Terminate shields at the chassis ground rail to minimize EMI influence on the 24 VDC signal lines.
Power: Confirm that the dual redundant 24 VDC feeds are within the 18–32 VDC range before initiating module operation.
Validation: Conduct a final check of output logic states through the system workstation after the module initialization sequence is complete.
