T8153 ICS Triplex Communication Adapter

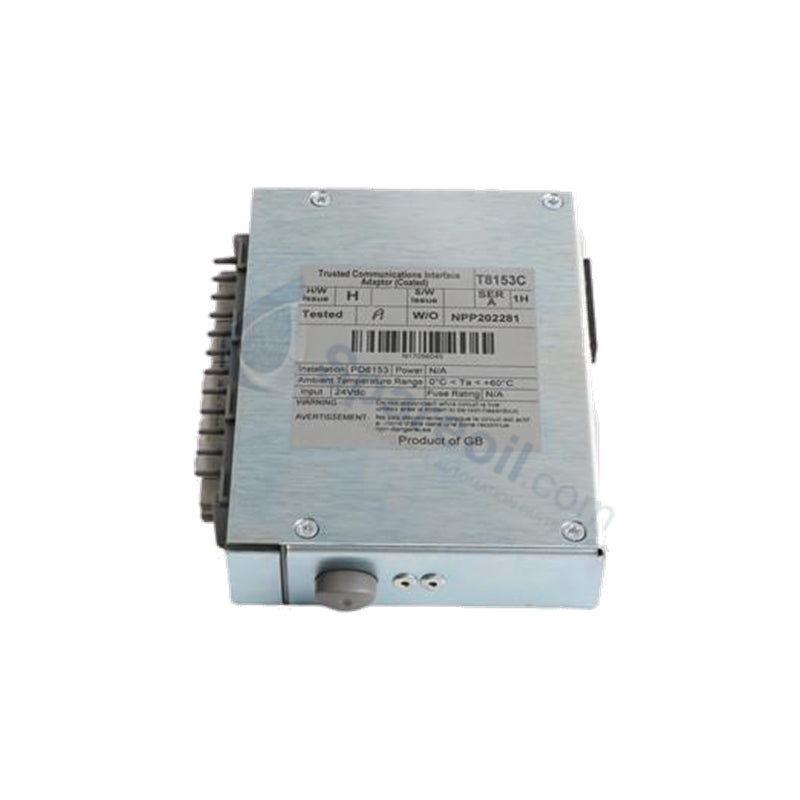

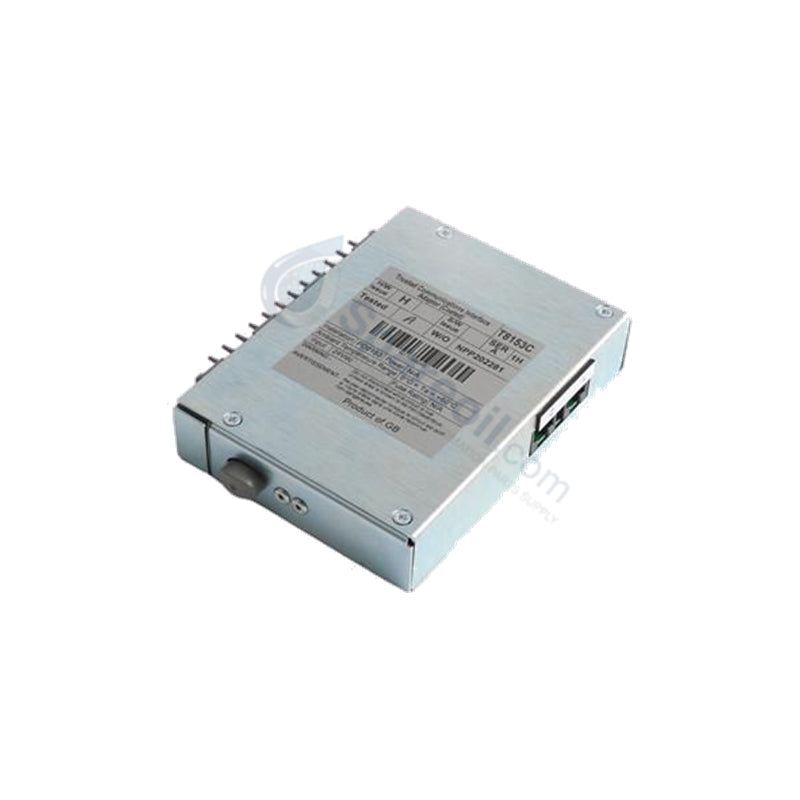

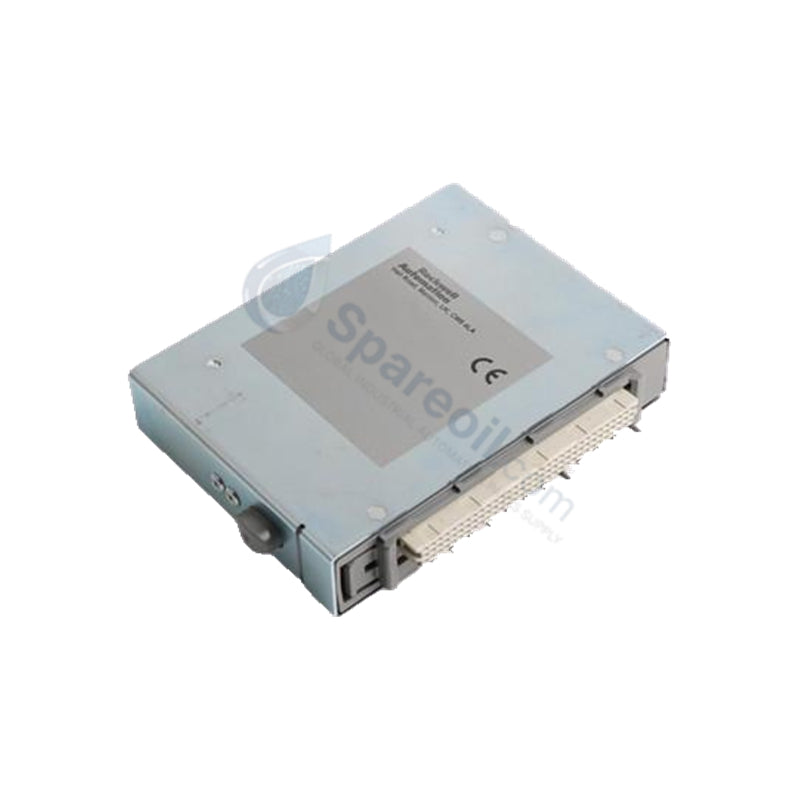

T8153 Triplex Trusted 8000 Communication Interface Adapter Module

T8153 Triplex Trusted 8000 Communication Interface Adapter Module

Availability: 20 left in stock

ICS TRIPLEX T8153 Trusted TMR System The ICS Triplex T8153, also cataloged as the T8153 Communication Interface Adapter Module, operates...

SKU: T8153

Manufacturer: ICS Triplex
Product No.: T8153
Product Type: PLC Processor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 418g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS TRIPLEX T8153 Trusted TMR System

The ICS Triplex T8153, also cataloged as the T8153 Communication Interface Adapter Module, operates as a dedicated hardware component for physical breakout routing of communications within Trusted 8000 Triple Modular Redundant (TMR) Safety Instrumented System platforms.

Hardware Specifications

Parameter	Specification
Model	T8153
Brand	ICS Triplex
Origin	USA
Weight	418 g
Dimensions	150 mm x 28 mm x 106 mm
Operating Temp	0 to 60 deg C (Standard variant)
Power Consumption	0 W (Passive breakout hardware)
Host Compatibility	T8151B / T8151C Communication Interface modules
Chassis Connector	78+2-way DIN 41612 M-type (SK1)
Ethernet Interface	2 x RJ45 10/100BaseT ports
Serial Interface	4 x RS422/RS485 multi-drop, 2 x RS232
Port Isolation	1500 VAC opto-isolation per port bank
Serial Baud Rate	300 to 115200 bps
Enclosure Rating	IP20

Safety Instrumented System Architecture Integration

The T8153 architecture provides a strict boundary to enforce physical separation between the safety-critical backplane infrastructure and external network environments. Engineered to support SIL3 certified control environments, the component functions alongside host modules using a triple modular redundancy (TMR) 2oo3 architecture mapping interface. Complete galvanic isolation rated at 1500 VAC per port bank prevents electrical faults, ground loops, or high-voltage surges from propagating to the primary T8151B/C processors. This hardware assembly guarantees that a failure on any external communication link remains contained, ensuring predictable fail-safe state execution across the broader emergency shutdown (ESD) network.

Frequently Asked Questions

Q: What is the power distribution requirement for the T8153 module?

A: The T8153 operates as a passive breakout assembly and draws zero power from the chassis backplane or external power supplies. All signal routing and opto-isolation elements are driven directly by the hardware lines of the host T8151B/C modules.

Q: Can the T8153 adapter be hot-swapped while the safety controller is active?

A: No, the T8153 is a rear-chassis breakout adapter that mechanically links to the backplane infrastructure. Disconnecting the unit while operational breaks active network lines, though it does not cause a direct trip of the host processor due to its passive electrical design.

Q: What limits apply to the multi-drop serial configurations on the RS485 banks?

A: Each RS485 bank on the adapter handles up to 32 Modbus RTU field devices. Engineers must ensure total bus length conforms to standard limits based on the configured baud rate, utilizing 120 ohm end-of-line termination resistors where required.

Field Installation Guidelines

Engineers must mount the T8153 directly onto the rear-chassis position corresponding to the slot occupied by the T8151B or T8151C host communication interface module. Secure the 78+2-way DIN 41612 M-type connector completely using the integral mechanical retaining clips to prevent intermittent pin contact.

Route all external communication cables, including RJ45 Ethernet and serial lines, away from high-voltage motor control center cables or heavy inductive power lines to minimize electromagnetic interference. Terminate all serial line shields at a single point to the local cabinet chassis ground rail. Maintain adequate spacing around the rear assembly inside the enclosure to allow natural convection cooling, ensuring ambient temperatures inside the IP20 cabinet do not exceed the 60 deg C limit.
