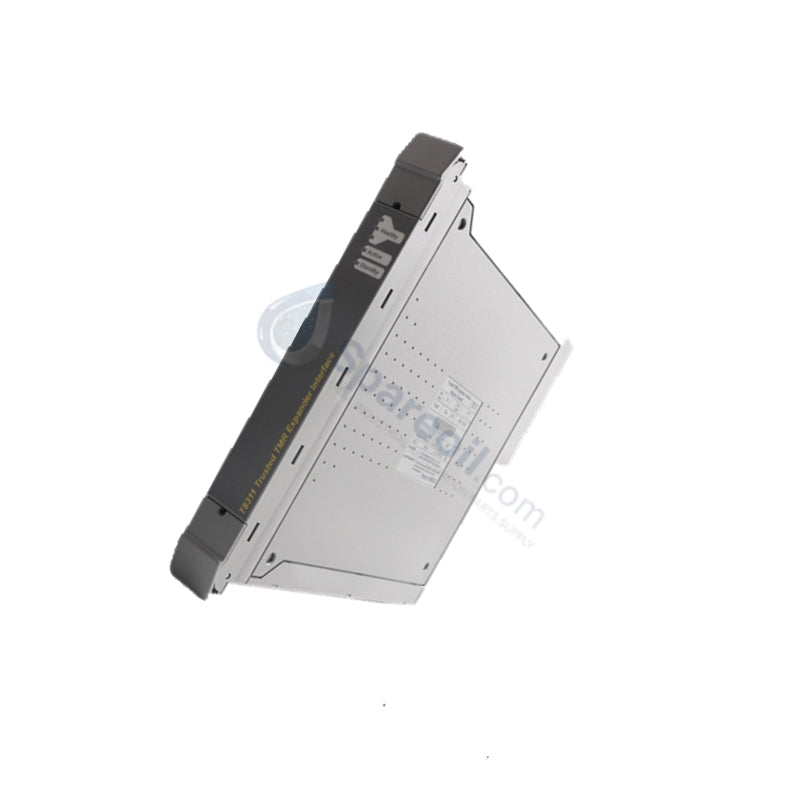

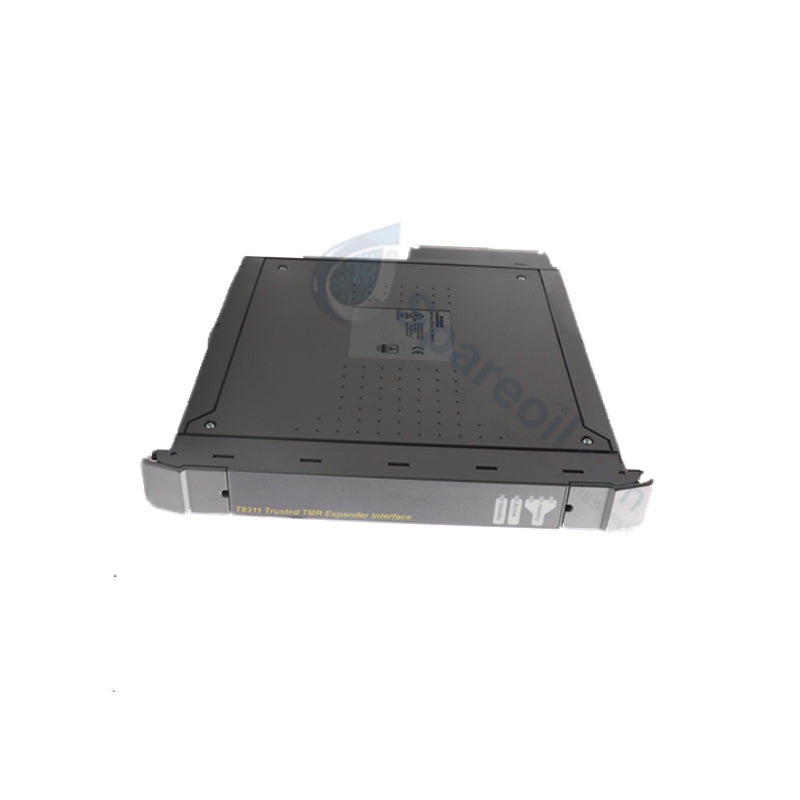

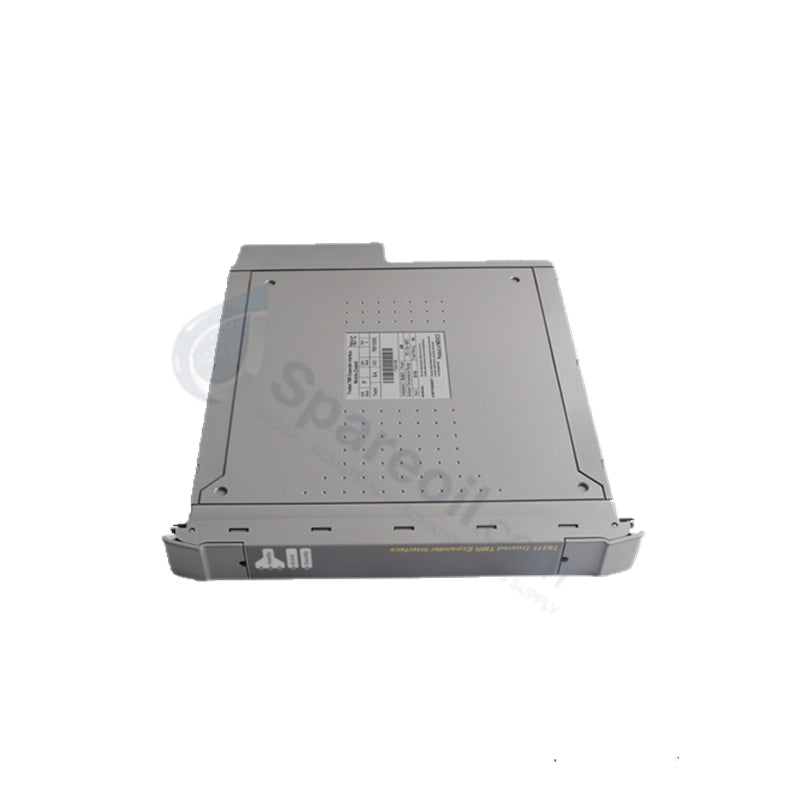

ICS Triplex T8311 Trusted TMR Expander Interface

Configured for high-integrity bus extension and data routing in safety instrumented systems, the ICS Triplex T8311 (T8311 Trusted TMR Expander Interface) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model T8480
Brand ICS Triplex
Origin USA
Weight 1.2 kg
Dimensions 30 mm × 302 mm × 265 mm
Operating Temp -40 deg C to +70 deg C
Power Consumption Industrial Standard Specification
Input Voltage 24 VDC nominal
Isolation Voltage 1500 VDC port-to-system
Architecture Triple Modular Redundant (TMR)

Triple Modular Redundancy (TMR) and Fail-Safe Execution

The ICS Triplex T8311 hardware architecture utilizes a triple modular redundancy (TMR) 2oo3 architecture to ensure continuous signal processing integrity across the system expansion backplane. The module relies on a Hardware Implemented Fault Tolerant (HIFT) architecture containing three discrete processing branches that execute operations in parallel. Dedicated internal hardware voting mechanisms continually cross-check data frames across all three channels. If an electrical anomaly or transmission fault occurs on a single channel, the voting logic isolates the degraded path and transitions the system into a controlled fail-safe state without causing nuisance alarms or disrupting active inter-module communications. Galvanic isolation pathways prevent common-mode noise propagation between the expander interface and the primary controller racks, ensuring compliance with T2V Certified IEC 61508 SIL 3 parameters.

Frequently Asked Questions

Q: Does the T8311 interface permit hot replacement during active system runtime?

A: Yes, the T8311 supports complete hot replacement capabilities. The physical chassis connectors permit insertion and extraction under power without degrading communication stability across the surviving expander rack channels.

Q: How does the interface isolate transient communication faults from affecting the wider system?

A: The internal HIFT diagnostics execute hardware-driven test regimes that isolate localized line dropouts or data corruption to the specific faulty channel. The remaining two processing paths maintain continuous voter consensus to prevent error propagation.

Field Installation Guidelines

  • Chassis Insertion: Align the module side guides with the designated slot rails in the expander enclosure. Firmly seat the hardware until the rear connectors fully mate with the backplane pin matrix to secure low-impedance connections.
  • Shielding and Grounding: Deploy high-density shielded cables for all external inter-rack expansion linkages. Terminate the cable shields directly to the chassis frame earth ground bar, ensuring shields remain ungrounded at the opposite end to prevent ground loops.
  • Thermal Isolation: Maintain standard vertical and horizontal rack clearances as specified by the master housing document to verify unrestricted convective airflow around the interface enclosure.
  • Torque Specifications: Secure all module retaining screws to the specified torque rating. Verify that no field data lines or grounding wires are mechanically pinched or exposed to sharp radii near the module interface faceplate.
