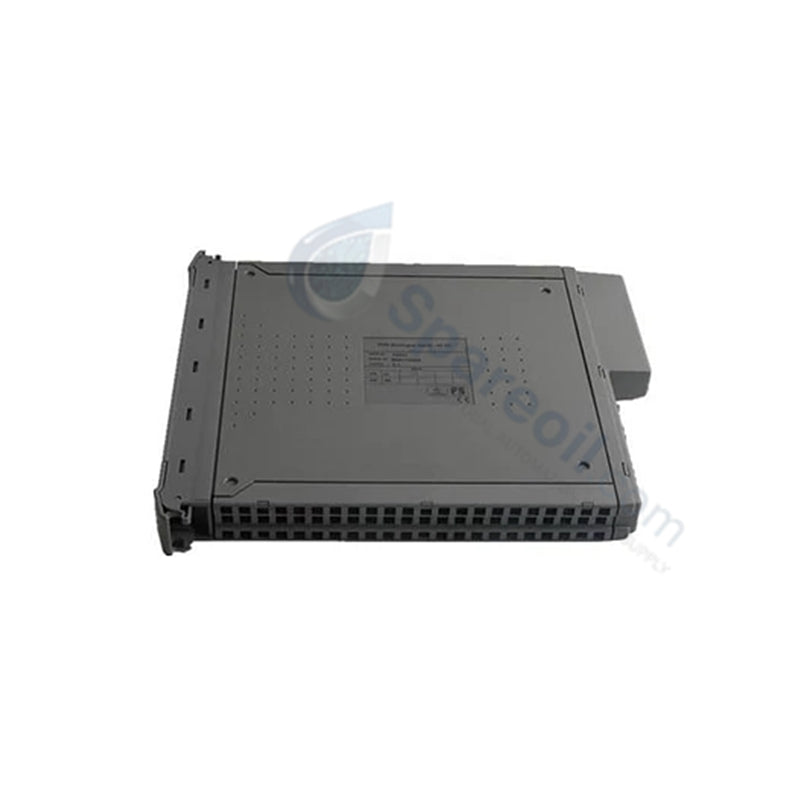

ICS Triplex T8431 Trusted Analog Input Modules

The ICS Triplex T8431, also cataloged as the T8431 Analog Input Module, operates as a dedicated hardware component for high-density signal acquisition within Trusted safety systems.

Hardware Specifications

Parameter Specification
Model T8431
Brand ICS Triplex
Origin Industrial Standard Specification
Weight 1.149 kg
Dimensions 266 mm × 31 mm × 303 mm
Operating Temp -5 deg C to 60 deg C
Power Consumption 15 - 18 W
Input Channels 40 Channels
Input Current Range 0-22 mA
Input Voltage Range 0-6 VDC
Sample Update Time 0.5 ms
Resolution 3.9 uA
Isolation Voltage 2.5 kV DC maximum withstanding

SIL3 Certification and TMR Architecture

The ICS Triplex T8431 utilizes a Triple Modular Redundancy (TMR) 2oo3 architecture to satisfy IEC 61508 SIL 3 functional safety requirements. Each of the 40 input channels functions within a redundant framework where three internal microprocessors perform parallel signal acquisition. The module executes fail-safe state transitions by continuously monitoring cross-channel discrepancies; if any single channel reports a value outside the defined tolerance range, the voting logic identifies the fault and isolates the erroneous signal without halting the safety process. Galvanic isolation is provided via an integrated 2.5 kV DC maximum withstanding barrier, preventing ground loops and electrical interference from propagating through the system bus.

Frequently Asked Questions

Q: Can the T8431 be replaced while the system is under load?

A: Yes, the T8431 supports hot-swappable replacement. It can be extracted and inserted into a dedicated Companion slot or SmartSlot without disrupting the operation of the primary safety processor or the remaining I/O modules.

Q: How does the module detect field wiring faults such as open or short circuits?

A: The module features selectable line monitoring for each channel. When enabled, the input circuitry measures current draw to detect deviations from expected operating ranges, flagging open circuits or short circuits via the front-panel status LEDs and system diagnostic registers.

Field Installation Guidelines

  • Environmental Prep: Verify that the operating environment remains within the -5 deg C to 60 deg C range. Ensure the installation location is free from excessive vibration and corrosive atmospheric contaminants.
  • Backplane Mounting: Align the T8431 module with the Trusted backplane connector. Ensure the module is pushed firmly into the chassis guides to ensure full engagement of the high-density connectors.
  • Wiring and Shielding: Connect field devices using shielded twisted-pair cables. Terminate the cable shields to a dedicated, low-impedance earth bus at the cabinet entry point to maintain the integrity of the 2.5 kV DC isolation barrier.
  • Configuration Check: Ensure that field loop power is verified before connection. Configure channel-specific monitoring settings via the engineering workstation software to align with the connected sensor type.
