TC-505-02-4M5 ICS Triplex Trusted Series Datasheet & Technical Manual

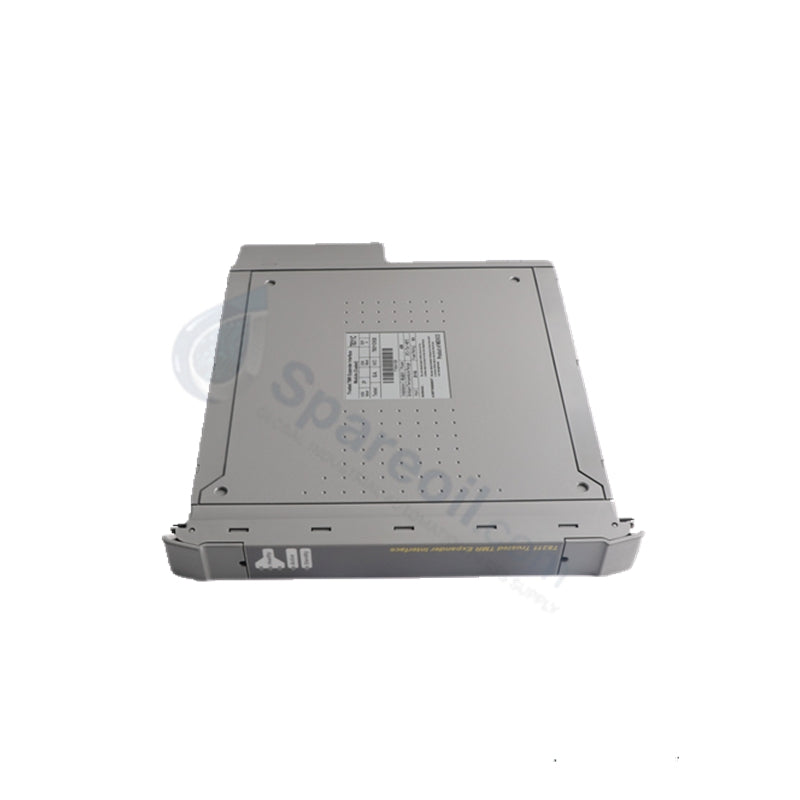

TC-505-02-4M5 Triplex Trusted Safety System Termination Assembly Modules

TC-505-02-4M5 Triplex Trusted Safety System Termination Assembly Modules

Availability: 20 left in stock

ICS Triplex TC-505-02-4M5 Trusted Series Termination Assembly Configured for specific safety-critical interface execution in Triconex safety instrumented systems, the ICS...

SKU: TC-505-02-4M5

Manufacturer: ICS Triplex
Product No.: TC-505-02-4M5
Product Type: Termination Assembly Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS Triplex TC-505-02-4M5 Trusted Series Termination Assembly

Configured for specific safety-critical interface execution in Triconex safety instrumented systems, the ICS Triplex TC-505-02-4M5 (TC-505-02-4M5 Termination Assembly Module) provides direct physical/electrical execution. This hardware component routes discrete and analog signals between field instrumentation and Triconex I/O modules, establishing secure electrical contact points and physical routing pathways across the system backplane network.

Hardware Specifications

Parameter	Specification
Model	TC-505-02-4M5
Brand	ICS Triplex (Rockwell Automation) / Triconex
Origin	USA
Weight	1.0-1.5 kg
Dimensions	Standard Tricon TA panel size
Operating Temp	0-60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	24 VDC nominal (18-32 VDC operational range)
Input Voltage	10-30 VDC
Output Current	Up to 10 A
Channels Supported	32 or 64 channels (dependent on paired I/O module type)
Wiring Type	Screw-clamp or spring-clamp terminals
Isolation	Galvanic isolation between field wiring and system backplane
Certifications	IEC 61508 SIL 3, CE, UL, CSA

Safety Instrumented Architecture and Triple Modular Redundancy

The hardware utilizes a dedicated galvanic isolation framework to prevent high-voltage faults from breaching the low-voltage processing environment. When deployed within certified architectures, the module executes a continuous diagnostic routine to enable real-time loop fault detection. The underlying system operates on a triple modular redundancy (TMR) 2oo3 architecture philosophy where multiple signal pathways vote on process states. In the event of an out-of-bounds parameter or system fault, the module enforces a deterministic fail-safe state execution to securely de-energize the connected field loops and preserve process safety.

Frequently Asked Questions

Q: Does this termination assembly support live hot-swap replacement under power?

A: Technicians can perform active hot-swap replacement of this assembly when it is working in tandem with compatible Triconex I/O chassis, provided the field wiring is securely clamped and system ground links remain uninterrupted.

Q: How does the integrated mechanical keying prevent hardware damage?

A: The mechanical keying feature employs specific physical pin patterns that match only the designated Triconex I/O module type, preventing wrong connection alignment and subsequent electrical damage during slot insertion.

Field Installation Guidelines

Engineers must mount the assembly within approved industrial enclosure racks to ensure environmental stability. Ensure that all field wires are stripped to the standard specification before inserting them into the screw-clamp or spring-clamp terminals to guarantee low electrical resistance. Technicians must connect all cable shielding directly to the dedicated copper grounding bar to prevent electromagnetic interference from compromising the galvanic isolation. Regular field inspections must include verification of terminal torque levels to eliminate loose contacts caused by prolonged industrial machinery vibrations.
