4353 Triconex Series Datasheet & Technical Manual

TCM Safety Communication Module Triconex 4353

TCM Safety Communication Module Triconex 4353

Availability: 10 left in stock

Triconex 4353 TCM Communication Module The Triconex 4353, also cataloged as the 4353 Communication Interface Module (TCM), operates as a...

SKU: 4353

Manufacturer: Triconex
Product No.: 4353
Product Type: PLC Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

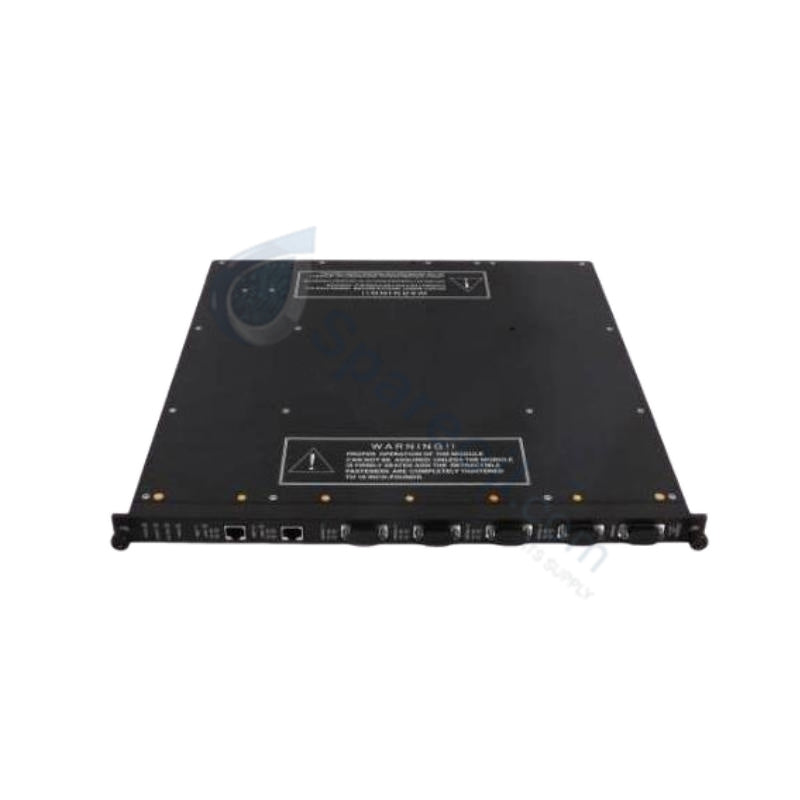

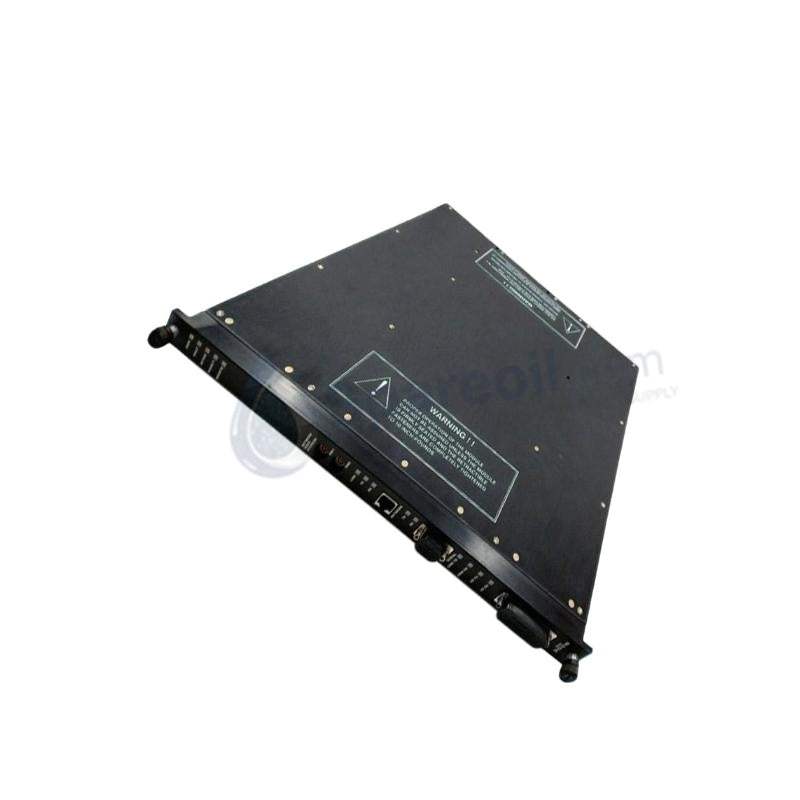

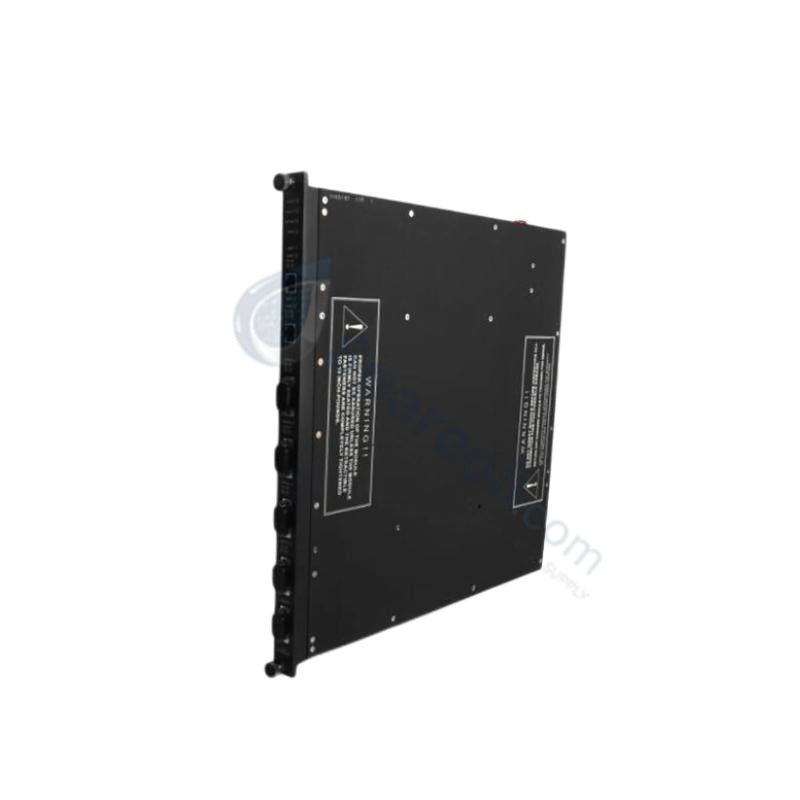

Triconex 4353 TCM Communication Module

The Triconex 4353, also cataloged as the 4353 Communication Interface Module (TCM), operates as a dedicated hardware component for network and serial communication within Triconex safety instrumented systems (SIS). This module routes industrial data packets, processes dual-bus synchronization vectors, and distributes physical fieldbus connections to coordinate control information between safety processing cores and external supervisory networks.

Hardware Specifications

Parameter	Specification
Model	4353
Brand	Triconex (Schneider Electric)
Origin	United States
Weight	0.2 kg
Dimensions	120 mm x 60 mm x 25 mm
Operating Temp	-40 deg C to +85 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	24 VDC typical operational voltage input
Network Ports	2 x 10/100BaseT Copper Ethernet ports (RJ-45 connectors)
Serial Ports	4 x RS-232/RS-485 ports (DB-9 connectors)
Data Transfer Rate	Up to 115.2 Kbps (Serial) / 100 Mbps (Ethernet)
Communication Protocols	Modbus RTU, Modbus/TCP, TriStation, SNTP, OPC Server, TCP/IP, Peer-to-Peer (UDP/IP)
Certifications	CE, UL, CSA, ISO 9001

High Reliability Safety Control (SIS) Technical Attributes

The architecture enforces strict structural signal isolation and fault mitigation principles required to maintain a SIL3 certification across active communication paths. The hardware layer utilizes galvanic isolation barriers between the internal logic core and external interface channels, preventing external voltage surges from shifting the logical ground reference of the internal processor grid. This trace and transceiver separation allows the system to sustain a triple modular redundancy (TMR) 2oo3 architecture, ensuring that transient transceiver failures do not interrupt fail-safe state execution or isolate the diagnostic data path from the host system.

Frequently Asked Questions

Q: What are the restrictions regarding hot-swap limitations during online communication maintenance?

A: The 4353 module is not fully hot-swappable; live extraction requires the control system configuration to possess an adjacent, active redundant partner module maintaining network synchronicity to prevent the host system from registering a communication timeout fault.

Q: How does the module handle ground potential differences across the four DB-9 serial lines?

A: Integrated galvanic isolation circuitry decouples the physical layer signals of each individual RS-232/RS-485 port, checking common-mode voltage offsets and blocking ground loop current paths from migrating into the inner system backplane.

Q: Is TriStation application software necessary to execute basic network physical layer reconfigurations?

A: Yes, all port parameters, node addressing matrices, and active protocol assignments must be configured and downloaded through the official TriStation software environment to ensure internal module parameters match the global system safety standard.

Field Installation Guidelines

Mount the communication interface module directly into the assigned slot of the Tricon controller chassis, tightening the front-panel captive screws to ensure the rear high-density pins engage fully with the backplane distribution grid. Connect the primary grounding strap from the rack frame directly to the main cabinet copper grounding bar using a low-resistance conductor to ensure appropriate electromagnetic shield grounding.

Field engineers must layout all incoming copper RJ-45 Ethernet cables and DB-9 serial lines inside dedicated, grounded metallic conduits completely isolated from high-voltage AC mains power and three-phase motor output cables. Verify that all serial terminal terminations use matching cable impedance values to control signal reflection and edge distortion across long distances. Maintain adequate ventilation clearances around the enclosure to ensure ambient operating temperatures remain within the mandatory -40 deg C to +85 deg C operational limits before turning on system power.
