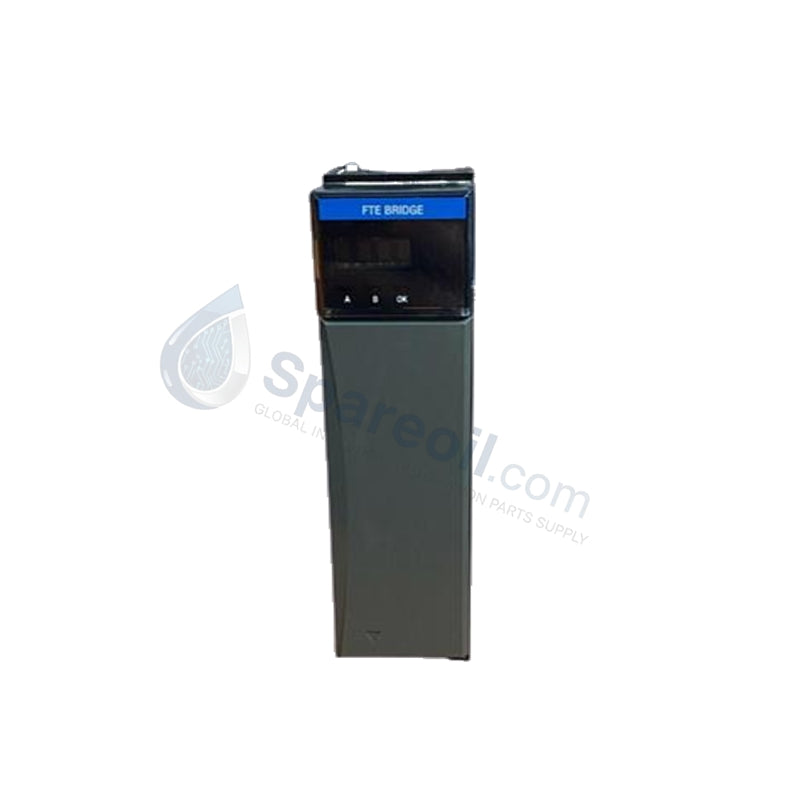

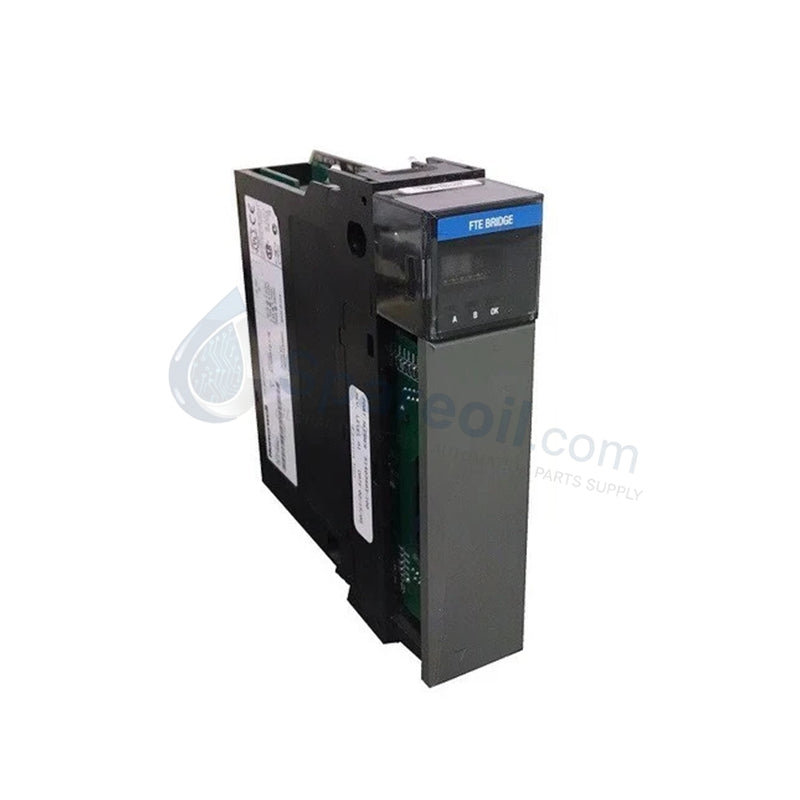

TK-FTEB01 | Honeywell | 51309512-175 Ethernet Bridge Module

Availability: 20 left in stock

Product Overview The TC-FTEB01 is an authoritative Fault Tolerant Ethernet (FTE) Bridge Module designed for Honeywell Experion PKS (including LS I/O) and...

SKU: TC-FTEB01

Manufacturer: Honeywell
Product No.: TC-FTEB01
Product Type: Ethernet Bridge Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The TC-FTEB01 is an authoritative Fault Tolerant Ethernet (FTE) Bridge Module designed for Honeywell Experion PKS (including LS I/O) and TDC 3000 distributed control systems. This module is a mechanical necessity for establishing a high-availability communication backbone, acting as the bridge between the system controllers and the Ethernet network. By utilizing the TC-FTEB01, industrial facilities can implement a redundant, deterministic network environment that ensures no single point of failure disrupts process control. It is specifically engineered for the 24/7 reliability required in refineries, chemical plants, and power generation sectors, where robust signal integrity and fast data throughput are essential for real-time automation.

Detailed Technical Specifications

(Note: Technical correction applied—the TC-FTEB01 is the bridge module component, while 51403449 refers to the associated termination assembly base used in Chassis Series-A.)

Attribute	Details
Manufacturer	Honeywell
Model Number	TC-FTEB01 (Bridge) / TK-FTEB01 (Kit)
Part Number	51309512-125 / 51309512-175
Assembly Number	51403449 (Associated Base)
Product Type	FTE Ethernet Bridge Module
System Compatibility	Experion PKS, Experion LS, TDC 3000
Chassis Series	Series-A Chassis
Communication Protocol	Fault Tolerant Ethernet (FTE), TCP/IP, Modbus TCP
Data Rate	10/100 Mbps Autonegotiating
Interface	Dual Shielded RJ-45 Ethernet Ports
Isolation	Galvanic isolation for industrial noise immunity
Operating Temperature	0 °C to +60 °C (32 °F to 140 °F)
Humidity	5% to 95% Non-condensing
Weight	0.28 kg (Unit) / 2.0 kg (Shipping weight)
Certifications	CE, UL, CSA, Marine Certified

Installation Guide

Chassis Configuration: Verify that the Series-A chassis has an available slot for the TC-FTEB01. Ensure the 51403449 termination base is correctly seated and locked.
Module Seating: Align the TC-FTEB01 with the chassis guide rails and slide it into the 51403449 base. Apply firm, even pressure until the module's backplane connectors are fully engaged with the termination assembly.
Network Wiring: Connect dual industrial-grade Cat5e or Cat6 cables to the RJ-45 ports. For true Fault Tolerant Ethernet (FTE) operation, each port must be connected to independent network switches (Yellow and Green networks).
Grounding: Ensure the chassis is bonded to the master cabinet ground bar. The shielded RJ-45 connectors on the TC-FTEB01 require a trustworthy ground path to suppress electromagnetic interference (EMI).
Module Addressing: Configure the FTE node address via the Experion configuration software (Control Builder). The module must have a unique identity on the FTE domain to facilitate authoritative data routing.
System Verification: Upon power-up, check the front-panel status LEDs. A steady "Link" light on both ports indicates that the bridge is successfully synchronizing data across the redundant Ethernet fabric.

Technical FAQ

What is the benefit of using the TC-FTEB01 over a standard Ethernet switch?

The TC-FTEB01 is not a simple switch; it is an authoritative bridge that manages the Fault Tolerant Ethernet (FTE) protocol. Unlike standard hardware, it provides deterministic performance and sub-second failover between redundant paths, which is a mechanical necessity for safety-critical DCS environments.

Is the TC-FTEB01 compatible with Modbus TCP field devices?

Yes. The TC-FTEB01 supports Modbus TCP/IP, allowing the Honeywell DCS to communicate directly with third-party PLCs and power meters while maintaining the ruggedized isolation of the Experion network.

Does this module require a specific revision of the termination assembly?

The TC-FTEB01 (51309512-125) is designed to be compatible with the 51403449 series bases. It is always recommended to verify the Rev Level (e.g., Level A) during replacement to ensure full firmware and hardware feature alignment.
