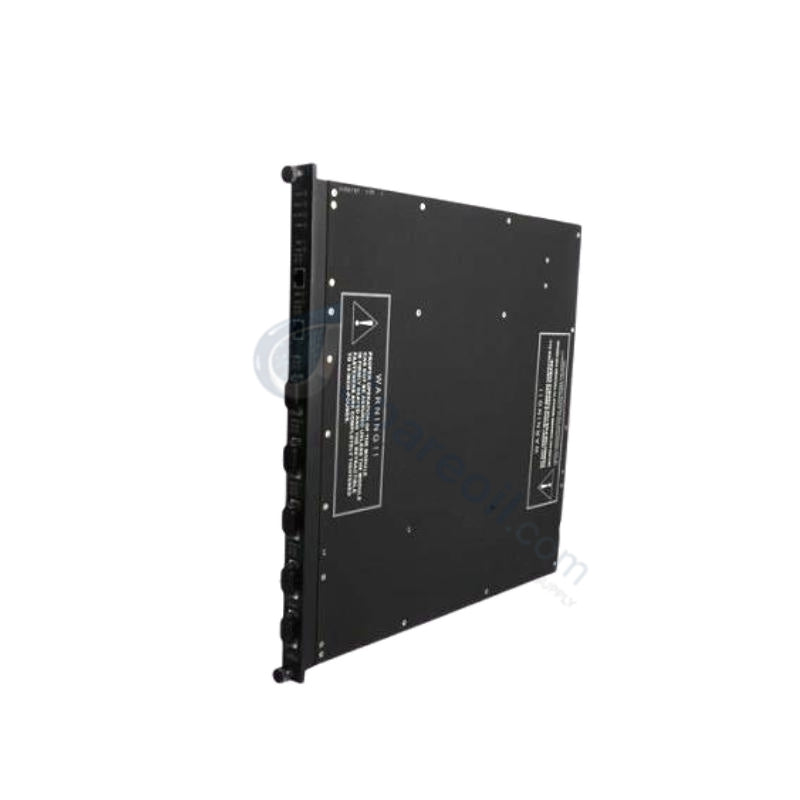

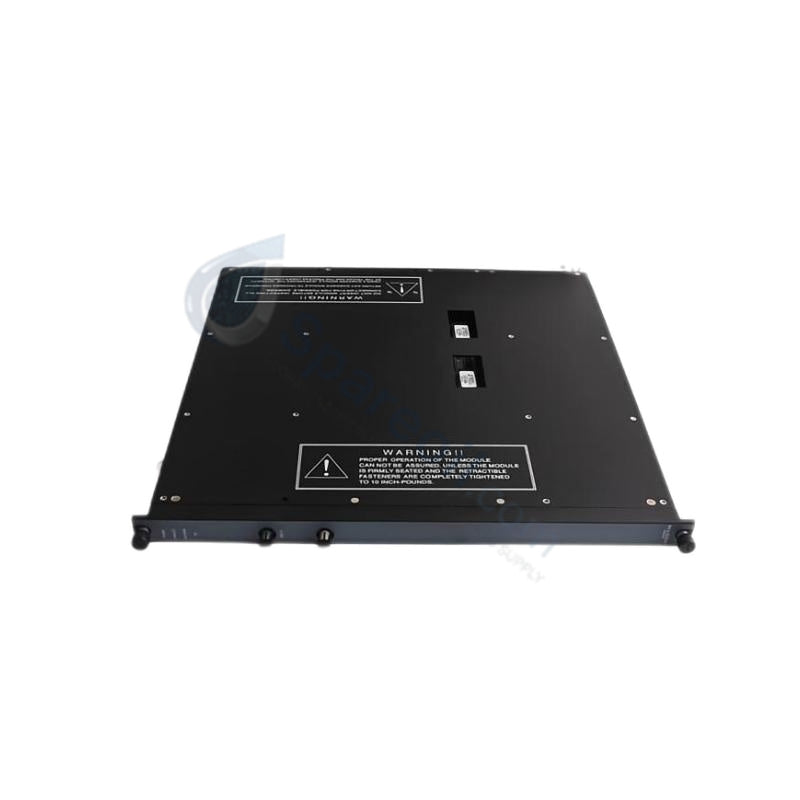

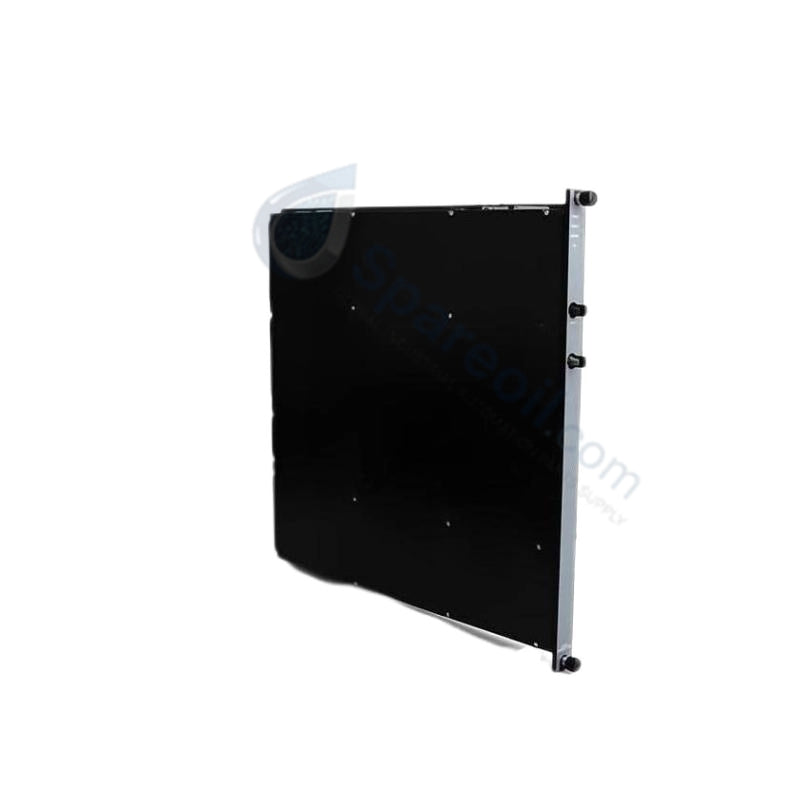

Triconex 4201 Remote Extender Module

The Triconex 4201, also cataloged as the 4201 Remote Extender Module (RXM), operates as a dedicated hardware component for extending I/O chassis loops over fiber-optic links within Tricon v9 and later controller platforms. Configured to establish deterministic communication lines across distant nodes, the module supports multi-mode fiber-optic connections up to 12 km without introducing signal degradation. The hardware converts backplane parallel bus structures into high-speed serial optical streams, ensuring synchronized real-time processing of distant emergency safety operations under TriStation 1131 software control.

Hardware Specifications

Parameter Specification
Model 4201
Brand Triconex
Origin Germany
Weight 3.80 lbs (1.72 kg)
Dimensions Standard chassis rack-mount physical dimension
Operating Temp -40 to +70 deg C
Power Consumption Up to 30 W
Communication Medium Multi-mode fiber optic (62.5/125 um or 50/125 um)
Optical Connectors Up to 6 ST-type ports
Isolation Voltage 500 VDC fiber-optic galvanic isolation
System Bounds Up to 3 RXM sets per primary module
Safety Certification IEC 61508 SIL 3

Fail-Safe State Execution

The unit operates in conjunction with a triple modular redundancy (TMR) 2oo3 architecture, providing isolated data transmission channels that preserve independent system processing paths over extended physical ranges. Built-in link monitoring routines execute real-time fault detection within 10 ms, scanning for optical power degradation or hardware timing faults. The fiber-optic medium delivers total electromagnetic and radio frequency interference immunity, maintaining deterministic network synchronization and fail-safe state execution even if high-voltage ground potential rises occur between the distributed safety racks.

Frequently Asked Questions

Q: What procedures govern online hot-swapping for a degraded 4201 remote module?

A: The chassis backplane supports online hot-swap capabilities for the extension hardware. Inserting a new module triggers automatic diagnostic alignment where active primary nodes verify firmware flash compatibility and initialize the optical links before bringing the remote I/O channels online.

Q: How does the network handle an unexpected optical line break between the nodes?

A: The TMR configuration maintains three independent fiber links between the primary and remote chassis. If a single optical path encounters a physical fiber break, the 2oo3 voting logic isolates the failed line within 10 ms, maintaining uninterrupted remote safety execution over the remaining functional lines.

Q: What are the input power boundaries for the module during continuous operation?

A: The module operates on a nominal 24 VDC input supply, with an acceptable engineering operating range spanning 18-30 VDC. Power consumption peaks at 30 W under full multi-port optical transmission states.

Field Installation Guidelines

  1. Install the module into the designated slot of the primary or remote Triconex chassis backplane, pushing firmly until the rear alignment pins latch.
  2. Terminate the multi-mode optical cables at the designated ST-type connectors, ensuring the fiber faces are clean and free of dust before insertion.
  3. Keep the fiber-optic cable bend radius well within the manufacturer specification to avoid macro-bending signal losses across the 12 km link.
  4. Route all 24 VDC power source lines through separate, dedicated conduits to isolate the module from nearby high-current inductive switching devices.
  5. Connect the chassis ground terminal directly to the low-impedance copper instrumentation grounding bar inside the safety enclosure.
