4409 Triconex TMR Series Datasheet & Technical Manual

Triconex 4409 TMR Safety Management Communication Modules

Triconex 4409 TMR Safety Management Communication Modules

Availability: 10 left in stock

Triconex 4409 Safety Management Module Configured for deterministic logic execution in Safety Instrumented Systems (SIS), the Triconex 4409 (4409 Safety...

SKU: 4409

Manufacturer: Triconex
Product No.: 4409
Product Type: Safety Management Modules
Payment:T/T, Western Union
Weight: 2100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

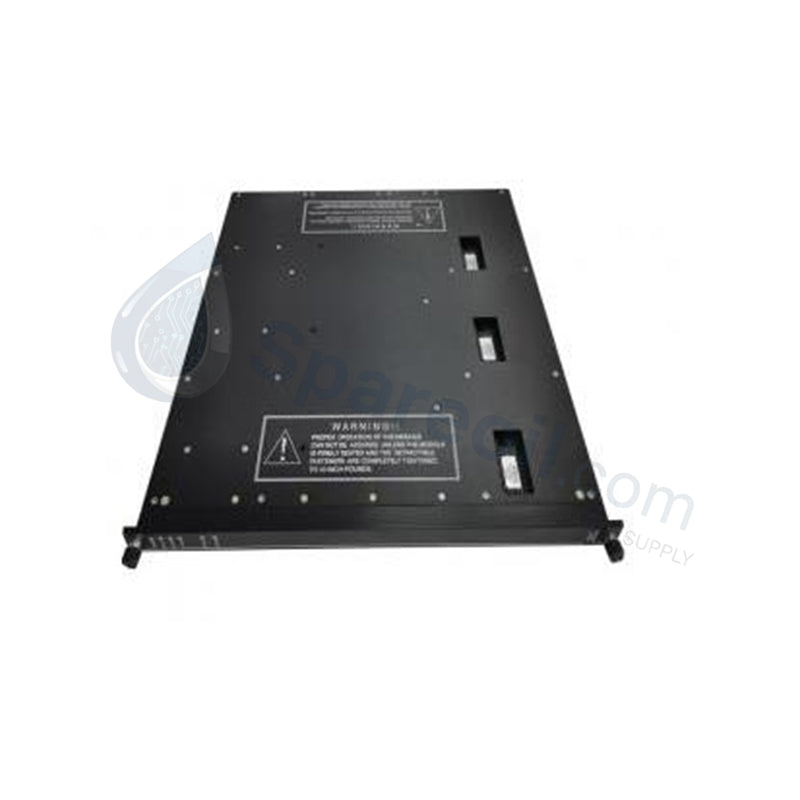

Triconex 4409 Safety Management Module

Configured for deterministic logic execution in Safety Instrumented Systems (SIS), the Triconex 4409 (4409 Safety Management / Communication Module) provides direct physical/electrical execution. The hardware serves as a processing node within the Triconex Triple Modular Redundancy (TMR) framework, managing computational tasks and multi-protocol communications to ensure high-availability performance across industrial network infrastructures. The module decodes and processes safety loops while ensuring strict compliance with zero-fail architectural criteria.

Hardware Specifications

Parameter	Specification
Model	4409
Brand	Schneider Electric (Triconex)
Origin	USA
Weight	2.10 kg
Dimensions	Standard Triconex high-density chassis plug-in dimensions
Operating Temp	-40 to +70 deg C
Power Consumption	10-15 W typical
Safety Integrity Level	SIL3 Certified (IEC 61508)
Logic Execution	Triple Modular Redundant (TMR) processing
Communication Protocols	EtherNet/IP, Modbus TCP/IP, IEC 60870-5, Triconex Peer-to-Peer
Redundancy	Triple-channel galvanic isolation and voting logic
Memory Protection	ECC (Error Correction Code) parity checking
Input Voltage	24 VDC nominal
Diagnostics	Internal self-test and field-side loop monitoring
Maintenance	Full Hot-Swap capability
Compliance	TUV, CE, UL, CSA Class 1 Div 2

Triple Modular Redundancy and Fail-Safe State Execution

The hardware utilizes a triple modular redundancy (TMR) 2oo3 architecture to execute continuous fail-safe state execution without interrupting process availability. Three isolated sub-modules process incoming logic commands in parallel, utilizing hardware-based voting mechanisms to detect, isolate, and override single-point electronic faults. Structural galvanic isolation blocks high-voltage transients between the internal processing core and external communications ports. If a channel fault exceeds acceptable limits, the internal diagnostics execute a controlled fallback sequence, isolating the degraded channel while maintaining SIL3 functional safety operations.

Frequently Asked Questions

Q: Does the 4409 module require a complete system shutdown when replacing a faulted unit?

A: No. The module supports full hot-swap capability, allowing a zero-downtime online replacement directly within the active Triconex high-density chassis without disrupting processing logic or communication streams.

Q: What mechanisms ensure memory data integrity against alpha particle corruption or bit flips?

A: The hardware utilizes internal Error Correction Code (ECC) parity checking across its memory infrastructure, dynamically detecting and correcting single-bit memory errors during operational logic execution.

Q: Which communication protocols execute natively on the module interfaces?

A: The module executes concurrent multi-protocol communications via industrial standards, including EtherNet/IP, Modbus TCP/IP, IEC 60870-5, and proprietary Triconex Peer-to-Peer networks.

Field Installation Guidelines

Mounting procedures require inserting the module firmly into its allocated slot within the Triconex high-density chassis until the injection levers latch completely and the retention fasteners engage to counteract physical vibration forces. The electrical operating architecture requires a nominal 24 VDC power feed delivered through the dedicated chassis backplane infrastructure.

Field communication cabling must utilize high-quality shielded twisted-pair (STP) or industrial Ethernet cables matching the required protocol specifications. Separate all communication and low-voltage logic lines from high-voltage motor control or three-phase power wiring by a minimum physical distance of 300 mm within the cable ducts. Terminate the overall cable shields at a single point on the chassis enclosure grounding bar using low-impedance grounding straps. Ensure that the industrial enclosure maintains adequate convection cooling to prevent the internal temperature from exceeding the upper -40 to +70 deg C operating threshold.
