Product Overview

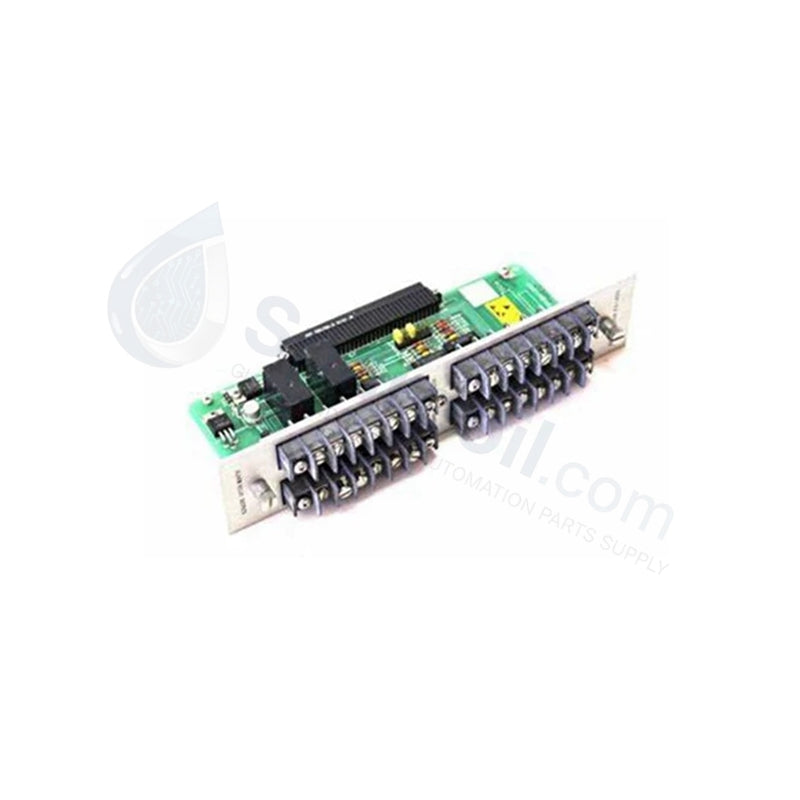

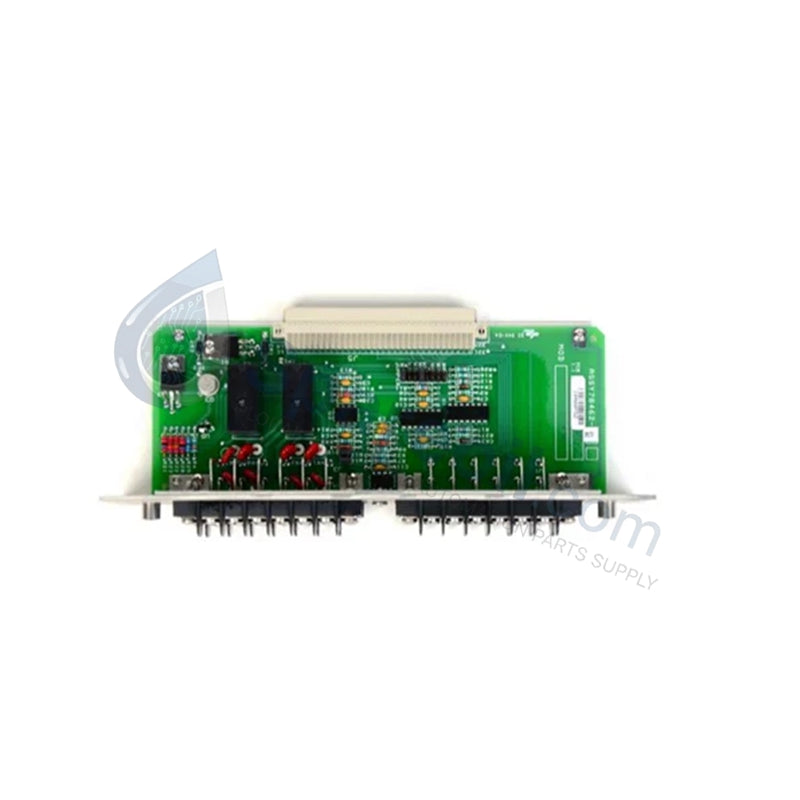

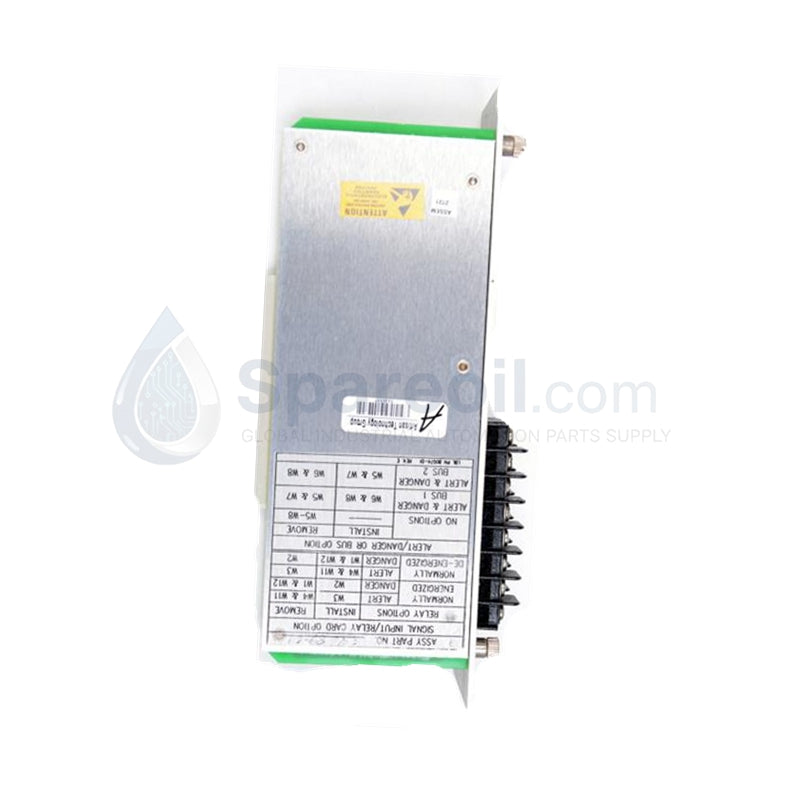

The 78462-02 is a specialized Transducer (XDUCR) I/O and Record Terminals module designed for the Bently Nevada 3300 series machinery protection system. This module serves as a critical interface component, facilitating the routing of transducer signals and providing dedicated recording terminals for diagnostic data acquisition. Engineered to work within the 3300 6-slot and 14-slot chassis, the 78462-02 enables the system to execute protective relay logic, triggering alarms or emergency shutdowns when mechanical vibration, position, or speed parameters exceed safety setpoints. Its robust design ensures continuous signal integrity in high-interference industrial environments.
Detailed Technical Specifications
-
Manufacturer: Bently Nevada (Baker Hughes)
-
Model Number: 78462-02
-
Module Function: XDUCR I/O and Record Terminals / Relay Interface
-
Chassis Compatibility: Bently Nevada 3300 Series (6-slot and 14-slot)
-
Input Signal Support: Radial Vibration, Axial Position, and Speed/Keyphasor signals
-
Output Configuration: Dual Relay Outputs (Alarm/Shutdown) and Buffered Analog Record Outputs
-
Connector Type: Industrial-grade screw terminals for secure field wiring
-
Operating Voltage: Internal to 3300 System Backplane
-
Mounting: Internal chassis slot installation
-
Operating Temperature: -30°C to +65°C (-22°F to +150°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Dimensions: 180 mm x 100 mm x 80 mm
-
Net Weight: 0.7 kg (700g)
-
Country of Origin: United States (USA)
-
Warranty: 12 Months
