ACG10S-F2121 S4 YOKOGAWA Series Datasheet & Technical Manual

YOKOGAWA ACG10S-F2121 S4 CENTUM VP Communication Gateway Module

YOKOGAWA ACG10S-F2121 S4 CENTUM VP Communication Gateway Module

Availability: 99 left in stock

YOKOGAWA ACG10S-F2121 S4 Communication Gateway Module Configured for high-speed network integration within CENTUM VP FIO subsystems, the YOKOGAWA ACG10S-F2121 S4...

SKU: ACG10S-F2121 S4

Manufacturer: Yokogawa
Product No.: ACG10S-F2121 S4
Product Type: Communication Gateway Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 2200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

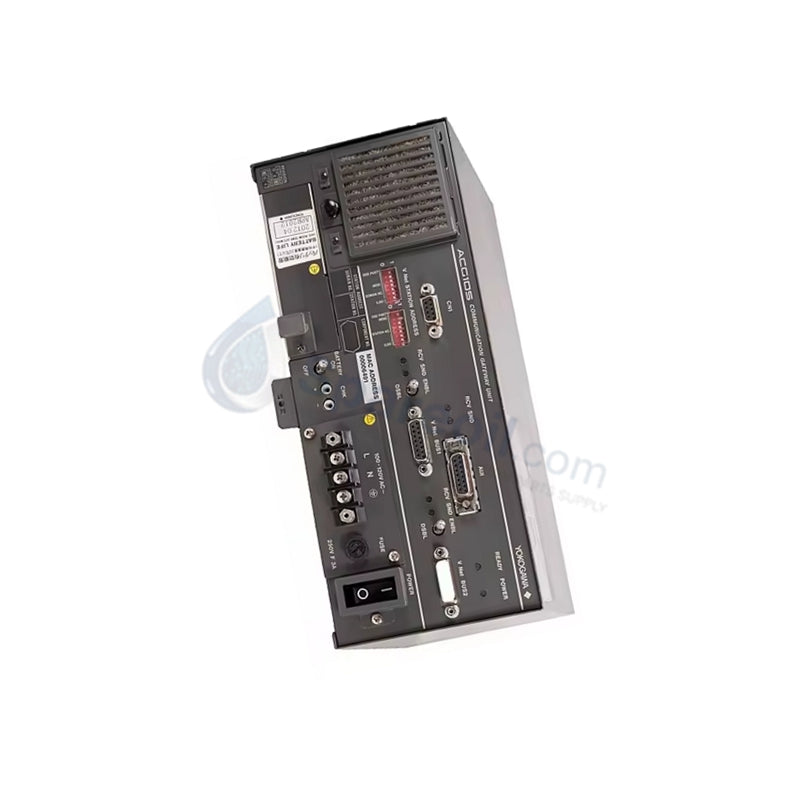

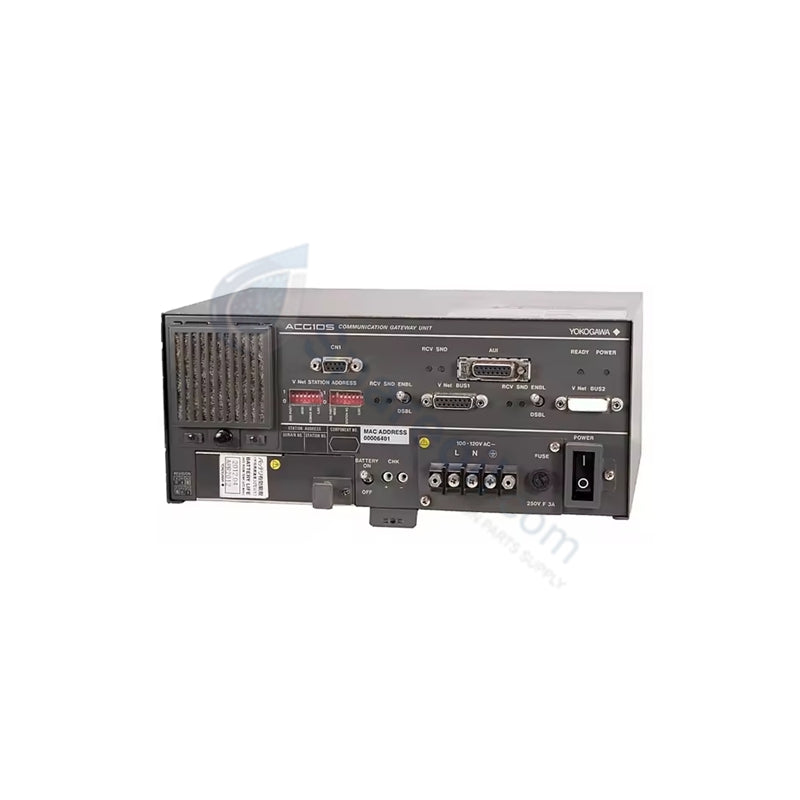

YOKOGAWA ACG10S-F2121 S4 Communication Gateway Module

Configured for high-speed network integration within CENTUM VP FIO subsystems, the YOKOGAWA ACG10S-F2121 S4 (ACG10S-F2121 Communication Gateway) provides direct physical and electrical execution for Vnet/IP and subsystem bus communication traffic.

Suffix Breakdown & Model Matrix

Model Number	Configuration
ACG10S	Base Communication Gateway Module
F2121	Functional Version 2121
S4	S4 Hardware Specification

Hardware Specifications

Parameter	Specification
Model	ACG10S-F2121 S4
Brand	YOKOGAWA
Origin	Japan
Weight	2.2 kg
Dimensions	482.6 mm x 132.5 mm x 3U
Operating Temp	0 deg C to 50 deg C
Power Consumption	0.6 A
Data Throughput	100 Mbps class

DCS Process Control Integration

The ACG10S-F2121 S4 serves as the primary data exchange interface for distributed control architectures. It facilitates Vnet/IP network traffic management, ensuring deterministic communication between Field Control Units (FCUs) and Human Interface Stations (HIS). The module design utilizes channel-to-channel isolation to suppress electromagnetic interference within the cabinet backplane. To maintain process continuity, the unit supports dual-redundant configurations, allowing the system to fail over to a secondary gateway without loss of packet transmission. It provides active monitoring of the communication bus, where 4-20 mA HART loop protocol diagnostics or other subsystem data are encapsulated and forwarded to the appropriate control nodes.

Frequently Asked Questions

Q: Can the ACG10S-F2121 S4 be configured for non-redundant operation?

A: Yes. While the module architecture supports dual-redundant configuration, it can function as a standalone gateway. However, mission-critical applications require redundant pairs to maintain 24/7 data availability.

Q: How are firmware flash compatibility and versioning managed?

A: Firmware compatibility is verified through the CENTUM VP engineering station. The module requires a specific baseline version consistent with the FCU firmware revision to ensure successful synchronization and data packet handling on the subsystem bus.

Field Installation Guidelines

Power down the I/O rack or place the node in maintenance mode before module insertion.
Align the module with the 3U rack backplane connectors; ensure the captive screws are tightened to provide chassis ground continuity.
Connect the Vnet/IP interface cables; ensure the latching mechanisms are fully engaged to prevent intermittent signal drop-outs due to vibration.
Verify the power supply input (24 VDC) using a digital multimeter at the terminal rail to avoid voltage drops under high-speed data throughput.
Perform an initial system handshake via the engineering station to confirm the module is online and the communication link status is established.
