AIP502-S1 Yokogawa V-Net Coupler Module

Yokogawa AIP502-S1 V-Net Coupler Communication Module

Yokogawa AIP502-S1 V-Net Coupler Communication Module

Availability: 10 left in stock

Yokogawa AIP502-S1 V-Net Coupler Module The Yokogawa AIP502-S1, also cataloged as the AIP502 V-Net Coupler Module, operates as a dedicated...

SKU: AIP502-S1

Manufacturer: Yokogawa
Product No.: AIP502-S1
Product Type: Communication Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AIP502-S1 V-Net Coupler Module

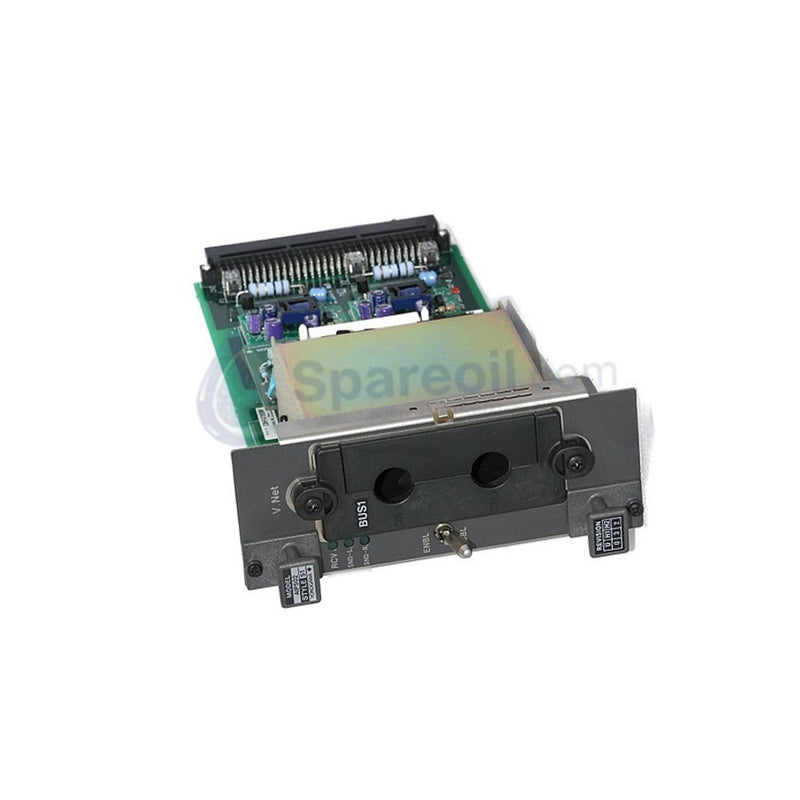

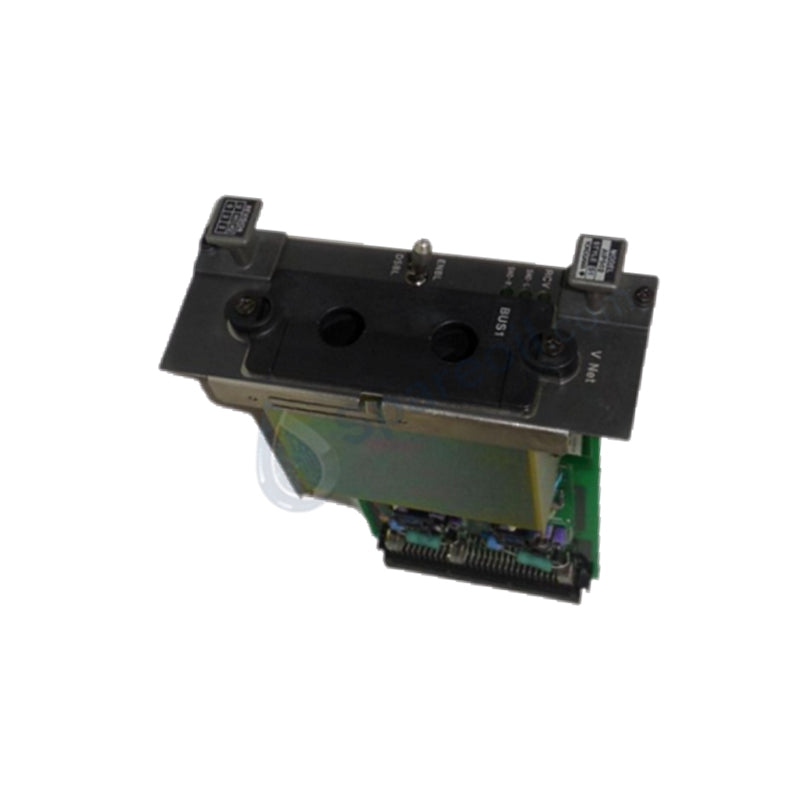

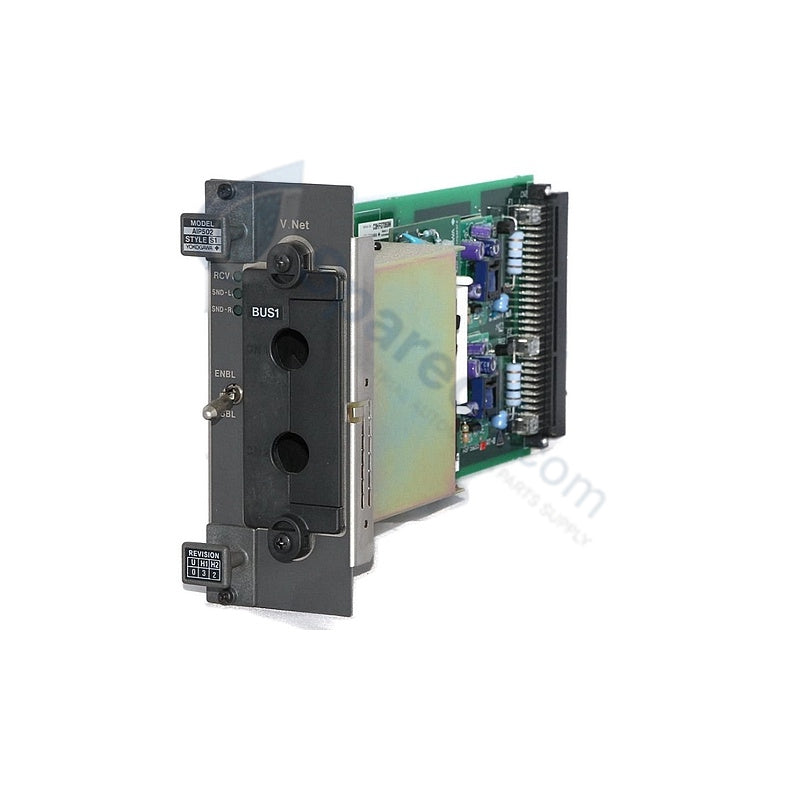

The Yokogawa AIP502-S1, also cataloged as the AIP502 V-Net Coupler Module, operates as a dedicated hardware component for communication bus bridging and node data routing within Yokogawa CENTUM VP and CS3000 DCS networks.

Hardware Specifications

Parameter	Specification
Model	AIP502-S1
Brand	Yokogawa Electric Corporation
Origin	Japan
Weight	0.75 lbs (0.34 kg)
Dimensions	50 x 120 x 200 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	15 W (at 24 VAC/DC)
Communication Protocols	V-Net proprietary
Transmission Speed	Up to 100 Mbps
Max Nodes Supported	Up to 64 nodes
Network Topology	Configurable star or bus topology
Enclosure Protection	IP20

Fieldbus Connectivity & Channel-to-Channel Isolation

The AIP502-S1 coupler module delivers deterministic, low-latency packet transmission across high-density DCS networks while maintaining signal integrity across isolated communication channels. The module features internal galvanic isolation across bus interfaces, preventing ground potential differentials from interfering with 4-20 mA HART loop protocol parameters or digitized field data passed to central processing nodes. Integrated real-time online diagnostics constantly monitor node health and signal strength, flagging line degradation or frame loss directly to the CENTUM VP host architecture.

Frequently Asked Questions

Q: Can the AIP502-S1 module be hot-swapped during active control system operation?

A: Yes, the AIP502-S1 supports online hot-swapping within compatible Yokogawa rack chassis. Replacing the module under live backplane power does not cause logic interruptions or voltage dips on adjacent bus communication cards.

Q: What network topology options are supported when connecting remote I/O nodes via the AIP502-S1?

A: Technicians can wire the module in either star or bus topologies depending on cabinet layouts. Regardless of topology, proper terminal resistor placement must be verified at network endpoints to prevent signal reflection on high-speed V-Net runs.

Field Installation Guidelines

Technicians must seat the module firmly into the rack base, ensuring side latches snap into position to guarantee proper backplane alignment and ground continuity. Connect incoming V-Net communication lines using shielded twisted-pair cables, keeping run lengths within maximum network specification limits. Ensure the cable outer shielding connects to the primary system protective ground bus at a single point to prevent circulating ground loops from impairing data transmission rates. Maintain at least 50 mm of passive ventilation space above and below the rack assembly to keep ambient operating temperatures within the specified -20 deg C to +60 deg C range.
