The Bently Nevada 330103-00-04-05-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330103-00-04-05-02-00

Manufacturer: Bently Nevada
Product No.: 330103-00-04-05-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

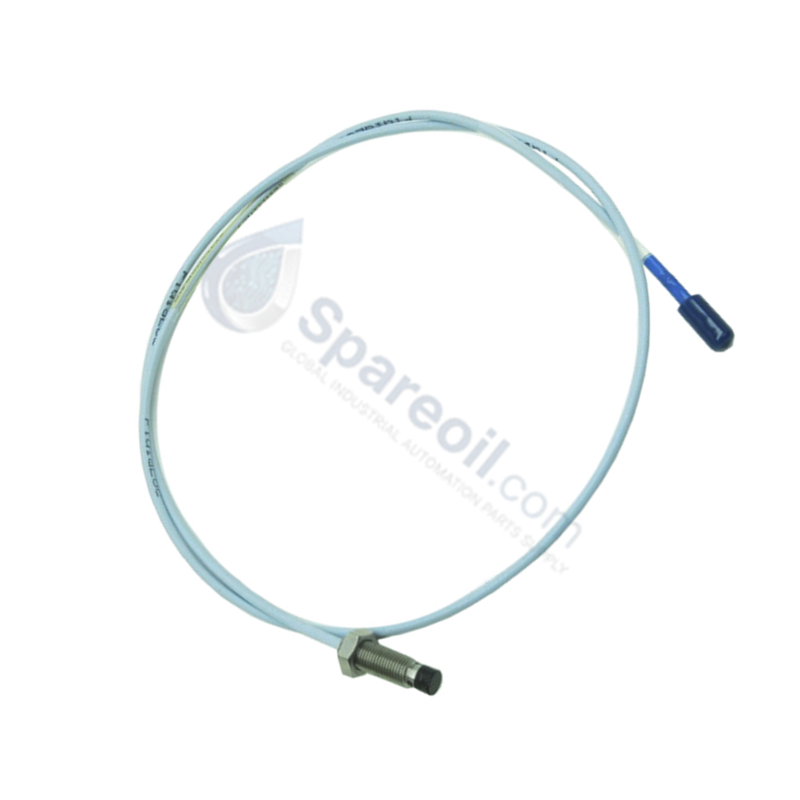

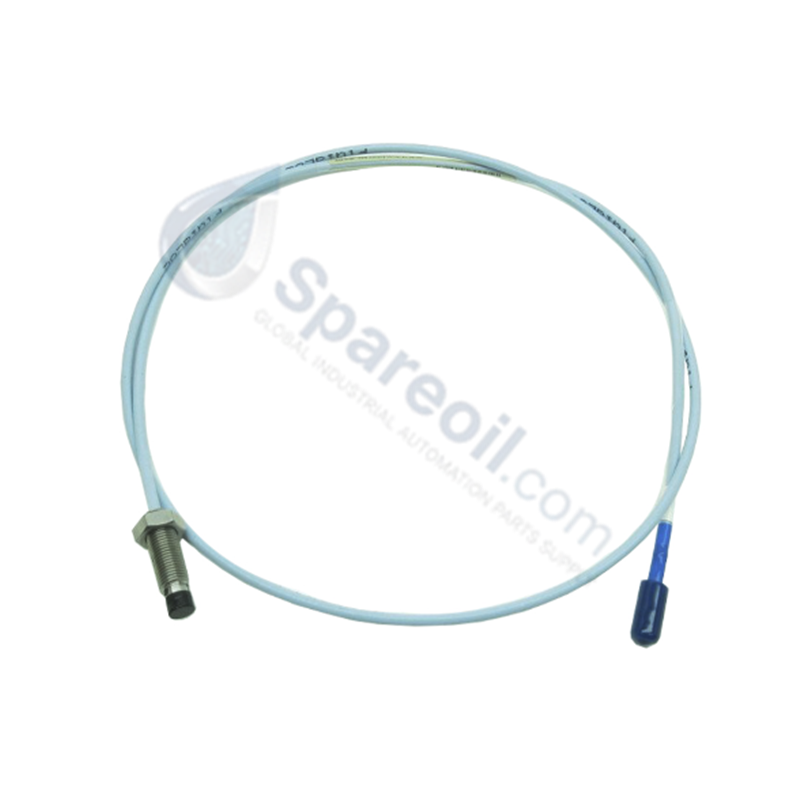

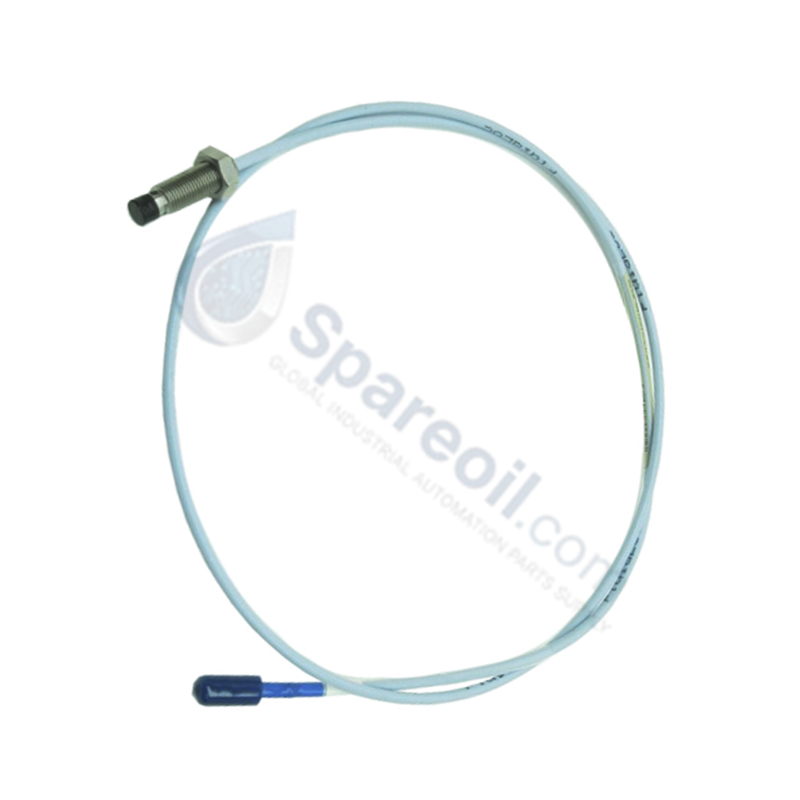

The Bently Nevada 330103-00-04-05-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Transducer System platforms. This passive inductive sensor monitors the physical gap variations between its unarmored 8 mm probe tip and a moving conductive metal surface, generating high-frequency radio frequency modulation loops to output accurate electrical signals without mechanical contact.

Suffix Breakdown & Model Matrix

330103: Base component designator for the 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 metric thread structure without armor.
-00: Unthreaded length option, indicating 0 mm of smooth barrel length.
-04: Overall case length option, indicating a 40 mm total threaded body length.
-05: Total length option, establishing a 0.5 metre (1.6 feet) integrated cable path.
-02: Connector and cable option designating a miniature coaxial ClickLoc connector on a standard electrical cable core.
-00: Agency approval option, indicating that hazardous area certification is not required for the final deployment position.

Hardware Specifications

Parameter	Specification
Model	330103-00-04-05-02-00
Brand	Bently Nevada
Origin	USA
Weight	Approx. 0.35 kg (2.0 kg shipping weight specification)
Dimensions	8 mm probe tip diameter, 40 mm case length, M10 x 1 metric thread
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive sensor driven via external Proximitor loop supply
Thread Profile	M10 x 1 metric
Cable Interface	Unarmored standard coaxial construction
Connector Type	ClickLoc miniature coaxial interface

Mechanical Monitoring & TSI Technical Attributes

The probe requires matching impedance variables to a designated target material to maintain proper eddy-current probe scaling limits across the linear measurement zone. During field commissioning, technical personnel must complete a gap voltage validation protocol, adjusting the depth of the M10 x 1 housing until the static output potential registers a targeted -10 VDC at the geometric center of the transducer operating range. This exact spacing ensures accurate sensor response during dynamic tracking of fast rotor dynamics and structural shifts. Cross-talk suppression is achieved through integrated internal coaxial shield layers, isolating adjacent sensor leads routed within shared mechanical passages.

Frequently Asked Questions

Q: What condition dictates the minimum bend radius of the 0.5 metre unarmored cable?

A: The standard unarmored coaxial cable requires a minimum physical bend radius of 25.4 mm (1.0 inch). Bending the assembly past this point deforms the internal dielectric layer, causing permanent changes to loop inductance.

Q: Can this metric probe be interconnected with an extension cable intended for an imperial 3/8-24 UNF probe?

A: Yes. The miniature coaxial ClickLoc electrical connectors are completely standardized across all 3300 XL 8 mm platforms, though the physical installation threads on the probe bodies are incompatible.

Q: How does fluid exposure on the probe tip modify the output signal?

A: The polyphenylene sulfide (PPS) tip is non-conductive. Standard non-conductive lubricating oils do not alter the high-frequency eddy-current path; however, conductive fluid ingress at the coaxial junction will cause immediate calibration failure.

Field Installation Guidelines

Clean out the M10 x 1 metric threaded mounting port completely, verifying that the bore is clear of metal shavings, burrs, or grease.
Advance the 40 mm stainless steel case into the threaded penetration by hand to prevent cross-threading or tip scoring.
Apply a digital voltmeter to the Proximitor Sensor terminal blocks to capture the live output potential during depth adjustment.
Rotate the probe body until the gap voltage validation registers the nominal baseline of -10 VDC, indicating the correct spatial linear region.
Secure the structural locknut tightly against the machine face to fix the calibrated gap, and secure the ClickLoc connector using self-fusing insulation wrap to isolate the loop from structural grounding points.
