The Bently Nevada 330103-00-04-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330103-00-04-10-02-00

Manufacturer: Bently Nevada
Product No.: 330103-00-04-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

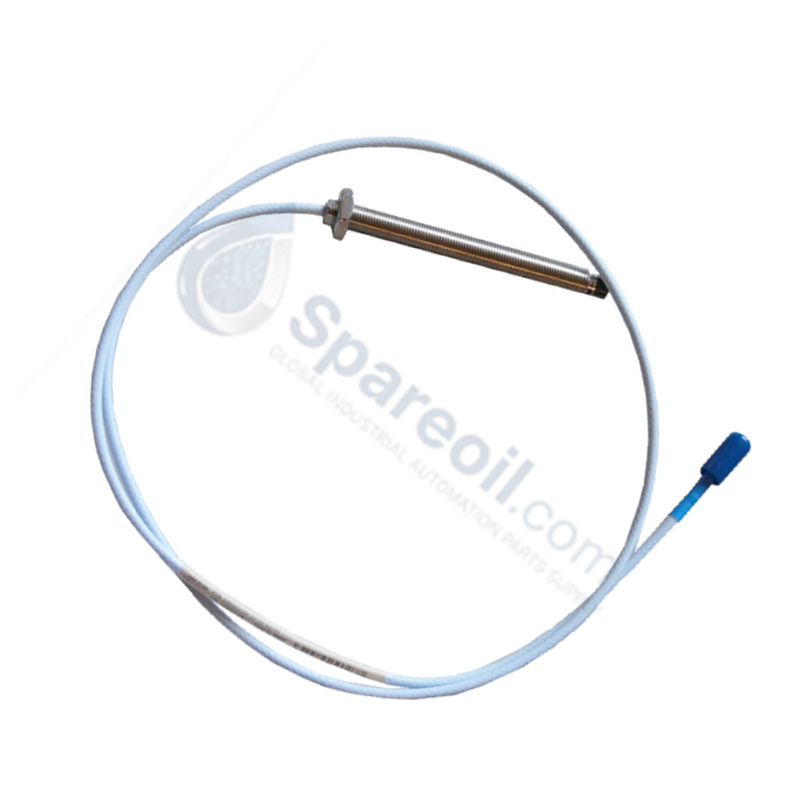

The Bently Nevada 330103-00-04-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Transducer System platforms. This passive inductive hardware component utilizes high-frequency radio frequency modulation to track the physical gap parameters relative to a rotating target shaft, outputting continuous proportional voltage variations over an unarmored standard coaxial interface without mechanical surface contact.

Suffix Breakdown & Model Matrix

330103: Base hardware designation for the 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 metric thread architecture without armor.
-00: Unthreaded length option, indicating 0 mm of smooth barrel.
-04: Overall case length option, indicating a 40 mm total threaded body length.
-10: Total length option, establishing a 1.0 metre (3.3 feet) integrated connection path.
-02: Connector and cable option designating a miniature coaxial ClickLoc connector paired with a standard electrical cable core.
-00: Agency approval option, identifying that hazardous area certification is not required for the specific installation zone.

Hardware Specifications

Parameter	Specification
Model	330103-00-04-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	Approx. 0.35 kg
Dimensions	8 mm probe tip diameter, 40 mm case length, M10 x 1 metric thread
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive sensor driven exclusively by external Proximitor loop supply
Thread Interface	M10 x 1 metric thread
Cable Core	Unarmored standard coaxial construction
Connector Type	ClickLoc miniature coaxial interface

Mechanical Monitoring & TSI Technical Attributes

The eddy-current sensor loop requires exact calibration match profiles to target metallurgy to preserve intended eddy-current probe scaling limits across the full displacement span. During structural line-up and commissioning, field technicians must follow a strict gap voltage validation protocol, adjusting the mechanical depth of the M10 x 1 body until the quiescent DC level measures exactly -10 VDC at the geometric midpoint of the linear tracking field. This baseline setup ensures steady measurement resolution under fast rotor dynamics and limits transient errors from thermal machine growth. Signal isolation and cross-talk suppression are managed by the continuous internal shield layout within the unarmored cable jacket.

Frequently Asked Questions

Q: What physical handling limit applies to the miniature coaxial ClickLoc connector interface?

A: The ClickLoc interface must be coupled and uncoupled by hand pressure only. Using mechanical tools like pliers permanent warps the gold-plated contact barrel shell, changing total loop impedance.

Q: Can this 1.0 metre total length probe module bypass an extension cable and wire straight to the rack?

A: No. The probe is an inductive element requiring an impedance-matched 3300 XL extension cable to form a complete 5.0 or 9.0 metre balanced transmission line tuned to the excitation frequency of the host Proximitor Sensor.

Q: How does a layer of synthetic machine lubricant on the probe tip affect raw output calibration?

A: The polyphenylene sulfide (PPS) tip material is non-conductive. Standard non-conductive lubricating oils do not alter the high-frequency eddy-current penetration path or shift the linear calibration range.

Field Installation Guidelines

Clean out the M10 x 1 metric threaded penetration, ensuring the interface is free of residual drilling metal, old sealants, or carbon scale.
Thread the 40 mm stainless steel probe body into the mounting hole by hand to eliminate cross-threading hazards.
Hook an external digital multimeter up to the Proximitor loop test points to watch active voltage output during final depth adjustment.
Rotate the probe barrel slowly until the gap voltage validation matches the baseline index of -10 VDC.
Lock the external hex nut firmly against the machine structural wall to preserve the verified air gap under constant operating vibration, and seal the coaxial junction against moisture using self-fusing insulation tape.
