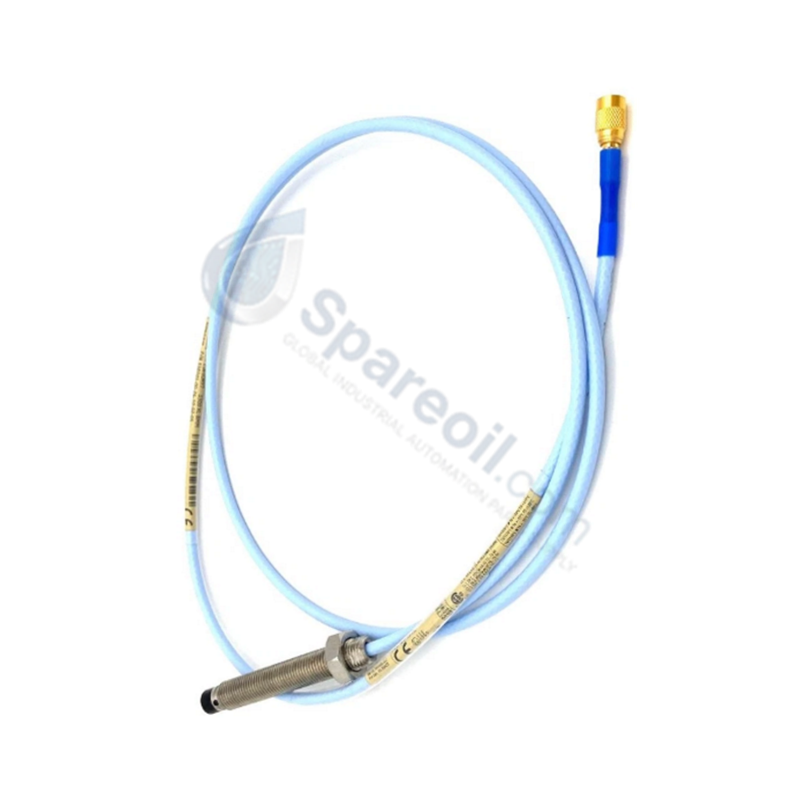

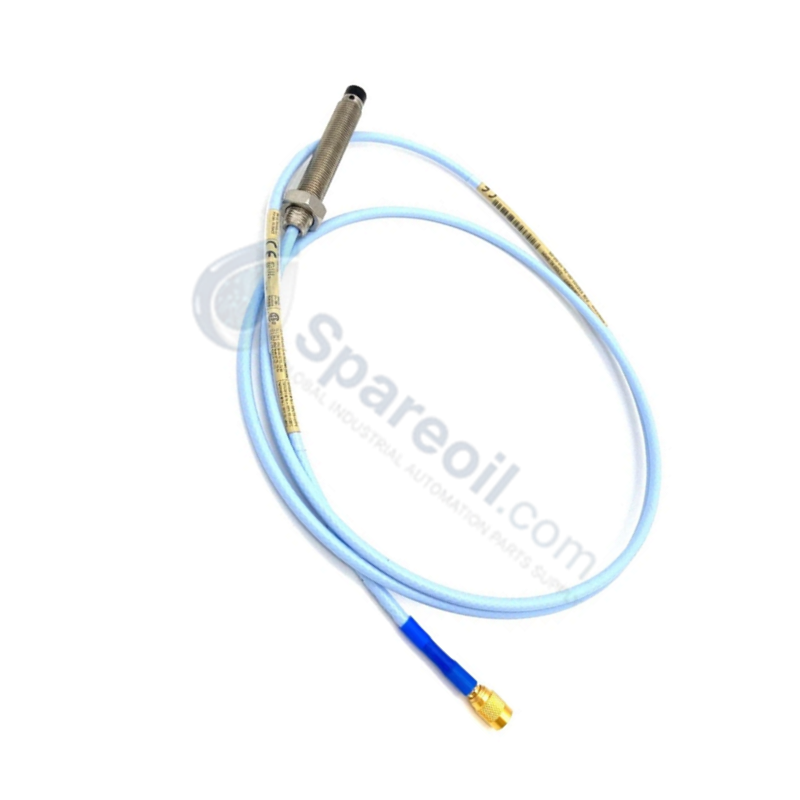

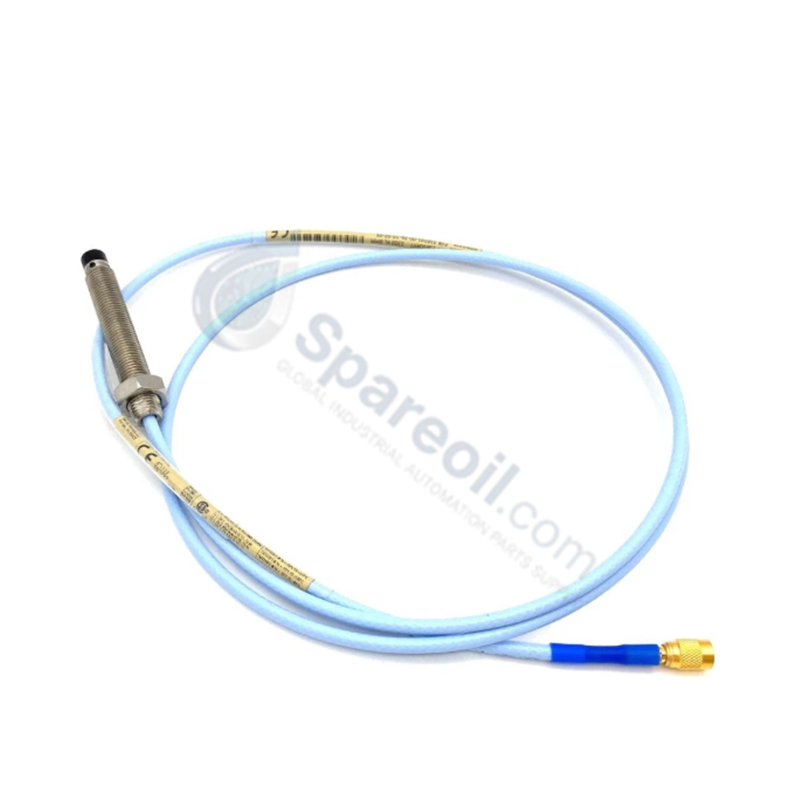

Configured for precise vibration and displacement monitoring in machinery protection loops, the Bently Nevada 330101-15-35-10-02-05 (330101 Proximity Probe) provides direct physical/electrical execution. The instrument converts the physical distance between the probe tip and the target rotating shaft into a proportional electrical signal. It functions continuously without physical contact, mitigating wear and ensuring consistent data transmission to the host rack system.

Suffix Breakdown & Model Matrix

The alphanumeric sequence defines specific physical and mechanical configurations for this assembly:

  • 330101: Core model indicator for 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, unarmored.
  • -15: Unthreaded length option (specified in imperial increments).
  • -35: Overall case length option (specified in imperial increments).
  • -10: Total cable length option, denoting 1.0 metre (3.3 feet) of integrated standard cable.
  • -02: Connector option, indicating the installation of a miniature coaxial ClickLoc connector.
  • -05: Agency approval option, certifying compliance with designated environmental and hazardous area standards.

Hardware Specifications

Parameter Specification
Model 330101-15-35-10-02-05
Brand Bently Nevada
Origin USA
Weight 0.323 kg
Dimensions 8 mm probe tip diameter, 3/8-24 UNF thread
Operating Temp -51 deg C to +177 deg C (standard probe rating)
Power Consumption Driven by external Proximitor Sensor loop
Thread Type 3/8-24 UNF
Cable Length 1.0 metre (3.3 feet)
Connector Type Miniature coaxial ClickLoc connector
Measuring System Imperial

Mechanical Monitoring & TSI Technical Attributes

The probe operates on eddy-current principles, demanding precise calibration relative to the target material metallurgy. The system requires proper eddy-current probe scaling to convert target proximity changes into stable linear voltage output. During commissioning, technicians must perform a gap voltage validation targeting a nominal -10 VDC baseline in the linear range center. This configuration minimizes rotor dynamics measurement skewing by maintaining high frequency response across the entire operating span. Cross-talk suppression is achieved through standard coaxial shielding, preventing electrical interference between adjacent multi-channel probe paths.

Frequently Asked Questions

Q: What is the mechanical connection constraint for the ClickLoc coaxial connector?

A: The ClickLoc connector requires explicit finger-tight engagement plus a specific twist to lock. Do not use pliers or mechanical wrenches, which will permanently deform the gold-plated miniature coaxial contacts and alter loop impedance.

Q: Can this 1.0 metre probe be connected directly to a monitoring rack without a Proximitor sensor?

A: No. The probe functions purely as a variable inductor/capacitor. It requires a dedicated 3300 XL Proximitor Sensor and matching extension cable to complete a tuned RF loop before generating a usable 200 mV/mil analog output.

Q: How should physical thread engagement be handled during installation?

A: Ensure the 3/8-24 UNF threads match the bracket perfectly. A minimum thread engagement of 5 full turns is required to guarantee mechanical stability against high-frequency structural machinery vibration.

Field Installation Guidelines

  1. Thread the probe into the mounting bracket or housing by hand to prevent cross-threading. Ensure clean, unlubricated 3/8-24 UNF threads.
  2. Advance the probe until it contacts the target shaft surface, then back out the probe body while monitoring the real-time gap voltage via the Proximitor sensor output terminals. Stop extraction when the voltage reaches the target calibration value (typically -10 VDC).
  3. Tighten the locknut to the specified mechanical torque limits to secure the probe body, preventing drift caused by operational machinery vibration.
  4. Route the integrated 1.0 metre cable through dedicated rigid or flexible conduit, avoiding sharp bends that exceed the minimum bend radius of 25.4 mm.
  5. Insulate the coaxial ClickLoc connection point with standard self-fusing silicone tape or clear heat-shrink tubing to isolate the signal path from moisture and structural ground contact.
