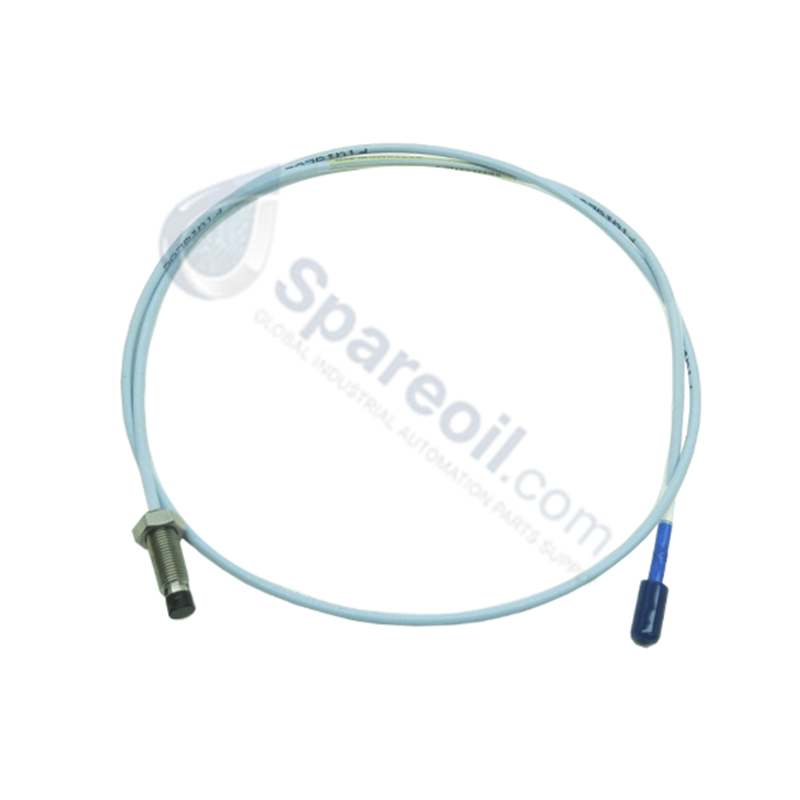

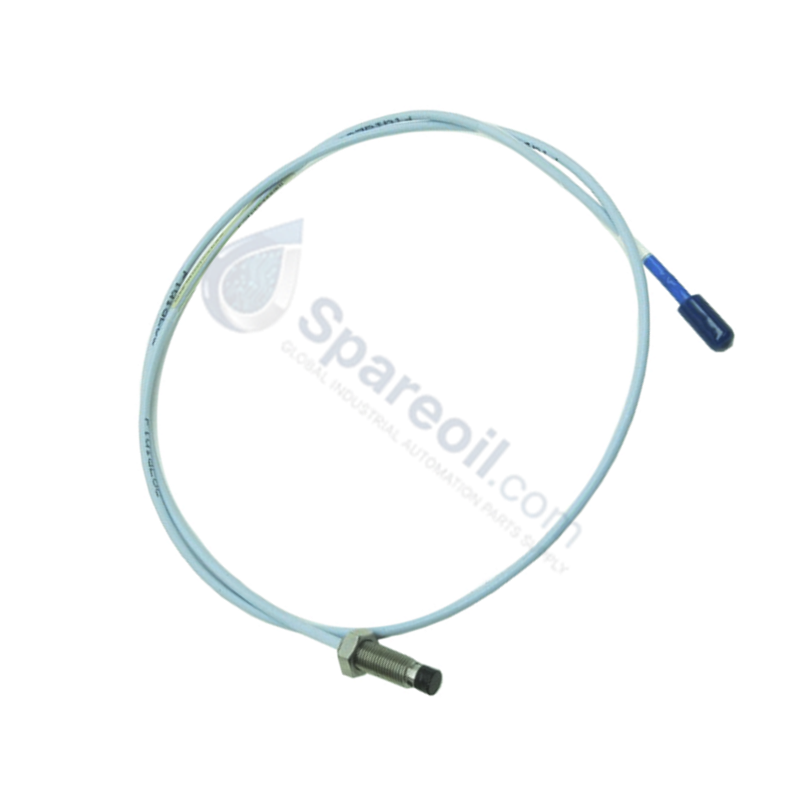

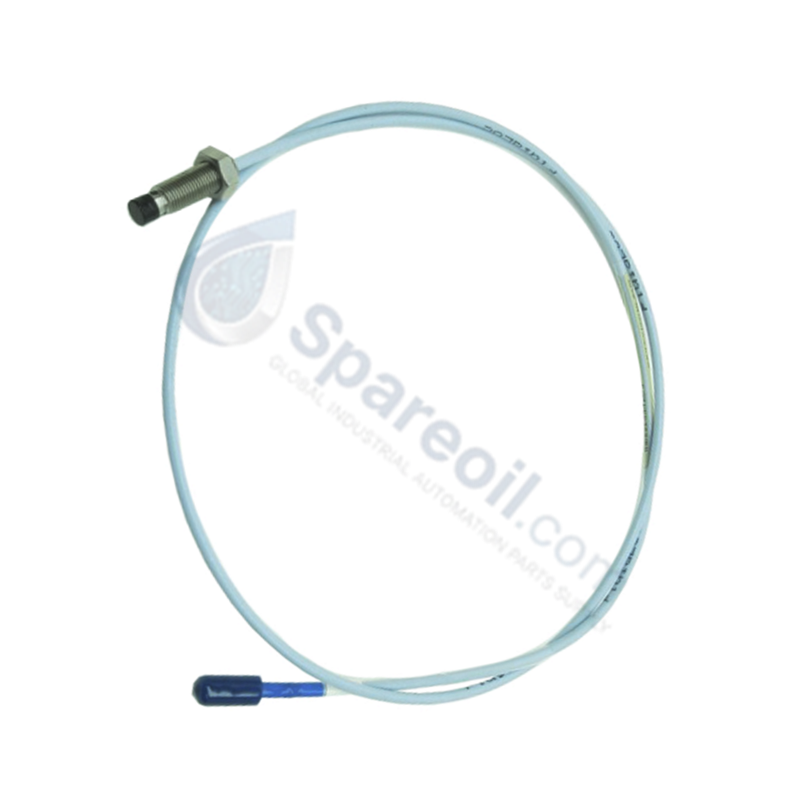

The Bently Nevada 330102-40-62-05-02-05 serves as the primary 330102 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330102-40-62-05-02-05

Manufacturer: Bently Nevada
Product No.: 330102-40-62-05-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330102-40-62-05-02-05 serves as the primary 330102 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Proximity Transducer System platforms. Configured with a metric M10 x 1 interface and a specialized staggered housing, this inductive hardware component measures the physical clearance relative to a rotating target shaft and outputs a proportional high-frequency electrical signal to the system monitoring rack without direct physical contact.

Suffix Breakdown & Model Matrix

330102: Core model indicator for the 3300 XL 8 mm proximity probe assembly with integrated armor and standard configuration.
-40: Unthreaded length option, designating 40 mm of smooth, unthreaded barrel shank geometry.
-62: Overall case length option, designating a 62 mm total housing envelope depth.
-05: Total length option, establishing a 0.5-meter (1.6 ft) integrated connection path.
-02: Miniature coaxial ClickLoc connector paired with a standard armored electrical cable.
-05: Agency approval option, certifying compliance with global CSA, ATEX, and IECEx standards for safe operation within Ex ia and Ex nA hazardous zones.

Hardware Specifications

Parameter	Specification
Model	330102-40-62-05-02-05
Brand	Bently Nevada
Origin	USA
Weight	Approx. 0.35 kg
Dimensions	8 mm probe tip diameter, M10 x 1 metric thread, 62 mm total case length
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive sensor driven via external Proximitor loop infrastructure
Sensitivity	7.87 V/mm (200 mV/mil)
Linear Range	2.0 mm (80 mils)
Tip Material	Polyphenylene Sulfide (PPS)
Case Material	AISI 303 or 304 Stainless Steel (SST)
Pressure Limit	Liquid-tight boundary up to 50 psi
Connector Type	ClickLoc miniature coaxial connector

Mechanical Monitoring & TSI Technical Attributes

The transducer operates on high-frequency RF principles, requiring exact calibration relative to target material physical characteristics to ensure appropriate eddy-current probe scaling. To obtain an accurate static reference inside the 2.0 mm linear tracking window, field technicians must perform an on-site gap voltage validation protocol, adjusting the physical position until the baseline potential registers -10 VDC at the center of the calibration spectrum. Correct alignment coordinates the sensor with high-velocity rotor dynamics and filters structural anomalies. Furthermore, cross-talk suppression is maintained via continuous inner coaxial shielding, mitigating signal degradation when parallel sensor leads share localized conduit routing paths.

Frequently Asked Questions

Q: What is the main installation advantage of the 40 mm unthreaded section option?

A: The 40 mm unthreaded portion provides a smooth shank that allows for deep insertion through sleeve assemblies or brackets without thread engagement or galling until the probe reaches its near-final physical monitoring depth.

Q: Can this 0.5-meter total length probe be linked directly to a standard 3500 rack system monitor?

A: No. The probe requires an impedance-matched 3300 XL extension cable to extend the total loop length to either 5.0 or 9.0 meters, matching the exact electrical calibration profile of the host Proximitor Sensor.

Q: Does the 50 psi pressure limit allow for direct monitoring inside high-pressure fluid-film bearing cavities?

A: The probe tip and internal case are bonded to remain liquid-tight up to 50 psi against static oil pressure. For applications exceeding 50 psi, a specialized high-pressure fluid seal housing must be used.

Field Installation Guidelines

Verify that the matching mounting hole is tapped straight to an M10 x 1 metric specification and is thoroughly cleaned of metallic debris or oil.
Carefully guide the 40 mm smooth unthreaded section into the bore by hand, ensuring the probe barrel does not bind against the interior walls of the mounting sleeve.
Advance the metric threads while monitoring the raw DC loop output at the Proximitor Sensor testing terminals using a digital multimeter until the gap voltage validation confirms the nominal -10 VDC target.
Tighten the hex locknut to standard torque values to prevent drift under continuous machinery structural vibration.
Join the miniature coaxial ClickLoc connection until a physical and tactile "click" is felt, then wrap the connector joint in self-fusing insulation tape to isolate the loop from structural grounding paths.
