The Bently Nevada 330103-00-03-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330103-00-03-10-02-00

Manufacturer: Bently Nevada
Product No.: 330103-00-03-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

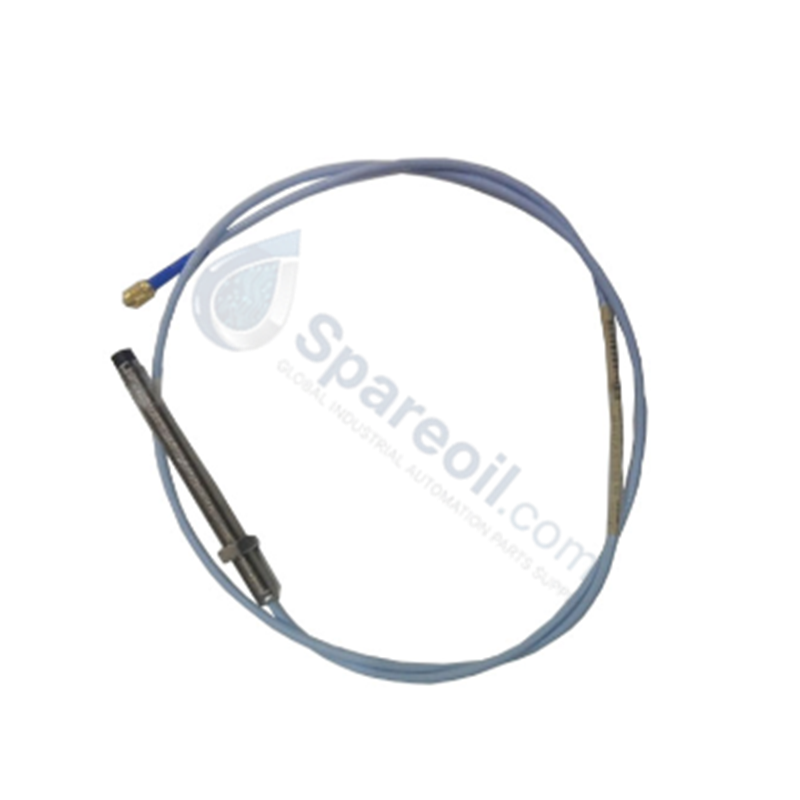

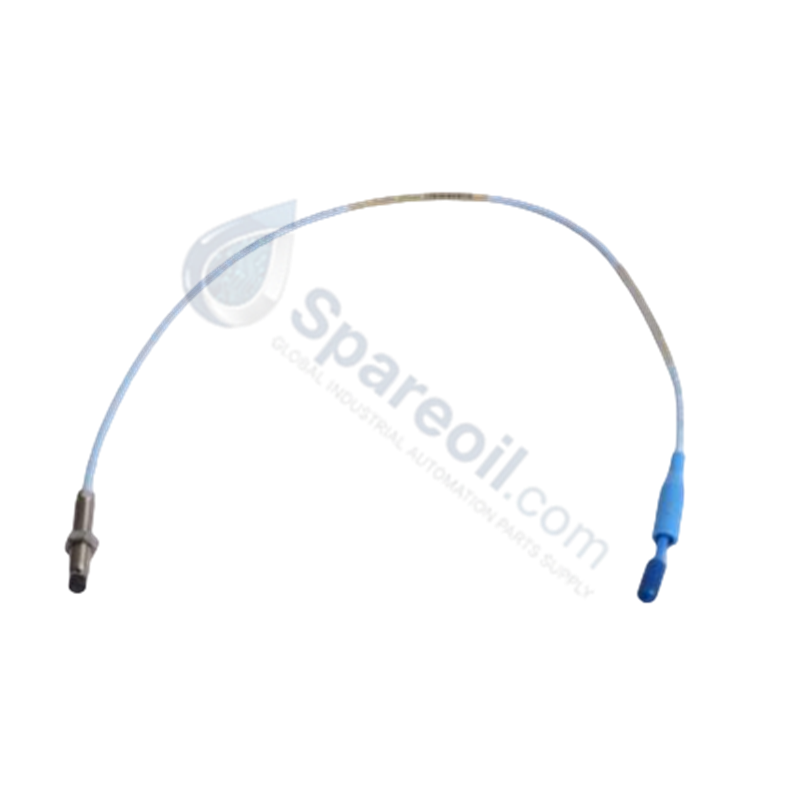

The Bently Nevada 330103-00-03-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Transducer System platforms. The passive hardware component utilizes eddy-current inductive loop properties to monitor raw physical gap variations between the sensor face and a moving conductive metal shaft, generating high-frequency signal fluctuations without direct physical contact.

Suffix Breakdown & Model Matrix

330103: Base component designator for the 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 metric thread structure without armor.
-00: Unthreaded length option, indicating 0 mm of smooth barrel.
-03: Overall case length option, indicating a 30 mm total threaded body length.
-10: Total length option, establishing a 1.0 metre (3.3 feet) integrated cable path.
-02: Connector and cable option designating a miniature coaxial ClickLoc connector on a standard electrical cable core without an external connector protector sleeve.
-00: Agency approval option, indicating that hazardous area certification is not required for the final deployment position.

Hardware Specifications

Parameter	Specification
Model	330103-00-03-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	Approx. 0.35 kg
Dimensions	8 mm probe tip diameter, 30 mm case length, M10 x 1 metric thread
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive sensor driven via external Proximitor loop supply
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Connection Type	ClickLoc miniature coaxial interface

Mechanical Monitoring & TSI Technical Attributes

The probe driver requires strict matching to a verified target metallurgy to sustain linear eddy-current probe scaling accuracy across the measured spectrum. During mechanical commissioning, field engineers must execute a gap voltage validation protocol, adjusting the physical depth of the metric body until the quiescent DC level measures exactly -10 VDC at the geometric center of the linear calibration envelope. Proper physical alignment tracks real-time rotor dynamics under high velocity while filtering thermal errors. Cross-talk suppression is maintained via continuous internal coaxial shielding braid, mitigating electrical interference when multiple probe channels route through close-proximity machine penetrations.

Frequently Asked Questions

Q: What distinguishes the -02 connector option from the -01 connector option?

A: The -02 option supplies the standard miniature coaxial ClickLoc connector bare, without the pre-installed external plastic connector protector sleeve found on the -01 option.

Q: Can this M10 x 1 metric thread probe be coupled directly to an extension cable designed for an imperial probe?

A: Yes, the electrical parameters of the ClickLoc coaxial interface remain standardized across both imperial and metric 3300 XL 8 mm platforms, though the physical installation threads differ.

Q: How is the power consumption managed for this specific module?

A: This probe is entirely passive and consumes no direct DC electrical power. It is excited solely by the high-frequency RF signal delivered from the connected 3300 XL Proximitor Sensor.

Field Installation Guidelines

Clean out the M10 x 1 metric threaded mounting port completely, verifying that the bore is clear of metal shavings, burrs, or grease.
Advance the 30 mm stainless steel case into the threaded penetration by hand to prevent cross-threading or tip scoring.
Apply a digital voltmeter to the Proximitor Sensor terminal blocks to capture the live output potential during depth adjustment.
Rotate the probe body until the gap voltage validation registers the nominal baseline of -10 VDC, indicating the correct spatial linear region.
Secure the structural locknut tightly against the machine face to fix the calibrated gap, and secure the ClickLoc connector using self-fusing insulation wrap to isolate the loop from structural grounding points.
