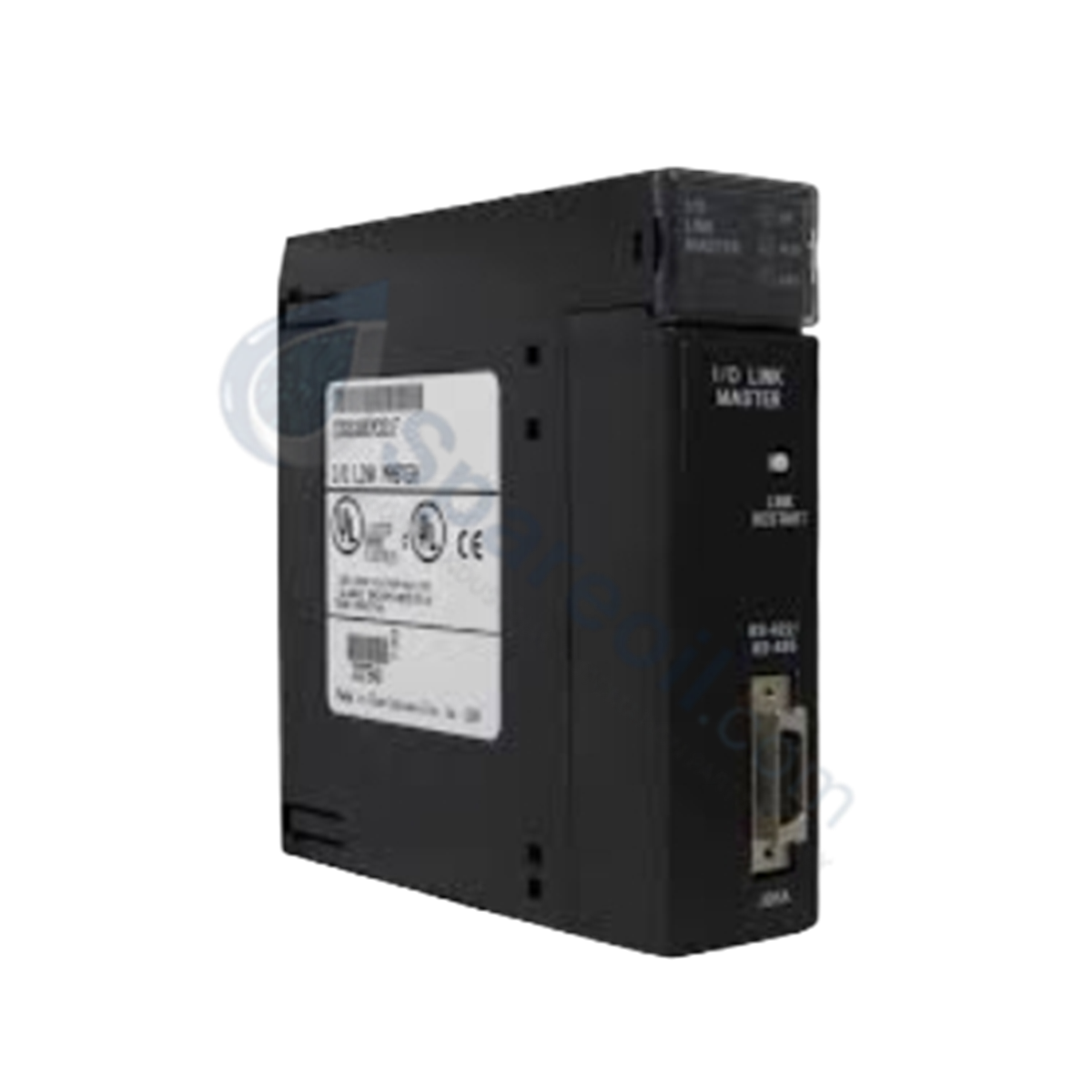

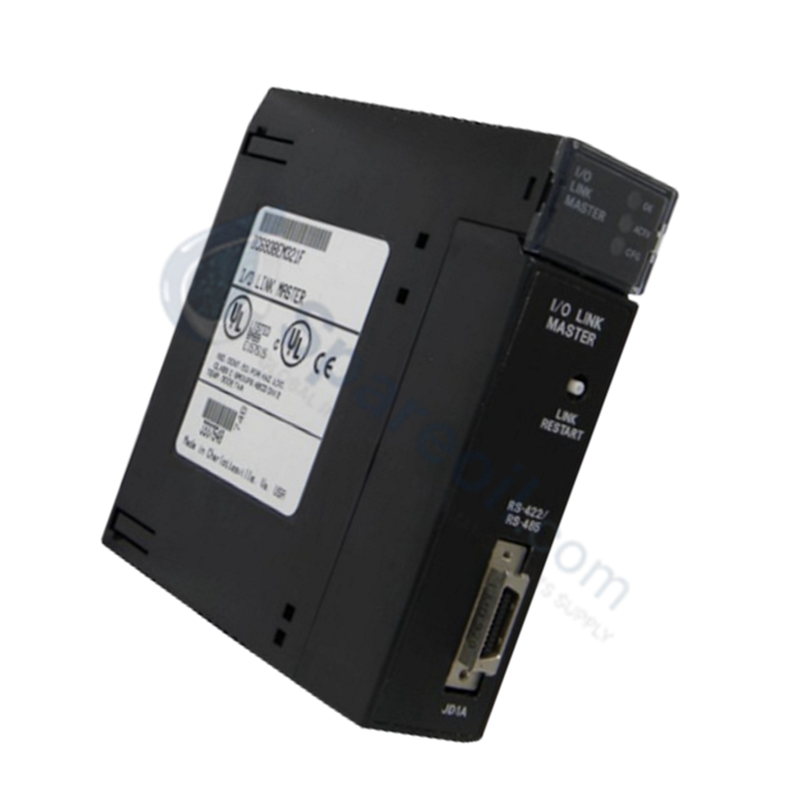

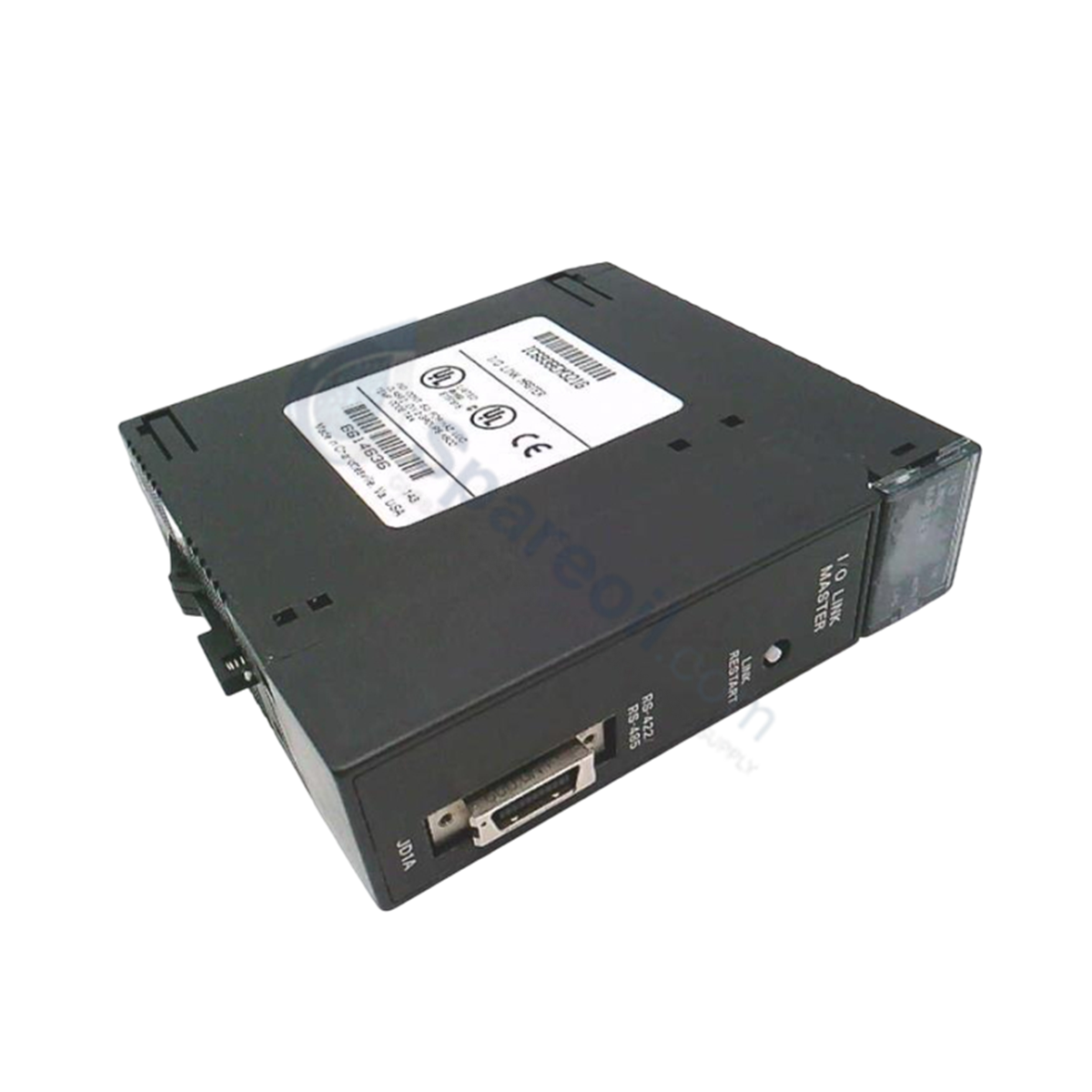

The GE Fanuc IC693BEM321, also cataloged as the IC693BEM321 I/O Link Master Module, operates as a dedicated hardware component for serial data coordination and slave node management within Series 90-30 PLC platforms.

Hardware Specifications

Parameter Specification
Model IC693BEM321
Brand GE Fanuc Emerson
Origin United States
Weight 0.26 kg (0.56 lbs)
Dimensions Standard single-slot width module
Operating Temp 0 to 60 deg C
Storage Temp -40 to 85 deg C
Power Consumption Industry standard for Series 90-30 communication modules
Slave Capacity Maximum 16 slave devices
Input Capacity 1024 discrete inputs
Output Capacity 1024 discrete outputs
Maximum Units per CPU 6 master modules
Physical Connector 20-pin Honda-type socket
Communication Signal Layer RS-422 and RS-485 signal levels

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The module handles distributed field data exchange across dedicated serial sub-networks, preventing configuration blockages on the backplane and securing stable backplane bus communication velocity. During extreme I/O density scaling reaching up to 1024 discrete input and output points, the processing architecture offloads raw transmission cycles from the host CPU. This interface preserves system configuration parameters and maintains total framework compliance when interfacing with modern Profinet / EtherNet/IP deterministic networks via upstream gateways, guaranteeing firmware flash compatibility remains intact across legacy architectures.

Frequently Asked Questions

Q: What is the maximum aggregate discrete I/O count possible using multiple IC693BEM321 modules under one CPU?

A: Since a single CPU accommodates a maximum of 6 master modules, and each module handles a fixed matrix of 1024 discrete inputs and 1024 discrete outputs, the total system capability can be scaled up to 6144 discrete inputs and 6144 discrete outputs.

Q: Is manual jumper configuration required on the circuit board to switch between RS-422 and RS-485 signaling?

A: No. The physical layer adjustments are executed dynamically through the internal circuitry and the specific pinout wiring scheme implemented at the 20-pin Honda-type socket connection point.

Field Installation Guidelines

  1. Terminate all incoming electrical supply lines to the Series 90-30 baseplate prior to performing module installation or extraction.
  2. Slide the module into the selected chassis slot, confirming that the backplane connector locks flush against the host bus receptables.
  3. Secure the 20-pin Honda-type interface cable plug onto the front mating socket using the module retaining screws to prevent intermittent connection drops under mechanical strain.
  4. Route the RS-422/RS-485 communication line separate from high-voltage variable frequency drive cables to mitigate electrical noise across the data lanes.
