Yokogawa SAI533-H53 CENTUM Series

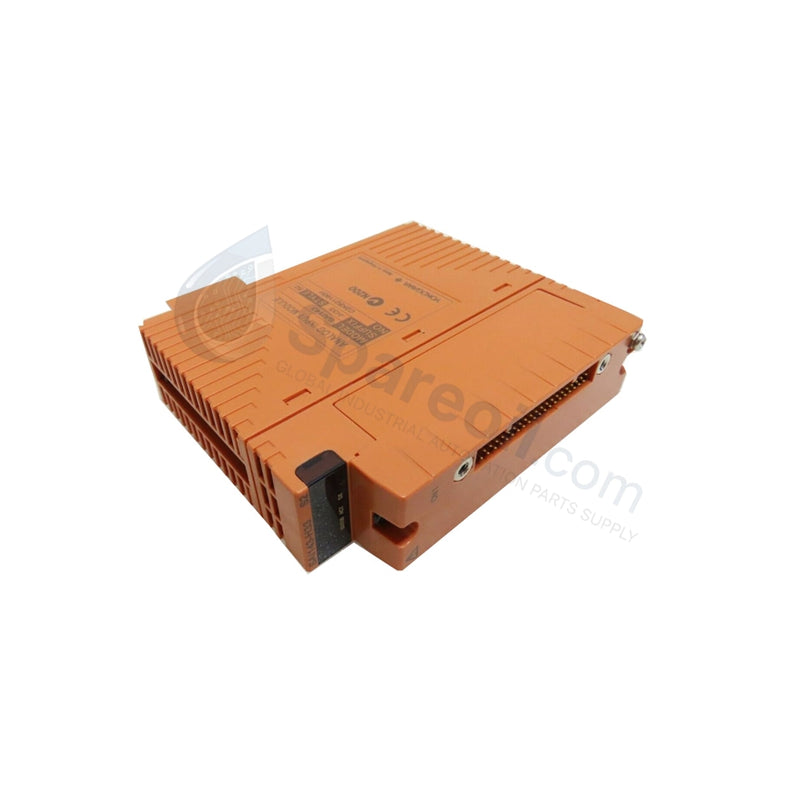

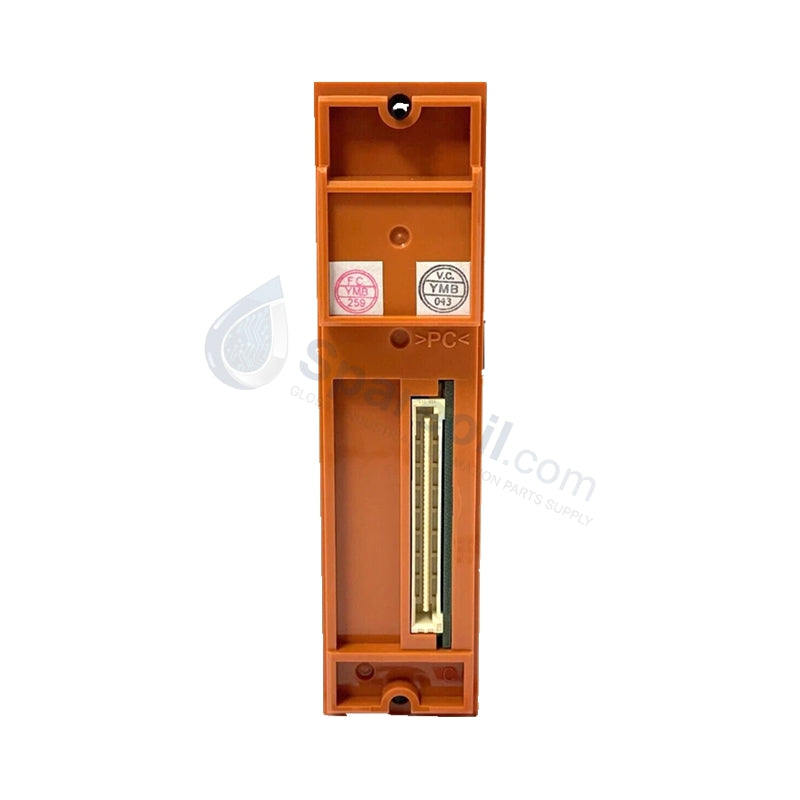

The Yokogawa SAI533-H53, also cataloged as the Yokogawa SAI533 Analog Input Module, operates as a dedicated hardware component for 1-5 VDC voltage signal acquisition within CENTUM VP / CS 3000 FIO platforms.

Hardware Specifications

Parameter Specification
Model SAI533-H53 (Suffix variant: SAI533-H53/A4D00)
Brand Yokogawa
Origin Indonesia
Weight 0.3 kg
Dimensions 107.5 mm x 130 mm x 32.8 mm
Operating Temp -20 to +70 deg C (H53 extended range)
Power Consumption 230 mA at 5 VDC / 540 mA at 24 VDC
Input Signal Type Analog voltage input
Signal Range 1-5 VDC
Number of Channels 16 isolated channels
Input Impedance 1 MOhm or higher
Measurement Accuracy +/-0.1% of full scale
Scan Update Period 10 ms
Isolation Voltage 1500 VAC for 1 minute (channel-to-system)
Corrosion Protection ISA G3 conformal coating
Humidity Range 5-95% RH, non-condensing

Process Control and DCS Instrumentation Channel Regulation

The 16-channel processing matrix routes input potentials through high-impedance buffer stages to prevent measurement loop loading. It achieves signal isolation up to 1500 VAC via a system topology that protects internal logic registers from external common-mode faults. The module suppresses noise transients directly inside the 4-20 mA HART loop protocol architecture (or associated 1-5 VDC converted splits), keeping processing drift limited to +/-16 uA equivalent per 10 deg C. The hardware scans all points concurrently within a deterministic 10 ms update window, performing structural threshold analysis to identify field line disruptions without introducing software lag or firmware flash compatibility delays.

Frequently Asked Questions

Q: How does the SAI533-H53 preserve scan continuity during an open-circuit fault condition on a voltage channel?

A: The internal processing circuits continuously evaluate input impedance values across each channel. When an open-circuit failure is recognized, the module reports a specific channel error code directly onto the FIO bus, isolating the faulty input line while maintaining uninterrupted processing loops across the remaining fifteen active channels.

Q: What are the backplane load limitations and installation constraints when executing a hot-swap operation?

A: This module permits hot-swap physical replacement inside active, redundant FIO node configurations. Internal power-up dampening tracks limit the physical inrush current drawn from the 5 VDC and 24 VDC rails to prevent electrical bus disturbances from tripping adjacent operational modules.

Field Installation Guidelines

  • Baseplate Slide Alignment and Mechanical Lock: Guide the module down the vertical alignment tracks of the FIO baseplate slot. Press inward until the dual-connector array seats into the backplane pin sockets, then latch the top and bottom mechanical card locks.
  • Signal Wire Separation and Routing: Separate all low-voltage analog voltage signal conductors from high-voltage AC lines, switching relays, and variable frequency drive cables. Run all sensor lines through separate, grounded wire ducts to optimize cross-talk suppression.
  • Shield Grounding for Common-Mode Rejection: Terminate the external signal cable shields at a single point to the master instrumentation ground bus bar. Maintaining a solid ground connection is necessary to utilize the 1500 VAC channel-to-system isolation barriers and prevent EMI/RFI noise corruption.
