Maximize Industrial Motor Lifespan with IIoT Condition Monitoring

Maximizing Electric Motor Lifespans in Modern Factory Automation

Electric motors serve as the primary driving force behind modern factory automation systems. According to the Department of Energy, a standard industrial motor maintains an operational life cycle of 30,000 to 40,000 hours. However, harsh operating conditions often shorten this window significantly.

By implementing strategic predictive maintenance and real-time condition monitoring, engineering teams can maximize asset longevity. This proactive approach prevents costly unplanned downtime across the plant floor.

Understanding Critical Motor Components and Ingress Protection

Industrial electric motors consist of relatively few but highly critical internal components. The core assembly relies on a stationary stator, a rotating rotor, heavy-duty end bearings, copper windings, and a drive shaft.

Protecting these internal parts from the surrounding factory environment requires a proper Ingress Protection (IP) rating. The first digit defines solid particulate defense, while the second digit specifies liquid resistance.

Nevertheless, high humidity, chemical corrosion, and fine dust contamination can still penetrate vulnerable seals over time. Consequently, maintenance teams must actively monitor internal thermal and ambient moisture changes.

Executing Safe Enclosure Cleaning Practices

Thick layers of airborne dust act as insulation, which rapidly accelerates motor overheating. Technicians frequently use pneumatic air guns to blast away contaminants from the external cooling fins.

However, operators must verify that the compressed air source remains entirely dry and clean. Otherwise, the high-pressure stream will force moisture and fine grit deep into the motor housing.

Regular exterior wiping restores the original heat-dissipation factor of the metal casing. This simple practice keeps the equipment running well within its intended thermal limits.

Designing Precision Bearing Lubrication Schedules

While external cleanliness matters, managing internal bearing lubrication remains paramount for rotating machinery. Many modern low-voltage motors feature shielded or sealed-for-life bearings that require zero maintenance.

In fact, forcing grease into a sealed bearing will rupture the protective elastomeric seals. This mistake causes rapid grease migration, over-lubrication, and immediate component failure.

Conversely, open bearings demand a strict, well-documented lubrication plan based on actual operating hours. Maintenance software should track these run-times automatically to ensure technicians apply the exact grease volume on schedule.

Transitioning from Acoustic Inspection to Sensor Baselines

Experienced technicians often diagnose failing bearings simply by listening to the machine during operation. For instance, a high-pitched screech usually indicates a severe lack of lubrication.

Alternatively, heavy clattering sounds point to a deformed bearing ring or structural cage damage. Mechanical scoring on the ball bearings or raceways typically generates a distinct, continuous hissing sound.

Unfortunately, high ambient factory noise makes these auditory warnings incredibly difficult to isolate. Furthermore, relying purely on human hearing means detecting the flaw only after catastrophic damage has already occurred.

Mitigating Harmonic Resonance with Vibration Tracking

The adoption of Variable Frequency Drives (VFDs) introduces complex mechanical challenges to factory automation. Operating a motor across a wide speed spectrum can accidentally trigger the natural resonant frequency of the structural frame.

This condition causes sudden, violent spikes in localized vibration at very specific operating frequencies. Human operators rarely notice these intermittent fluctuations during a standard floor walk.

By contrast, continuous vibration sensors log continuous tri-axial data across the entire production cycle. Control engineers can then program the central PLC or DCS to skip those harmful resonance speeds entirely.

Choosing Between Soft Starters and VFD Architectures

High start-stop frequency places immense mechanical stress on motor windings, gearboxes, and rotor shafts. To mitigate this stress, engineers integrate either solid-state soft starters or comprehensive VFD solutions.

If an application runs continuously at a fixed velocity, a standard soft starter offers a highly cost-effective choice. It successfully reduces high inrush currents without the financial premium of a full drive.

However, modern VFDs provide superior industrial network communication capabilities that often justify the higher initial investment. Engineers must evaluate whether the application truly requires dynamic speed control before over-specifying the hardware.

Deploying Modern IIoT Condition Monitoring Solutions

The Industrial Internet of Things (IIoT) has revolutionized how plants track asset health across decentralized control systems. Portable thermal imaging cameras from brands like Fluke allow technicians to cross-reference surface temperatures with the motor nameplate.

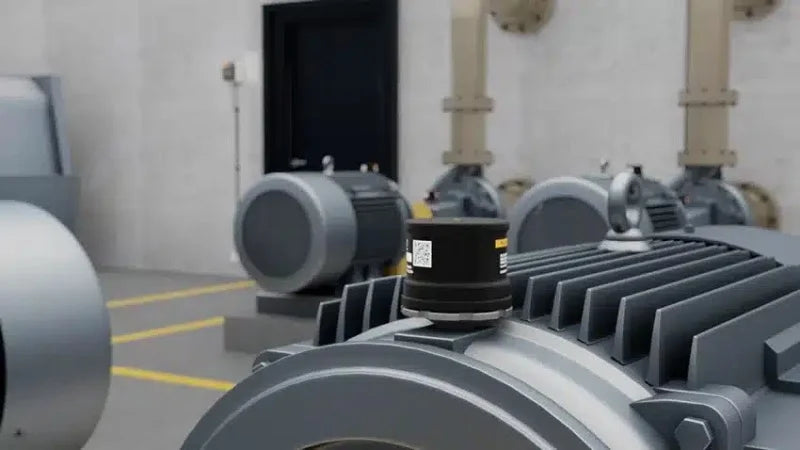

Additionally, companies like ABB, SICK, Balluff, and Banner Engineering offer compact, exterior-mounted sensor nodes. These intelligent devices attach magnetically to the motor frame to measure vibration and temperature simultaneously.

These sensor packages transmit data over independent wireless networks directly to localized edge computers or cloud platforms. This architecture completely avoids cluttering the primary deterministic PLC automation network.

Analyzing Long-Term Sensor Trends for Predictive Maintenance

Condition monitoring data differs fundamentally from standard digital or analog process variables. While a sudden pressure drop triggers an immediate DCS alarm, asset health tracking relies entirely on long-term trend analysis.

Slight, upward shifts in baseline vibration indicate gradual component degradation weeks before a failure occurs. This advanced warning allows teams to schedule repairs during planned maintenance windows.

For exploratory testing, developer kits like the Bosch Rexroth XDK provide an excellent starting point. These multi-sensor kits log temperature, humidity, and gyroscopic motion, allowing facilities to build custom predictive algorithms.

Implementation Scenario: Automated Predictive Maintenance in a Paper Mill

A major paper manufacturing facility experienced recurrent bearing failures on a critical freshwater pump motor, causing expensive, unscheduled line stops.

• The Challenge: The pump operated via an older, fixed-speed motor starter inside a damp, high-vibration environment, making manual inspection dangerous and inaccurate.
• The Solution: The engineering team attached a wireless, battery-powered Parker Hannifin SensoNode sensor to the exterior bearing housing. This node continuously transmits tri-axial vibration, surface temperature, and ambient humidity data via Bluetooth Low Energy to a local gateway.
• The Outcome: The gateway routes this data directly into the plant-wide SCADA system. When the vibration baseline shifted by 15% due to early bearing race degradation, the system flagged a predictive maintenance alert. Technicians replaced the bearing during a scheduled weekend shift, saving the facility thousands of dollars in lost production.
