Schneider and Weidmuller Launch Snap-In Motor Control Drives

Schneider Electric Partners with Weidmüller to Revolutionize Factory Automation Cabinets

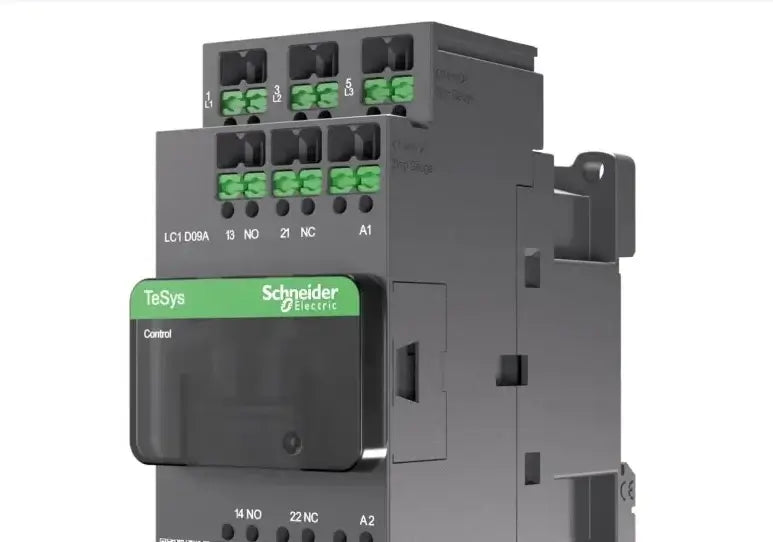

Panel builders and original equipment manufacturers (OEMs) face severe skilled labor shortages and rising production pressures. To combat these challenges, Schneider Electric has collaborated with industrial connectivity specialist Weidmüller. Together, they have launched the snap-in integrated TeSys Deca contactor for the North American market. This pioneering motor control solution slashes traditional wiring installation time by up to 75%. Furthermore, the partnership enhances connection safety while establishing a foundation for fully automated control cabinet assembly.

How Award-Winning Snap-In Technology Transforms Control Systems Installation

Weidmüller originally secured the Best of Industry Award in the Automation category for its innovative SNAP IN engineering. The design operates on a clever, mechanical "mouse-trap" principle to simplify wiring. Technicians simply insert a stripped conductor straight into the open connection point. Consequently, the internal mechanism snaps shut instantly to lock the wire into place. An audible "click" provides immediate tactile and acoustic feedback, confirming a secure, vibration-proof connection without utilizing any tools.

Building Digital Twins for Robotic Manipulation in Industrial Automation

Weidmüller actively advances its "Ready-to-Robot" philosophy by standardizing this toolless connection strategy across its hardware ecosystem. The OMNIMATE 4.0 platform introduces this technology directly onto printed circuit boards (PCBs) at the device level. Moreover, the PROeco power supplies and RockStar heavy-duty connectors utilize the same click-and-go system. Engineers can design complete control systems within software environments like EPLAN. This process generates highly accurate digital twin data, providing the exact coordinates required for robotic arms to wire components autonomously.

Integrating Advanced Motor Control with Patented EverLink Terminals

Schneider Electric chose its flagship TeSys Deca contactor line to debut this integrated snap-in feature. These compact motor controllers offer diverse circuit options, including AC, DC, and low-consumption DC models. For higher current applications ranging from 40 to 65 Amps, the contactors utilize patented EverLink terminal technology. This unique mechanism maintains continuous contact pressure over time, compensating for conductor creep. As a result, the system prevents loose connections, eliminates periodic manual retorquing maintenance, and minimizes thermal failure risks.

Industry Insight: Overcoming Tactical Variability via Standardized Connections

From a control systems design perspective, this partnership addresses the biggest bottleneck in modern panel building: human variability. Traditional screw and tension-clamp terminals rely heavily on the installer's technique and torque accuracy. Incorrect torque leads to hotspots, resistance fluctuations, and eventual factory automation downtime. By replacing manual tools with an auditory confirmation, this design creates a standardized execution model. This transition bridges the gap between old-school manual assembly and modern, high-speed robotic integration.

Application Scenario: High-Volume Logistics Conveyor Control Panel Assembly

A major material handling systems integrator needs to construct fifty identical motor control panels for a new distribution hub.

• The Challenge: Tight project deadlines and a shortage of experienced wiremen threaten to delay commissioning.
• The Traditional Approach: Technicians spend hours manually stripping wires, crimping ferrules, routing cables, and torquing every screw terminal on dozens of contactors.
• The Connected Solution: The assembly shop deploys automated wire-processing machinery alongside the new TeSys Deca SNAP IN contactors.
• The Result: Technicians insert stripped wires directly into the contactors, reducing wiring time by three-quarters. The shop meets its deadline, eliminates loose connection errors, and achieves perfect quality consistency across all fifty control systems.
