AAI143-H00 YOKOGAWA Analog Input Module

AAI143-H00 YOKOGAWA CENTUM VP 16-Channel 4-20 mA Analog Input Module

AAI143-H00 YOKOGAWA CENTUM VP 16-Channel 4-20 mA Analog Input Module

Disponibilidad: 99 Quedan en stock

YOKOGAWA AAI143-H00 Analog Input Module Configured for high-density 4-20 mA current loop acquisition in CENTUM VP FIO subsystems, the YOKOGAWA...

Código: AAI143-H00

Manufacturer: Yokogawa
Product No.: AAI143-H00
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

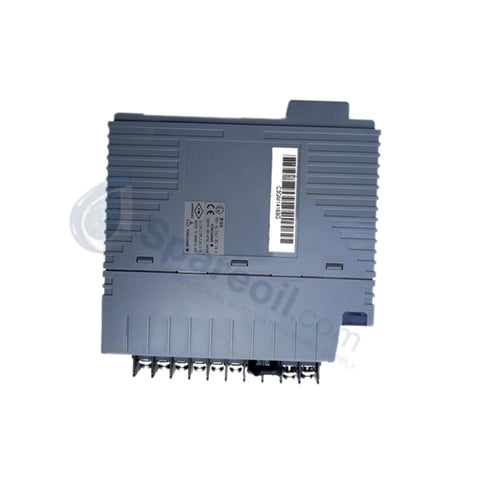

YOKOGAWA AAI143-H00 Analog Input Module

Configured for high-density 4-20 mA current loop acquisition in CENTUM VP FIO subsystems, the YOKOGAWA AAI143-H00 (AAI143 Analog Input Module) provides direct physical and electrical execution for field transmitter signal monitoring.

Suffix Breakdown & Model Matrix

Model Number	Configuration
AAI143	Base 16-channel Analog Input Module
-H00	Standard Hardware Revision (H-suffix)

Hardware Specifications

Parameter	Specification
Model	AAI143-H00
Brand	YOKOGAWA
Origin	Japan
Weight	0.65kg
Dimensions	482.6 mm x 132.5 mm x 3U
Operating Temp	0 deg C to 50 deg C
Power Consumption	0.6 A
Input Channels	16
Resolution	16-bit

DCS Process Control Integration

The AAI143-H00 facilitates precise process variable monitoring by utilizing the 4-20 mA HART loop protocol to acquire data from intelligent field instrumentation. To maintain signal fidelity in high-noise industrial environments, the module features channel-to-channel isolation, which suppresses common-mode interference and prevents ground loops that would otherwise introduce measurement errors. The unit digitizes 4-20 mA signals via a high-speed 16-bit A/D converter, ensuring data stability for control loops. In redundant configurations, two AAI143 modules operate in parallel to provide fault-tolerant signal acquisition, allowing the Field Control Station (FCS) to detect and manage sensor faults without disrupting plant operations.

Frequently Asked Questions

Q: Does the AAI143-H00 provide power to the 2-wire field transmitters?

A: The module is designed for signal acquisition. While it interfaces with 4-20 mA loops, loop power must be provided by an external 24 VDC power supply or a dedicated field power distribution rail, unless specified otherwise by the FIO node backplane configuration.

Q: Can the module be configured for voltage inputs?

A: No. The AAI143-H00 is strictly dedicated to DC current (4-20 mA) inputs. Interfacing voltage signals would require an analog voltage input module (such as the AAV141 series).

Q: How is the channel isolation maintained during a fault condition?

A: The module architecture employs galvanic isolation barriers on each channel. If an overcurrent or short-circuit event occurs on one input loop, the isolation barrier prevents the fault from propagating to the system bus or affecting adjacent channels.

Field Installation Guidelines

Power down the I/O node and verify the bus is inactive before seating the module in the 3U rack backplane.
Terminate field signal wiring using shielded twisted-pair cables; ensure shields are connected to the designated ground bus to optimize noise rejection.
Verify terminal tightness to avoid resistance-induced measurement drift, which can compromise the ±0.1% FS accuracy.
Perform an initial signal verification by injecting a 4-20 mA reference signal into the loop to confirm accuracy at the engineering station.
Confirm that the module is properly locked into the rack to ensure reliable contact with the backplane bus connectors.
