ADV169-P00 Yokogawa ST6 Datasheet & Technical Manual

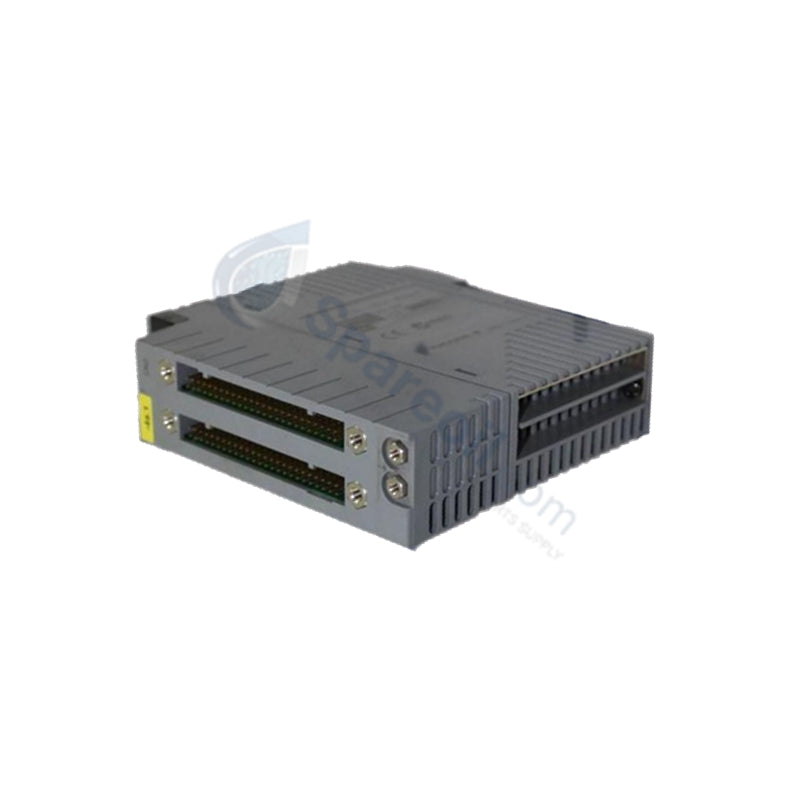

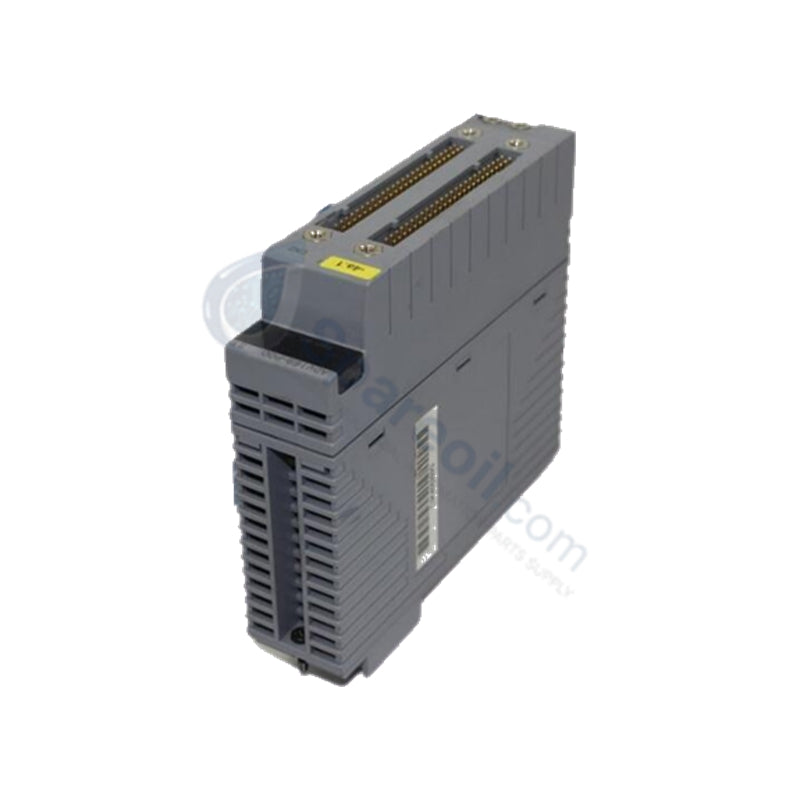

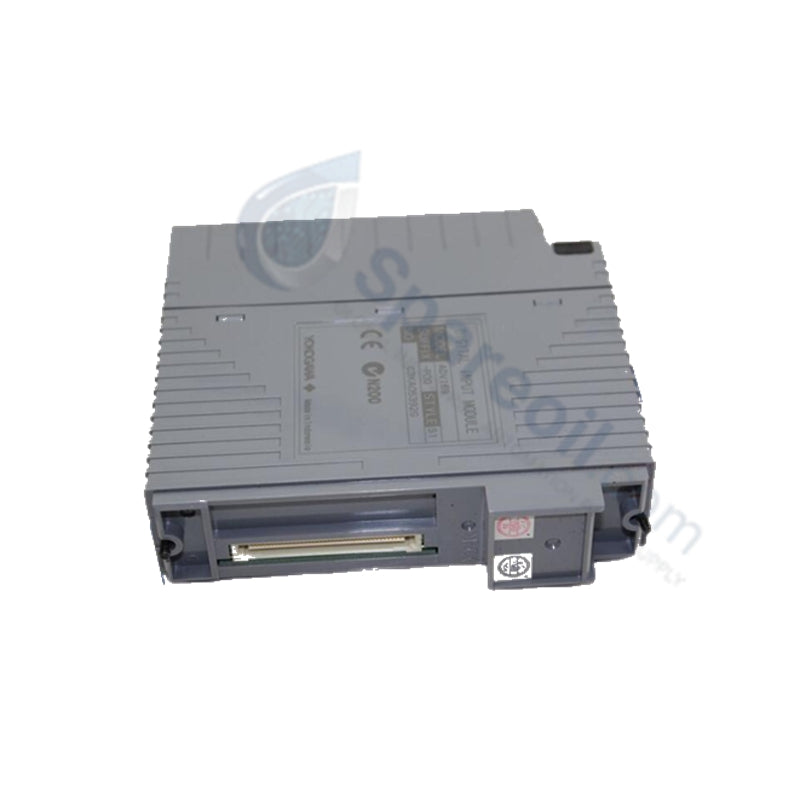

ADV169-P00 ST6 Yokogawa Digital Input Module

ADV169-P00 ST6 Yokogawa Digital Input Module

Disponibilidad: 10 Quedan en stock

Yokogawa ADV169-P00 Digital Input Module Configured for discrete signal acquisition in CENTUM VP and ST6 automation systems, the Yokogawa ADV169-P00...

Código: ADV169-P00

Manufacturer: Yokogawa
Product No.: ADV169-P00
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Yokogawa ADV169-P00 Digital Input Module

Configured for discrete signal acquisition in CENTUM VP and ST6 automation systems, the Yokogawa ADV169-P00 (ADV169 Digital Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The alphanumeric suffix codes define the exact hardware standard and functional profile of this input module:

ADV169: Base configuration designating a 64-channel isolated digital input module with common minus architecture grouped every 16 channels.
-P: Standard type hardware interface for generic discrete level parsing.
0: Fixed placeholder component designated as always zero.
0: Basic option variant specifying standard environment configuration parameters.

Hardware Specifications

Parameter	Specification
Model	ADV169-P00
Brand	Yokogawa
Origin	USA
Weight	0.30 kg
Dimensions	5.1 cm x 10.7 cm x 12.7 cm
Operating Temp	-20 deg C to 70 deg C
Power Consumption	Max 800 mA at 5 VDC
Input Channels	64 isolated digital inputs
Rated Input Voltage	5 VDC
Input Current	>= 20 mA per channel
Response Time	<= 8 ms
Isolation Voltage	2 kV AC between field inputs and system
Cable Interface	KS9 dedicated execution assembly

Distributed Process Integration

The module manages isolated contact scanning via internal optocouplers, establishing channel-to-channel isolation zones across 64 discrete inputs grouped with a common minus bus every 16 channels. This architecture directly processes logic transitions from field sensors while blocking inductive voltage surges from propagating into the system backplane. Field loop signals undergo digital conditioning to ensure reliable state changes within a deterministic time window of less than or equal to 8 ms. Status verification occurs via integrated front-panel LEDs displaying the active configuration of individual physical points.

Frequently Asked Questions

Q: What are the primary constraints when executing a hot-swap operation on the ADV169-P00 module?

A: The online swap requires the system backplane to remain powered while you extract the module. You must disconnect the KS9 multi-pin terminal connector first to ensure zero active loop current passes through the alignment pins during mechanical disengagement.

Q: Can this module directly process discrete 24 VDC industrial signals from field switches?

A: No. The input circuitry is specifically tuned for a rated input voltage of 5 VDC. Exposing the channels to 24 VDC logic levels will overload the internal input resistors and cause permanent thermal breakdown of the optocouplers.

Field Installation Guidelines

Chassis Ground Alignment: Verify the FIO rack ground bar bonds directly to the primary instrument earth before sliding the unit into place to guarantee functional isolation performance up to the 2 kV AC threshold.
Channel Grouping Constraints: Structure the external terminal terminal blocks to reflect the 16-channel common minus design layout, preventing unintended cross-talk loops between separate field power references.
Signal Termination Security: Seat the KS9 dedicated interface cable firmly into the front interface socket, tightening the integrated retaining screws to preserve fixed contact resistance metrics under vibration.
Thermal Spacing Execution: Maintain standard convection clearance vectors around the I/O nest to prevent stagnant hot air zones when operating near the upper ambient limit of 70 deg C.
