16-bit Thermocouple Input Board | ABB 3BSE001449R1 TC520

16-bit Thermocouple Input Board | ABB 3BSE001449R1 TC520

Availability: 10 left in stock

Product Overview The ABB TC520 (3BSE001449R1) functions as a high-precision thermocouple input module and system status collector for ABB’s Advant...

SKU: TC520

Manufacturer: ABB
Product No.: TC520
Product Type: Thermocouple Input Modules
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

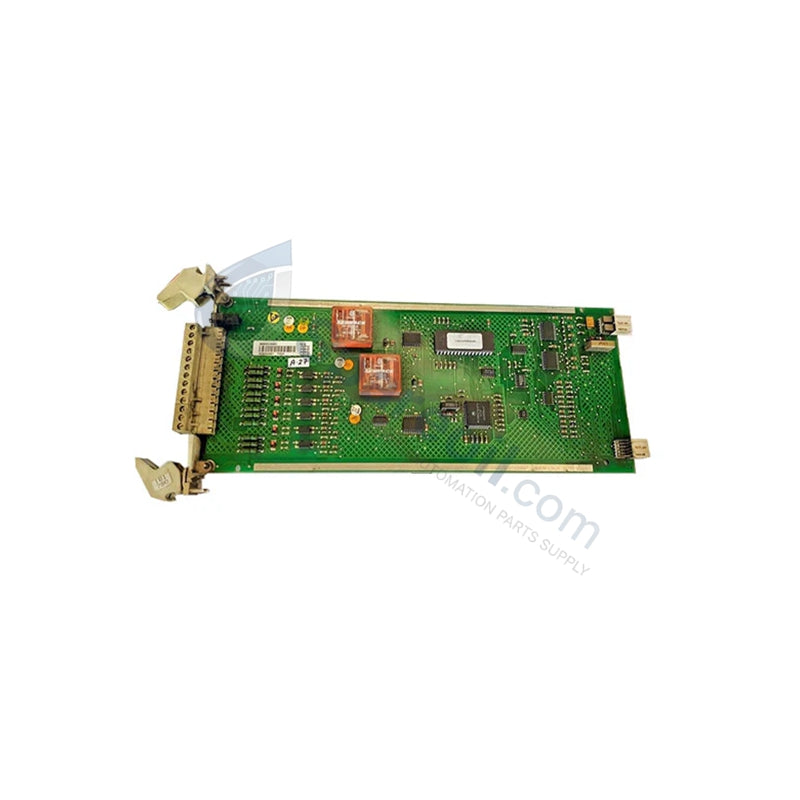

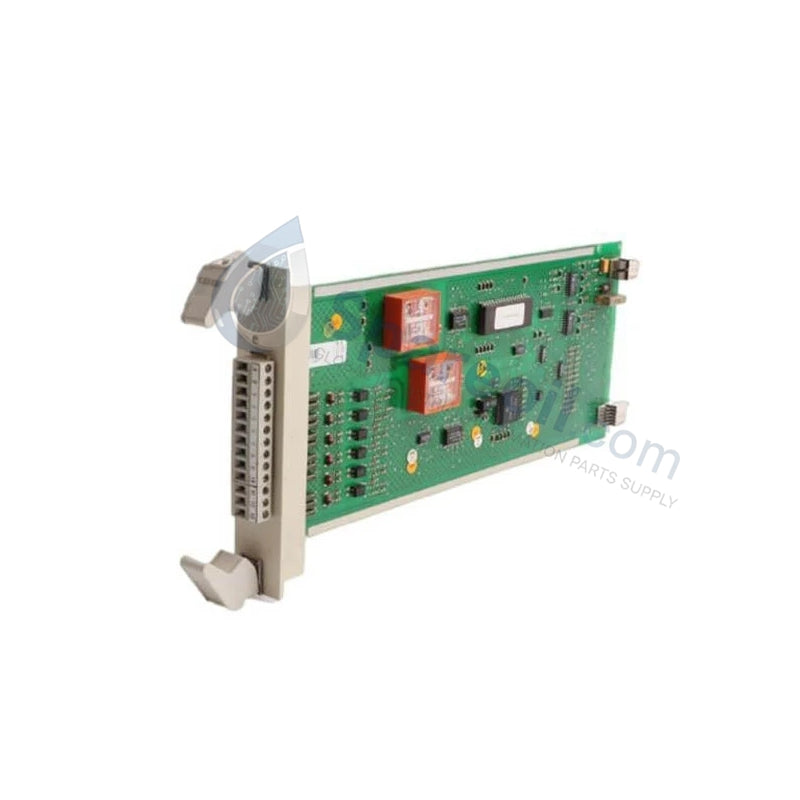

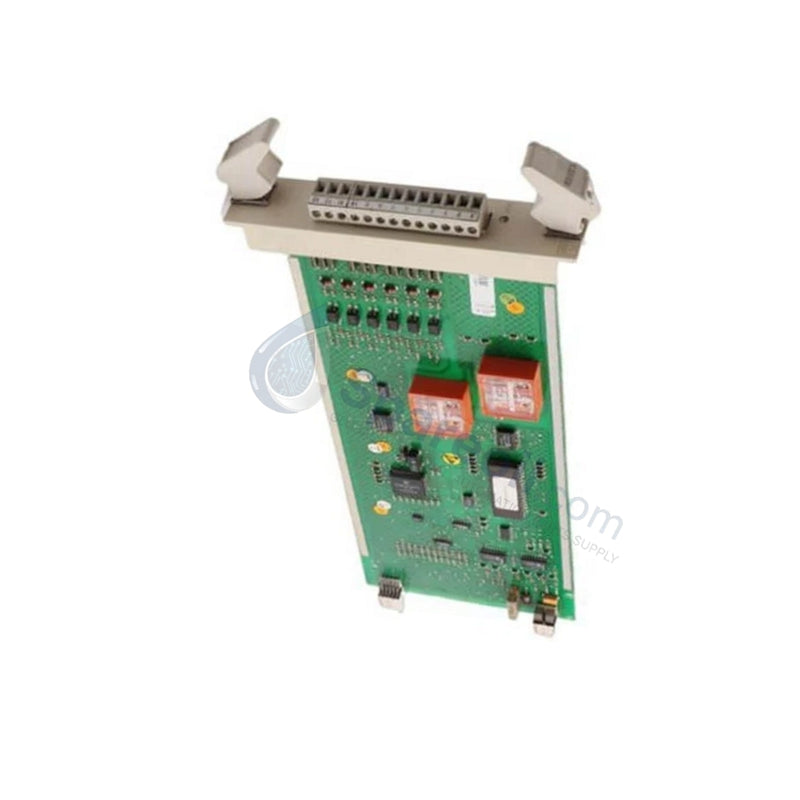

The ABB TC520 (3BSE001449R1) functions as a high-precision thermocouple input module and system status collector for ABB’s Advant OCS and Procontrol P13/P14 Distributed Control Systems (DCS). It captures low-level millivolt signals from a wide array of thermocouple types—including J, K, T, R, S, B, and N—and converts them into 16-bit digital data. This module serves as a critical interface for monitoring extreme temperatures in turbine exhausts, boiler feeds, and chemical reactors. We offer this unit in 100% Brand New and Original condition, ensuring peak performance for mission-critical automation.

Technical Specifications

The TC520 combines laboratory-grade measurement accuracy with industrial-grade ruggedness.

Attribute	Specification Details
Model Number	TC520
Part Number	3BSE001449R1
Input Compatibility	Thermocouples (Types J, K, T, R, S, B, N, etc.)
Measurement Range	–200 °C to +1800 °C (Sensor dependent)
A/D Conversion	16-bit High Resolution
Cold Junction	Integrated Automatic Compensation
Isolation	Full Galvanic Isolation
System Compatibility	Advant OCS / Procontrol P13 & P14
Mounting	Standard Euro-card Subrack
Operating Temp	–25 °C to +55 °C
Net Weight	0.35–0.5 kg (0.55 lbs)

Engineering Advantages

The TC520 eliminates common thermal measurement errors through several integrated engineering features:

Integrated Cold Junction Compensation: Thermocouple accuracy often suffers from fluctuating ambient temperatures at the connection point. The TC520 utilizes an onboard reference sensor to compensate for these variations automatically, delivering laboratory-level precision in harsh plant environments.
Galvanic Signal Integrity: Long thermocouple wire runs frequently act as antennas for electromagnetic interference (EMI). The TC520 employs galvanic isolation to decouple the field-side inputs from the system bus, effectively shielding the DCS from ground loops and high-voltage transients.
Universal Sensor Support: Engineers can configure a single TC520 module to handle multiple thermocouple types. This versatility simplifies spare parts inventory, as one board replaces several specialized cards across various process areas.
Real-Time Diagnostics: The module continuously monitors the health of the connected sensors. If it detects a broken thermocouple wire or a short circuit, the TC520 flags the specific channel and alerts the operator via the DCS HMI, preventing erroneous data from triggering an unplanned process trip.

FAQs

Is the ABB TC520 3BSE001449R1 still available as a new product?

While the original manufacturer has officially discontinued the series, we maintain stock of 100% Brand New and Original units in factory packing. These are not refurbished or used; they are surplus new stock designed to support existing Advant OCS and Procontrol lifecycles.

Which thermocouple types does the TC520 support?

The TC520 provides broad compatibility across most industrial standards, including Types J, K, T, E, R, S, B, and N. You configure the specific type through the system's engineering software to ensure correct scaling and linearization.

Does the TC520 require external calibration?

The module undergoes rigorous factory calibration. Under standard operating conditions, the onboard self-test and digital 16-bit conversion maintain accuracy over long periods. However, for highly regulated industries (like nuclear or pharmaceutical), we recommend periodic loop checks as part of your standard maintenance protocol.

How does the TC520 integrate with Procontrol P13/P14 racks?

The module utilizes the standard Euro-card form factor. It slides directly into the subrack and interfaces with the system bus via the rear connector, requiring no additional hardware modifications for retrofit projects.
