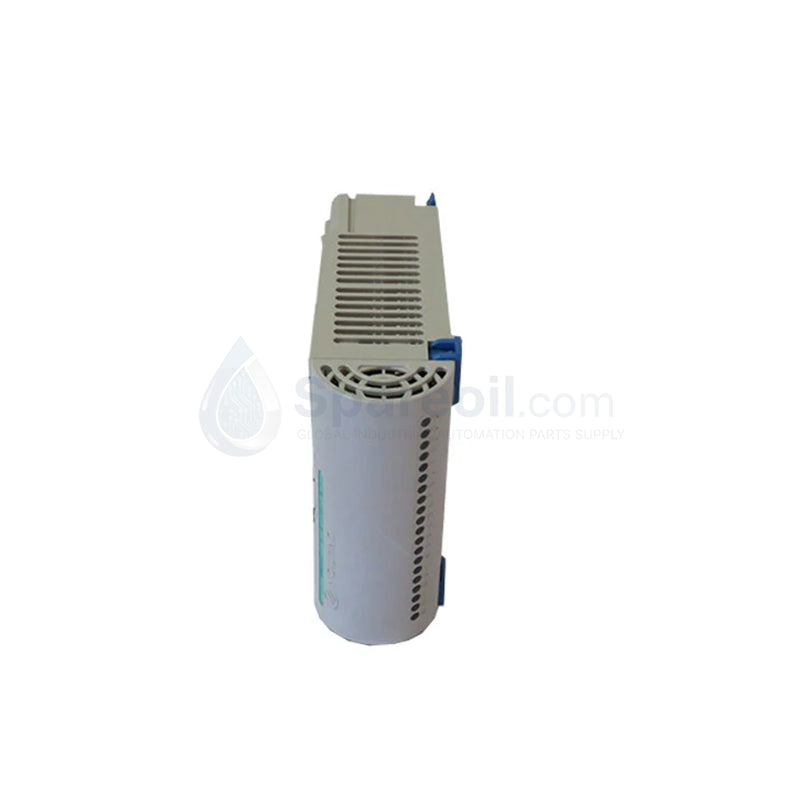

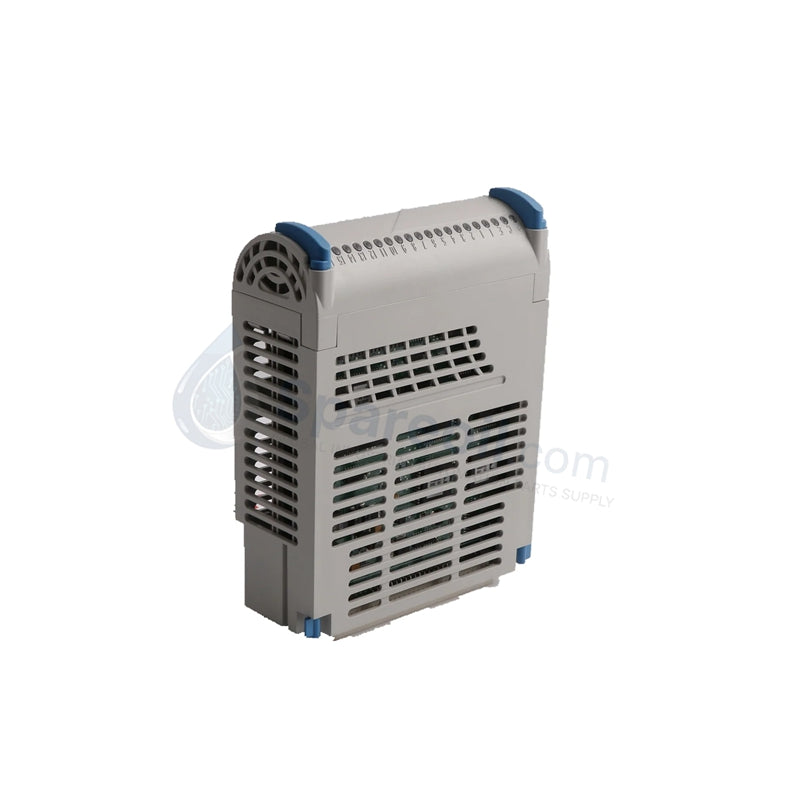

1C31107G01 Emerson Digital Input Module

1C31107G01 Emerson Digital Input Module | New & Original Stock

Availability: 99 left in stock

Emerson 1C31107G01 Ovation Series The Emerson 1C31107G01, also cataloged as the 1C31107G01 Digital Input Module, operates as a dedicated hardware...

SKU: 1C31107G01

Manufacturer: Emerson
Product No.: 1C31107G01
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson 1C31107G01 Ovation Series

The Emerson 1C31107G01, also cataloged as the 1C31107G01 Digital Input Module, operates as a dedicated hardware component for monitoring discrete on/off signals within Ovation Distributed Control System platforms.

Hardware Specifications

Parameter	Specification
Model	1C31107G01
Brand	Emerson
Origin	United States
Weight	0.5 kg
Dimensions	100 mm x 140 mm x 35 mm
Operating Temp	-40 to +70 deg C
Power Consumption	~2 mA per channel
Input Voltage Range	24-48 VDC
Channels	32 digital input channels
Input Type	NPN or PNP logic
Signal Processing Speed	Up to 2,000 signals per second
Isolation	Electrical channel-to-bus isolation
Diagnostics	Built-in fault detection and reporting

Process Control and DCS Instrumentation

The module incorporates electrical channel-to-bus isolation to prevent ground loop currents and transient noise from affecting internal backplane logic execution. Designed to interface with discrete field apparatus, the hardware handles signal processing speeds up to 2,000 signals per second across 32 independent channels. Circuit topologies accommodate both NPN and PNP logic configurations, executing real-time level sensing with a nominal input current draw of 2 mA per channel to optimize thermal dissipation across the instrumentation enclosure.

Frequently Asked Questions

Q: How does the module handle signal logic variation between different field sensors?

A: The hardware architecture is configurable via software to accept both NPN (sinking) and PNP (sourcing) discrete input logic schemes across the 24-48 VDC voltage range.

Q: What is the maximum processing latency or signal throughput capability of this unit?

A: The input circuitry processes discrete state transitions at a maximum rate of 2,000 signals per second, rendering it suitable for high-speed sequence-of-events recording and safety interlock monitoring.

Q: Does the module include onboard diagnostics for fault localization?

A: Yes, the module features built-in fault detection circuitry that continuously monitors component integrity and reports channel status anomalies directly to the controller.

Field Installation Guidelines

Terminal Block Grounding: Ensure all field wiring shields are bonded to a single, low-impedance earth ground point at the cabinet entry terminal block to maintain structural isolation integrity.
Logic Voltage Verification: Prior to energizing the loop, verify that the external interrogation voltage matches the configured 24-48 VDC limits to avoid input threshold detection failures.
Conduit and Routing Layout: Separate low-voltage discrete signal lines from AC power cables and high-inductive loads within the wire ducting to minimize electromagnetic cross-talk.
