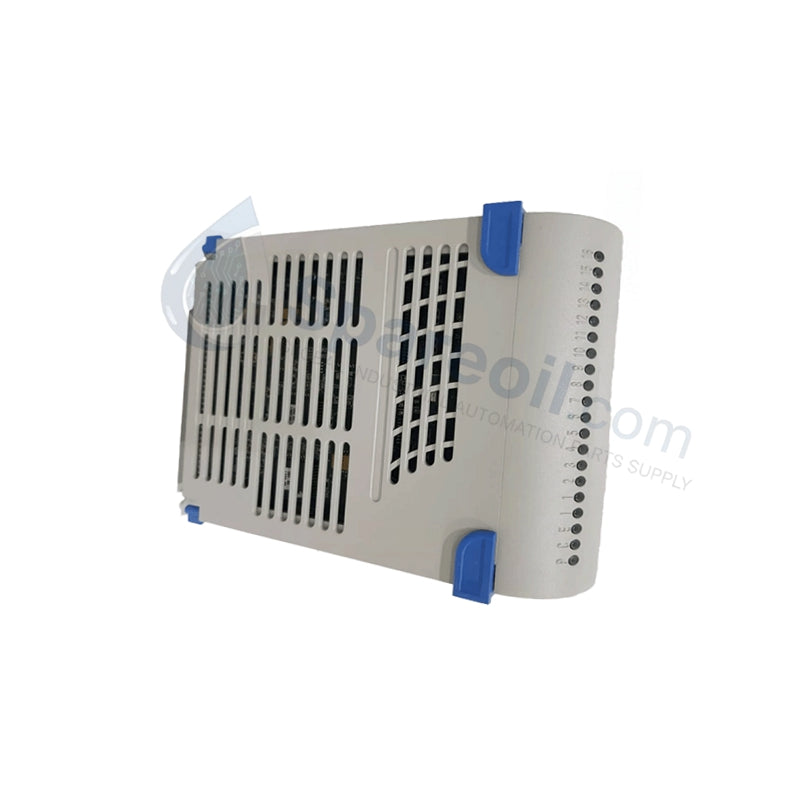

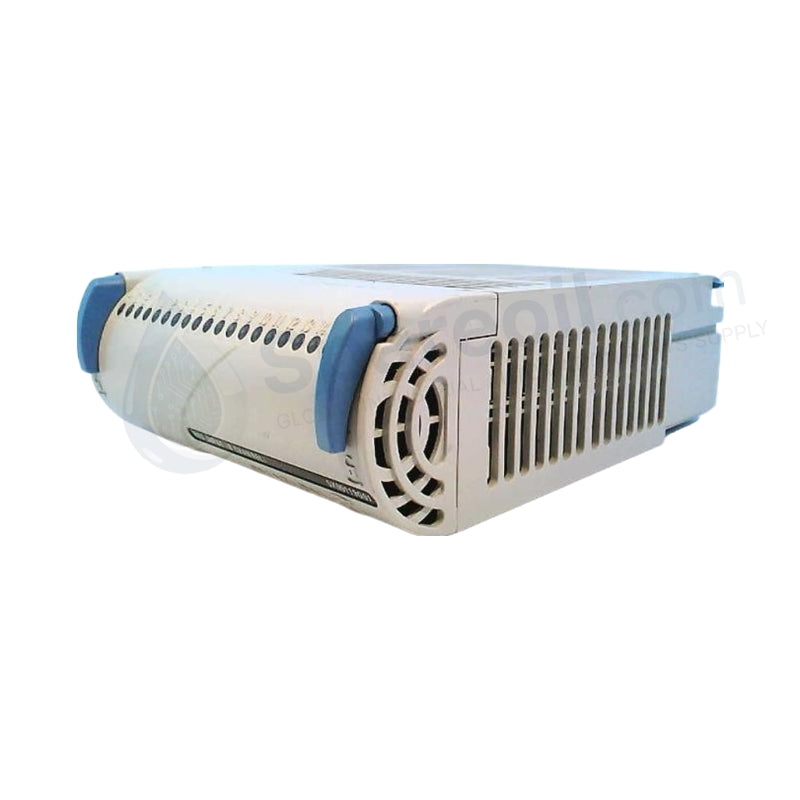

1C31122G02 Emerson Digital Output Module

1C31122G02 Emerson Digital Output Module | New & Original Stock

Availability: 99 left in stock

Emerson 1C31122G02 Ovation Series The Emerson 1C31122G02, also cataloged as the 1C31122G02 Digital Output Module, operates as a dedicated hardware...

SKU: 1C31122G02

Manufacturer: Emerson
Product No.: 1C31122G02
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson 1C31122G02 Ovation Series

The Emerson 1C31122G02, also cataloged as the 1C31122G02 Digital Output Module, operates as a dedicated hardware component for managing digital signals within Ovation Distributed Control System platforms.

Hardware Specifications

Parameter	Specification
Model	1C31122G02
Brand	Emerson
Origin	United States
Weight	0.35 kg
Dimensions	200 mm x 100 mm x 50 mm
Operating Temp	-20 to +70 deg C
Power Consumption	24 VDC nominal (rack powered)
Output Channels	16 digital output channels
Voltage Range	5-60 VDC
Response Time	<1 ms (0-100% full scale)
Isolation	500 VDC channel-to-channel, 2500 VDC channel-to-backplane
Diagnostics	Built-in fault detection and loop tracking

Process Control and DCS Instrumentation

The module incorporates high-density switching circuitry engineered to handle load levels spanning from 5 to 60 VDC across 16 independent channels. Electrical isolation barriers rated at 500 VDC channel-to-channel and 2500 VDC channel-to-backplane isolate the internal controller bus logic from external field disruptions and transient spikes. Each channel executes state changes with a rapid response speed of less than 1 ms, enabling real-time control synchronization with field actuators and motor starters without introducing significant transmission lag.

Frequently Asked Questions

Q: How does this module mitigate ground loops and electrical signal distortion?

A: The hardware employs a dual-stage isolation strategy comprising 500 VDC channel-to-channel physical separation and 2500 VDC channel-to-backplane galvanic isolation. This construction halts circulating currents and mitigates electrical cross-talk induced by noisy industrial field loops.

Q: What are the nominal electrical operating boundaries for the digital outputs?

A: The module operates across a continuous external loop distribution scale of 5 to 60 VDC. Power to drive internal module components is drawn directly from the 24 VDC rack backplane assembly.

Q: Is this module capable of driving safety-critical high-speed interlocks?

A: Yes. With a deterministic physical signal transition response time optimized to stay under 1 ms, the output channels match the performance prerequisites for fast-acting discrete valve manipulation and safety interlock sequencing.

Field Installation Guidelines

Thermal Airflow Spacing: Maintain clean vertical positioning when slotting the unit into the Ovation chassis. Verify that ambient temperatures within the enclosure remain stabilized within the -20 to +70 deg C operating limits.
Cable Shield Isolation: Terminate the signal wiring drain shielding exclusively at the master copper panel ground plate. Do not bond the shield at the field actuator housing to prevent low-frequency loop noise creation.
Signal Routing Track Separation: Keep all 5-60 VDC discrete signaling conductors in separate wire runs isolated from high-current AC power feeder cables to eliminate electromagnetic cross-talk risks.
