1X00416H01 Emerson Ovation WH5-2FF Datasheet & Technical Manual

Availability: 99 left in stock

Emerson 1X00416H01 Ovation Series Configured for power conditioning and voltage regulation within Ovation DCS platforms, the Emerson 1X00416H01 (1X00416H01 Power...

SKU: 1X00416H01

Manufacturer: Emerson
Product No.: 1X00416H01
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

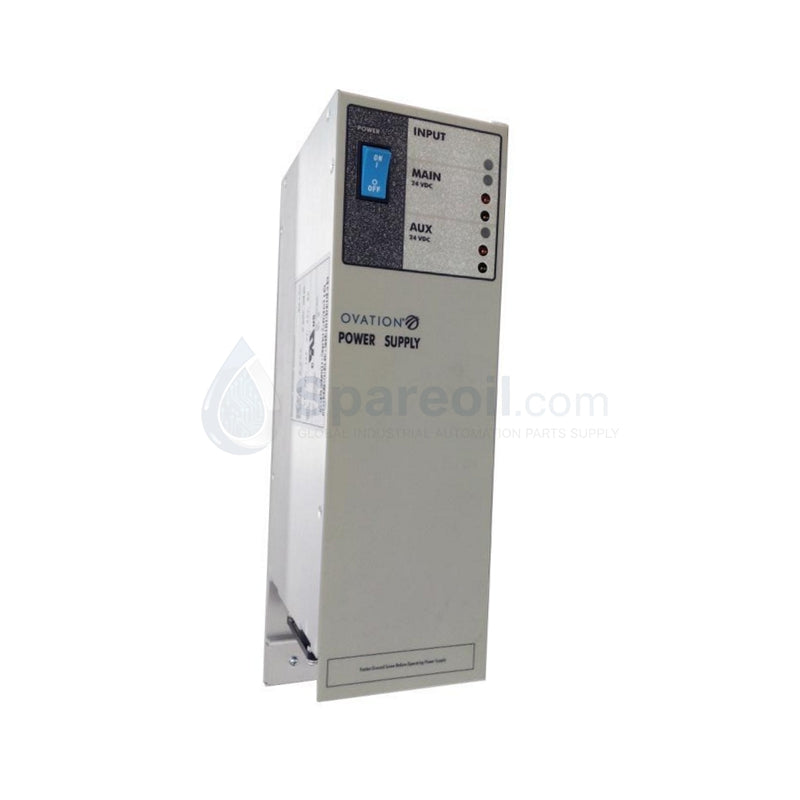

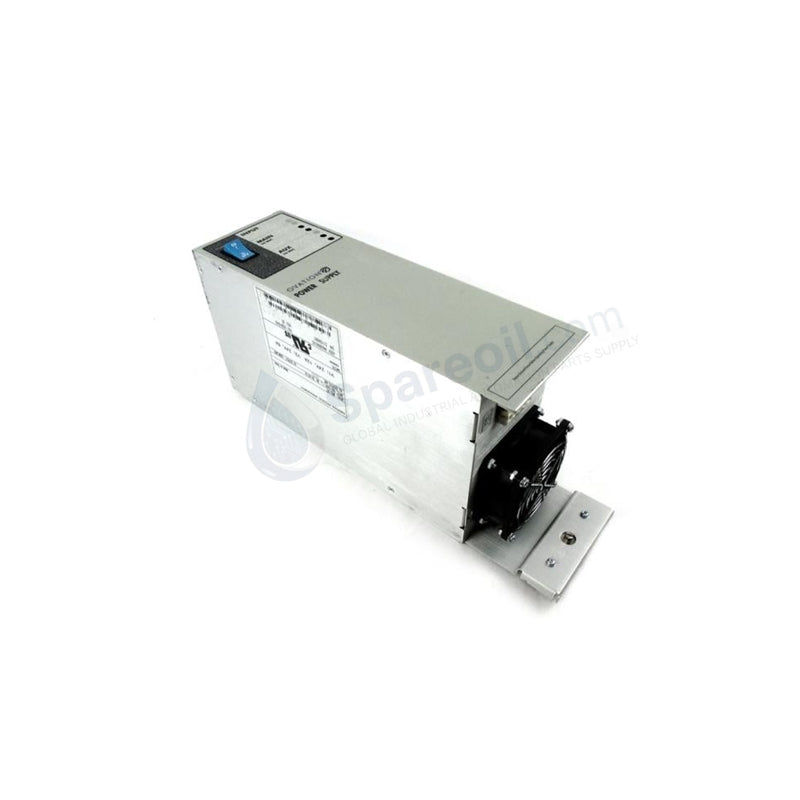

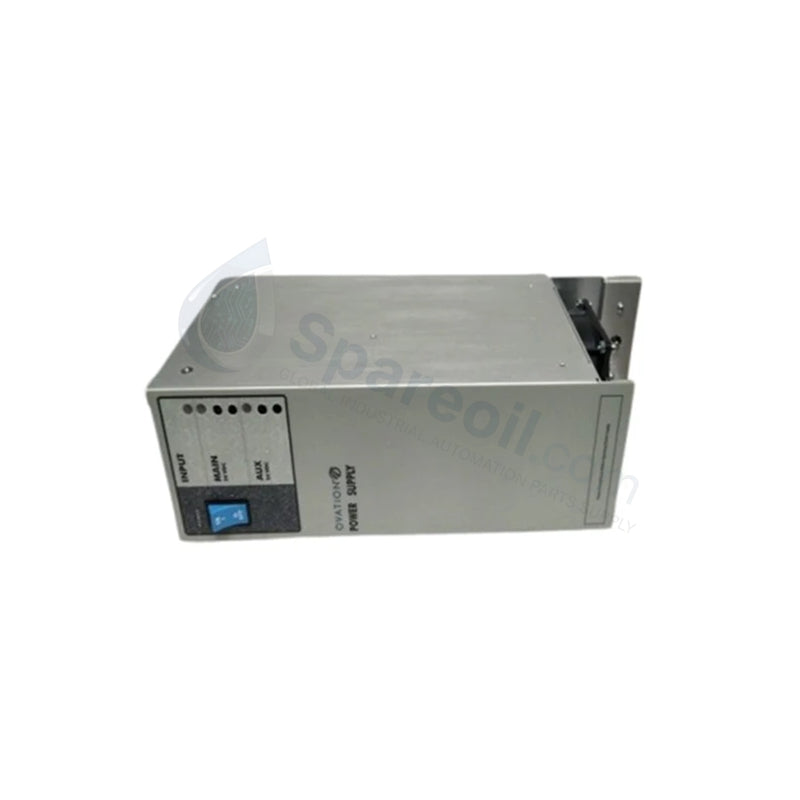

Emerson 1X00416H01 Ovation Series

Configured for power conditioning and voltage regulation within Ovation DCS platforms, the Emerson 1X00416H01 (1X00416H01 Power Supply Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	1X00416H01 (Model: WH5-2FF)
Brand	Emerson / Westinghouse
Origin	United States
Weight	0.32 kg (Core Module) / 7.00 lbs shipping weight
Dimensions	12.1 cm x 5.2 cm x 16.5 cm
Operating Temp	-20 to +70 deg C
Power Consumption	100-240 VAC Input, 50/60 Hz
Maximum Output Power	500 W max output
Output Voltages	24 VDC Main / Aux rails
Configuration	Dual / Redundant capable power stage
Platform Compatibility	Ovation DCS / WH5-2FF PLC networks

Process Control and DCS Instrumentation

The module acts as a ruggedized power converter stage, stepping down a wide-range alternating current input (100-240 VAC at 50/60 Hz) into stable, regulated 24 VDC Main and Auxiliary direct current distribution rails. The electrical design provides channel-to-channel isolation parameters to isolate sensitive processing units on the backplane from industrial line surges and grid harmonics. The dual configuration framework allows balanced cross-chassis electrical loading while ensuring steady-state performance for internal 4-20 mA HART loop protocol reference grids across the controller chassis.

Frequently Asked Questions

Q: What is the maximum continuous power output capability of the 1X00416H01 stage?

A: The WH5-2FF electrical topology is engineered to deliver a maximum output capacity of 500 W across the integrated 24 VDC main and auxiliary line rails under full electrical load conditions.

Q: How is hardware power redundancy managed with this specific model layout?

A: The module features a dual-circuit power path infrastructure. This allows paired modules to share backplane power distribution metrics simultaneously, executing low-latency diode-or auctioneering to keep the chassis energized if one source line fails.

Q: Does the power supply require physical manual switches to accept different AC input line voltages?

A: No, the input stage employs a universal auto-ranging circuit design that senses and adapts to input voltages from 100 to 240 VAC at 50/60 Hz without requiring physical jumpers or manual switch selection.

Field Installation Guidelines

Chassis Ingress and Fastener Locking: Guide the power module into the dedicated power supply slot layout of the Ovation or WH5-2FF chassis rail guides. Slide inward until the heavy-gauge pin connectors clear and interface completely with the backplane distribution lines, then tighten the faceplate hardware.
Chassis Frame Grounding Continuity: Verify that the chassis frame grounding bolt is bonded directly to the copper master instrument ground rail within the enclosure panel layout to ensure transient line currents dissipate properly.
Cabinet Airflow Constraints: Maintain unrestricted clearance boundaries directly above and below the power module vents. The 500 W maximum layout relies on internal natural or forced air convection to prevent heat concentrations inside the closed electrical box.
