1X01046H01L Emerson Ovation Series Datasheet & Technical Manual

Availability: 99 left in stock

Emerson 1X01046H01L Ovation Series The Emerson 1X01046H01L serves as the primary 1X01046H01L Industrial AC/DC Power Supply Module utilized to execute...

SKU: 1X01046H01L

Manufacturer: Emerson
Product No.: 1X01046H01L
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

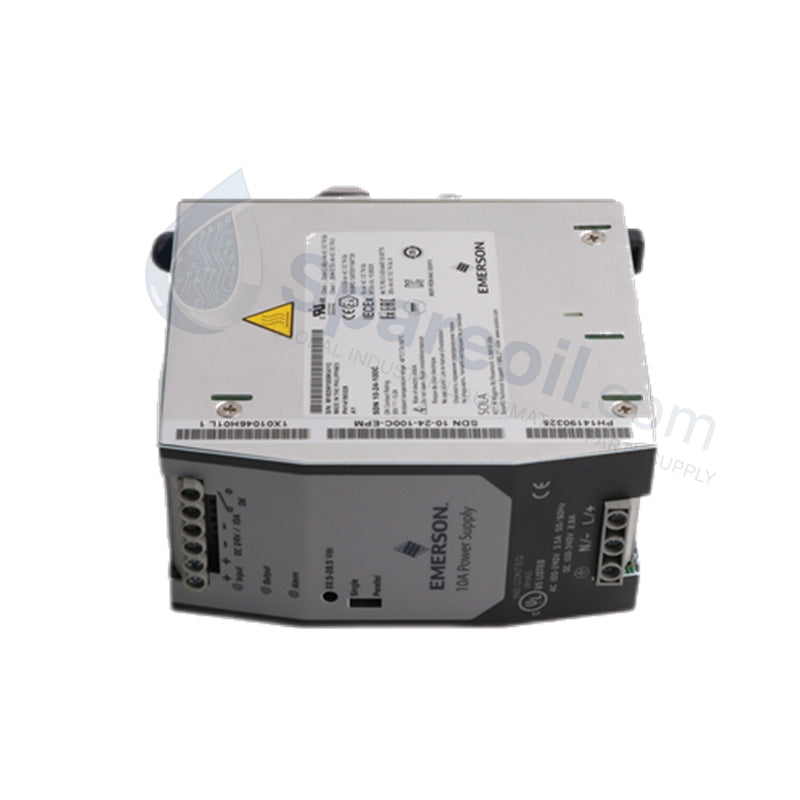

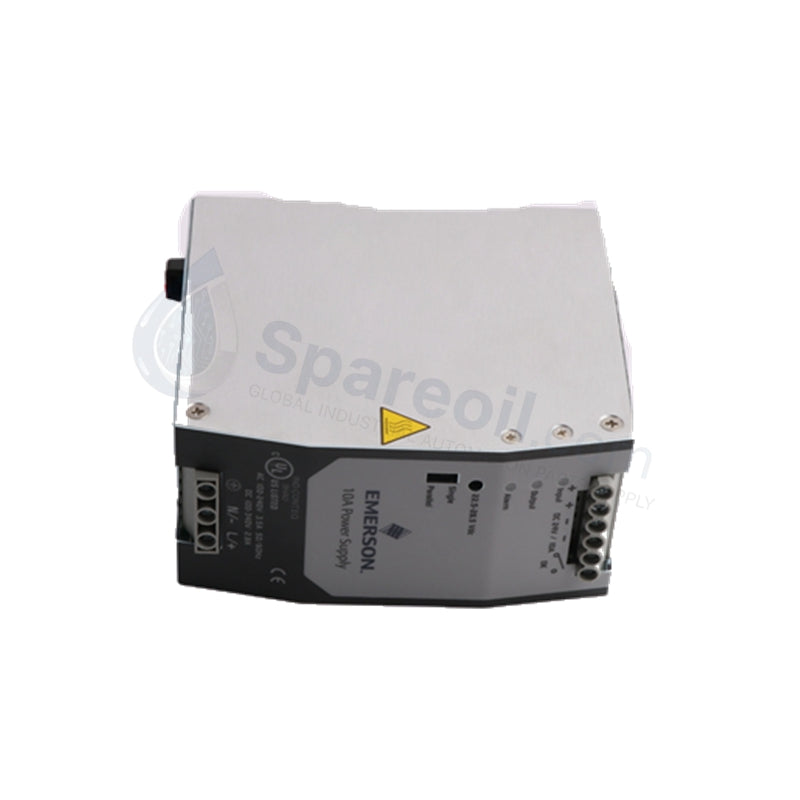

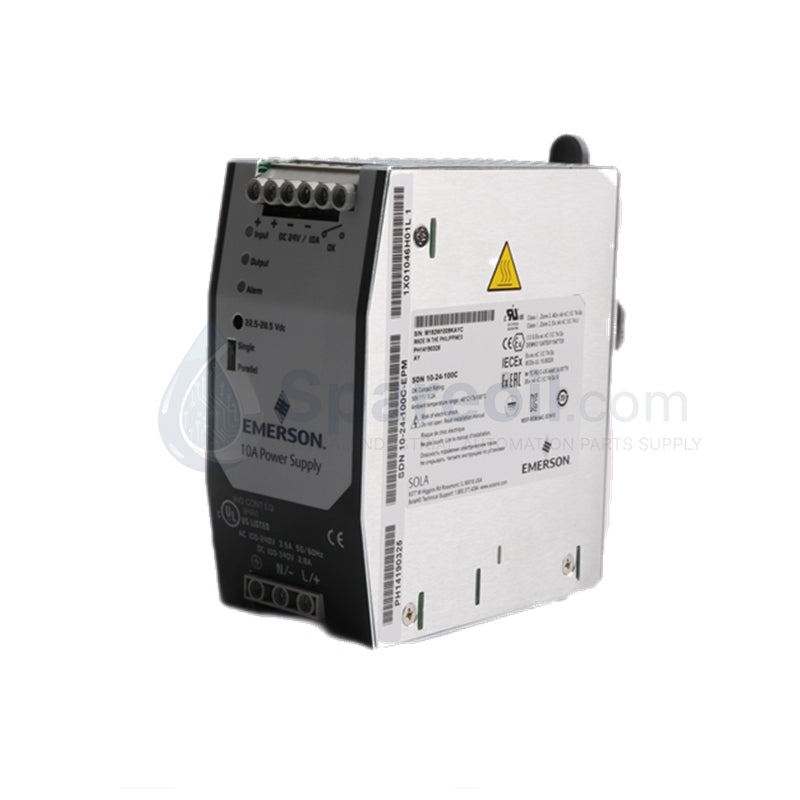

Emerson 1X01046H01L Ovation Series

The Emerson 1X01046H01L serves as the primary 1X01046H01L Industrial AC/DC Power Supply Module utilized to execute regulated DC power distribution across Ovation DCS platforms.

Hardware Specifications

Parameter	Specification
Model	1X01046H01L
Brand	Emerson
Origin	United States
Weight	0.9 kg
Dimensions	6 cm x 12.5 cm x 6.3 cm
Operating Temp	-25 to +70 deg C
Power Consumption	85-265 VAC, 47-63 Hz universal input range
Output Voltage	24 VDC +/-1% nominal
Output Current	10 A continuous (240 W)
Output Ripple	<30 mVpp
Conversion Efficiency	88-92% at full load
Mounting Configuration	Standard 35 mm DIN-rail or rack mount

Process Control and DCS Instrumentation

The power module architecture incorporates high-capacity galvanic channel-to-channel isolation parameters to isolate the 85-265 VAC physical layer inputs from the regulated 24 VDC output rails. Internal regulation circuits maintain output voltage variations within +/-1% tolerance limits while suppressing residual switching noise to under 30 mVpp ripple. The power conversion topology manages continuous load currents up to 10 A, providing integrated electrical protection circuits that include overvoltage tracking, automatic overcurrent limitation, and thermal shutdown matrix execution.

Frequently Asked Questions

Q: How does this module manage parallel N+1 redundancy configurations?

A: The hardware contains active output decoupling diodes that enable N+1 parallel wiring configurations across shared busbars. This topology allows active load sharing and permits full hot-swap module replacement during live system operation without dropping the 24 VDC distribution rail voltage.

Q: What mechanisms are integrated for remote status monitoring and diagnostics?

A: The module front panel integrates LED indicators for direct tracking of active power and localized fault conditions. External telemetry is handled via an integrated dry-contact alarm relay output that changes state upon detecting internal thermal overload or output voltage drop faults.

Q: Is the 1X01046H01L direct-wire compatible with legacy Ovation cabinet footprints?

A: This module functions as a direct drop-in electrical upgrade path for older generation legacy Ovation hardware components, including the 1X00024H06 power module, utilizing standard 35 mm DIN-rail mounting architecture.

Field Installation Guidelines

Thermal Management and Clearances: Maintain a minimum 50 mm clearance gap above and below the module housing to facilitate passive convective heat dissipation. Ensure adjacent equipment does not drive ambient temperatures past the +70 deg C maximum operating boundary.
Cabinet Grounding and Shielding: Bond the module earth ground terminal directly to the master copper cabinet ground bar using low-impedance conductors to maximize surge voltage protection limits.
Conductor Separation Rules: Separate AC power input cables from low-voltage 24 VDC distribution trunks and 4-20 mA HART signal lines inside wire ways to eliminate high-frequency cross-talk interference.
