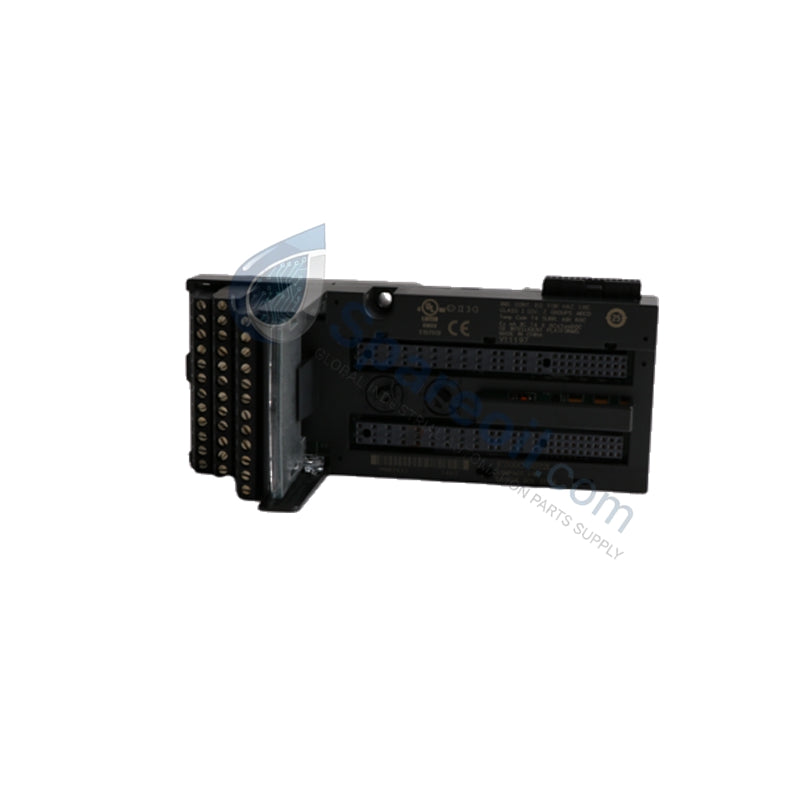

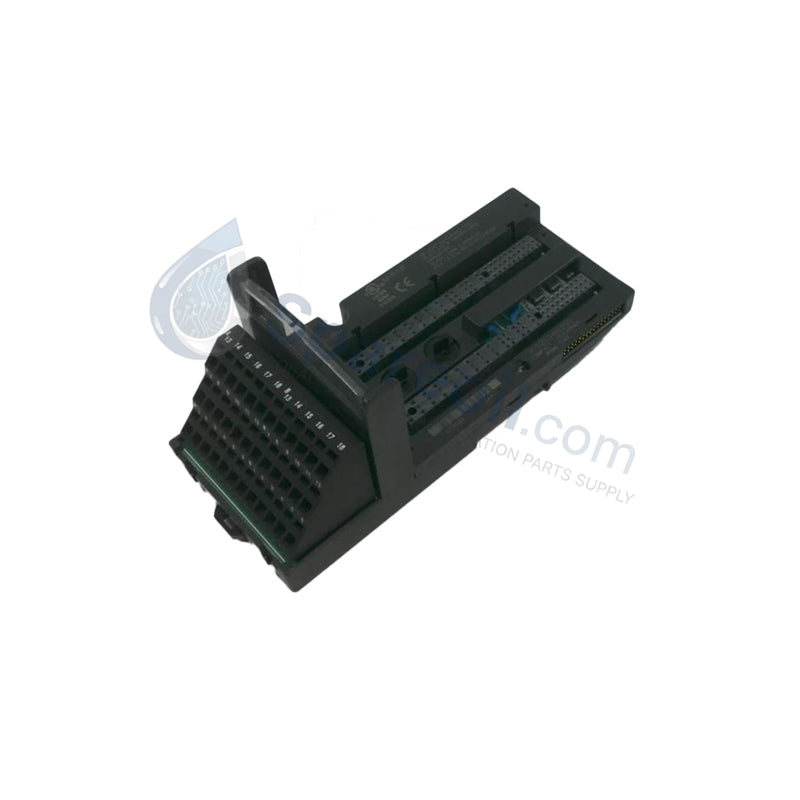

36-Terminal Spring-Style I/O Base Original

36-Terminal Spring-Style I/O Base Original | GE IC200CHS025

Availability: 10 left in stock

Product Overview The IC200CHS025 functions as a high-density, space-saving mounting base for the VersaMax modular I/O system. This compact spring-style carrier provides...

SKU: IC200CHS025

Manufacturer: GE Fanuc
Product No.: IC200CHS025
Product Type: PLC I/O Carriers
Product Origin: USA
Payment:T/T, Western Union
Weight: 310g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200CHS025 functions as a high-density, space-saving mounting base for the VersaMax modular I/O system. This compact spring-style carrier provides 36 IEC box-style terminals for field wiring while supporting vertical module orientation to minimize the physical footprint on the DIN rail. Its spring-clamp mechanism ensures gas-tight connections that resist loosening over time. We supply this unit as 100% Brand New and Original, providing the structural and electrical foundation necessary for high-reliability industrial automation panels.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Product Type	Compact Spring-Style I/O Carrier
Terminal Count	36 IEC Box-Style Spring Terminals
Mounting Orientation	Vertical
Single Wire Gauge	AWG 14 to AWG 22
Dual Wire Gauge	AWG 18
Vertical Spacing	2 inches (50.8 mm)
Horizontal Spacing	1 inch (25.4 mm)
Operating Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	0.69 lbs (0.31 kg)
Backplane Support	Integrated VersaMax I/O Bus

Engineering Advantages

Extreme Temperature Resilience: The IC200CHS025 operates reliably in environments ranging from -40°C to 60°C. This extended thermal range makes it an ideal choice for remote terminal units (RTUs) and outdoor control cabinets where seasonal temperature fluctuations often cause standard components to fail.
Vertical Space Optimization: Unlike horizontal carriers, this vertical mounting design reduces the horizontal width of the PLC rack. It allows engineers to pack more I/O modules into narrow enclosures, effectively solving the "space-constrained" panel dilemma.
Vibration-Resistant Spring Terminals: The 36 IEC box-style spring terminals eliminate the risk of screw-loosening caused by machine vibration or thermal cycling. This ensures a maintenance-free connection that maintains electrical continuity without the need for periodic re-torqueing.
Flexible Wiring Capacity: The carrier accommodates a wide range of wire sizes from AWG 14 down to AWG 22. It also supports dual-wire configurations (AWG 18), allowing for simplified daisy-chaining of common power or ground signals directly at the terminal block.
Simplified Module Swapping: The carrier separates the field wiring from the active electronics. If an I/O module requires replacement, the wiring remains undisturbed on the IC200CHS025, drastically reducing labor time and eliminating the possibility of wiring errors during service.

FAQs

How does the IC200CHS025 differ from standard horizontal carriers?

The IC200CHS025 utilizes a vertical orientation, which primarily saves horizontal DIN rail space. Standard carriers like the IC200CHS002 mount modules horizontally. Additionally, the CHS025 features an extended operating temperature range for more rugged environments.
Do I need a special tool to operate the spring terminals?

A standard small flat-head screwdriver suffices to depress the spring clamp. Once you insert the stripped wire and release the tension, the internal spring provides a constant, high-pressure contact.
Can I use this carrier with any VersaMax I/O module?

Yes, the IC200CHS025 supports the full range of VersaMax discrete and analog modules. However, verify that your cabinet depth can accommodate the vertical height of the module when plugged into this carrier.
Does this carrier include the internal backplane bus?

Yes. The carrier includes the necessary connectors to link with adjacent carriers, forming a continuous internal communication and power bus for the VersaMax I/O station.
