ABB NTDI01 Digital I/O Termination Unit

3BSE028602R1 ABB DO880 16-Channel 24V Output Block

3BSE028602R1 ABB DO880 16-Channel 24V Output Block

Availability: 10 left in stock

Product Overview The ABB DO880 (3BSE028602R1) functions as a high-integrity 16-channel digital output interface within the S800 I/O family. This...

SKU: DO880

Manufacturer: ABB
Product No.: DO880
Product Type: Digital Output Modules
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

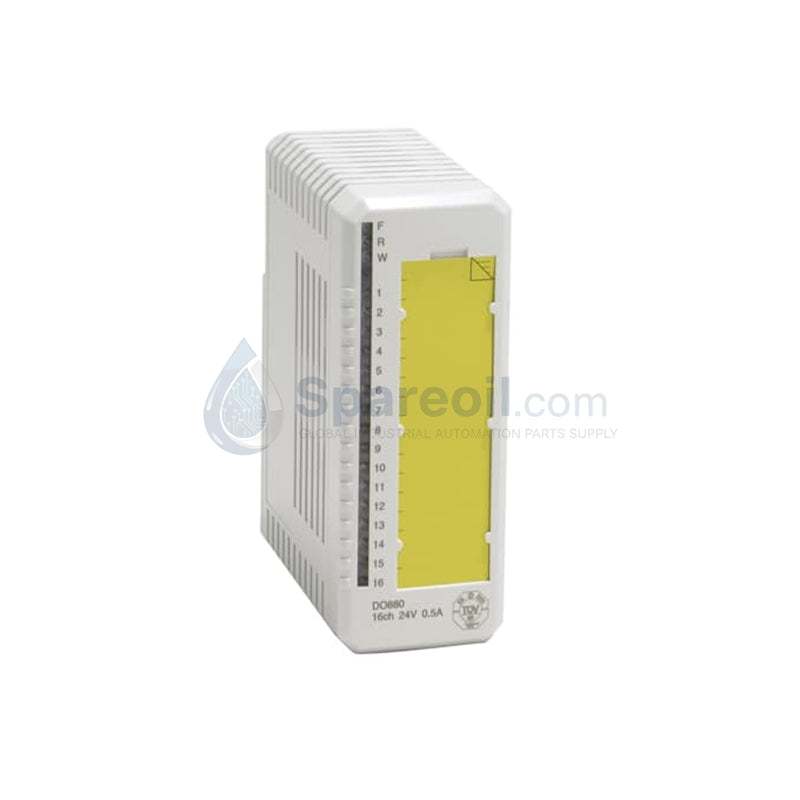

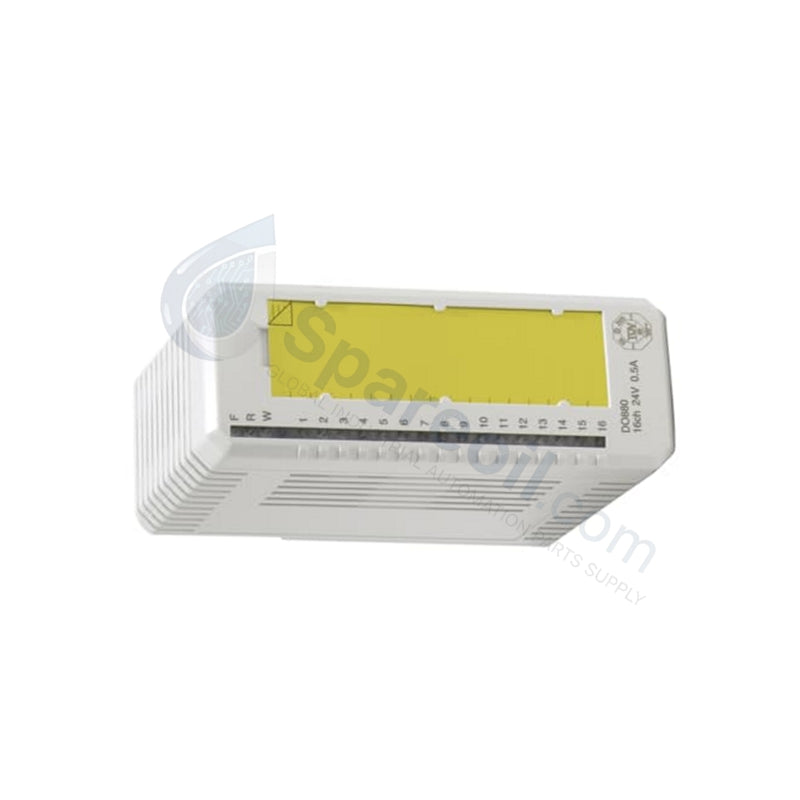

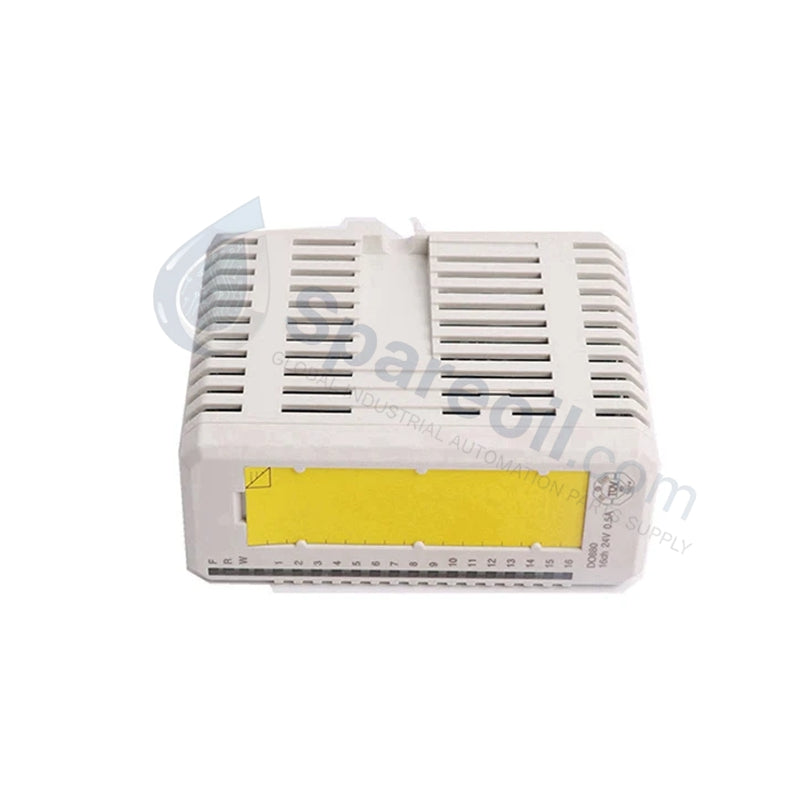

The ABB DO880 (3BSE028602R1) functions as a high-integrity 16-channel digital output interface within the S800 I/O family. This module delivers 24 V DC current-sourcing outputs, specifically engineered for applications requiring SIL3 safety certification or High Availability through redundancy. It serves as a critical link between the System 800xA controller and field actuators, providing robust electrical isolation and sophisticated loop monitoring.

Technical Specifications

This module integrates high-side drivers and comprehensive diagnostic circuitry to ensure continuous operation in demanding process environments.

Feature	Specification Details
Model / Part Number	DO880 / 3BSE028602R1
Output Channels	16 Channels (Sourcing)
Rated Voltage	24 V DC (Range: 19.2V to 32V)
Max Output Current	0.5 A per channel continuous
Safety Certification	IEC 61508 SIL3 / EN 954-1 Category 4
Power Dissipation	5.6 W (at full load)
Isolation	Group isolated from ground / Modulebus
Protection	Short-circuit limiting and over-temperature shutdown
Diagnostics	Loop monitoring, open load, and short circuit detection
MTU Compatibility	TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852

Engineering Advantages

The DO880 solves several critical pain points in modern industrial plant architecture:

Eliminate Unplanned Downtime: The module supports redundant configurations. If the primary module fails, the secondary unit maintains the process state without interruption.
Rapid Fault Localization: On-board LEDs and Modulebus diagnostics report specific errors for each channel. Maintenance teams identify open loads or short circuits instantly, bypassing manual multimeter testing across hundreds of terminals.
High-Integrity Switching: Built-in inductive load suppression eliminates the need for external diodes when driving solenoids or relays. This reduces cabinet space requirements and simplifies field wiring.
Extreme Resilience: Certified for G3 harsh environments (ISA-S71.04), the DO880 resists corrosion in chemical plants and refineries. It maintains a Fault Tolerance of 1 for output drivers, ensuring Normally De-energized (ND) systems remain controllable even during partial hardware errors.

FAQs

Does the DO880 support "Hot Swap" procedures?

Yes, you can replace the DO880 module while the system is energized (Hot Swap) provided you use a compatible redundant MTU (such as the TU842 or TU843). This ensures zero process interruption during hardware maintenance.

What is the difference between "Activated" and "Error" LED states?

The status LED displays a yellow light when the channel output is active (ON). If the internal diagnostics detect a fault such as a short circuit or over-temperature condition, the LED switches to indicate an error state, and the module transmits a warning to the 800xA controller.

Can I use the DO880 for safety-instrumented functions (SIF)?

Absolutely. The DO880 carries TUV certification for SIL3 according to IEC 61508. It effectively manages safety-critical outputs like emergency shutdown valves (ESD) and fire-and-gas system actuators.

Does this module require an external fuse for each channel?

The DO880 includes integrated electronic current limiting and short-circuit protection. While standard engineering practices recommend bulk fusing for the 24V supply, the module inherently protects itself and the field wiring from over-current damage.
