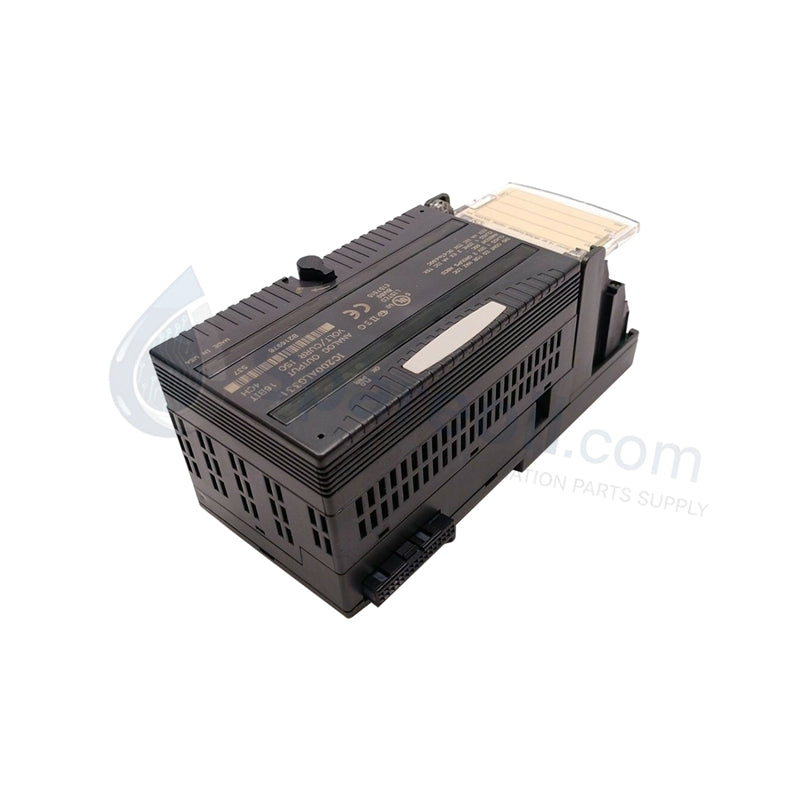

GE Fanuc IC200ALG322D VersaMax Analog Output Module

The GE Fanuc IC200ALG322D, also cataloged as the IC200ALG322D Analog Output Module, operates as a dedicated hardware component for 4-channel voltage control signal conversion within GE VersaMax I/O backplane architectures.

Hardware Specifications

Parameter Specification
Model IC200ALG322D
Brand GE Fanuc / Emerson
Origin USA
Weight 0.20 kg
Dimensions 110 mm x 66 mm x 50 mm
Operating Temp 0 to 60 deg C
Power Consumption 160 mA at 5 VDC (Backplane), 210 mA at 12 VDC (Field)
Module Type VersaMax 4-Point Analog Output Module
Output Range 0 to +10 VDC nominal (10.24 VDC full scale)
Resolution 12 bits (unsigned, 4096 counts)
Isolation Voltage 250 VAC continuous (1500 VAC for 1 minute field-to-backplane)
Channel Count 4 isolated voltage channels
Load Impedance Minimum 5000 Ohms (resistive)
Settling Time Less than 5 ms to 95% full scale change

GE Fanuc Dedicated Backplane Specifications

The IC200ALG322D utilizes high-density backplane bus communication velocity protocol definitions to exchange 12-bit output data registers with the primary CPU. Internal logic maintains galvanic isolation barriers across field power transitions while validating firmware flash compatibility during backplane boot cycles.

Frequently Asked Questions

Q: Can the IC200ALG322D module be inserted or removed under power during system operation?

A: Hot-swapping the module requires caution. While the VersaMax carrier allows module extraction, field power (18-30 VDC) and backplane power must be removed or validated safe to prevent transients on active 0-10 VDC actuator loops.

Q: What happens to the analog outputs if backplane communication fails?

A: Upon loss of backplane communication velocity from the CPU, the module holds the last valid voltage level or resets channels to 0 VDC depending on the carrier system fault mode configuration.

Field Installation Guidelines

Mount the VersaMax carrier securely to a grounded DIN rail prior to module insertion. Ensure all wiring connections to the 4-channel voltage terminals observe proper polarity and shield grounding. Run signal cables in separate conduit from AC power conductors to suppress cross-talk and maintain signal purity. Verify that the external 24 VDC power supply maintains regulated delivery between 18 VDC and 30 VDC. Tighten field wiring screws to recommended torque settings to prevent intermittent electrical contact during thermal expansion.
