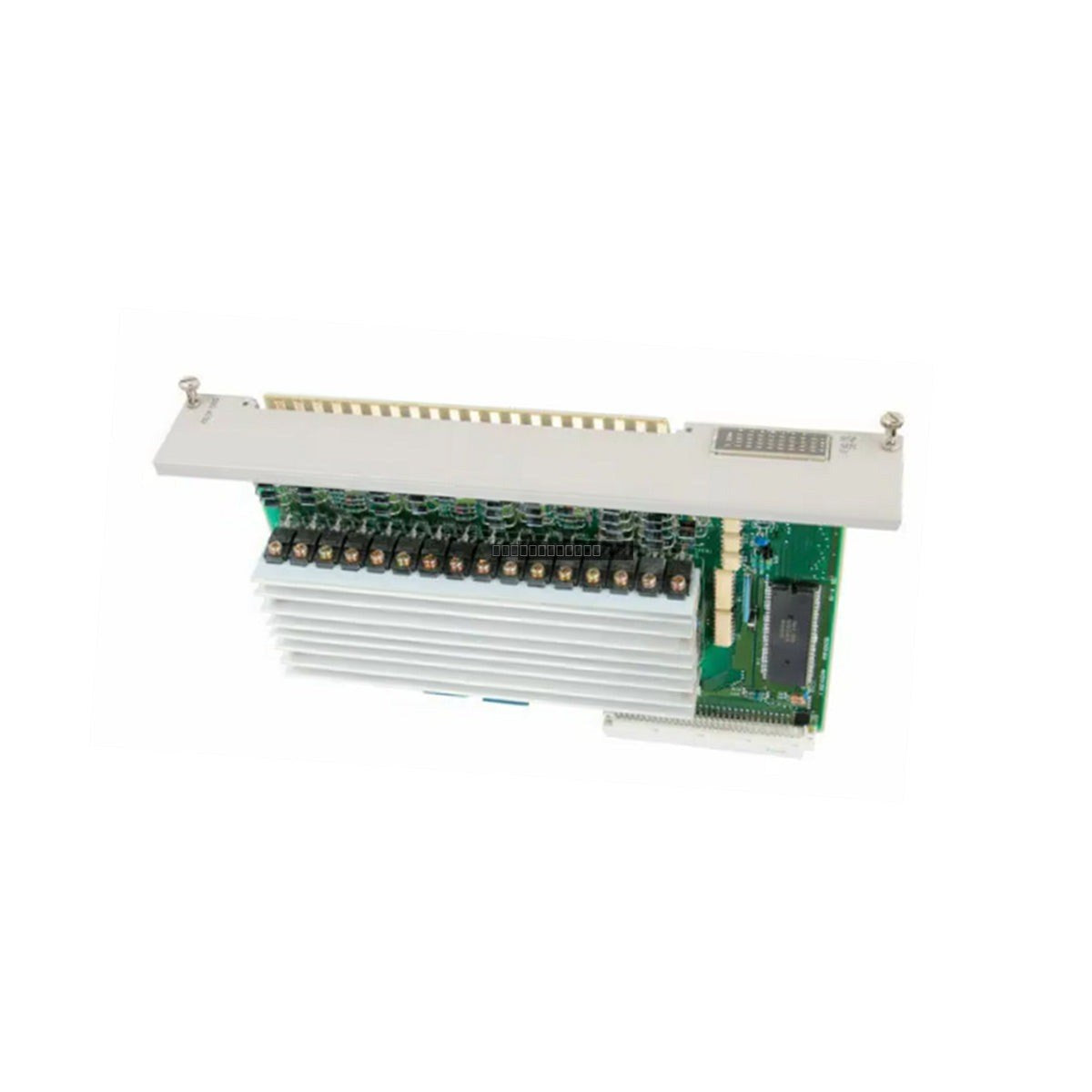

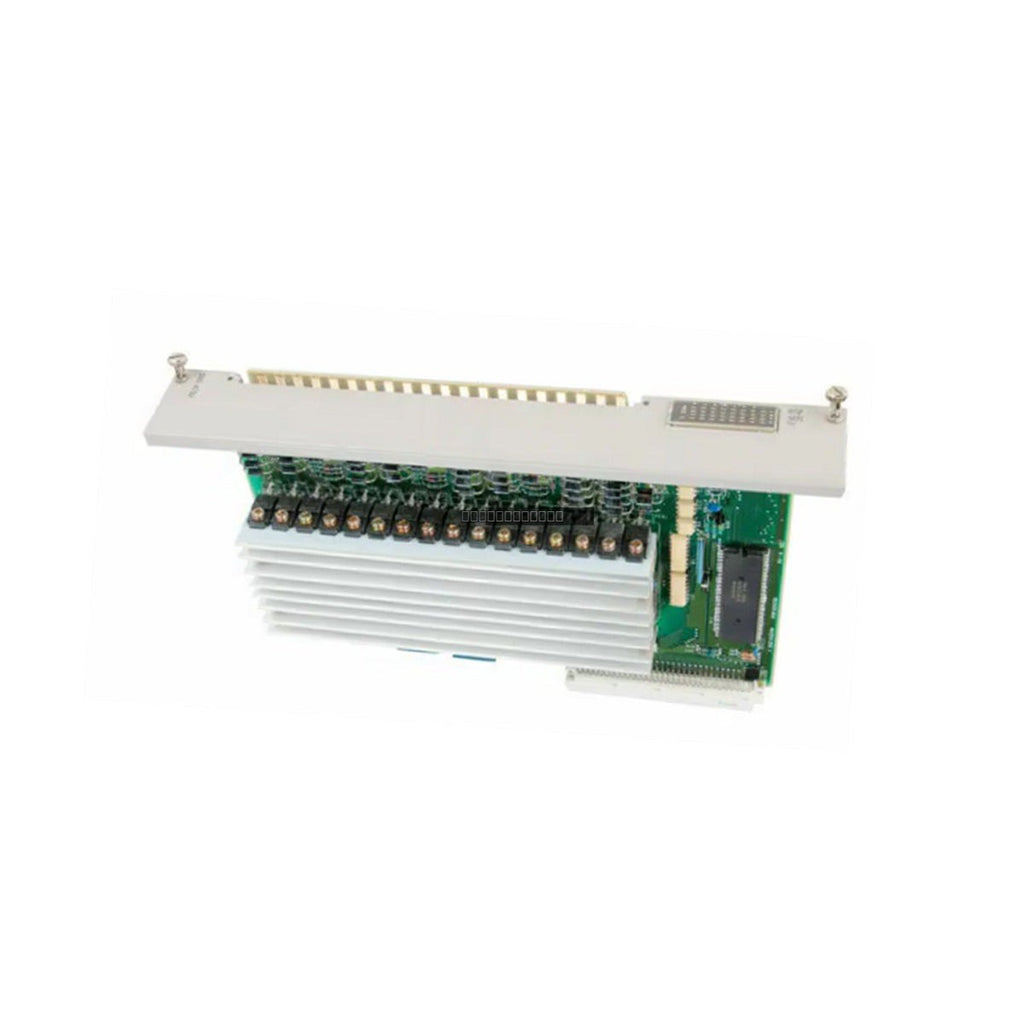

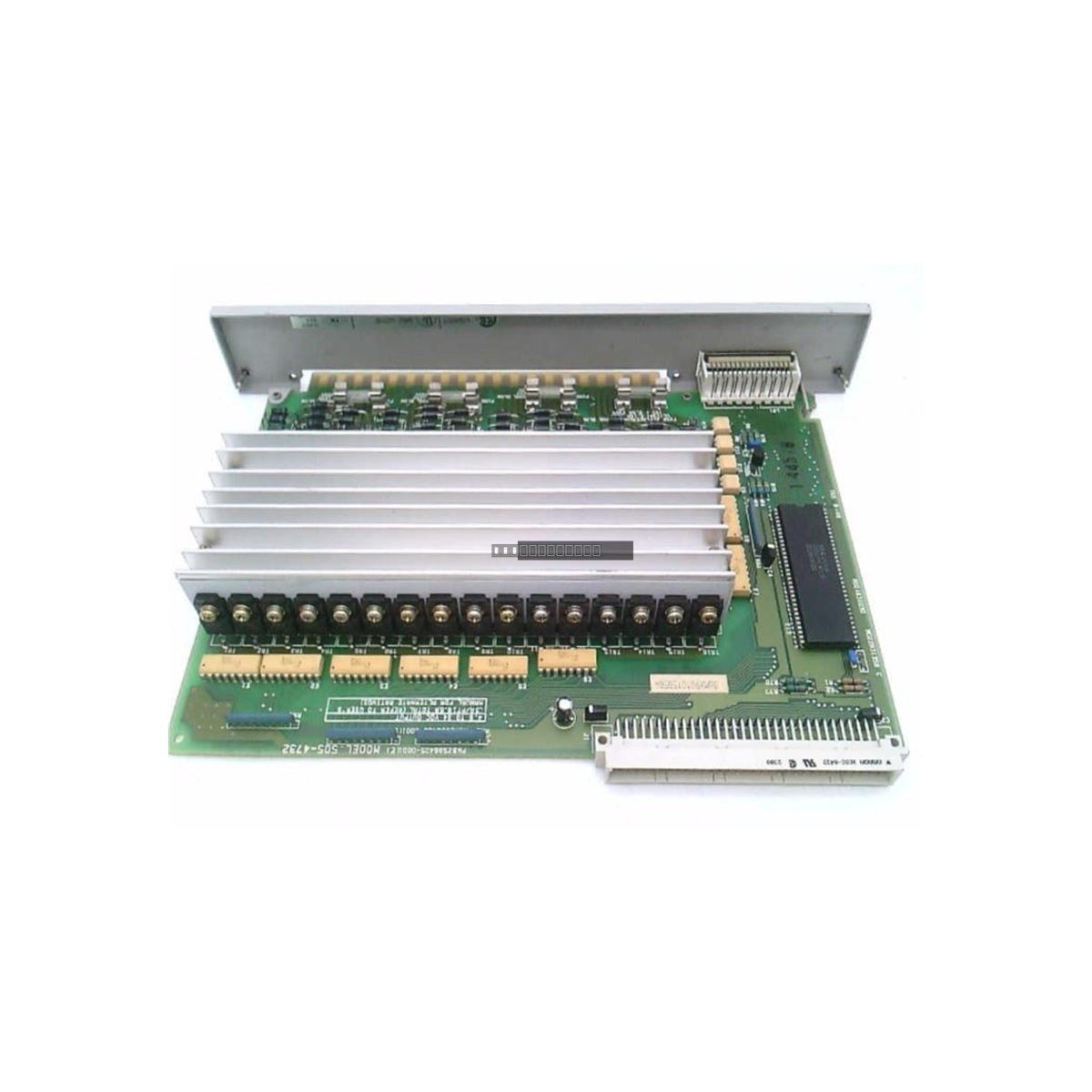

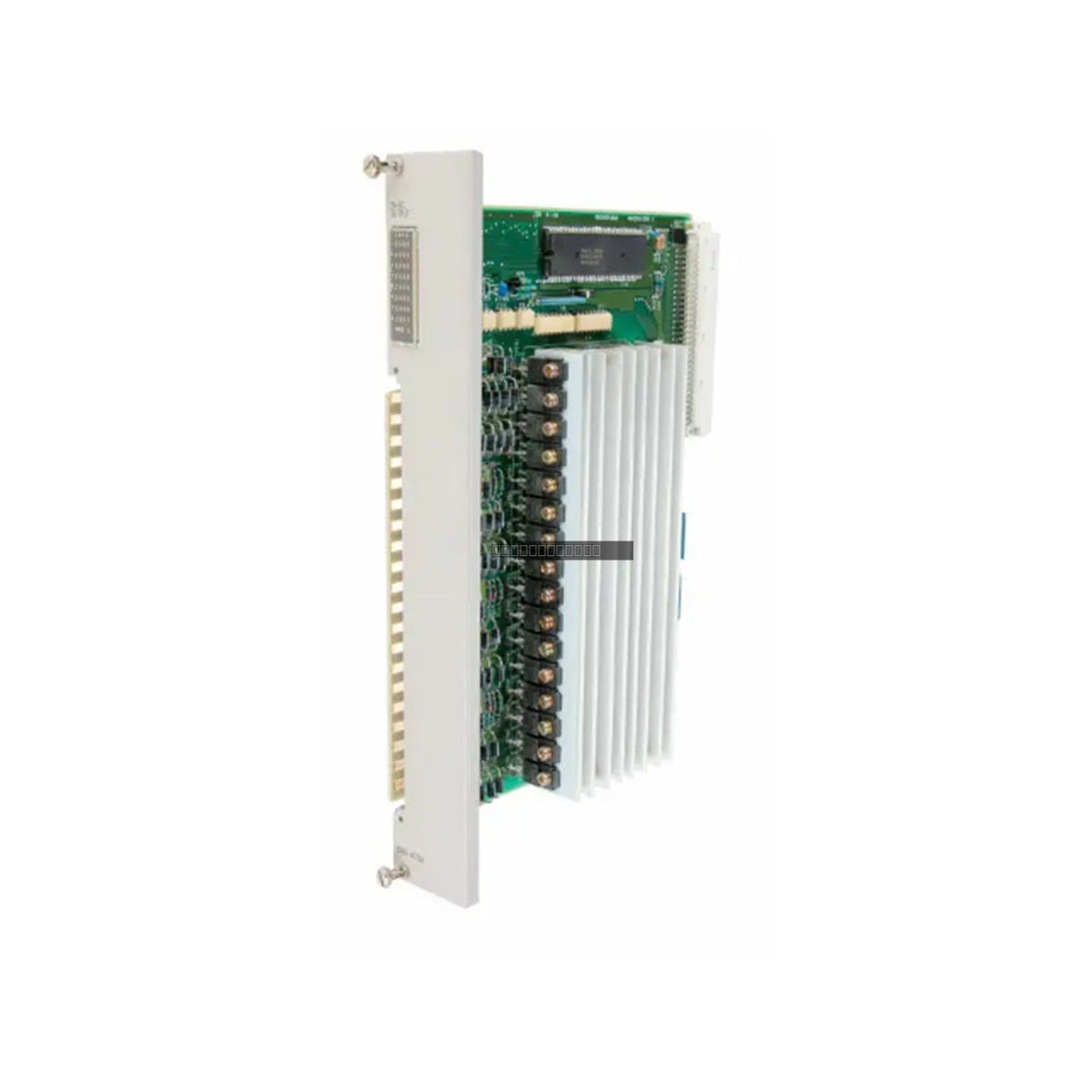

Siemens 505-4732 TI 505 Digital Output Module

Siemens 505-4732 Digital Output Module

Availability: 5 left in stock

DescriptionThe Siemens 505-4732 is a digital output module designed for use within the TI 505 programmable controller series. This module...

SKU: 505-4732

Manufacturer: Siemens
Product No.: 505-4732
Product Type: Digital Output Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 505-4732 is a digital output module designed for use within the TI 505 programmable controller series. This module provides 32 discrete output points, facilitating the control of external field devices such as relays, contactors, or pilot lights. Engineered for industrial environments, this unit operates within a voltage range of 4.5-34VDC, providing flexibility for various low-voltage control applications. Please note that this component has been discontinued by the manufacturer, making it a critical spare for maintaining legacy automation systems.

Features

32-point digital output configuration for high-density signal control.
Wide operating voltage range of 4.5-34VDC.
Designed for seamless integration with the TI 505 PLC backplane architecture.
Robust construction suitable for standard industrial control panels.

Technical Specifications

Product Model	505-4732
Manufacturer	Siemens
Module Type	Digital Output Module
Output Points	32
Voltage Range	4.5-34VDC
Tariff Code	8538903000

Installation Guidelines

Ensure the PLC rack power is completely disconnected before attempting to insert or remove the module to prevent electrical damage.
Verify that the module is correctly seated in the backplane slot and that the retaining screws are tightened to ensure a secure physical connection.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry to prevent component failure.
Ensure field wiring is properly shielded and routed away from high-voltage AC lines or heavy inductive loads to minimize electromagnetic interference (EMI).
Verify that the external power supply connected to the output points does not exceed the 34VDC maximum rating.

FAQ

Is the 505-4732 still in production? No, this module has been discontinued by Siemens. We provide these units as refurbished or surplus spare parts to support legacy infrastructure.

What is the primary function of this module? The 505-4732 is a digital output module used to interface the PLC processor with external DC-powered field devices, allowing the controller to send discrete commands to the plant floor.
