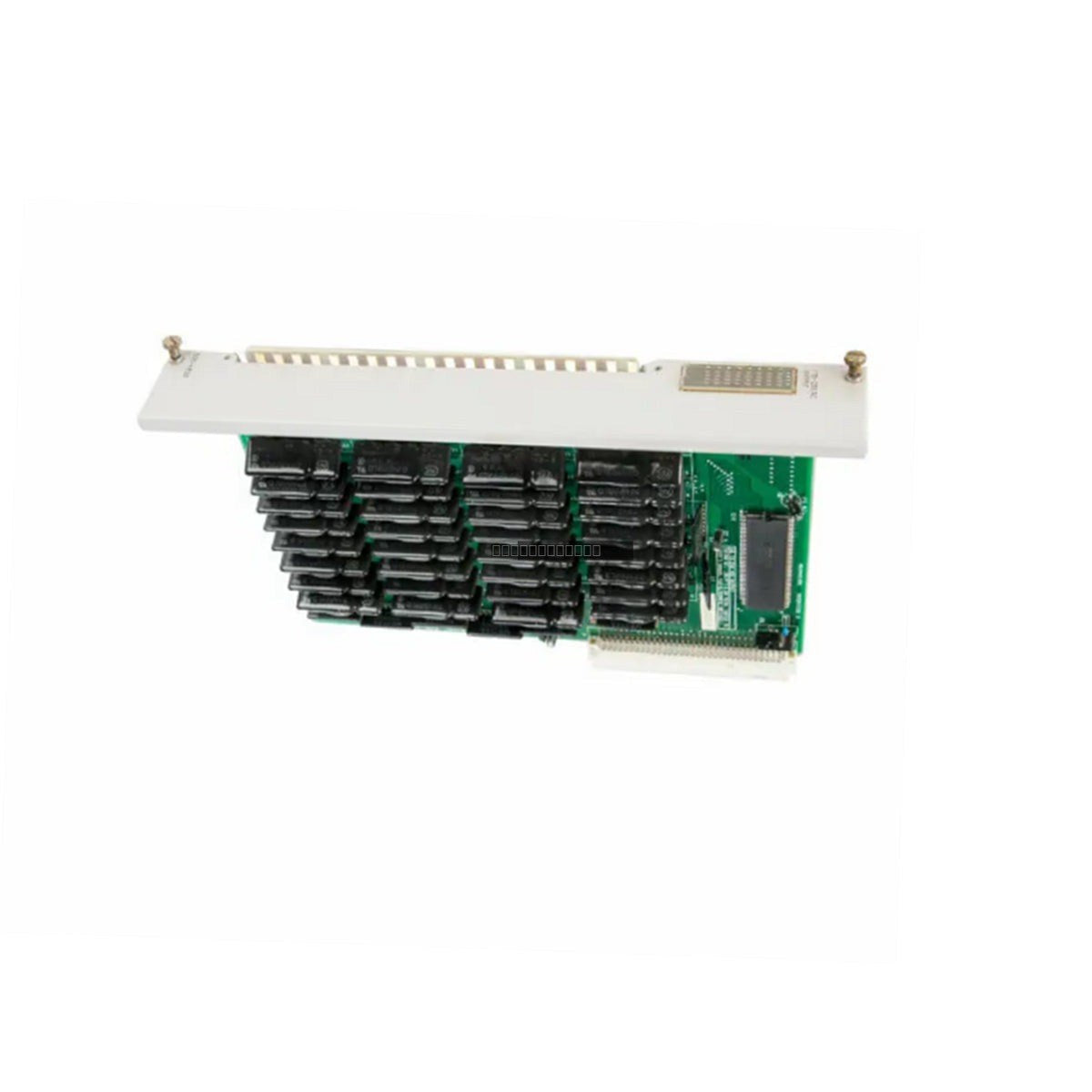

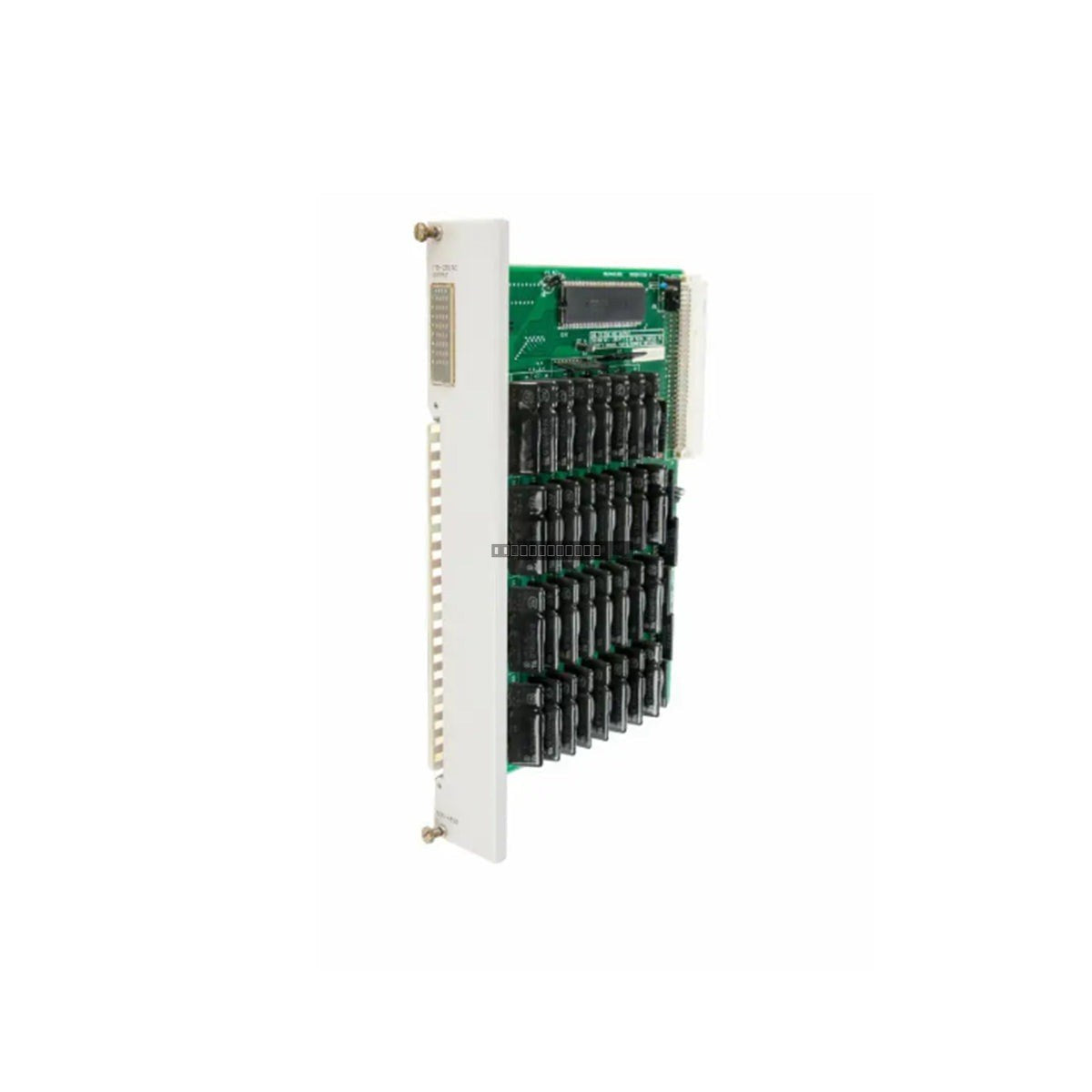

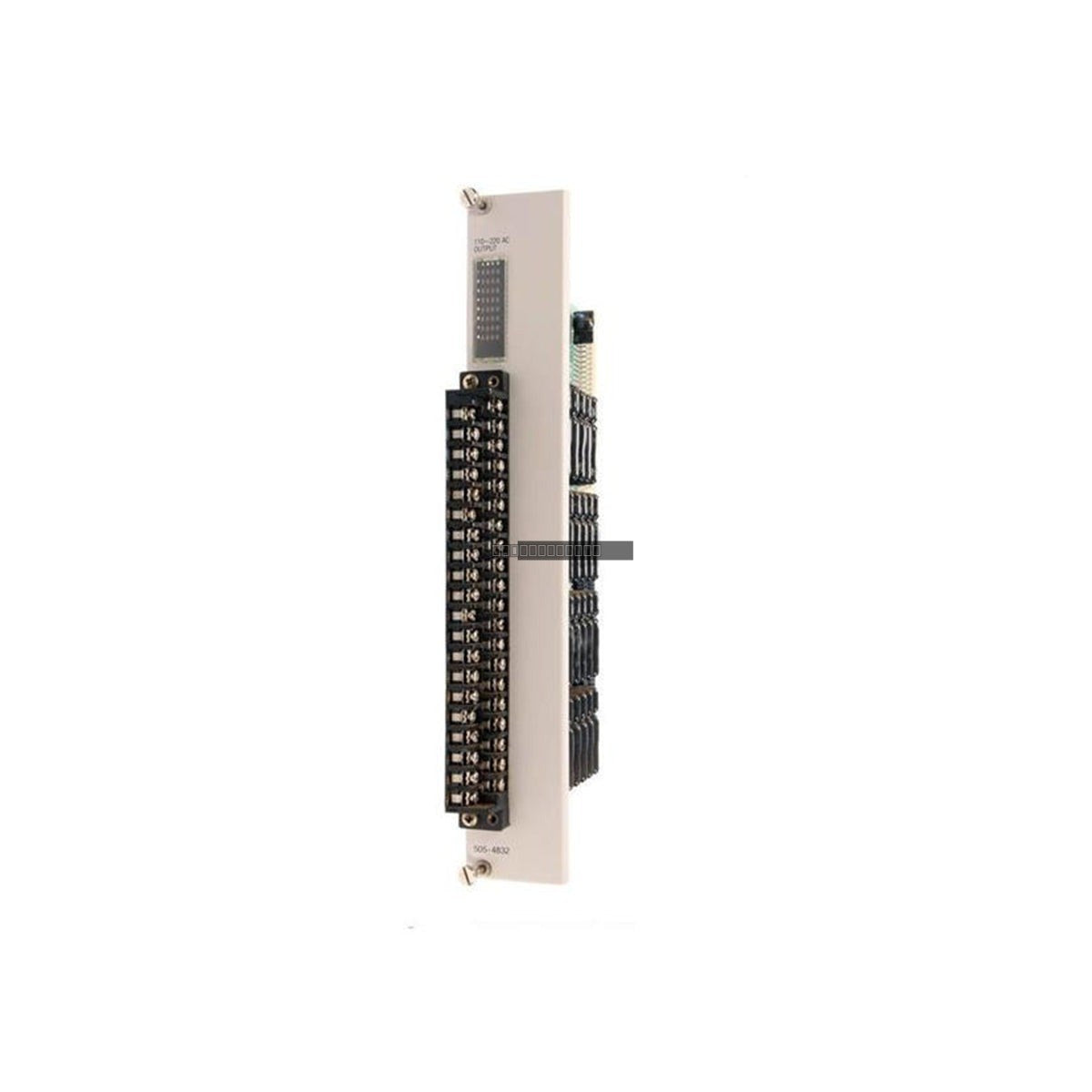

Siemens 505-4832 SIMATIC 505 Digital Output Module

Availability: 6 left in stock

DescriptionThe Siemens 505-4832 is a high-density digital output module engineered for integration within the SIMATIC 505 PLC architecture. This module...

SKU: 505-4832

Manufacturer: Siemens
Product No.: 505-4832
Product Type: Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 505-4832 is a high-density digital output module engineered for integration within the SIMATIC 505 PLC architecture. This module provides 32 individual AC output points, supporting a wide operating voltage range of 85-256 VAC. It is designed to manage high-voltage industrial loads, including solenoids, motor starters, and lighting systems, making it a reliable solution for legacy control systems in demanding sectors such as mining, water treatment, and petrochemical processing.

Features

32 discrete AC output channels for high-density I/O configurations.
Wide operating voltage range (85-256 VAC) compatible with standard industrial power supplies.
Built-in protection circuitry designed to mitigate the effects of switching transients and inductive loads.
Front-panel LED indicators for immediate visual status verification of individual output points.
Optimized for space-constrained cabinets by delivering high point density in a single module slot.

Applications

This module is widely employed in legacy TI 505 and SIMATIC 505 control environments. It is suitable for automated processes requiring high-voltage switching, such as large-scale industrial machinery control, municipal utility infrastructure, and refinery automation where long-term system stability is essential.

Technical Specifications

Model	505-4832
Manufacturer	Siemens
Module Type	Digital Output Module
Output Points	32 Points
Voltage Range	85-256 VAC (47-63 Hz)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Weight	0.7 kg

Installation Guidelines

Ensure the PLC rack power is disconnected before installing or removing the 505-4832 module to prevent electrical damage.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to protect internal components.
Verify that field wiring is routed away from high-EMI sources to maintain signal integrity.
Ensure proper seating in the backplane connector before securing the module to the rack.
Check that field device power matches the specified 85-256 VAC range before commissioning.

FAQ

What is the primary function of the 505-4832?

The 505-4832 serves as a high-density digital output module for the SIMATIC 505 PLC, allowing the controller to switch 32 independent AC loads simultaneously.

Is this module still in production?

No, the 505-4832 is a discontinued component. It is primarily sourced for the maintenance and repair of existing legacy control systems.

Can this module handle inductive loads?

Yes, the module is designed with internal protection circuitry specifically to handle the switching transients associated with inductive loads like solenoids and motor starters.
